• Model NO.：PEC-100
• Feeding Accuracy：0.3mm
• Support Format：Plt, Dxf, etc.
• Machine Power：2.5 Kw
• Motor：Japan Imported Servo Motor
• Rail Screw：Taiwan Tpi
• Blade Size：Thickness: 0.71mm , 1.07mm (0.45mm , 0.53mm Option
• Bridge Height：15mm , 18mm
• Maximum Bending Angle：110 Degree
• Transport Package：Sea-Worthy Packing or Air-Worthy Packing for Die B
• Specification：CE
• Trademark：perfect laser
• Origin：China
• HS Code：8462219000
• Production Capacity：500sets,Year

Basic Info.

Model NO. PEC-100 Feeding Accuracy 0.3mm Support Format Plt, Dxf, etc. Machine Power 2.5 Kw Motor Japan Imported Servo Motor Rail Screw Taiwan Tpi Blade Size Thickness: 0.71mm / 1.07mm (0.45mm / 0.53mm Option Bridge Height 15mm / 18mm Maximum Bending Angle 110 Degree Transport Package Sea-Worthy Packing or Air-Worthy Packing for Die B Specification CE Trademark perfect laser Origin China HS Code 8462219000 Production Capacity 500sets/Year

Product Description

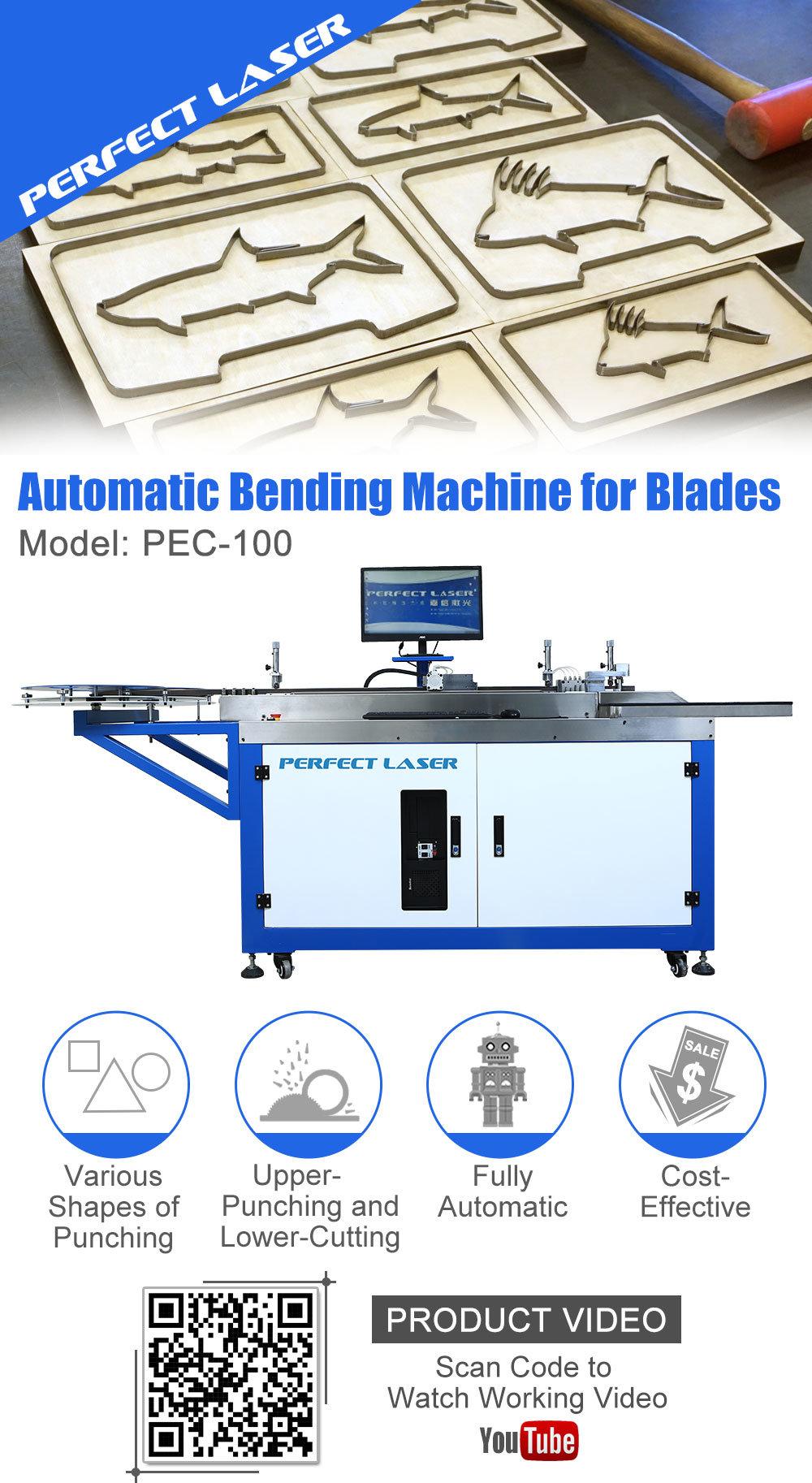

Automatic steel rule die bending machine For Die Cutting
(Model : PEC-100)

Contact:NicoleProduct Introduction of die bending machine:
The PEC-100 automatic bending machine for blades can work with die board cutting machine, for bending the blade embedded in the die board.
This auto blade bending machine mainly consists of a feeding shaft, a bending shaft and a cutting shaft.
The feeding shaft feeds the blade forward and backward where the bending shaft then bends the blade clockwise or counterclockwise, lastly the cutting shaft punches out the blade in shape of bridge, straight cut, eagle mouth or blade cut. This whole process is controlled by a computer.
The launching of steel rule auto bender has made significant contributions to the printing, packaging, food, cartons, stickers and many other industries.




Product Application of die bending machine:

1.Applicable materials:
This automatic bending machine for blades is widely used in thin sheet metal materials required for the production of molds, such as: color boxes, cigarette cases, electronic products, button panels, and biscuits.
2.Applicable industries:
This auto blade bending machine is widely used in packaging, laser die, blister die, lighting die, manual die and many other industries.






Main Features of die bending machine:
1. Unique professional design helps achieve powerful bending editing functions. A variety of operations such as bending, bridge and eagle mouth can be finished on only one automatic bending machine for blades, which greatly reduces labor costs and improves working efficiency.

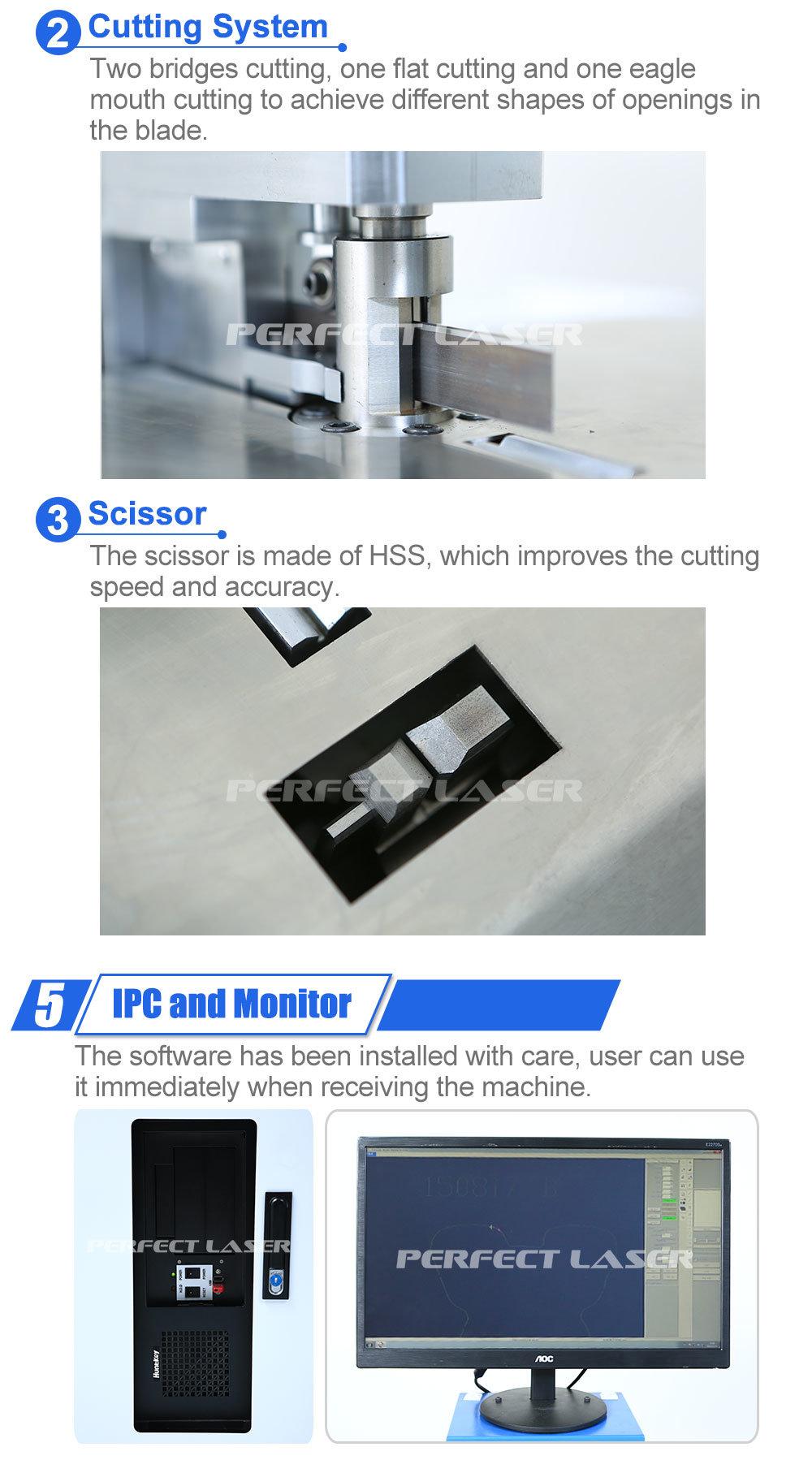

2. The auto blade bending machine adopts one-time cutting after bending. The scissor is made of HSS, which improves the cutting speed and accuracy. Precision eagle mouth cutting function can achieve seamless operation.
3. The steel rule auto bender won't curl the edge of the blade for its processing method of upper-punching and lower-cutting, which overcomes the shortcomings of traditional only one-knife cutting that cannot be applied to the sticker industry due to the edge curling.
4. This automatic bending machine for blades is equipped with two blade plates, which makes it easier to place two different specifications of blades.
5. This auto blade bending machine adopts Japan's high-performance servo motor and imported mold-steel bending mold with fast speed and high precision, which is suitable for making complex graphics, such as: meticulous box mold, cartoon mold and doll mold.

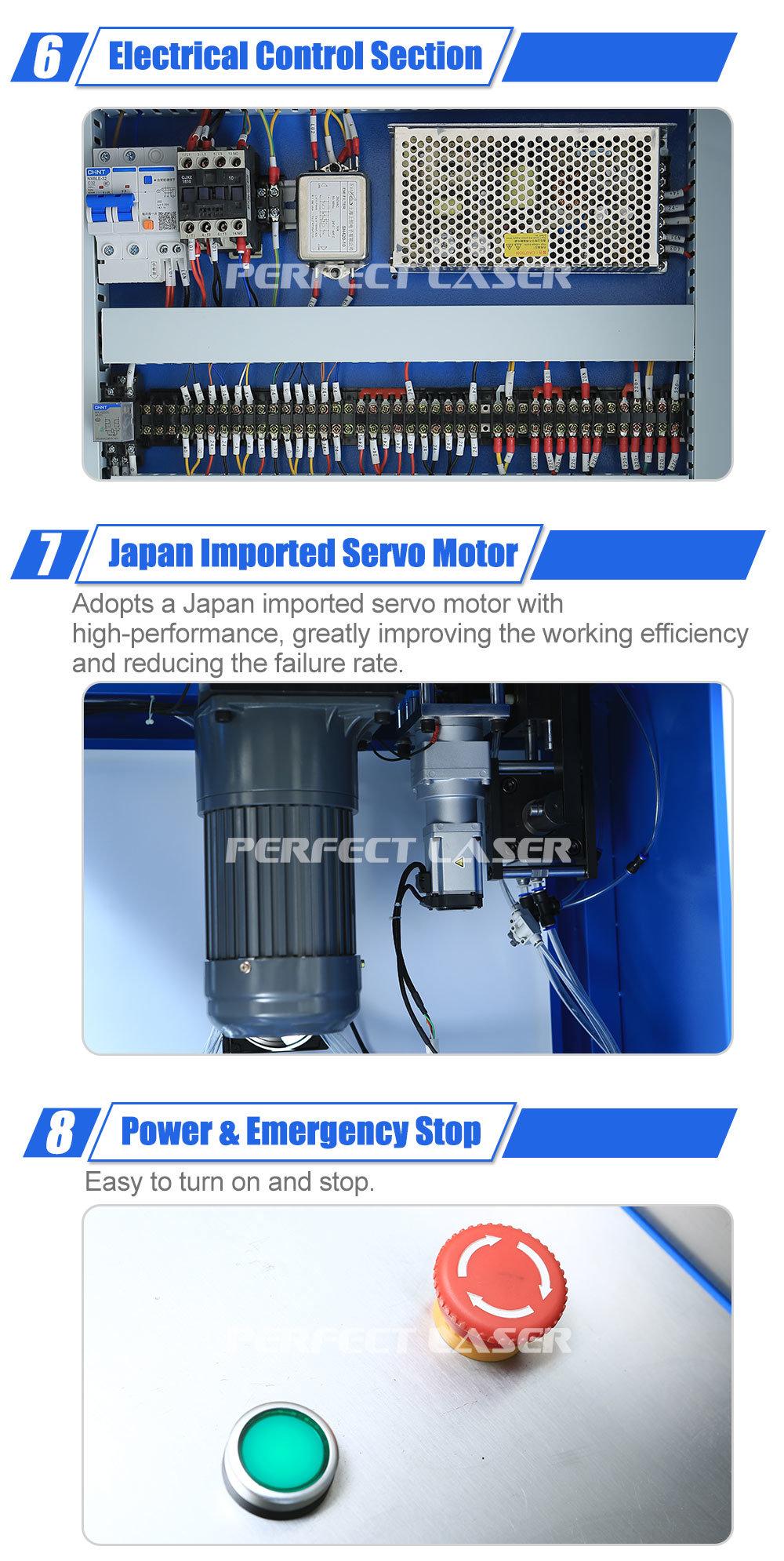

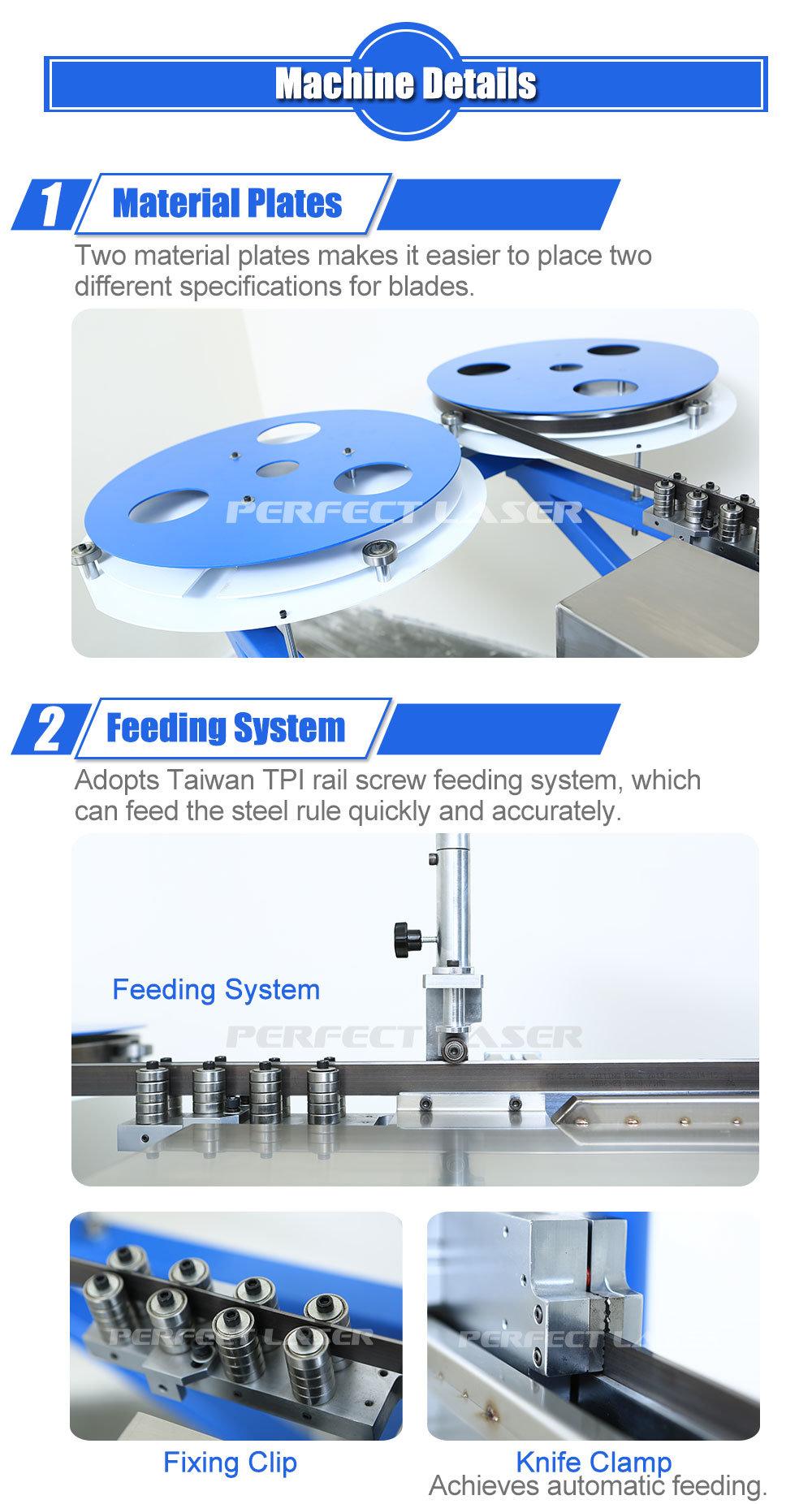

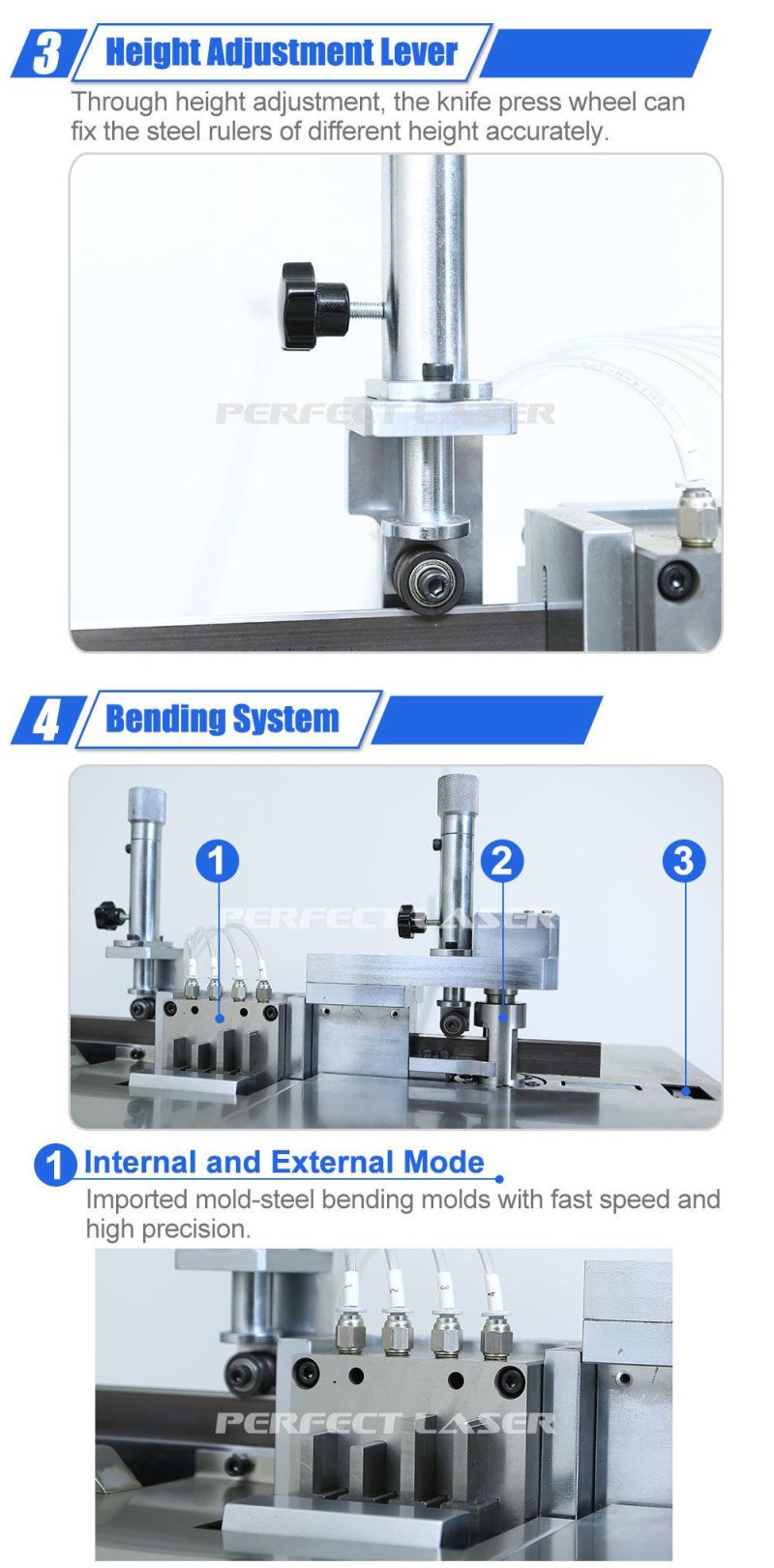

Machine Details of die bending machine:





Technical Data of die bending machine:

Device Name	Auto Blade Bending Machine
Model	PEC-100
Feeding Accuracy	±0.3mm
Maximum Bending Angle	110°
Motor	Feeding, bending: Japan imported servo motor, 400W x 2 Bridge: 750W x 1
Rail Screw	Taiwan TPI
Blade Size	Thickness: 0.71mm / 1.07mm (0.45mm / 0.53mm optional); Height: 23.8mm (conventional), can up to 30mm;
Bridge Height	15mm / 18mm
Air Compressor Pressure	0.5-0.8mpa
Tracheal Diameter	10mm
Optional Device	Feeding table cover
Support File Format	DXF
Total Power	1.5 KW
Voltage	AC/ 220V / single phase
Dimension	2800 x 730 x 1310mm

Working videos:
die bending machine PEC-100:   https://youtu.be/LSEjhPdd9Jw
