Cutting & Fold-bend Machine

Home > Product > Knife Cutting Machine

Senke CNC Router Non -Metal Foam Leather Cloth Fiber Glass Knife Cutting Machine

Jinan Senke CNC Machine Co., Ltd.
  • After-sales Service：2 Years
  • Waterproof Rating：According Your Needs
  • Warranty：2-year
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Control：Automatic

Base Info

  • Model NO.：SKN-1325
  • Application：Paper, Plastic, Leather, Fabric
  • Power Source：Electric
  • Layout：Vertical
  • X,Y,Z Working Area：1300*2500mm
  • Max Cutting Thickness：30mm
  • X Y Axis Drive and Motor：Servo Driver and Servo Motor
  • HMI：Industrial Touch Screen
  • Working Voltage：AC 220V , 380V
  • Rated Power：4kw
  • Data Transmission Interface：Ethernet
  • Transport Package：Wooden Box
  • Specification：1300*2500mm
  • Trademark：SENKE
  • Origin：China
  • HS Code：8465990000
  • Production Capacity：100set,Month

Description

Basic Info.

Model NO. SKN-1325 Application Paper, Plastic, Leather, Fabric Power Source Electric Layout Vertical X,Y,Z Working Area 1300*2500mm Max Cutting Thickness 30mm X Y Axis Drive and Motor Servo Driver and Servo Motor HMI Industrial Touch Screen Working Voltage AC 220V / 380V Rated Power 4kw Data Transmission Interface Ethernet Transport Package Wooden Box Specification 1300*2500mm Trademark SENKE Origin China HS Code 8465990000 Production Capacity 100set/Month

Product Description

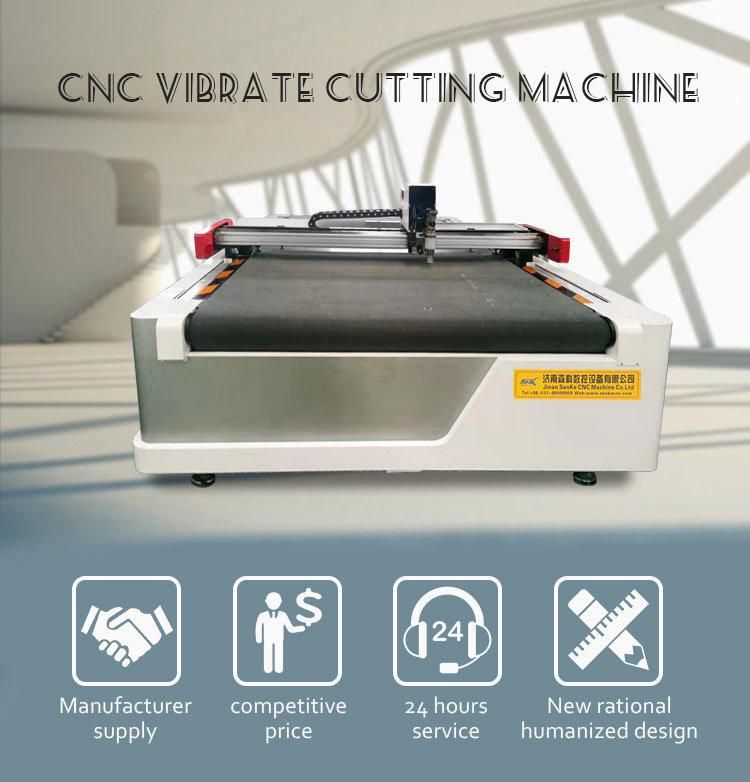

CNC Router Non -Metal  Foam Leather Cloth  Fiber Glass Knife Cutting Machine

Product Introduction

Digital knife cutting machine suitable for leather, fabric, textile, cardboard, plastic box, fiber glass, corrugated cardboard, sticker,
film, foam board, rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, seat cover,
carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Senke CNC Router Non -Metal Foam Leather Cloth Fiber Glass Knife Cutting Machine
Specification

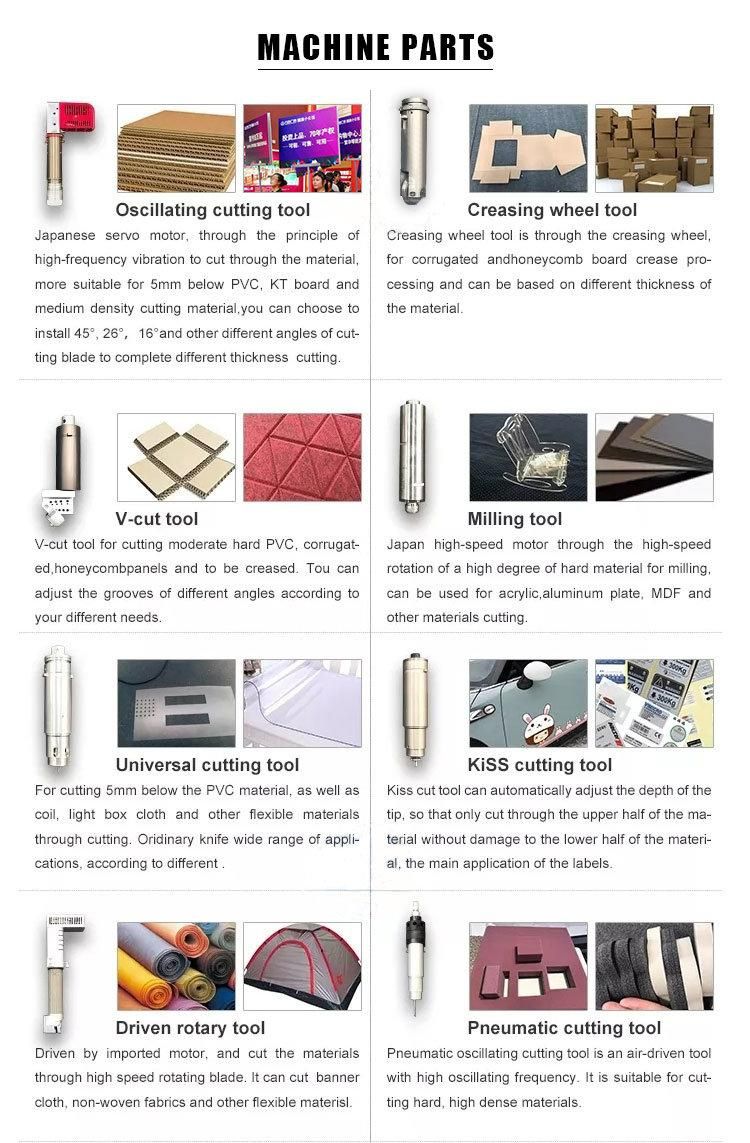

Oscillating knife X,Y,ZOscillating knife head
working area1300*2500mm (1325)
Max Cutting thickness30mm
Moving speed1200mm/s Maximum 1500mm/s
X Y axis drive and motorServo driver and Servo motor
X, Y, ZTravelling Potioning±0.01mm Accuracy
Industrial touch screenHMI

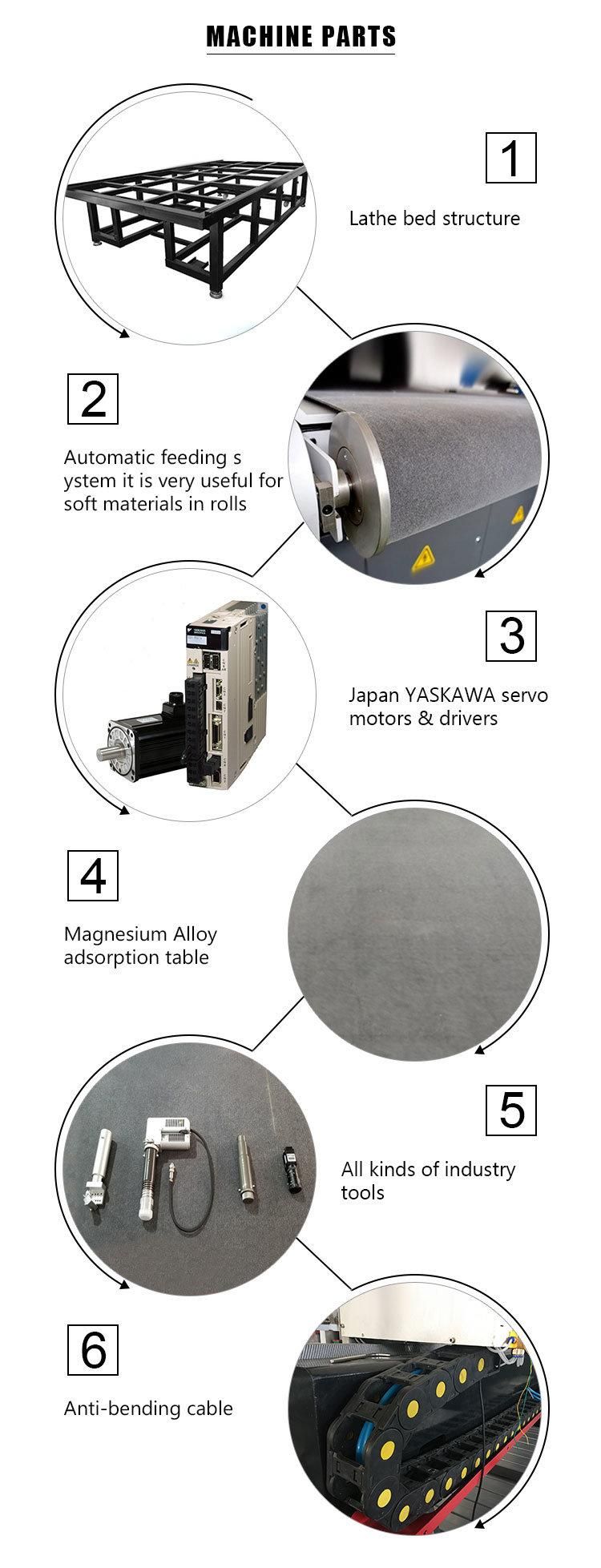

X, Y structureTaiwan Hiwin linear rail+ Helical rack driving for XY axis
Z axis structureTaiwan Hiwin linear rail +Helical rack driving for Zaxis
Working voltageAC220V/380V
Rated power4kw
Control systemIndustrial touch screen+Operation platfom +data output control
Data transmission interfaceEthernet
Switch and emergency stopSCHNERDER switch, Omron emergency stop from Japan
vacum pumpVacuum absorb table+ 9KW vacuum pump
