• Model NO.：STB-25CNC-5A
• Type：Pipe and Tube Bending Machine
• Electric Axis：5 Axis
• CNC System：Mitsubishi
• Tools Stack：3 Stacks
• Control Type：Ipc
• Transport Package：Polywood Case
• Specification：LWH: 3800× 1100× 1500mm, GW: 1200kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. STB-25CNC-5A Type Pipe and Tube Bending Machine Electric Axis 5 Axis CNC System Mitsubishi Tools Stack 3 Stacks Control Type Ipc Transport Package Polywood Case Specification LWH: 3800× 1100× 1500mm, GW: 1200kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

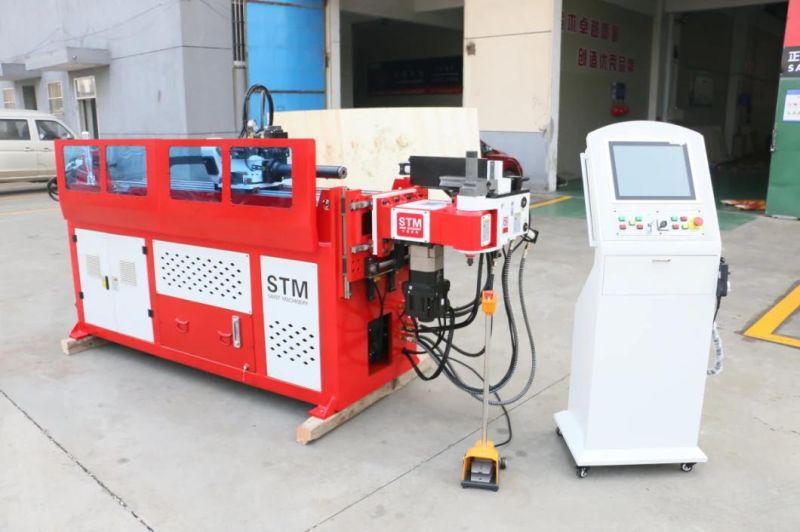

Product Description

1. Bend-arm (C-axis) by AC servomotor.
2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.

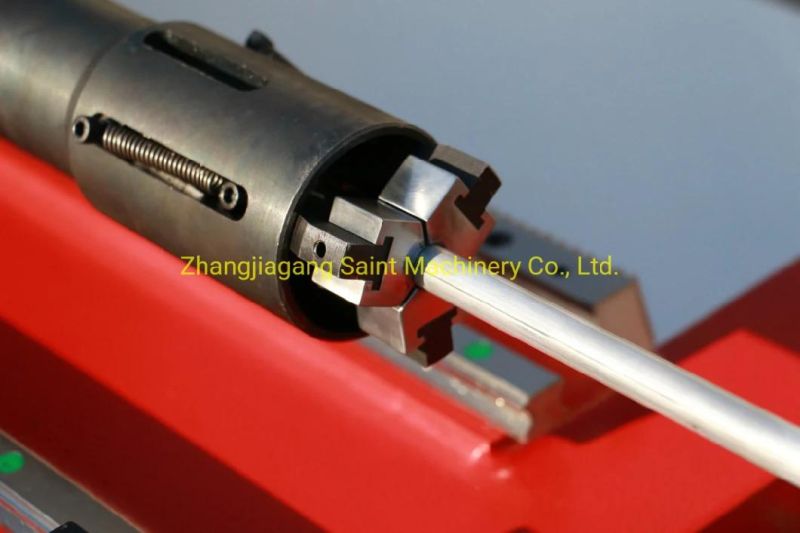

5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Tooling shift : motion up-down by hydraulic, left-right by AC servomotor.
8. Automatic moving parts lubrication.

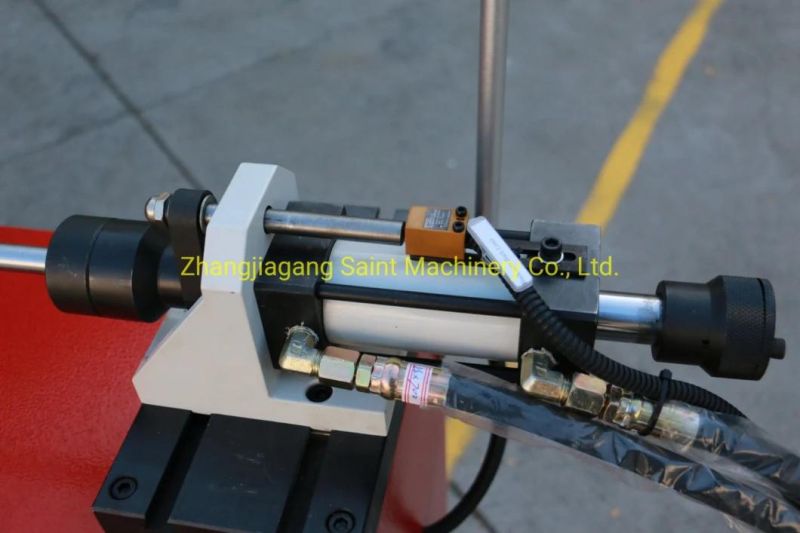

9. Anticipated mandrel retraction unit.
10. Standing pedestal, serves emergency stop and remote control.
11. Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control (TeamViewer)
12. Optional: 3D bending simulation and collision prevention
13. Optional: auto loading and unloading system.



Model	STB-25CNC-5A-3S
Max bending capability OD×WT (carbon steel)	Φ25.4×1.6 mm
Bending radius	25~160 mm
Bending angle	0~190°
Max bending length with mandrel	2200mm
Bending speed	150°/sec
Bending accuracy	±0.1°
Feeding speed	20~900 mm/sec
Feeding accuracy	±0.1 mm
Rotating speed	320°/sec
Rotating accuracy	±0.1°
Tools stack	3
Bending	Electric Servomotor
Feeding/Booster	Electric Servomotor
Rotating	Electric Servomotor
Work head shift (horizontal)	Electric Servomotor
Work head shift (vertical)	Electric Servomotor
Main motor power	4 KW
System hydraulic pressure	12 MPa
Size	3800×1100×1500mm
Weight	1200 kg
