• Model NO.：HPB 400T6000
• Max Bending Width：6000mm
• Max Bending Thickness for 6m Sheet：8mm
• Poles Distance：4600mm
• Main Power：30kw
• Weight：40ton
• Throat Depth：400mm
• Control Panel：Da53t
• Main Motor：Siemens
• Main Electrical Components：Schneider
• Backgauge：Ball Screw and Linear Guide Rail
• Grating Ruler：Givi
• Hydraulic Pump：Sunny
• Hydraulic Valve：Rexroth
• Transport Package：Covered with Plastic Films
• Specification：6500x2810x4500
• Trademark：LZK
• Origin：China
• HS Code：8462219000
• Production Capacity：100set,Month

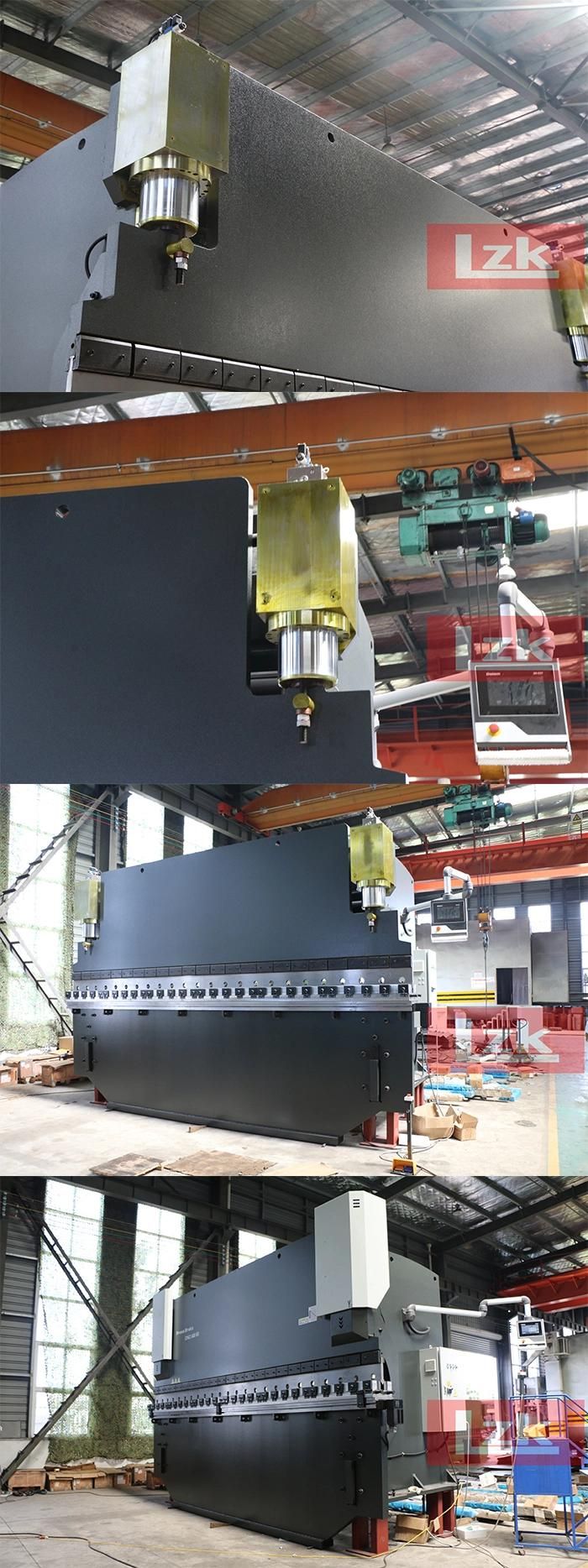

1. Machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.2. Machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.

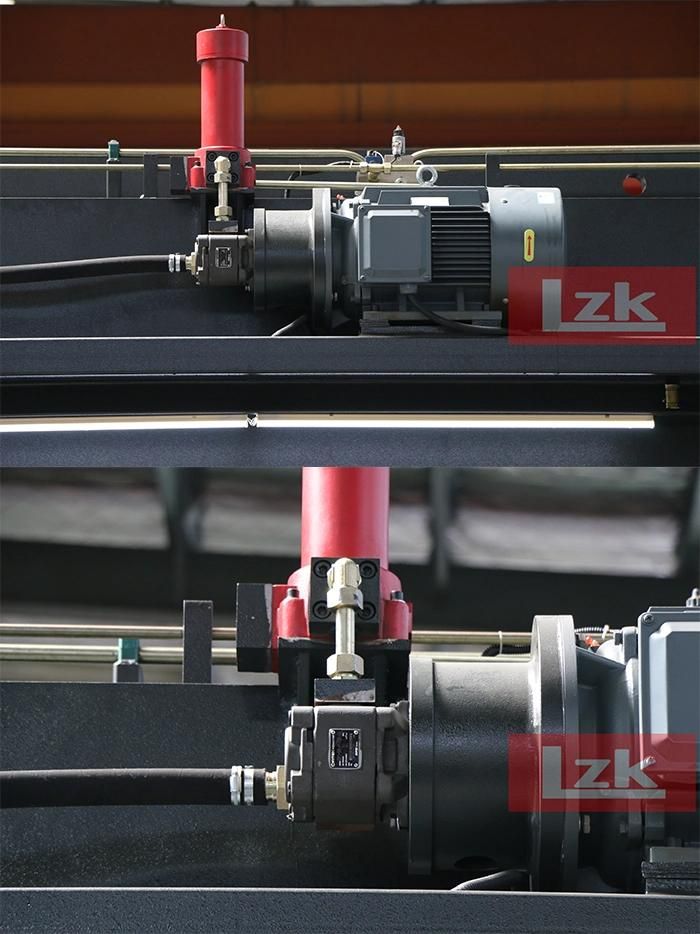

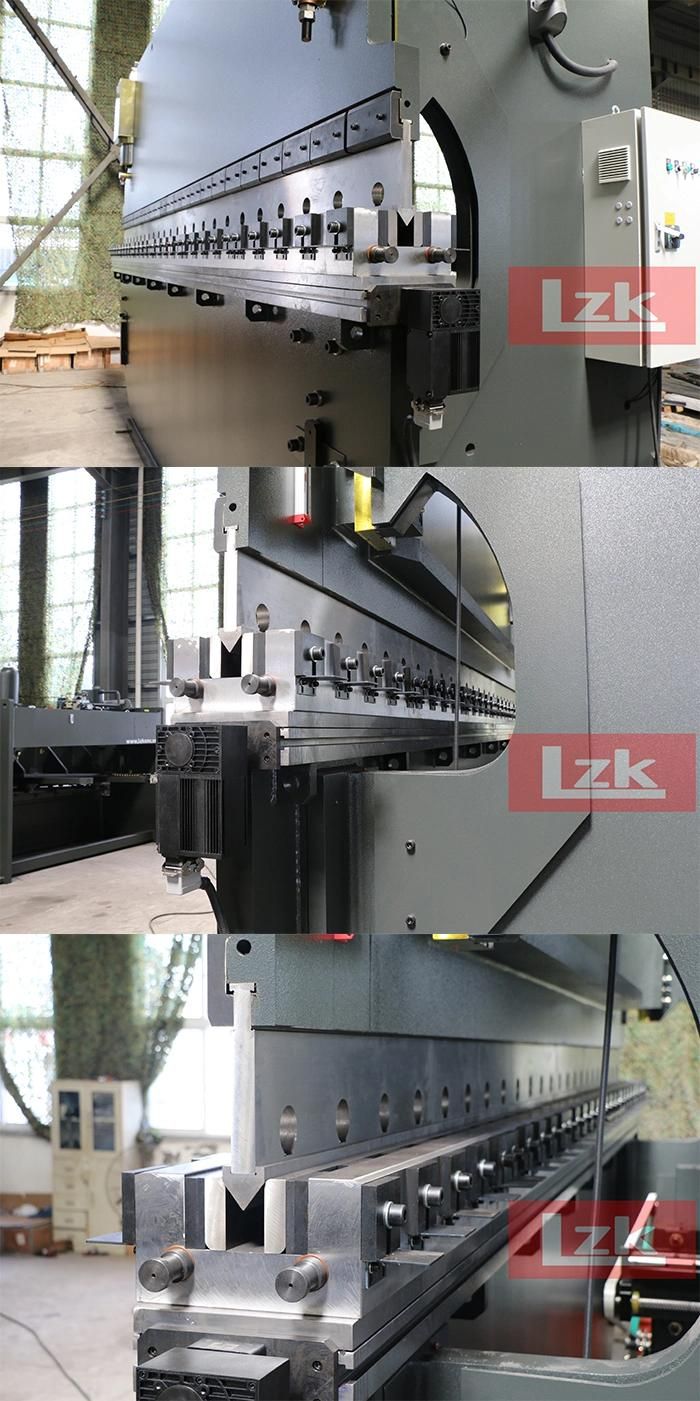

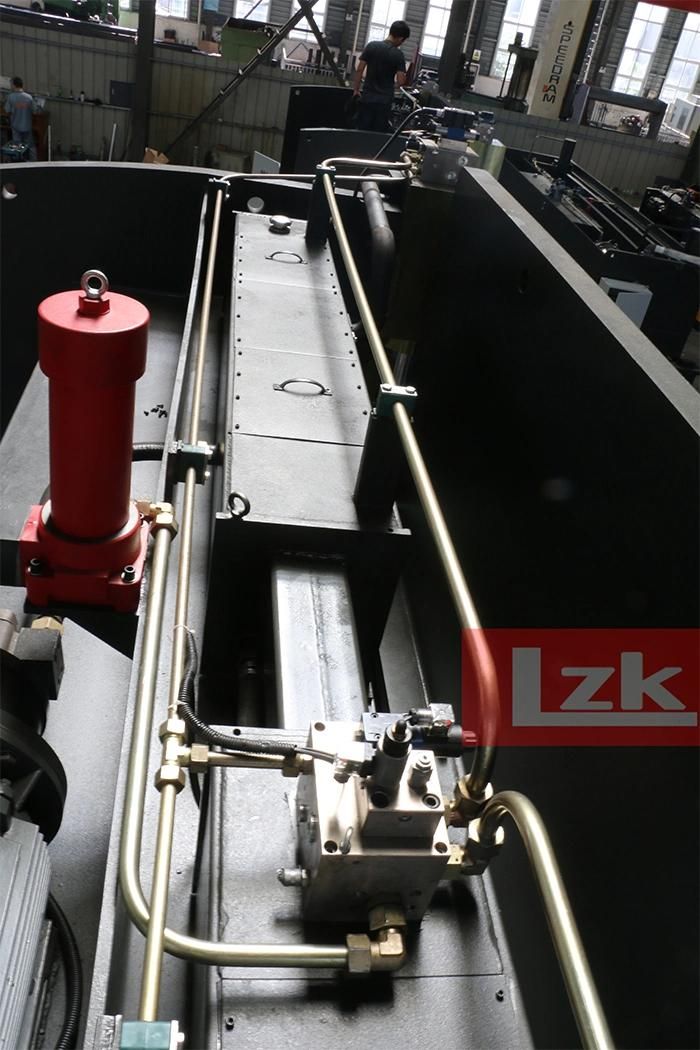

Main motor with SiemensSunny oil pumpNice tupe connectorBosch-Rexroth hydraulic systemCustomized punch and dieGood quality hydraulic cylinders

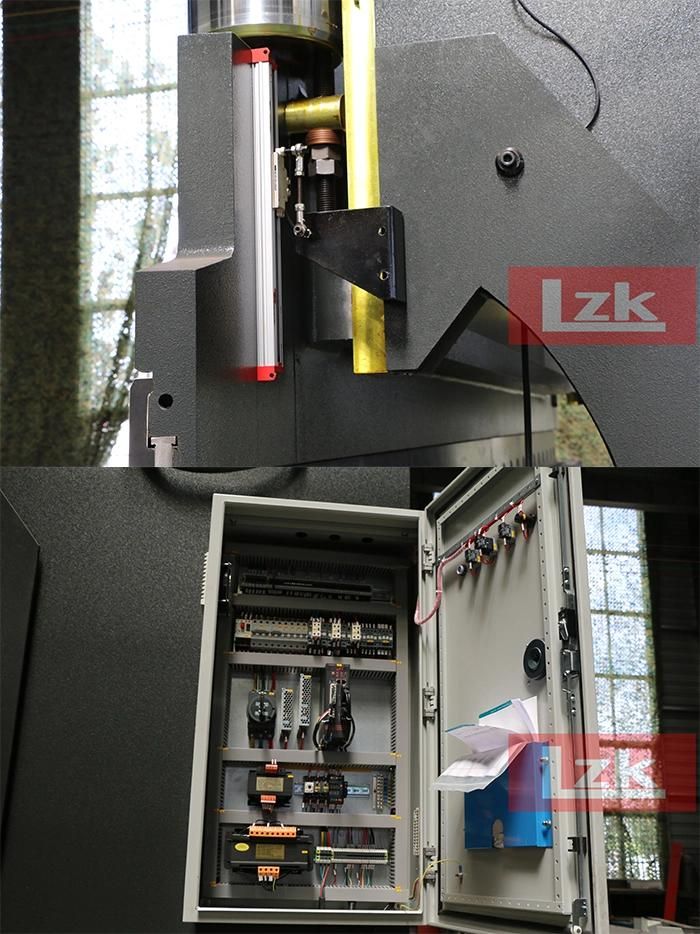

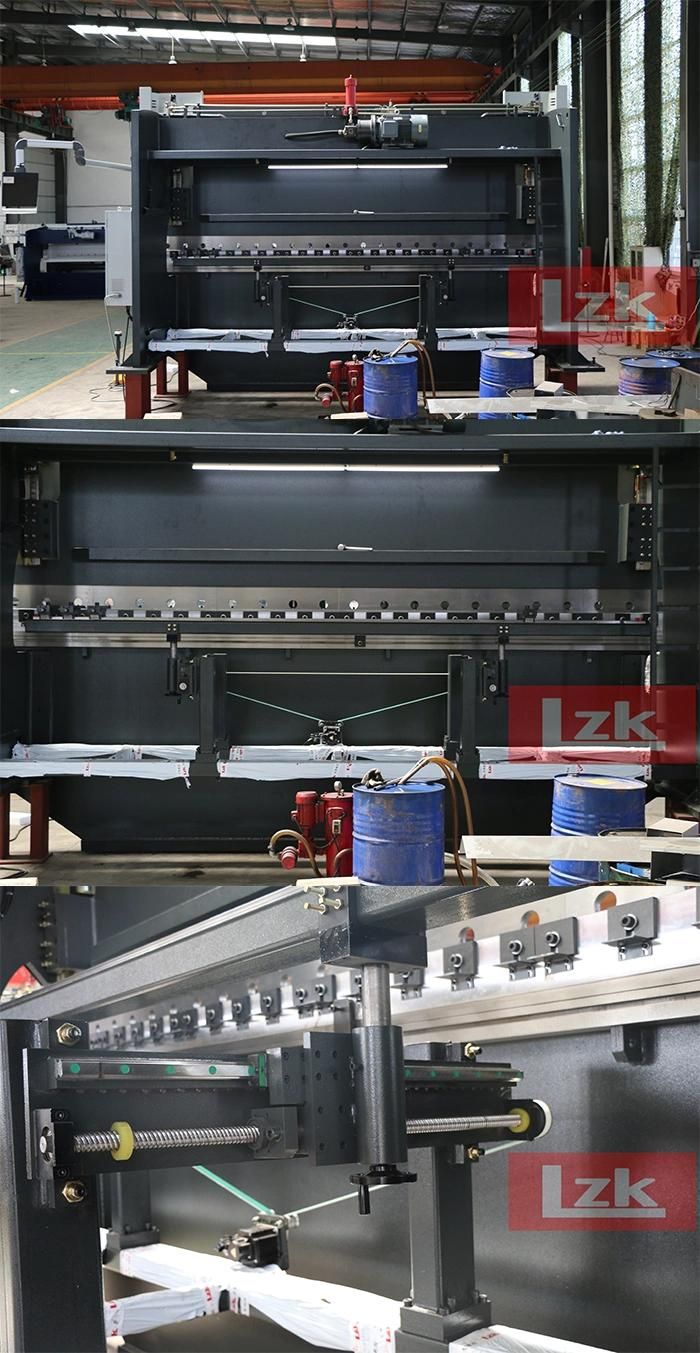

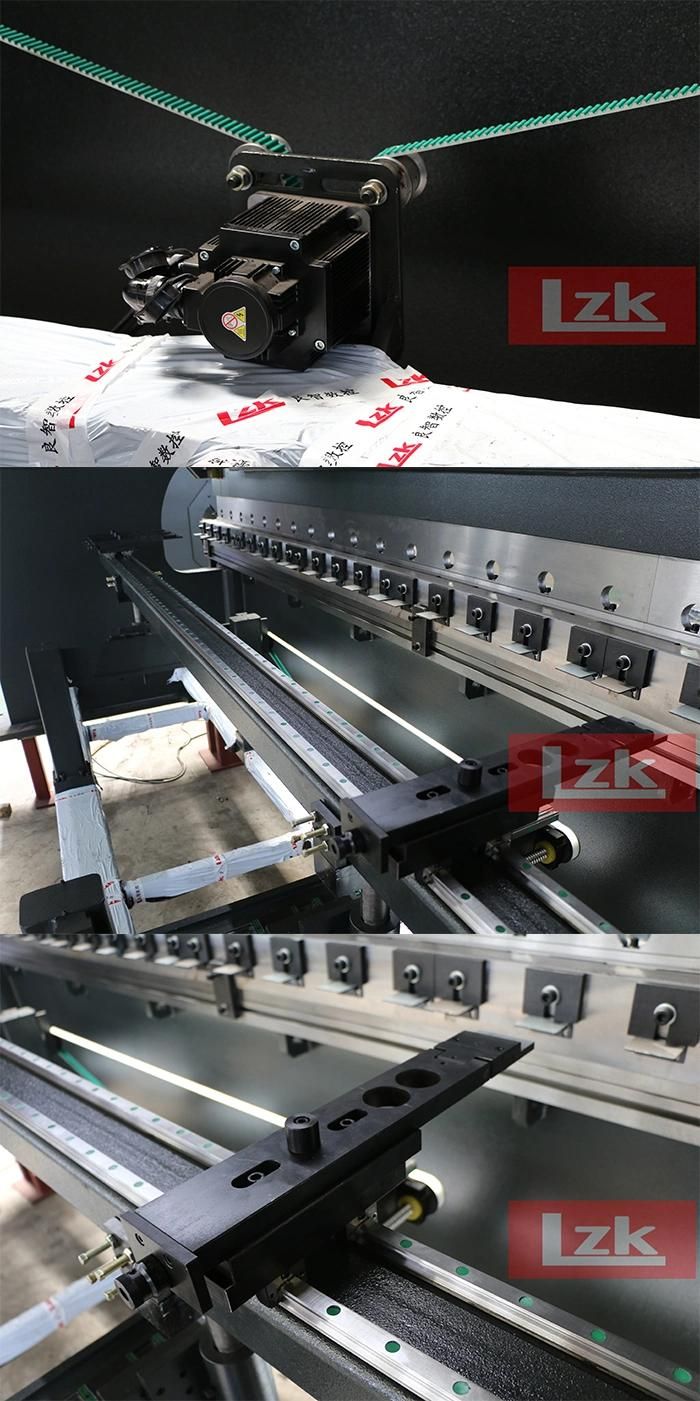

Backgauge with servo motor, ball screw and linear guide rail, movable finger blocks. Italy Givi grating rulersSchneider main electrical components
Customer purchase case

German customer bought our tandem press brake for long sheet bending, photos were taken by our engineer
when dis aftersale service.

Our Russis customer bought three sets of cnc press brake from us, they are manufacture of Yacht.

Customer form different countries come for inspection and cooperation.
