• Model NO.：EN1234
• Inner Diameter of Coiled Material：500mm
• Shearing Thickness：0.23-0.5mm
• Max Shearing Speed：110 M,Min
• Shearing Width：Greater Than or Equal to 5
• Rolling Shear Wait The Aniseed Wide：1250mm
• Transport Package：Wooden Package
• Specification：SET
• Trademark：EN-SOURCE
• Origin：China, Zhejiang
• HS Code：846231
• Production Capacity：500

Basic Info.

Model NO. EN1234 Inner Diameter of Coiled Material 500mm Shearing Thickness 0.23-0.5mm Max Shearing Speed 110 M/Min Shearing Width Greater Than or Equal to 5 Rolling Shear Wait The Aniseed Wide 1250mm Transport Package Wooden Package Specification SET Trademark EN-SOURCE Origin China, Zhejiang HS Code 846231 Production Capacity 500

Product Description

Electrical Tansformer silicon steel sheet lengthwise 0.23-0.5mm shearing production line

I.Cutting Machine Introduction:
Electrical Tansformer silicon steel sheet lengthwise 0.23-0.5mm shearing production line is special equipment for shearing silicon steel sheet into strip and is composed mainly of discharging, rolling, guiding and supporting, lengthwise shearing and tensioning devices, etc. The equipment choose internationally advanced tensile-shear process, hard alloy rolling shear and PLC for automatic control and the entire production line operate accurately and reliably.

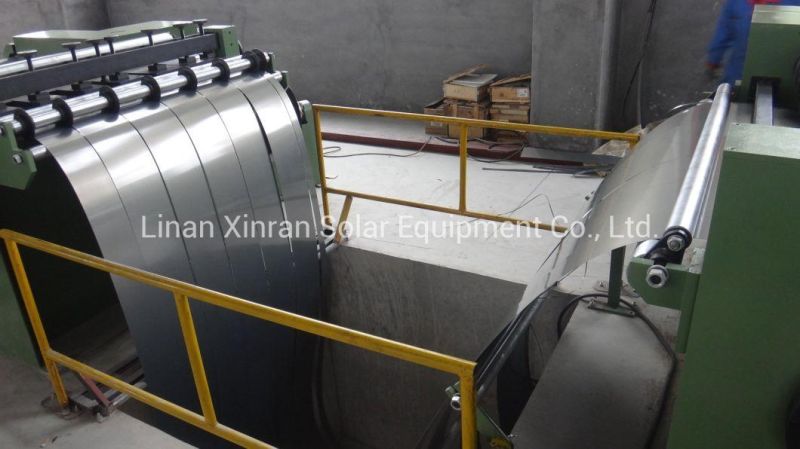

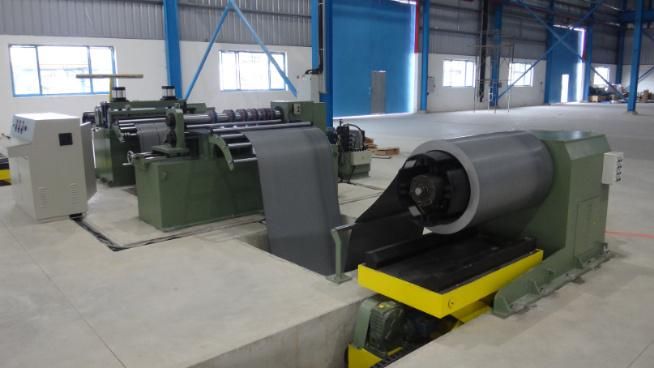

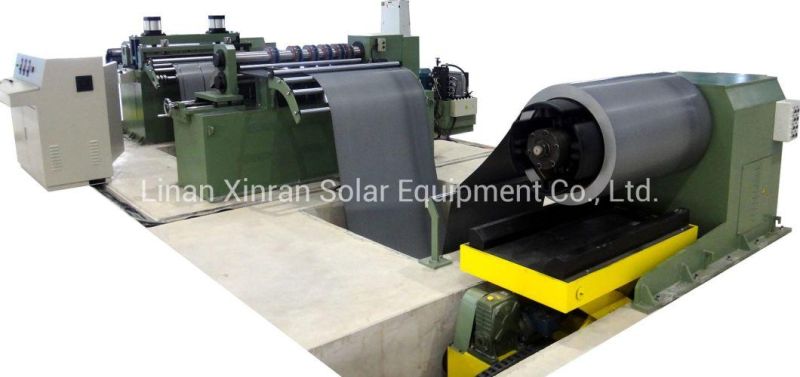

II.Equipment Photo


III.Main Technical Parameters

Item	Parameters
Inner diameter of coiled material	500mm
Rolling shear wait the aniseed wide	1250mm
Shearing thickness	0.23~0.5mm
Shearing width	≥40mm
Unverticality one side	≤0.2mm/2m
Shearing burr	≤0.02mm
Shearing error on width	±0.1mm
Max shearing speed	110 m/min
Scissors outer diameter	Ф200
Knife number	6 pay
Grinding can be a few meters of shear	100000m
Total power of motors	37.2Kw
Floor space	12000×5000mm
Total weight	9500Kg

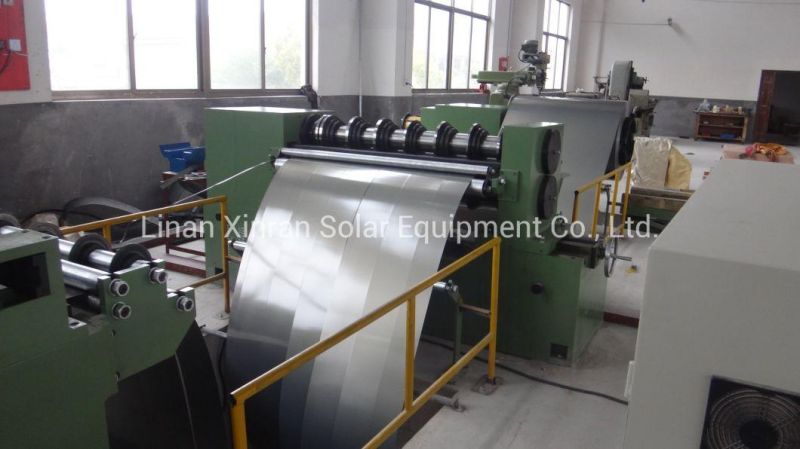

IV.Steel Shearing Machine Other Details Photo:



V. Contact Information

The products shown above are only the details of some models and products in this production. We sell all the equipment in the solar water heater production line. If you are interested, we look forward to your inquiry.
