• Model NO.：PEL-800
• Type：Cnc Bending Machine
• Power：4.0kw
• Compressed Air：0.4-0.6MPa
• Control Axis Quantity：5axis
• Min. Bending Radius：3mm
• Material Thickness：0.6-1.0mm
• Notching Angle：30°,120°
• Transport Package：Compound Wooden Cases
• Specification：CE, ISO
• Trademark：Perfect Laser
• Origin：Wuhan, China
• HS Code：8456110000
• Production Capacity：200 Sets

Basic Info.

Model NO. PEL-800 Type Cnc Bending Machine Power 4.0kw Compressed Air 0.4-0.6MPa Control Axis Quantity 5axis Min. Bending Radius 3mm Material Thickness 0.6-1.0mm Notching Angle 30°/120° Transport Package Compound Wooden Cases Specification CE, ISO Trademark Perfect Laser Origin Wuhan, China HS Code 8456110000 Production Capacity 200 Sets

Product Description

Advertising 3D Channel Letter Bending Machine For Aluminum/Steel(Model:PEL-800)






Brief Introduction of 3D Channel Letter Bending Machine

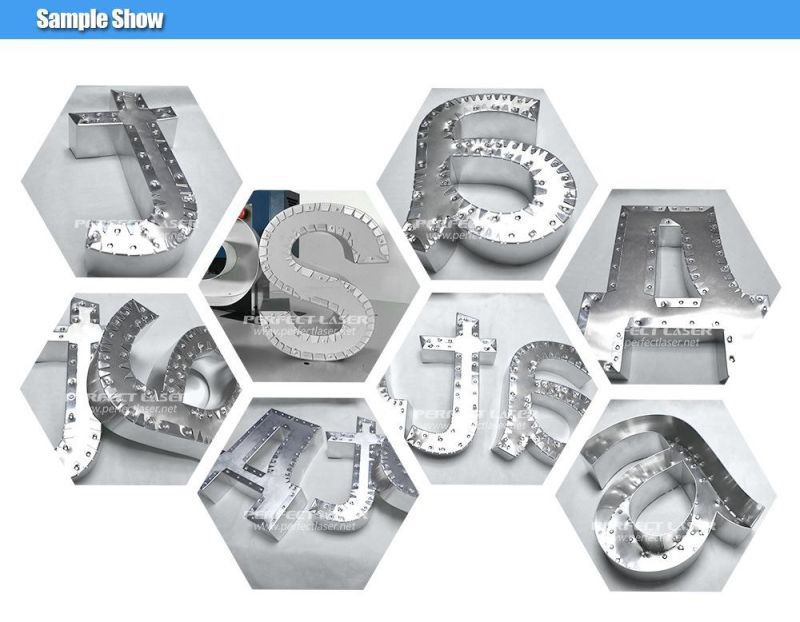

PEL800 automatic channel letter bending machine is equipped with notching and flanging mold developed based on our PEL-800 automatic super letter bending machine. It is of high accuracy bending with the more bending bar system and quick-change bending mold system. It has not only all functions of traditional model, but also it can make notching and flanging automatically for flat aluminum coil. It is the high-end bending equipment for the first selection, especially suitable for the high letters (usually found in square and plaza), stainless steel letters, punching letters, resin letters and giant glowing letters, ect.




Technical Parameter of 3D Channel Letter Bending Machine


Power supply	AC200V
Power	4.0KW
Compressed air	0.4-0.6MPa
Control axis quantity	5axis
Min. Bending radius	R7mm
Min. Distance between interior angle and exterior angle	4.5mm
Bending distance from start	3mm
Applied material	Stainless steel, galvanized sheet, aluminum coil
Material thickness	0.6-1.0mm
Processing height	Stainless steel, galvanized sheet(20-175mm);aluminum coil(50-175mm)
Material feeding method	Alternating double screw rails feeding
Notching type	Controlled by servo motor
Notching angle	30°/120°
Flanging type	Pneumatic flanging for right angle
Flanging width	14mm
Servo motor	4PCs
Step motor	1PCs
N.W./G.W.	800Kgs/900Kgs
Dimension	2290(L)*860(W)*1560(H)mm
Software support	DXF/PLT files input, support CAD, TYPE3, CRELDRAW, ILLUSTRATOR, ect.

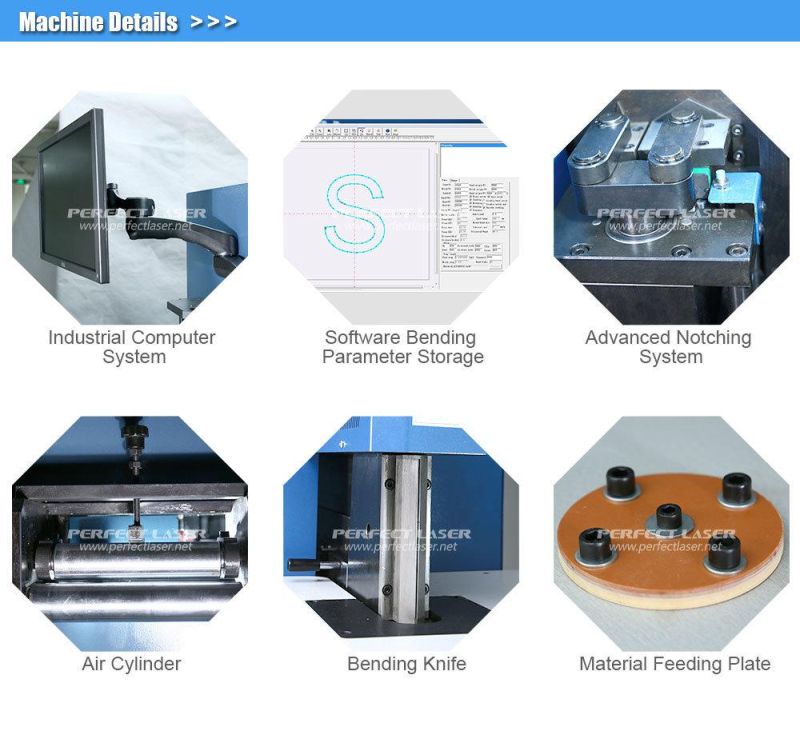

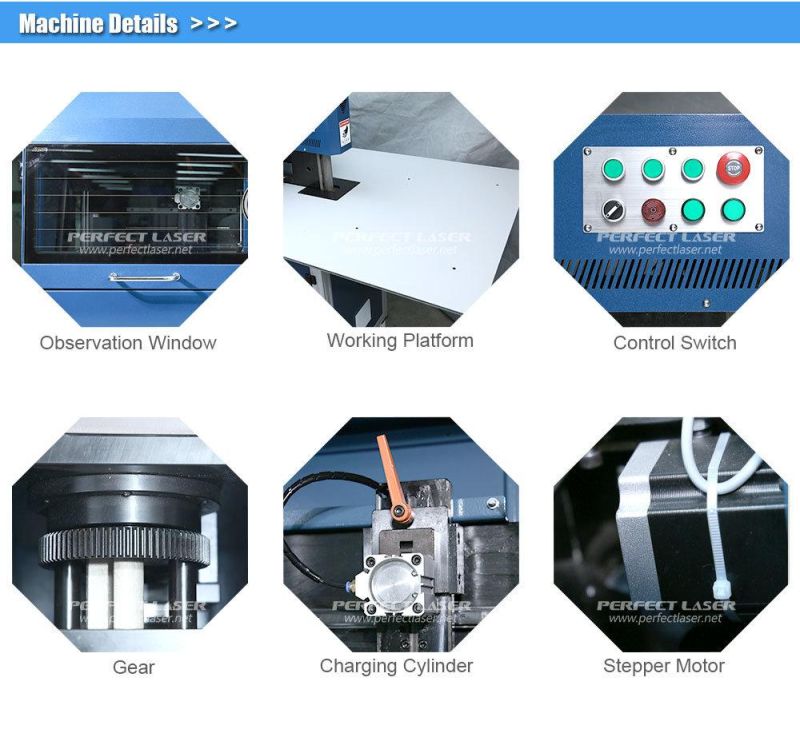

Product Features of 3D Channel Letter Bending Machine
1. Servo motor control notching and flanging mechanism
It uses servo motor to control notching mechanism with characters of smaller size, higher speed, more stable property, no oil contamination and lower noise.

2. V-shaped slotting mode
It controls slot depth intelligently and sets total slot depth, single slot depth and slot numbers; servo motor control and high precision nut driver have advantages of high slot speed, high accuracy and constant torque; V slotting surface is smooth and don't have any burr. Depth is consistent. The R angle id not obvious when bending, which ensures the outline of letters clear and beautiful.

3. Closed loop control system
All Perfect Laser bending machines have material tracking system. It can real-timely monitor any material stretching and slipping during bending, which ensures closed-loop control of material length and precise match of bent letter and panel face letter.

4. Telescoping double bending bars mechanism
The core of the bending machine is arc shape effect. Perfect Laser automatic channel letter bending machine uses servo control, high rigid gear transmission, telescoping double bending bars, bending mold quick change system, which has advantages of large bending torque, small interference area and no scratch surface. Besides, it fits in with all kinds of material thickness. It is suitable for high-precision and high-strength industrial signs processing.



Product Advantages of 3D Channel Letter Bending Machine
1. Unique bending type of telescopic alternative bending--it greatly reduces the bending scratch, avoids interference in the bending process and substantially increases the bending torque, which ensures high-precision bending.
2. High precision--it is equipped with closed loop testing device for testing feed length inside, assuring the total length deviation bending less than 0.1mm between the product and original document and also assuring the consistency of manufacturing the same document repetitively.
3. High degree of forming--the coincidence degree reaches as high as 98% with the panel cut by other sorts of precise equipment.
4. Low slotting cost--it uses Germany imported high hardness special stainless steel slotting tool whose using cost is low at RMB0.02 per groove.
5. The unique alternating clamp feeding way features the feeding speed, high accuracy, no indentation, etc.
6. It controls the depth of groove by numerical control axis and meets the needs of different materials and slot thickness.
7. It uses servo motor for notching function with high speed, pneumatic flanging for right angle and no burr with notching.
8. Intelligent compensation for bending rebound--it is equipped with intelligent compensation system by Perfect Laser based on their several years of P&D experience. Due to this system, it can assure forming precision for all kind of materials.
9. Intelligent bending process--it can reduce interference and collision in bending process by the intelligent inspection system.
10. Lifelong free update of operating software.
11. Processional, high-efficient and considerate service.
