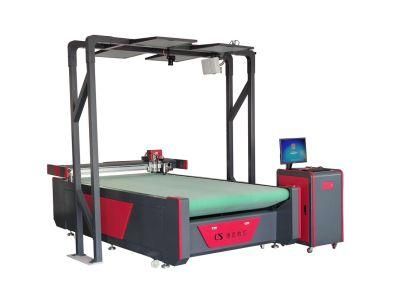

Genuine Leather Nature Leather Digital Cutter CNC Oscillating Knife Cutting Machine Price
Jinan Kang Jia CNC Equipment Co., Ltd.- After-sales Service：Yes
- Waterproof Rating：IPX-0
- Warranty：2-year
- Certification：CE, ISO 9001:2000
- Condition：New
- Control：Automatic
Base Info
- Model NO.：KJPD-ZD-1625
- Application：Paper, Plastic, Leather, Fabric
- Power Source：Electric
- Layout：Horizontal
- Cutting Thickness：0.1-100mm(Depend on Material)
- Mechanical Precisio：<0.01mm
- Power Supply：110V , 220V , 380V 50Hz
- Supported Software：Coreldraw, Autocad
- Work Plate：2500mm*1600mm
- Machine Size：3260*2120*1315mm
- Cutting Speed：0-1500mm,S
- Transmission Interface：Cable Transmission
- Supported Format：Pxf Plt
- Fan Power：9kw
- Material Fixed Mode：VAC-Sorb
- Driving Mode：Racking Drive
- Transport Package：Packed in Wooden Cases
- Specification：KJ-1625
- Trademark：kangjia
- Origin：China
- HS Code：8453100000
- Production Capacity：100 Sets , Month
Description

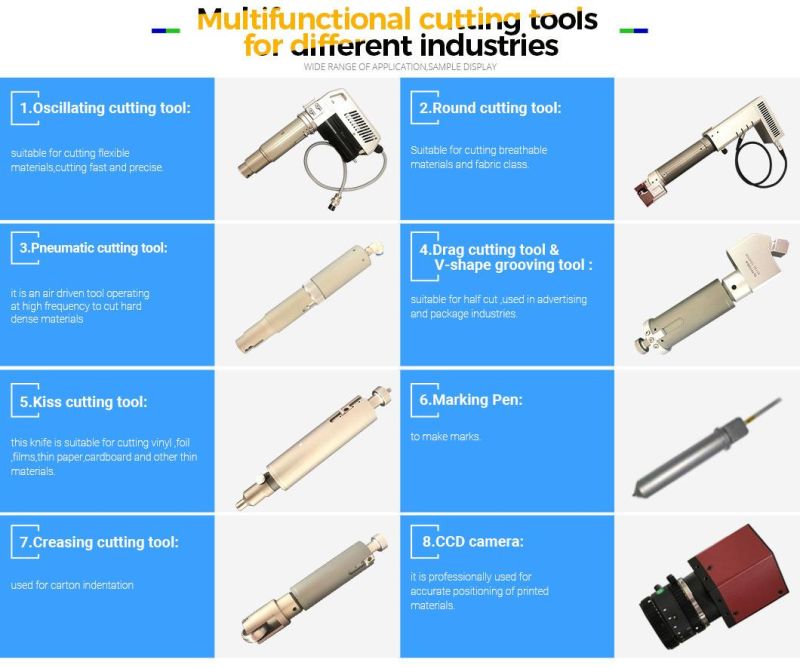

Multifunctional heads optonalVibration knife (oscillatory knife) Circular knife (round knife / rotary knife) Marking pen Safety device Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable. Material feeding type Auto feeding or manual feeding Material fixed type Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw Translational velocity 800-1500mm/s Cutting speed Max. 1500mm/s (according to different cutting materials) Cutting thickess ≤60mm (according to different cutting materials) Cutting material Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc. Repated accuracy ≤0.1mm Cutting type Mechanical vibration physical cutting Transmission / driving system Motor brand Panasonic, YASKAWA, Fuji, Delta Transmission type / Guide rail Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw Instruction system HP-GL compatible format Control system LCD touch screem ( custom made) Voltage 110V/220V / 380V±10%; 50HZ, 60HZ Other configuration Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump
Cutting Samples display:
Advantage of Our CNC Cutting Machine
1. Time Saving: The machine cuts by vibration knife. It's possible to finish cutting 3 pieces of 4D or 5D car mats within 3 minutes, much faster than cutting by hand. It guarantees fast output of customized car mats.
2. Material Saving: Pattern nesting can be done and checked carefully before cutting, avoiding hiden lost during careless cutting by workers. It can save at least 5% materials than manual cutting.
3. Storage Room Saving: Cut whatever you want, whenever you need. No need to have a large storage room for a large quantity of ready car mats.
4. Flexibility: Each customer can pick up the materials, patterns they like to make the special car mats for their special cars, expending a large automotive beauty industry at your end!
About us:
Jinan Kangjia CNC Equipment Co., Ltd is located in Jinan city of China and built in year 2016. It is a comprehensive service company specializing in the production, sales and technical service of knife cutting machine and laser cutting machine. It covers multiple fields and industries, such as automotive decoration, toys, garment, leather product, furniture etc. Its R&D level and production capacity has always been in the leading position in the same industry.

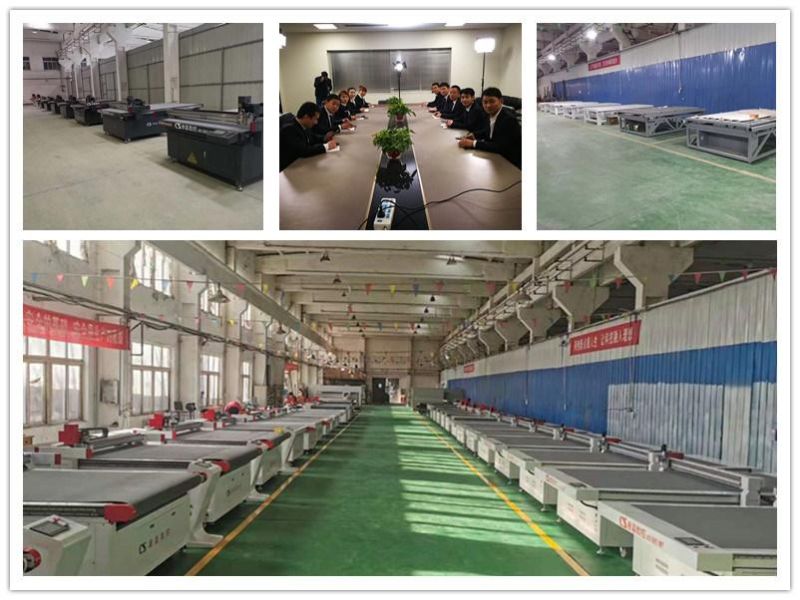

The factory covers 10000 square meters, with 150 staffs in total. The production capacity is about 100 unit / month.
Our team:
Certificates & Honors:
Why Choose Us?
1. Saving labour and material cost
2. Saving time
3. Everyone can operate and cut without lots of skills
4. Boost production capacity
5. Consistent accuracy even with complicated patterns
6. Reduces your lead times of pattern cutting from your clients
7. Wide range of clothes/garment/apparel material application
8. Running in a high automaton
9. Special design: less moving structure guarantee low down time and easy in installation and maintain
10. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
11.Good experienced engineers
12. CNC control
13. Knife cutting method: oscillating Blade with multifunctional tool heads
14. Easy conversion
15. With more and more agents / partner joining us, after sales team can be in your country by your side.
