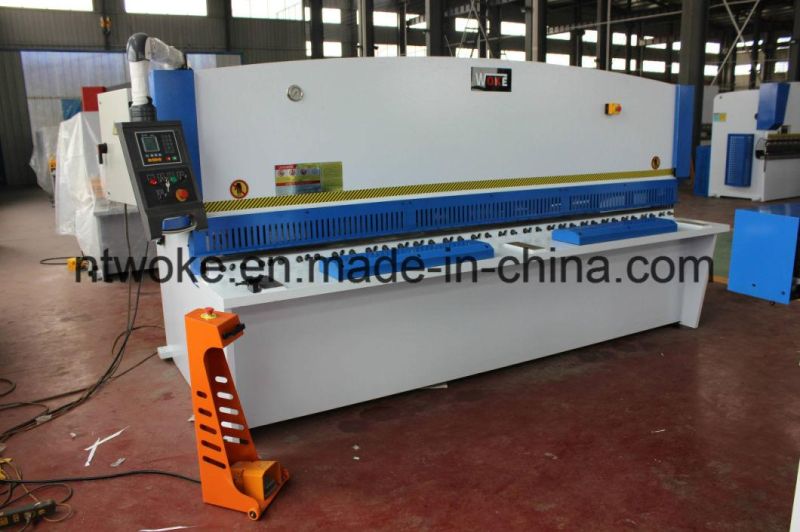

Hydraulic Guillotine Cutting Machine 4mm Thickness 3 Meters, CNC
Nantong Woke Machinery Equipment Co., Ltd.- Automation：Automatic
- Certification：CE, ISO 9001:2008
- Condition：New
- Warranty：2 Years
- Main Motor：4kw
- Control System：Estun E21s Nc
Base Info
- Model NO.：QC12Y-4X3200
- Cutting Thickness：4mm
- Cutting Length：3200mm
- Precision：High Precision
- Hydraulic Valve：Germany Rexroth
- Back Gauge：0-600mm
- Transport Package：Nude Packing, Steel Pallet
- Specification：3800x1750x1650mm
- Trademark：WOKE
- Origin：Nantong, Jiangsu, China
- HS Code：8462399000
- Production Capacity：40PCS,Month
Description
You can see more videos and our machines on following link
2.Steel welded structure, vibration aging treatment to eliminate internal forces, have high strength and good durability.
3.Advanced integrated hydraulic system, easy for maintenance.
4.The shear stroke and cut times can be controlled.
5.Feeding balls on worktable to reduce the hurt of the plates and reduce conflict force.
6.Manual adjusting of blade clearance and adjustment of gap can be showed on an indicating dial.
7.The blade is of 4 cutting edges, that mean you can change the cutting edge if long time use.

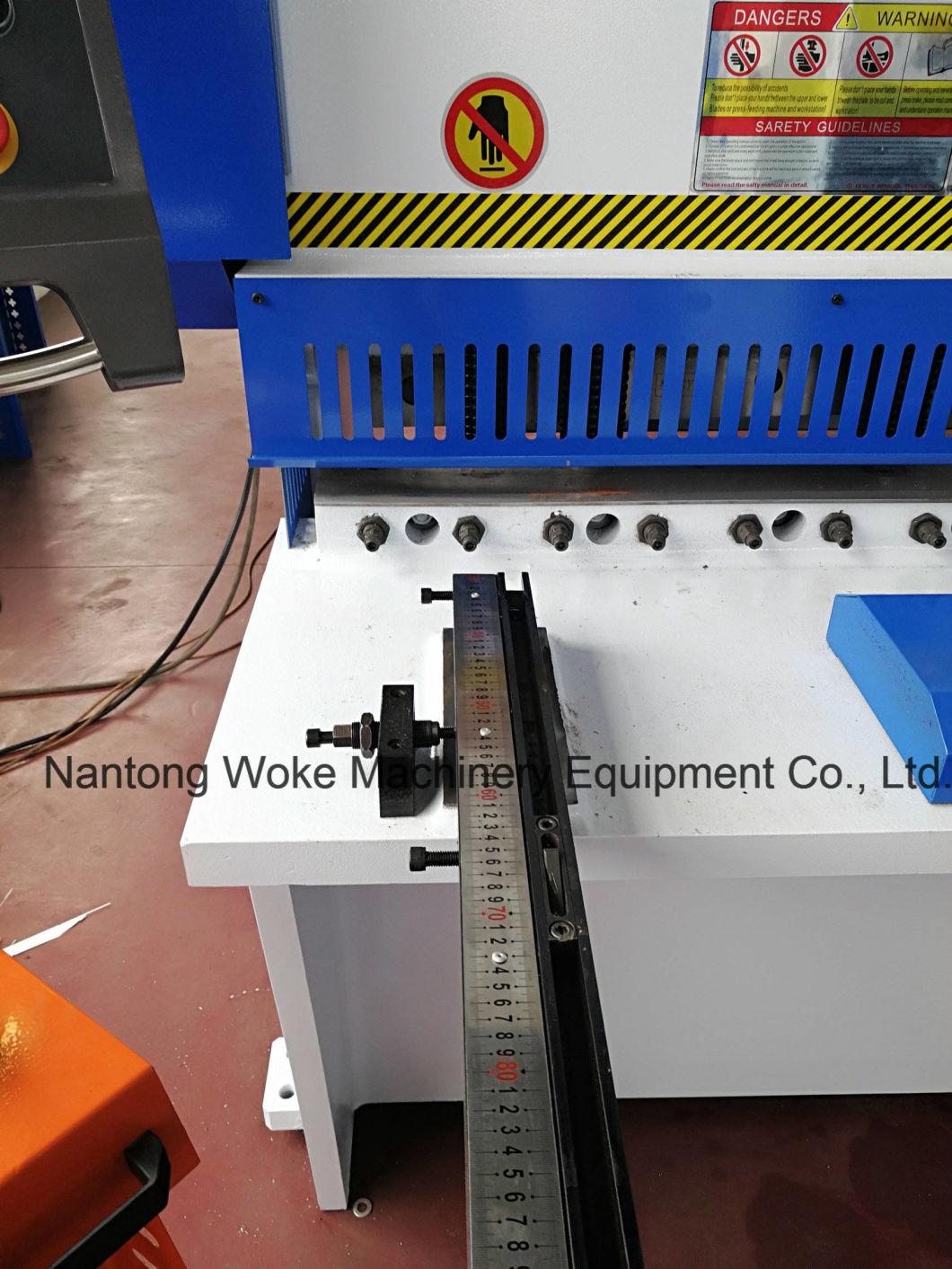

8. Front supprt arms with scale and standard protective guard, meet with internationl safety standard.
-Backgauge and block control -Control for general AC motor, frequency inverter
-Intelligent positioning -Stock counter -Holding / decompression time setting
-Program memory of up to 40 programs up to 25 steps per program -One side positioning
-Retract function -One key backup/restore of parameters and programs -mm/Inch -Chinese/English
