• Model NO.：SB-75NCB
• Machine Type：Hydraulic Tube Bending Machine
• Certificates：Ce, ISO9001
• Color：Blue or Customized
• Eextra Function：1d Bending, Cutting
• Modle：Sb-38CNC
• Brand：Sanco
• Technology：Taiwan
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
• Transport Package：Wooden Case
• Trademark：Sanco
• Origin：China
• HS Code：846221
• Production Capacity：2000sets,Year

Basic Info.

Model NO. SB-75NCB Machine Type Hydraulic Tube Bending Machine Certificates Ce, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting Modle Sb-38CNC Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Wooden Case Trademark Sanco Origin China HS Code 846221 Production Capacity 2000sets/Year

Product Description

Hydraulic tube bender from China






Description:

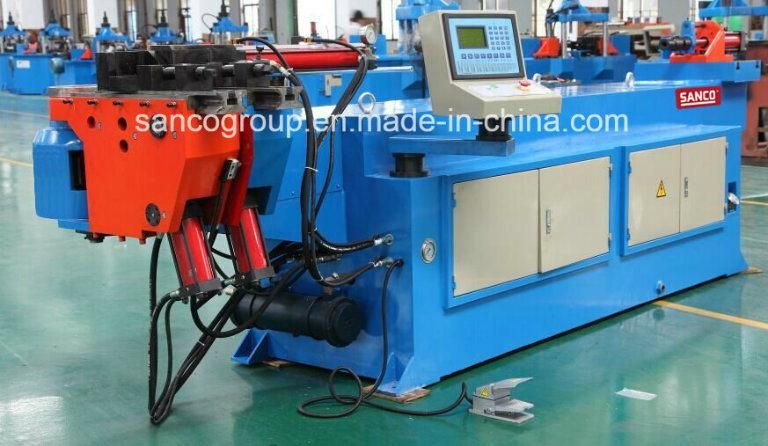

Hydraulic tube bending machine
Mitsubishi PLC, Wienview touch screen
Capable of bending tube up to 75mm*4mm

Applications:
Exhaust pipe of car, motorcycle, airplane and other machinery.
Tubes of air conditioning, furnitures, bikes, light pole, sports facilities
Kitchen and bathing facilities, medical equipments.
Applied material: carbon steel, stainless steel, aluminum, copper, alloy
Applied products: round tube & bar, square tube & bar, rectangle tube & bar, virous profile

No.	Item	Data
1	Max Round Tube Mild Steel	75x2 mm
2	Non Ferrous	75x4 mm
3	Square Tube Mild Steel	50x50x2 mm
4	Solid Bar	30 mm
5	Min/Max Bend Radius	50 - 280 mm
6	Clamp Stroke	90 mm
7	Pressure Slide Stroke	90 mm
8	Max Bend Angle	190 Deg
9	Max Length Over Mandrel	2950 mm
10	Bending Speed	24 Deg/Sec
11	Bending Precision	+/-0.3 Deg
12	Hydraulic Motor	7.5 Kw
13	Total Power	7.5 Kw
14	Hydraulic Pressure	120 Bar
15	Hydraulic Tank Capacity	175 L
16	Machine Size	3700x950x1200 mm
19	Machine Weight	2400 Kg


Options:
MP     Auto rotating pipe
 L        Left direction bending
 P        Punching
 C        Cutting
 Safty cover
 Stopper (length measurement)
  Fan / Water / Oil cooling system
  Bend 1.0XD radius, or more tight radius
  Tie rod bars (support arm)

Company Introduction:




  Zhangjiagang SANCO Machinery Co., Ltd


Our company video link:

https://sancogroup.en.made-in-china.com
SANCO(Taiwan and China mainland)Machinery Co., Ltd. was established in 1984, and have cooperation with Taiwan bender company since 1989, specialized in manufacturing Pipe Bending Machine, Metal Circular Saw Machine, Pipe End Forming Machine, Polishing Machine, Chamfering Machine and so on. In 1984, SANCO and "Shanghai Aircraft Design and Research Institute" joint the production of hydraulic pipe bending machine. And in 1984, "Shanghai Aircraft Manufacturing Co., Ltd." assembled 25 airplanes of American model MD82. Chinese government required SANCO mapping the prototype of Italian bending machine, and SANCO manufacturing the bending machine to produce airplane related accessories.
With 176 workers, 11 professional and technical engineers. SANCO company occupies 20,000 square meters, construction area of 15,000 square meters.
The three-dimensional CNC bending machine developed by SANCO is advanced than other Chinese factories. SANCO is the leader of drafting the "Chinese Standard of CNC Pipe Bending Machine" (GB / T28763-2012), released in November 2012, and implemented in May 2013. And SANCO is also the leader of "Chinese Standard of Pipe Bending Machine Safety" (GB28760-2012), released in November 2012, and implemented in October 2013.
All machines marked ISO 9001 and CE. SANCO machines exported to the United States, UK, France, Russia, Australia, India, Brazil, Poland, Canada, South Africa, Mexico, UAE, Saudi Arabia, and so on 58 countries.
NOW, AND FOREVER MORE ...    SANCO DO THE BEST OR NOTHING.

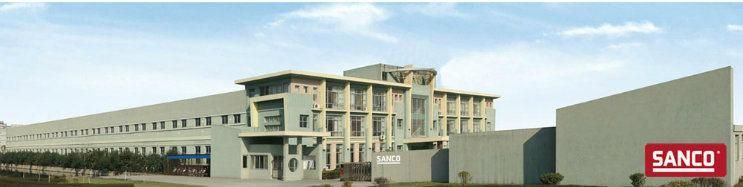

Company Photos:

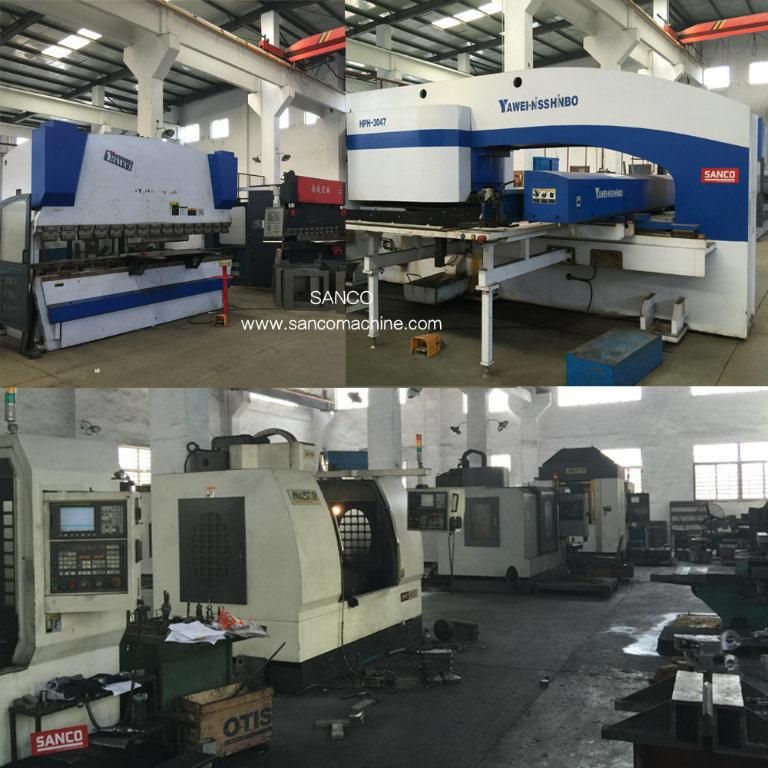

Aseembling workshops:

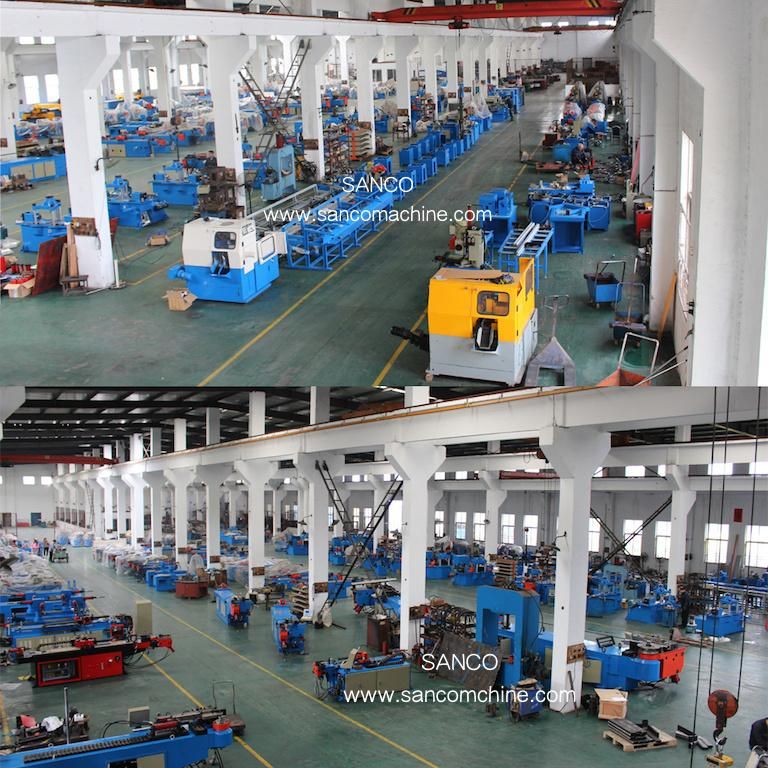

Finishing workshops:






Certificates:




Contacts:

SANCO MACHINERY CO., LTD Since 1984
Add: 17#, Economic Development Zone, Nanfeng Town, Zhangjiagang City, China.
Tel / Fax: +86-0512-58900248
Cell phone : +86-158-9547-5880

sancogroup.en.made-in-china.com
