• Model NO.：ZD-3D-512
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Metal

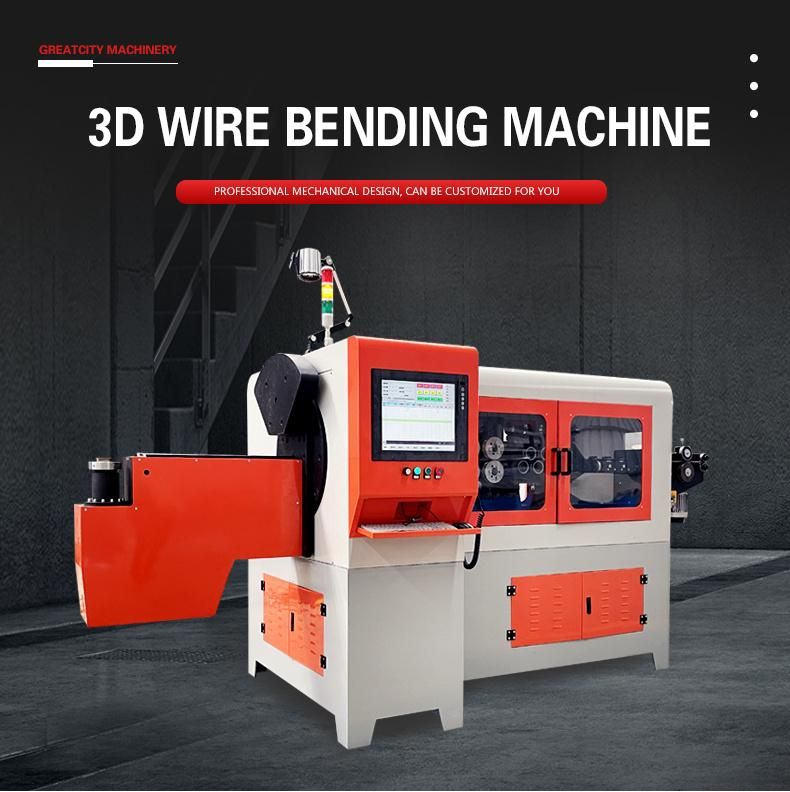

• Type：Cnc Bending Machine
• Transport Package：Standard Export Wooden Package
• Specification：process steel wire diameter from 2-12mm
• Trademark：Greatcity
• Origin：Hebei China
• HS Code：8501520000
• Production Capacity：300 Set Per Month

Processing line specification

5-12mm

Wire motor power

4.5KW

wire reducer

1:5

Rotary arm motor power

2.7KW   Taiwan brand

rotary arm reducer

1:7

Angle motor power

2.0KW   Taiwan brand

angle reducer

 1:10

Lift motor power

1.0KW   Germany brand

lifting reducer

1:32

Cutter motor power

1.0KW

cutter speed reducer

1:28     Taiwan brand

Control axis number

5-axis

Maximum wire feed speed

90 m / min

Wire feeding accuracy

300mm±0.1

Q.What are your normal lead times?

A.Our company typical lead times range from 3-4weeks after receipt of order.

Q.What are the terms of payments you offer?

A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.

Q.What kind of package do you offer?

A.Normally in plywood case, to make sure all goods in good condition.

Q.What is the MOQ for your production?

A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.

Q.Do you have CE certification

A.Yes, we have CE certification, machine quality is one year guaranteed.

Q.How to control the quality of the products?

A.1)we have been manufacturing bending machinery for over 10 years, all of our machines with experienced fabrication and good assembling. 2)our factory are SGS, TUV inspected and machines are all CE certified.

Q.If your machine got problems, how can we do that?

A. 1).all of our machines are under one year guarantee period. and our CNC controlling system enjoy 3 years guarantee , everlasting technical support. 2).we have many distributor and local agent in your country, who can do on-site after-sale service. we can also dispatch our technician to your factory for big problem shooting in case of big problems.

Q.How can we learn to operate your machine?

A.1)you can send people to our factory to get training of how to use machine before delivering machine. or we are requested to send technician to your factory to do commissioning and basic training. 2). after commissioning , if you still not very skillful of the operation, we can give you online camera video training. 3). our sales team was 24 hours on-line for pre-sale, and after sale service. you can contact us at any time.
