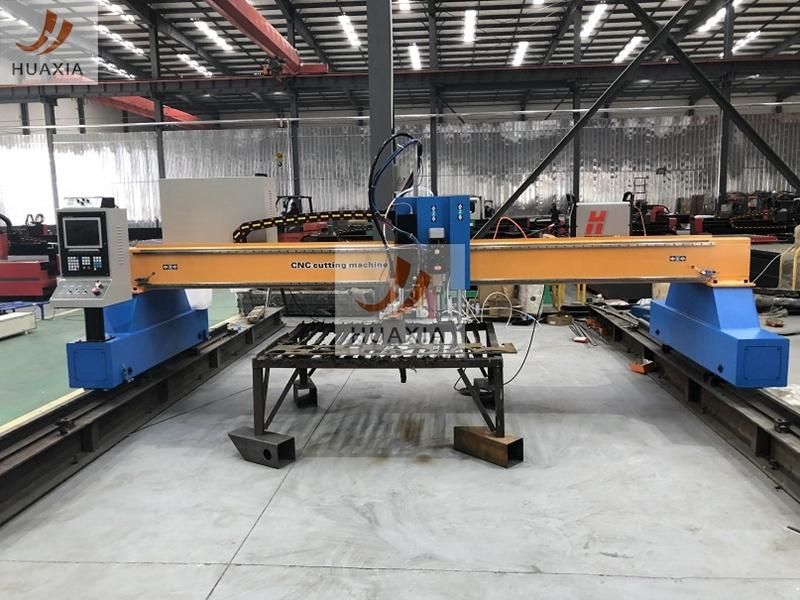

Gantry Type Heavy Duty CNC Flame Cutting Machine From Huaxia

Jinan Huaxia Machinery Equipment Co., Ltd.
  • After-sales Service：Provied
  • Warranty：Provied
  • Certification：CE, ISO 9001:2000, ISO 9001:2008, TUV
  • Condition：New
  • Control：Automatic
  • Application：Metal

Base Info

  • Model NO.：HXP-6000
  • Connected Shaft Number：3-Shaft
  • Style：Gantry
  • Type：CNC
  • Power Supply：USA Hyperrtherrm ,China Huayuan
  • Cutting Method：Air Cutting
  • Machine Work Together：Air Compressor(Min 0.8 MPa Power)
  • Control System：Starfire,Flmc-F2300,Start,Nc-Studio
  • Nesting Software：Fastcam Australia
  • Input Voltage：3 Phase 380V for Power Source
  • File Transfer Mode：USB Interface
  • Design Software：Auto CAD, Caxa
  • Arc：Non-Contact
  • Cooling：Water Cooling
  • Language：8 Different Language(See Details)
  • Flame Cutting：Oxygen,Acetylene,Propane,Coal Gas
  • Transport Package：Plywood Case After Packed by Wrapping Film
  • Specification：4000X8000MM
  • Trademark：HUAXIA
  • Origin：China Minland
  • HS Code：8456401000
  • Production Capacity：50,Month

Description

Control systemFLMC-F2300B/STARTFIREFlame cutting torchThe special NC flame cutting torchPlasma power supply According to the customer requirementTorch distance (mm)200travelling speed(mm/min)0-10000Cutting speed (mm/min)0-6000Flame cutting thickness(mm)5-300Plasma cutting thickness(mm)Accoding the plasma powerGas typeAcetylene,propane or natureal gasCutting table and baseWe will supply drawing of cutting table
Base (H-beam) and cutting table are not supplied
Gantry Type Heavy Duty CNC Flame Cutting Machine From Huaxia
Gantry Type Heavy Duty CNC Flame Cutting Machine From Huaxia

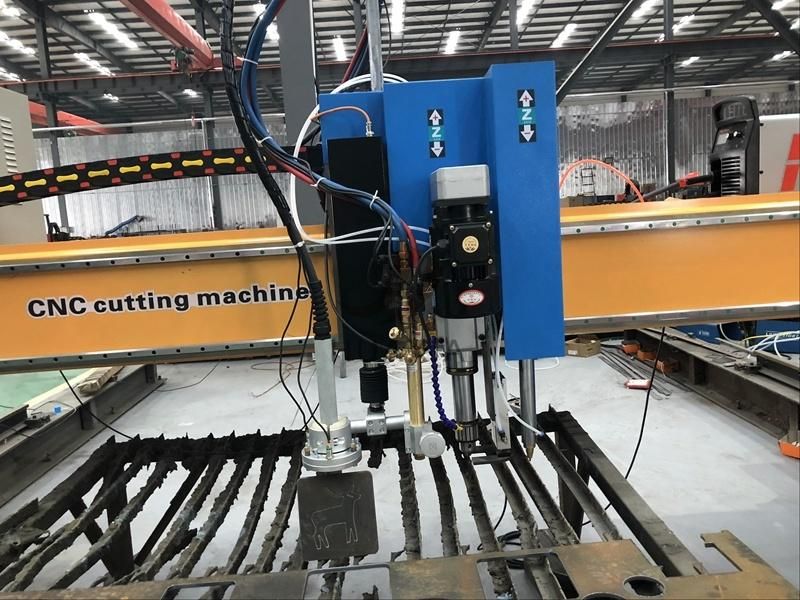

Multiple cutting heads can be added

Detailed
Gantry Type Heavy Duty CNC Flame Cutting Machine From HuaxiaFASTCAM:Used in typography

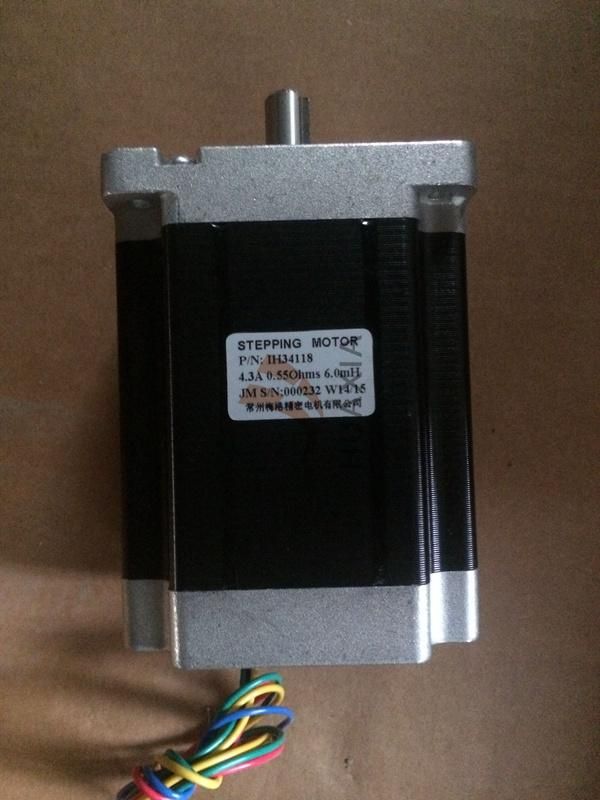

Gantry Type Heavy Duty CNC Flame Cutting Machine From HuaxiaStepper motor:
Stepper motor is recommended for countries with unstable voltage.

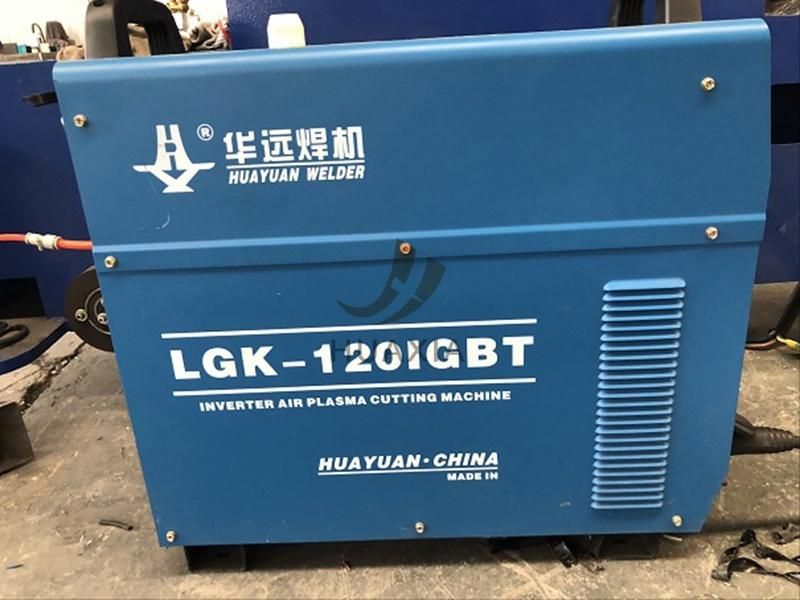

Gantry Type Heavy Duty CNC Flame Cutting Machine From HuaxiaHUAYUAN120A Power source

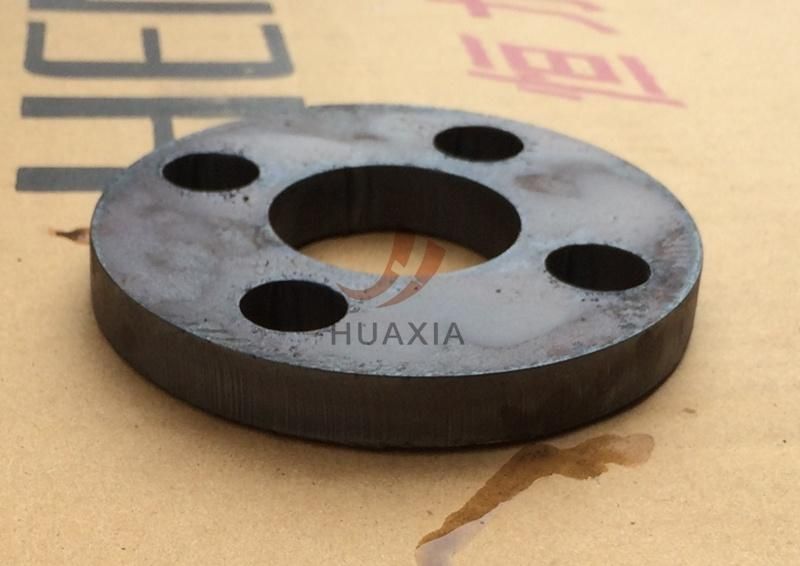

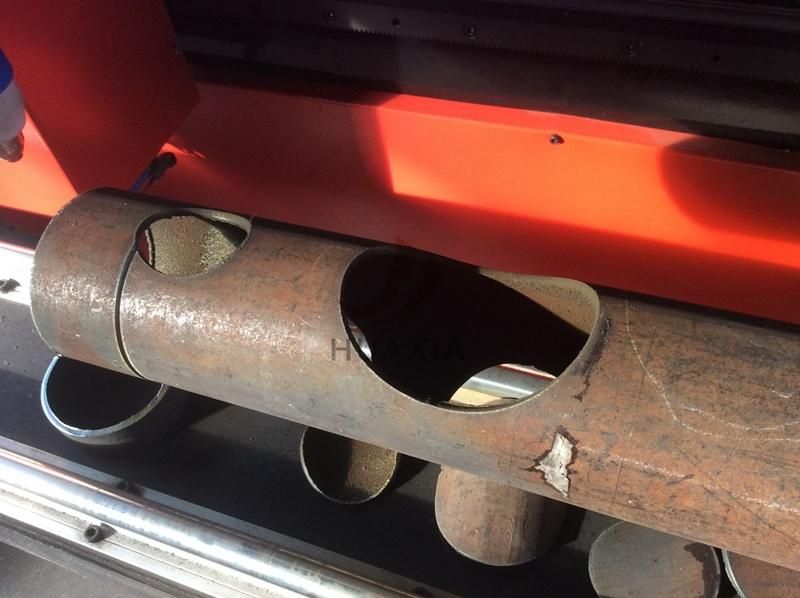

Sample
Gantry Type Heavy Duty CNC Flame Cutting Machine From HuaxiaGantry Type Heavy Duty CNC Flame Cutting Machine From Huaxia
Packaging & Delivery

Selling Units: Single item
Single package size:  4.6*2*1.8m
Single gross weight: 2000 kg
Package Type:  Packing for Gantry CNC plasma cutting machine
                          1. Waterproof wrap film protect
                          2.Strong plywood package protect
Lead Time:
Quantity(Sets)1 - 1>1
Est. Time(days)10To be negotiated
Picture Example:
Gantry Type Heavy Duty CNC Flame Cutting Machine From Huaxia


FAQ

1.How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other

certificates as required by clients.

2.How long is the delivery time?

For standard machines, it would be 15 days; For non-standard machines and customized machines according to client s specific

requirements, it would be 20 to 30 days.

3.Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange

shipment by themselves or their agents.

4.How is the packing?

Water-proof plastic film package with foam protection in each corner

Solid Seaworthy Wood Box Package with Steel Belt

Save space as much as possible for container loading.
