Hydraulic Round Bending Machine Hrbm50hv Hrbm65hv Round Bender Machine
TENGZHOU MILLART MACHINE TOOL CO., LTD.- Warranty:1-year
- Condition:New
- Certification:RoHS, ISO 9001:2000, CE
- Automation:Manual
- Type:Pipe and Tube Bending Machine
- Roller Dia.:50 65mm
Base Info
- Model NO.:HRBM50HV HRBM65HV
- Application:Machinery & Hardware
- Type for Cutting Machine:Flame Cutting Machine
- Type for Fold-Bending Machine:Manual Fold-Bend Machine
- Transport Package:Wood Case
- Specification:CE ISO900 rohs
- Trademark:L&T
- Origin:Tengzhou China
- HS Code:8451500000
- Production Capacity:200 PC,Month
Description
Basic Info.
Model NO. HRBM50HV HRBM65HV Application Machinery & Hardware Type for Cutting Machine Flame Cutting Machine Type for Fold-Bending Machine Manual Fold-Bend Machine Transport Package Wood Case Specification CE ISO900 rohs Trademark L&T Origin Tengzhou China HS Code 8451500000 Production Capacity 200 PC/MonthProduct Description

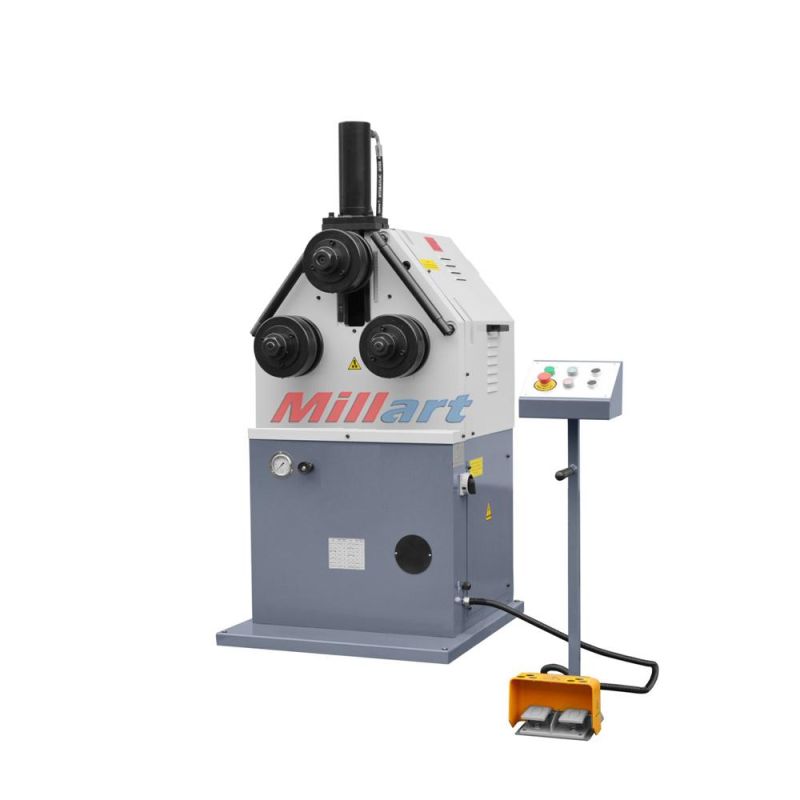

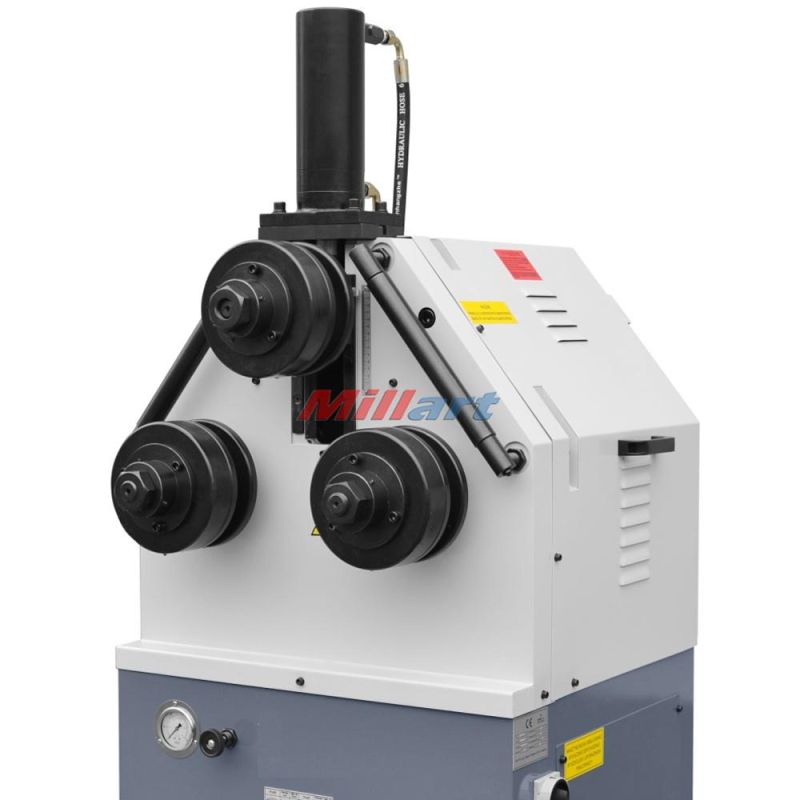

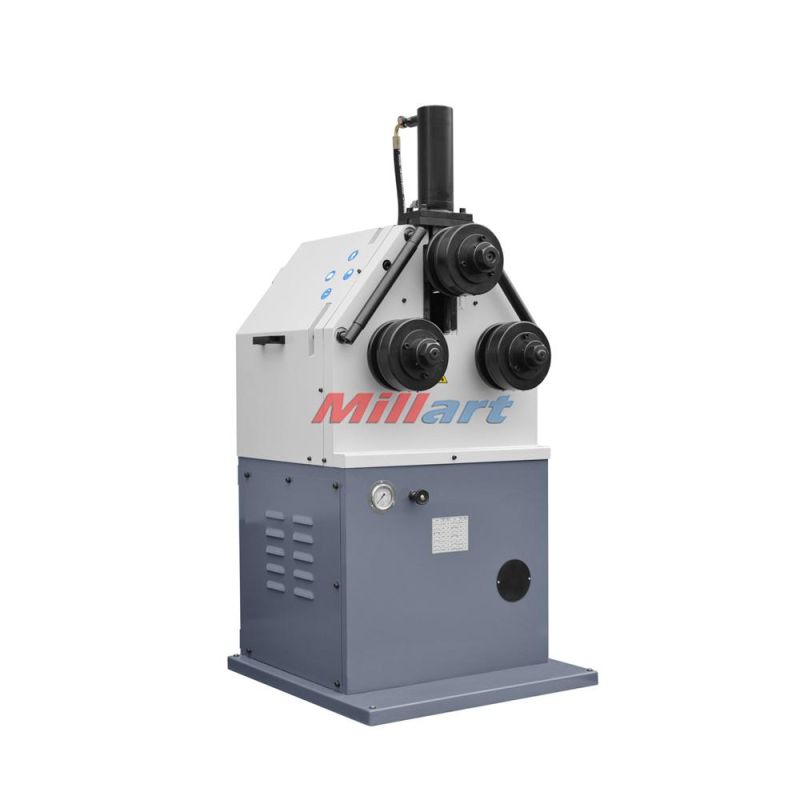

Hydraulic Round Bending Machine HRBM50HV HRBM65HV Round Bender MachineFeature :1.The Round bending machine features an electric three-roller-wheel structure.
2.It has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed work piece.
3. It can conduct round bending processing for plates, T-shaped materials and so on.
4. Round bending machine has a standard roller wheel, of which the front two types of roller wheel can be used both vertically and horizontally.
5.The reversible pedal switch facilitates the operation. Technical Parameter :
Model | HRBM50HV | HRBM65HV |
Dia .Of roller(mm) | 50 | 65 |
Power | 2.2kw/3HP | 2.25kw |
Spindle speed | 13r/min | 9.3r/min |
Packing Size | 150x95x134cm | 125x115x180cm |
N.W./G.W. | 515/647KGS | 720/920KGS |
Capacity | Size | Min Dia.(mm) | Size(mm) | Min Dia.(mm) |
60x10 40x10 | 500 650 | 80x25 40x10 | 600 500 | |
100x15 60x10 | 920 1150 | 120x25 50x10 | 600 400 | |
35x35 20x20 | 600 780 | 50 20 | 600 400 | |
60x7 50x5 | 750 700 | 80x40x7 40x40x5 | 500 400 | |
60x7 50x5 | 750 700 | 80x40x7 40x40x5 | 400 360 | |
80x45x6 65x40x5 | 600 550 | 100x50x6 50x40x5 | 600 500 | |
80x45x6 65x40x5 | 650 550 | 100x50x6 50x40x5 | 600 500 | |
60x5 50x5 | 500 500 | 70x6 40x5 | 500 400 | |
60x5 50x5 | 700 700 | 70x6 40x5 | 600 500 | |
35 30 | 600 650 | 50 20 | 600 400 | |
60x60x3 40x40x3 | 600 500 | 70x70x3 30x30x3 | 900 500 | |
70x50x3 50x40x3 | 1200 800 | 80x40x3 50x30x2 | 800 500 |
