• Model NO.：Q43-160
• Blade Length：700
• Motor power：18.5
• Transport Package：Veneer Case
• Specification：CE STANDARD
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：200units,Year

Basic Info.

Model NO. Q43-160 Blade Length 700 Motor power 18.5 Transport Package Veneer Case Specification CE STANDARD Trademark HAVEN Origin China HS Code 8462 Production Capacity 200units/Year

Product Description

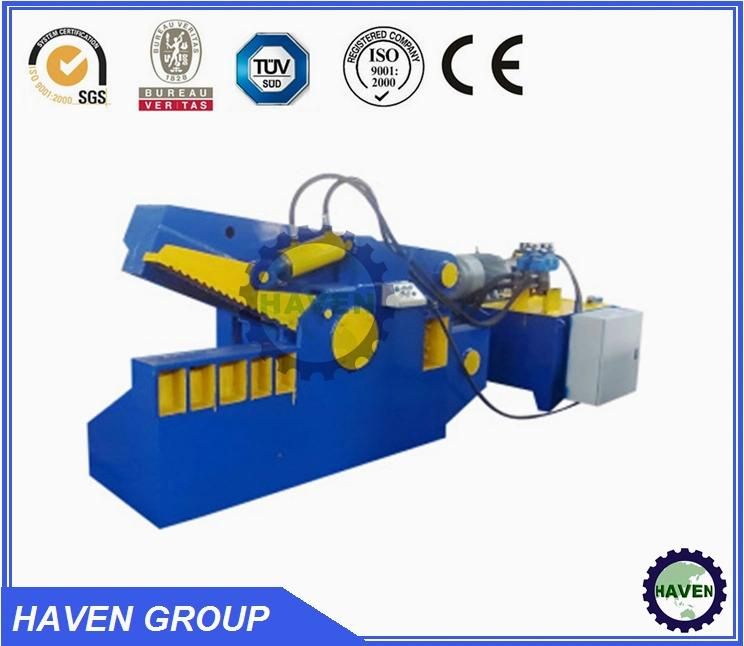

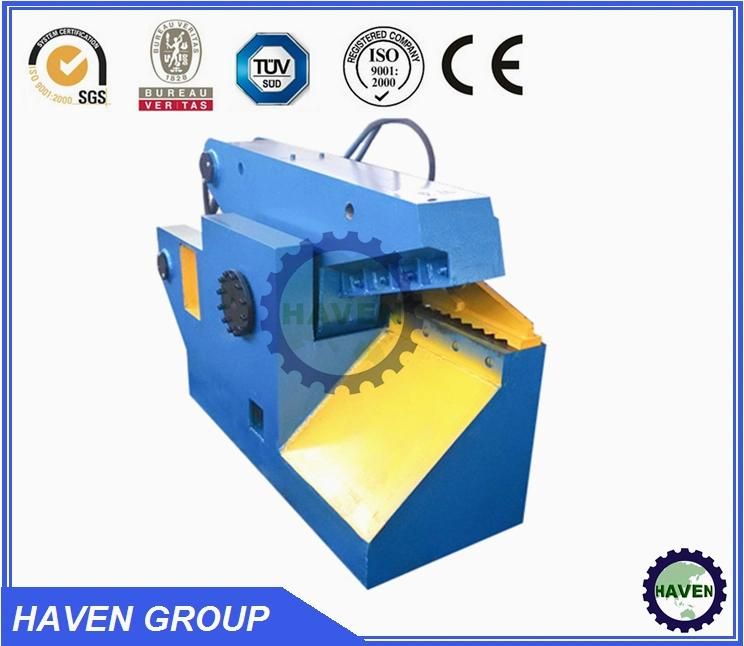

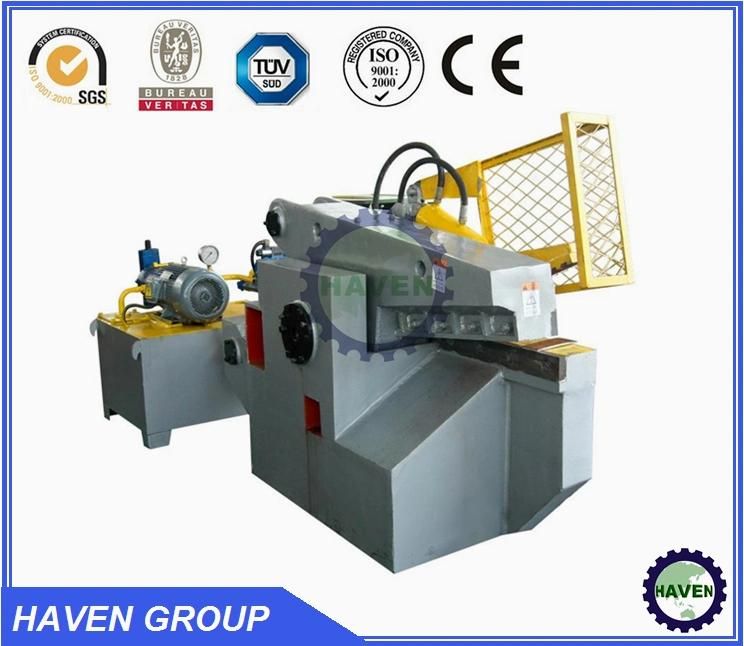

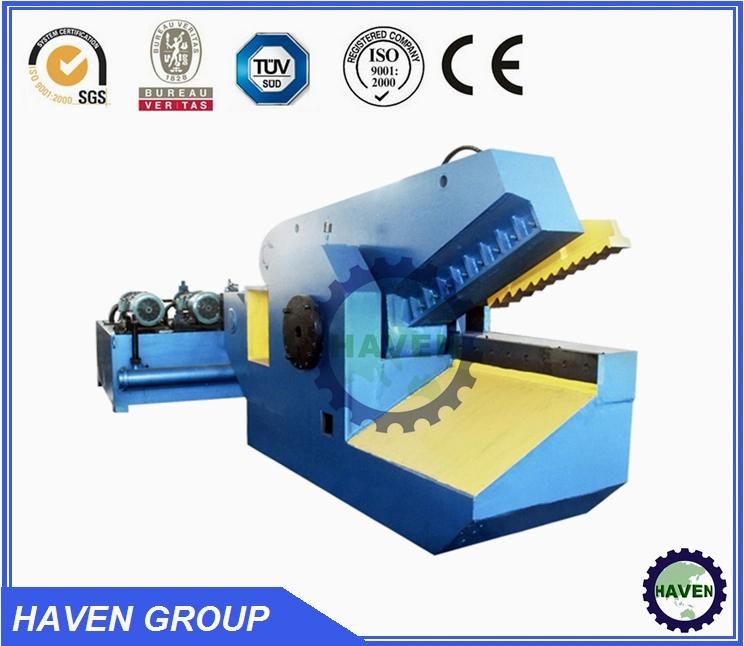

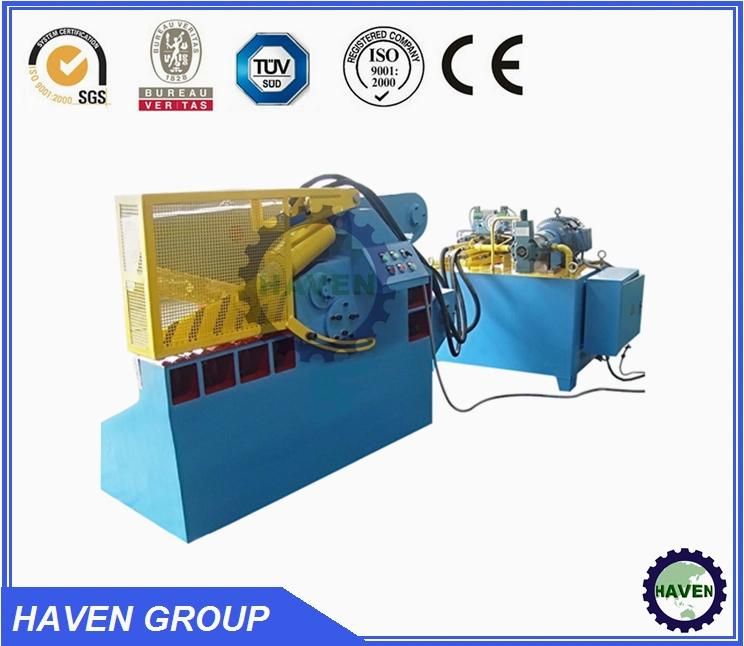

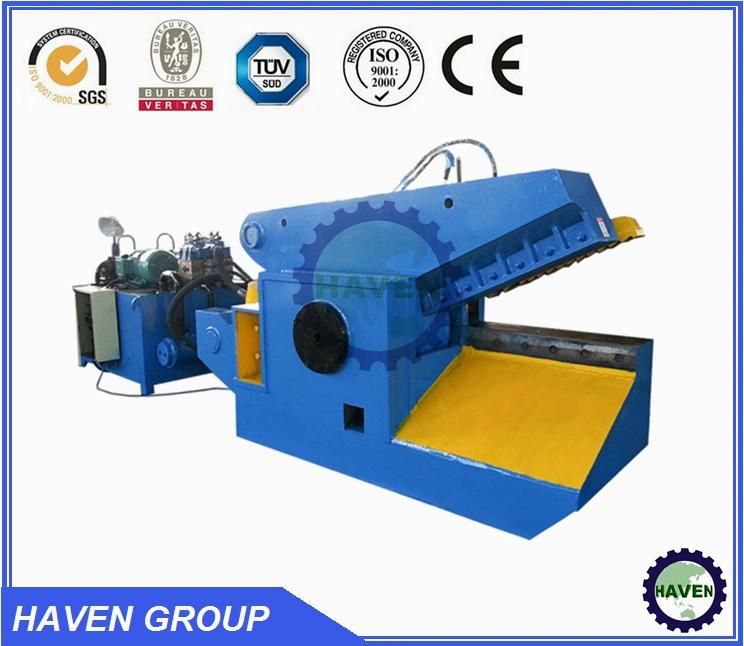

Q43-160 Hydraulic Alligator Shearing Machine







Q43 series of hydraulic alligator shears for metal recycling plant, scrap car dismantling site, smelting foundry industry, various steel and metal structure for cold cut, processed into qualified charging.
Main Features:
With hydraulic drive, convenient operation, simple maintenance.
Working blade length: 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, shear stress from 63 to 400 tons a total of eight grades. 700mm above the shear blade, particularly suitable for cutting scrap cars
Install screws no foot, no power of place can be powered by diesel engines.

Model	Largest shear force (ton)	Max press force (ton)	Max blade Opening (mm)	Blade  Length (mm)	Shearing Frequency (time/min)	Materiai Size (mm)	Matar power
Q43-63	630	120	180	400	8~10	30×30x35	7.5
Q43-100	1000	160	280	600	8~10	40×40x35	7.5(11)
Q43-120	1200	200	280	600	8~10	50×50x55	15
Q43-130	1300	200	320	700	8~10	50×50x55	15
Q43-160	1600	250	320	700	8~10	55×55x63	18.5
Q43-200	2000	300	380	800	8~10	70×70x75	22
Q43-250	2500	380	480	1000	8~10	70×80x85	30
Q43-315	3150	380	650	1200	8~10	90×90x95	37
Q43-400	4000	420	750	1500	8~10	100×100x110	44
Q43-500	5000	420	850	1800	8~10	110×110x120	44
Q43-630	6300	4200	250	1800	8~10	120×120x130	37+15
