• Model NO.：JDA05
• Suitable for：Plastic, Copper, Aluminum, Alloy, Stainless Steel
• Type：Cnc Bending Machine
• 3D CNC Channel Letter Bending Slotting F：R6
• Servo Configuration：Four Japan FUJI Servo
• Feeding System：Overall Casting Type and Mechanical Arm
• Accuracy：0.1mm
• Air Supply：0.6m3,Min
• Weight：480kg
• Power：AC 220V 50Hz 3.5kw
• Bending System：Overall Casting Type and Double Blade Alternative
• Slotting System：Overall Casting Type Plane Cutter and Milling Cutt
• Material Width：10-130mm
• Transport Package：Carton
• Specification：L2478*W1050*H1583.1
• Trademark：YT
• Origin：China
• Production Capacity：5000sets,Year

Basic Info.

Model NO. JDA05 Suitable for Plastic, Copper, Aluminum, Alloy, Stainless Steel Type Cnc Bending Machine 3D CNC Channel Letter Bending Slotting F R6 Servo Configuration Four Japan FUJI Servo Feeding System Overall Casting Type and Mechanical Arm Accuracy 0.1mm Air Supply 0.6m3/Min Weight 480kg Power AC 220V 50Hz 3.5kw Bending System Overall Casting Type and Double Blade Alternative Slotting System Overall Casting Type Plane Cutter and Milling Cutt Material Width 10-130mm Transport Package Carton Specification L2478*W1050*H1583.1 Trademark YT Origin China Production Capacity 5000sets/Year

Product Description

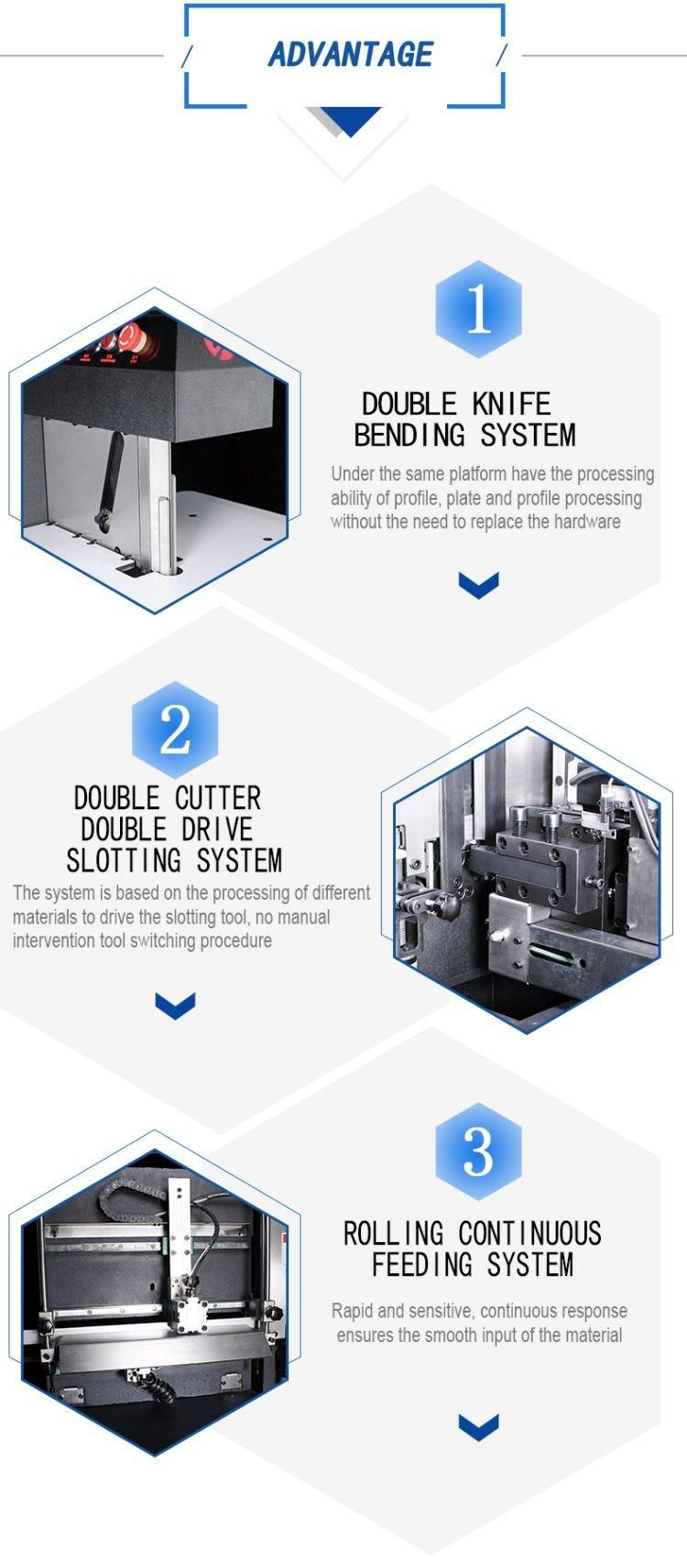

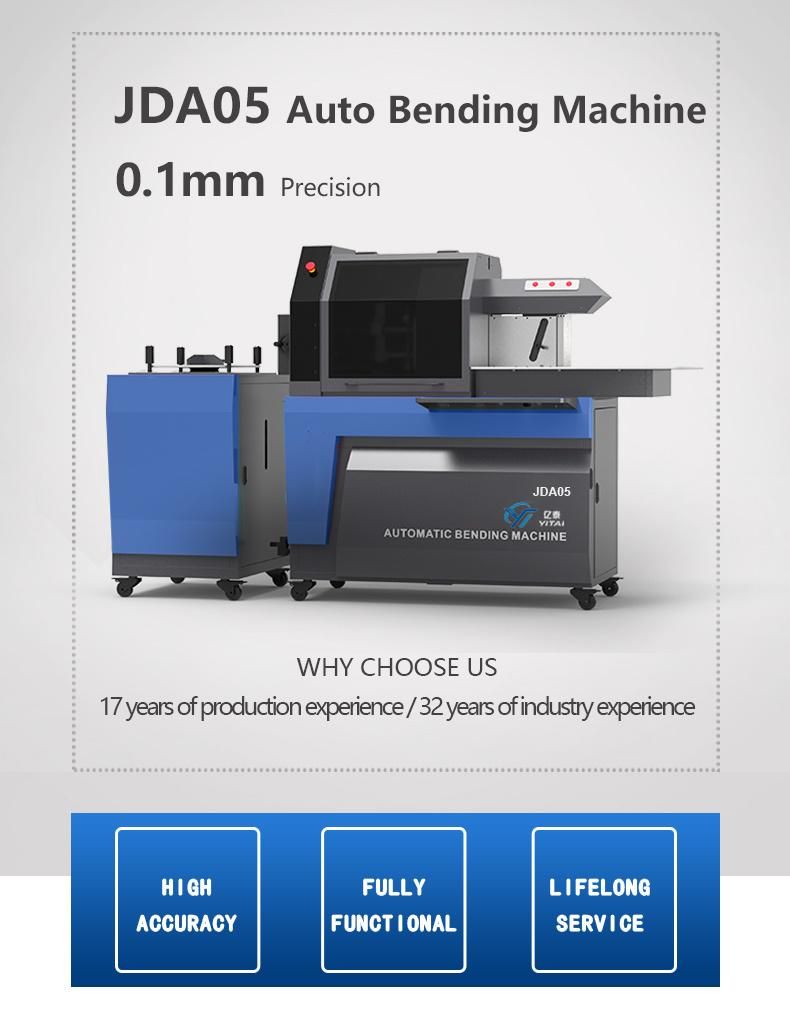

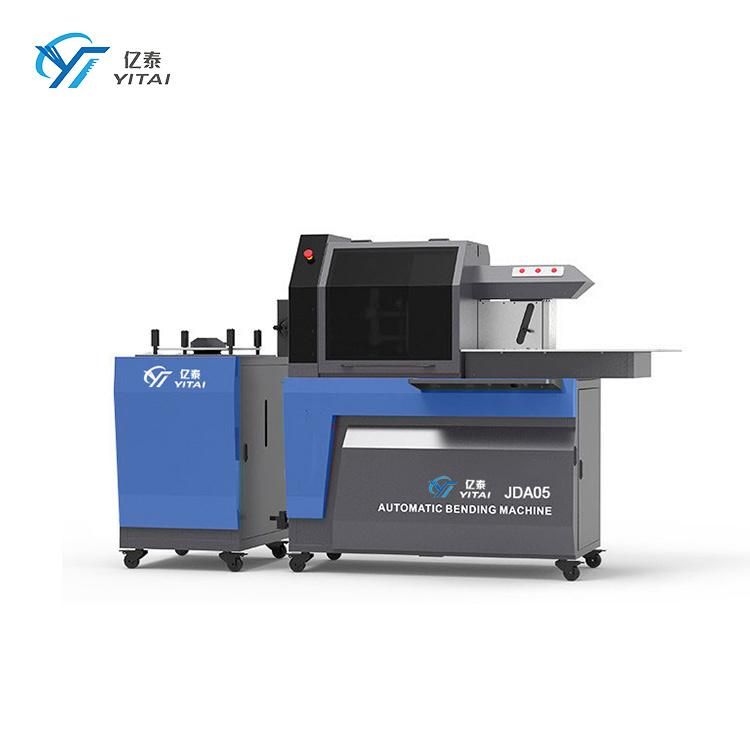

CNC Automatic 3D Channel letter bending machine for advertising led sign aluminum coil bender toolsFully functional, which has combined both the plate and profile process ng This system integrated the most convenient switching function of ma terial and cutter, the design of double slotting cutter and double bending tools can easily deal with stainless steel, galvanized sheet aluminum plate and aluminum profile and other materials processing. Now the machine is the highest rate of return on investment in the market

MOULD	JDA05
SUITABLE MATERIAL	Stainless steel,Galvanized stee,Aluminum,Aluminium profile
MATERIAL SPECIFICATION	thickness<1. 2mm Flat aluminum/Aluminum profile/Single edge
HEIGHT	10-130mm

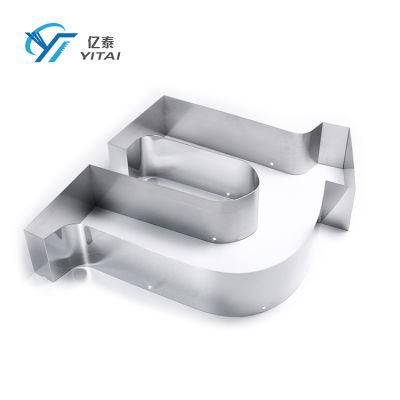

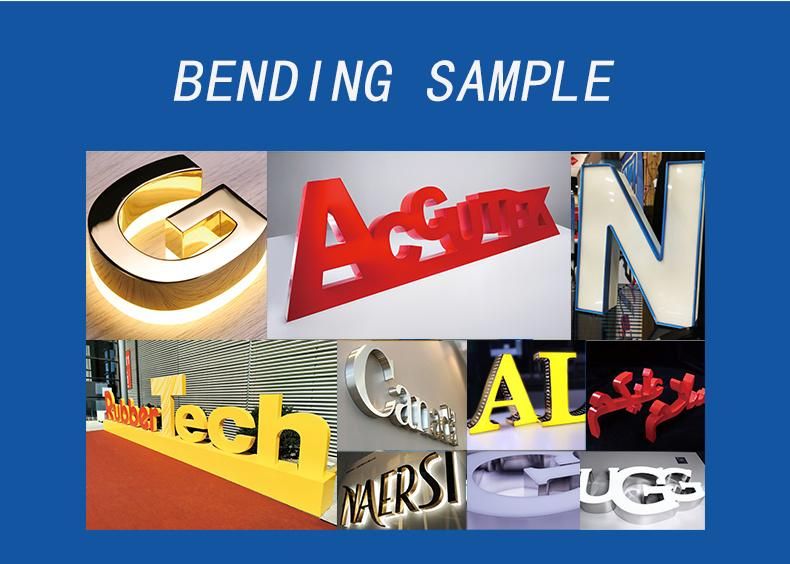

SCOPE OF APPLICATION	Seiko Stainless Steel Letter /Epoxy resin letter /Endless Acrylic Letter /Light Box Letter /Party building/3d beveling sign /Mini-square letter /Super bright letter /Aluminum Trim Strip Letter /Channelume Luminous Letter
MIN BENDING ANGLE	R6
SERVO CONFIGURATION	Four Japan Fuji Servo
FEEDING SYSTEM	Overall casting type and mechanical arm
SLOTTING SYSTEM	Overall casting type plane cutter and milling cutter
BENDING SYSTEM	Overall casting type and double blade alternative bending
PUNCHING SYSTEM	Automatic punching system
ACCURACY	0.1mm
POWER	AC 220V 50Hz 3.5KW
AIR SUPPLY	0.6m3/min
DIMENSION(mm)	L2478*W1050*H1583.1
WEIGHT	480KG
