GM-Sb-63CNC Full-Auto Numerical Control Single-Head Bending Machine
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.- Waterproof Rating:IPX-8
- Warranty:2-year
- Condition:New
- Certification:ISO 9001:2000, CE, UL
- Automation:Automatic
- Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.:GM-SB-63CNC
- Type:Pipe and Tube Bending Machine
- Certificate:ISO9001: 2000
- Applicable Material:S. S., M. S., Copper, Aluminium, Alloy, Galvanized
- Applicable Shape:Round, Rectangle, Square, Oval, Solid Bar, Profile
- Application:Wheelbarrow, Wheelchair, Boiler, Automobile
- Transport Package:Iron Frame,Wooden Case
- Specification:CE
- Trademark:GMACC
- Origin:China
- HS Code:8462219000
- Production Capacity:5000PCS,Year
Description
Basic Info.
Model NO. GM-SB-63CNC Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S., M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Application Wheelbarrow, Wheelchair, Boiler, Automobile Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/YearProduct Description

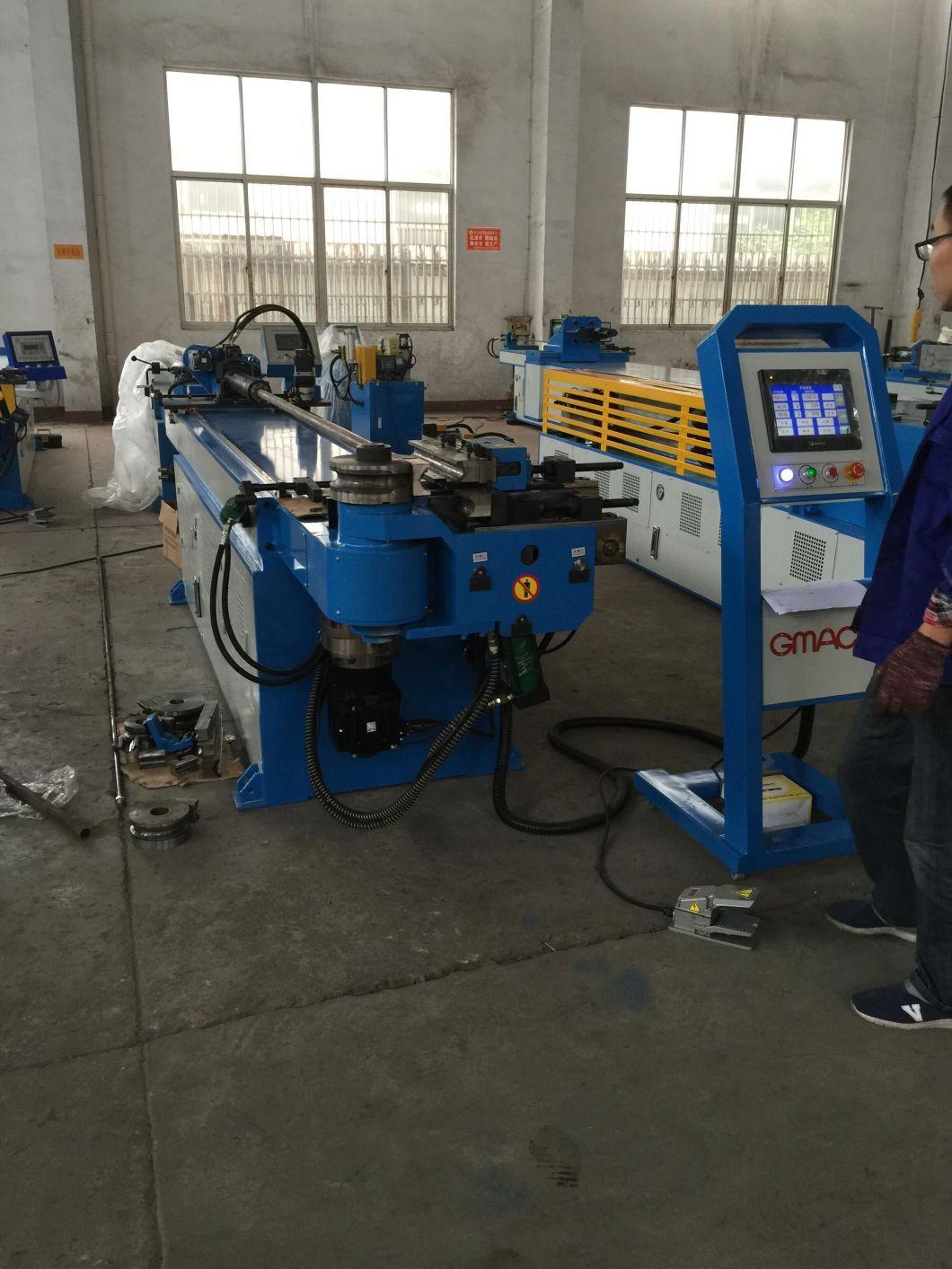

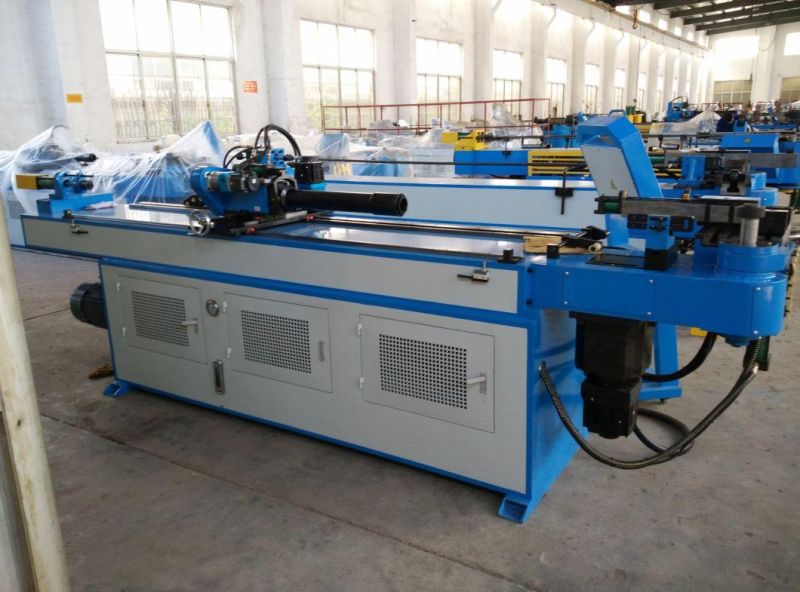

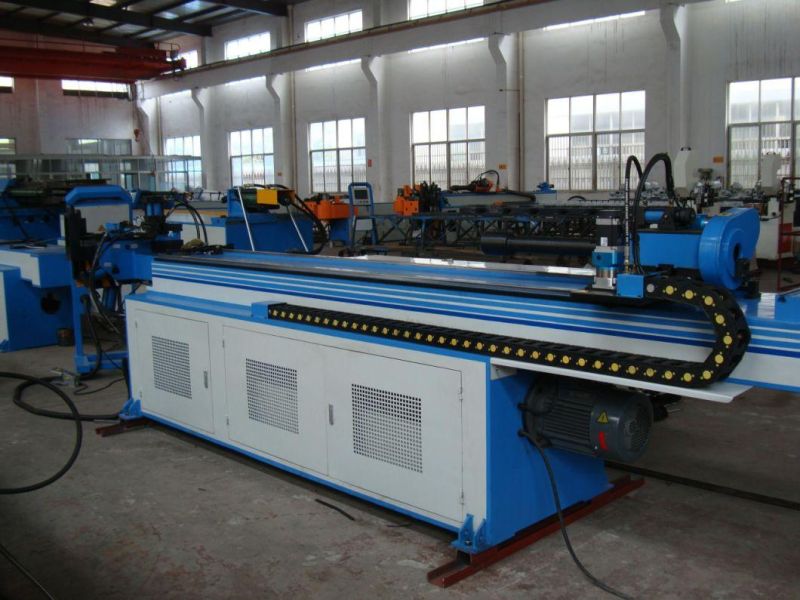

GM-SB-63CNC Full-Auto Numerical Control Single-Head Bending Machine GM-SB-63CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off and safety protection. Pipe bending(C axis), pipe rotating (B axis), and pipe feeding(Y axis) are all drove by servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.Name | Unit | Parameter |
Mild steel round tube | mm | ¢63*3 |
Stainless Steel | mm | ¢63*2 |
Mild steel square tube | mm | 50*50*2.5 |
Mild steel rectangular tube | mm | 50*45*2.5 |
Mild steel round solid bar | mm | ¢25 |
Mild steel square solid bar | mm | 20*20 |
Min. bending radius | mm | 25 |
Max. Bending radius(Standard) | mm | 300 |
Clamping adjustable stroke | mm | 0-136 |
Shouldering adjustable stroke | mm | 300 |
Mandrel retraction adjustable stroke | mm | 0-136 |
Max. Bending Angle | ° | 190° |
Through Effective Distance | mm | 3600 |
Bending Speed(Max.) | °/sec | 110 |
Rotation speed (axis Z) | °/sec | 160 |
Feeding speed (axis X.) | mm/sec | 800 |
Bending angle Precision | ° | ±0.10 |
Rotation angle Precision - axis Z | ° | ±0.10 |
Shifting Precision - axis X | mm | ±0.10 |
Bending servo motor power | KW | 7 |
Rotation Servo Motor Power | KW | 1 |
Feeding Servo Motor Power | KW | 1 |
System Motor Power | KW | 5.5 |
Max. Pressure | Mpa | 16 |
L*W*H (Packaging Dimension) | mm | 4900*1200*1350 |
Machine Weight | T | ABOUT 3.2 |
Name | Manufacturer |
Hydraulic Motor | Germany Siemens(Beide)or Runmali |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Japan Yuken(Imported) |
Oil way Board | Taiwan Shanghong (Imported) |
Cylinder | Shanghai Qifan |
Touch screen | Taiwan Weinview(Imported) |
PLC | Japan Mitsubishi(Imported) |
Angle controller | Japan Nemicon(Imported) |
Switch power | Taiwan Mingwei |
Rotating/feeding/ bending servo motor | Japan Mitsubishi(Imported) |
Contactor | Schneider |
MODEL:GM-SB-63CNC-3A-1S (only for your reference)
Tooling Samples
Bending Die Clamp Die Pressure Die
Mandrel Wiper Die(optional)
Company Photos
CNC Machining Center
Assembling Workshop
