Cutting & Fold-bend Machine

Home > Product > Knife Cutting Machine

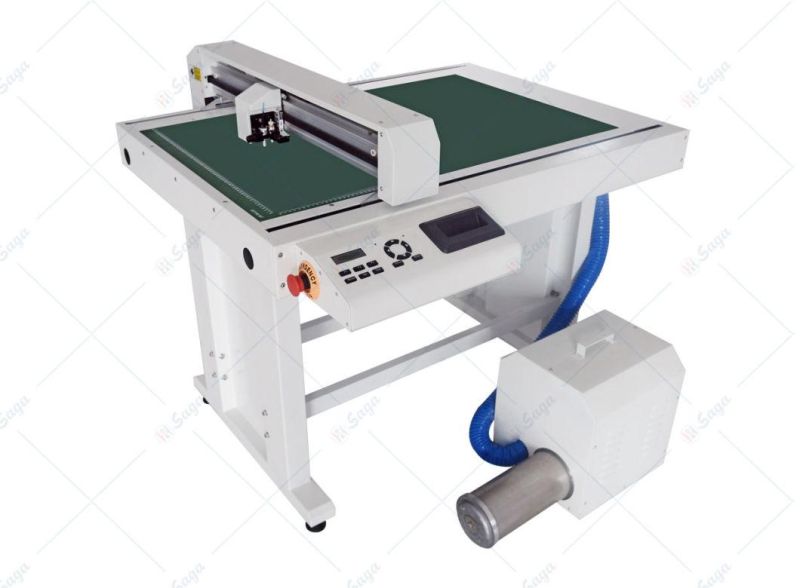

Intelligent Fast Spped Sensor Dual Toool Die Paper & Cardboard Cuuting and Creasing Machine

Hefei Saga Computer Numerical Control Co., Ltd.
  • After-sales Service：Lifetime Service
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000
  • Condition：New
  • Control：Automatic
  • Application：Paper, Plastic, Cardboard

Base Info

  • Model NO.：SG-FC76106A
  • Power Source：Electric
  • Layout：Horizontal
  • Max Cutting Speed：800mm,S
  • Max Cutting Force：750g
  • Blade Types：Blade, Creasing Tool and Pen
  • Media Hold Method：Vacuum Suction
  • Cutting Control System：Digital Servo System
  • Maximum Cutting Size：777mm*1077mm
  • Max Arms Contour Cutting Area：730mm*1067mm
  • Actual Dimensions：1285mm*1270mm*270mm
  • Package Dimensions：1580mm*1410mm*590mm
  • Gw/Nw：180kg,100kg
  • Working Voltage：110-240V 50,60Hz
  • Power：900W
  • Interface：USB
  • Transport Package：Wooden Package
  • Specification：1285mm*1270mm*270mm
  • Trademark：saga
  • Origin：Hefei China
  • HS Code：84411000
  • Production Capacity：10000PCS

Description

Software and compatibilityPower and working envionment requirementsPower source100V-240V 50/60 HzPower900WOperation environmentTemperature +5ºC to +35ºC(Fahrenheit41-95),Humidity 30%-75%(Non-condension)StandIncludedThis parameter is subject to change without prior notice. The company reserves the right of final interpretation
 Digital flatbed Die Cutter FC6090A cardboard carton paper cutting & creasing machineIntelligent Fast Spped Sensor Dual Toool Die Paper & Cardboard Cuuting and Creasing MachineIntelligent Fast Spped Sensor Dual Toool Die Paper & Cardboard Cuuting and Creasing Machine
Intelligent Fast Spped Sensor Dual Toool Die Paper & Cardboard Cuuting and Creasing Machine
