• Model NO.：ZSL-0.5-3X1650
• Width：1650mm
• Slitting Quantity：10-25 Strips
• Width Accuracy：0.05mm
• Cutting Burr：0.04mm
• Line Speed：0-150m,Min
• Coil Weight：10, 15, 20, 25 Tons
• Colour：Customized
• Material：Aluminum Coil, Stainless Steel, Pickling Plate
• Coil ID：508mm, 610mm, 760mm
• Coil Od：650-2000mm
• Power：AC 380V, 50Hz
• Protection Level：IP40
• Advantage：High Efficiency
• Transport Package：Seaworthy Packing
• Specification：23m L x10m W
• Trademark：ZeYe
• Origin：China
• HS Code：8460902000
• Production Capacity：70

Basic Info.

Model NO. ZSL-0.5-3X1650 Width 1650mm Slitting Quantity 10-25 Strips Width Accuracy 0.05mm Cutting Burr 0.04mm Line Speed 0-150m/Min Coil Weight 10, 15, 20, 25 Tons Colour Customized Material Aluminum Coil, Stainless Steel, Pickling Plate Coil ID 508mm, 610mm, 760mm Coil Od 650-2000mm Power AC 380V, 50Hz Protection Level IP40 Advantage High Efficiency Transport Package Seaworthy Packing Specification 23m L x10m W Trademark ZeYe Origin China HS Code 8460902000 Production Capacity 70

Product Description

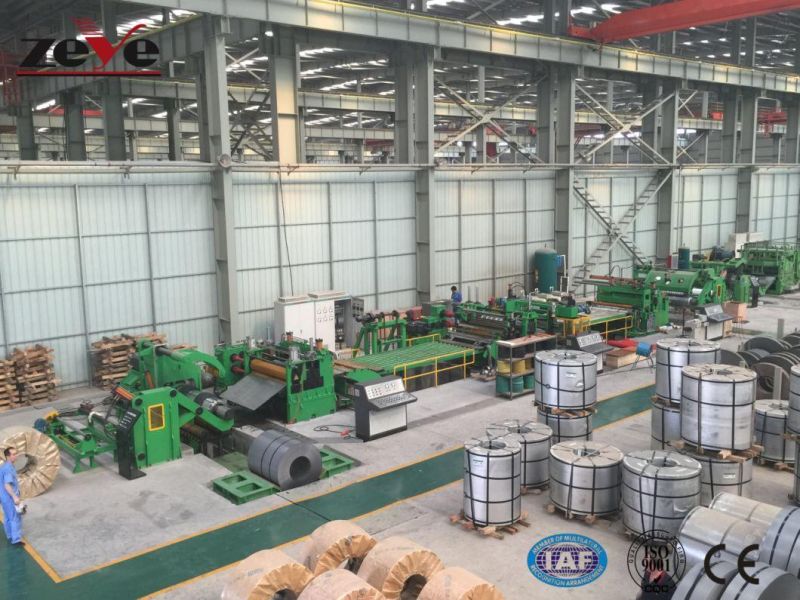

Slitting line ZSL series
Slitting line is mainly used for metail coil shear from decoiling,feeding, head shear, loop, slitting to recoiling.
Its function is to shear wide metal coil longitudinlly into narrow coils.
Application material:  cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.

Main Units
1.Entry coil car,
2.Uncoil,
3.Feeding device,
4. Hydraulic head shear,
5.Looper,
6.Slitter machine,
7.Scrap winder,
8.Looper,
9.Tension device,
10.Hydraulic shear,
11.Recoiler
12.Exit coil car.

Slitting Line Layout
 Main Technical Parameters


Model	ZSL-1	ZSL-2	ZSL-3	ZSL-4
Material thickness	0.15-1.0mm	0.2-2.0 mm	0.3-3.0 mm	0.5-4.0 mm
Material width	300-1250 mm	300-1600 mm	300-1800 mm	300-2000 mm
Slitting quantity	35	35	35	25
Width accuracy	±0.05 mm	±0.05 mm	±0.10 mm	±0.10 mm
Cutting burr	<3%	<3%	<3%	<3%
Winding split level floor	<1 mm	<1 mm	<1 mm	<1 mm
Line speed	200 m/min	200 m/min	180 m/min	150 m/min
Coil weight	10,15 t	10,15,20 t	15,20,25 t	20,25,30 t

Our advantages

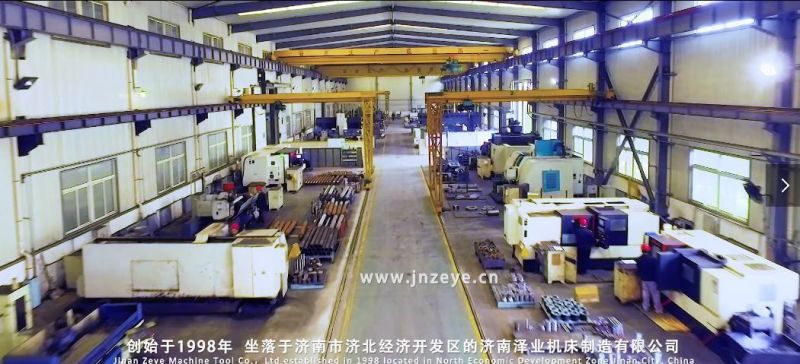

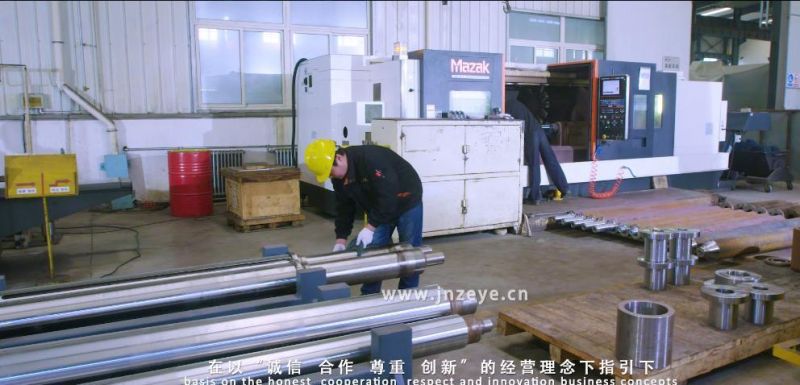

1.Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced processing equipments. Which can ensure to produce out high precision parts.

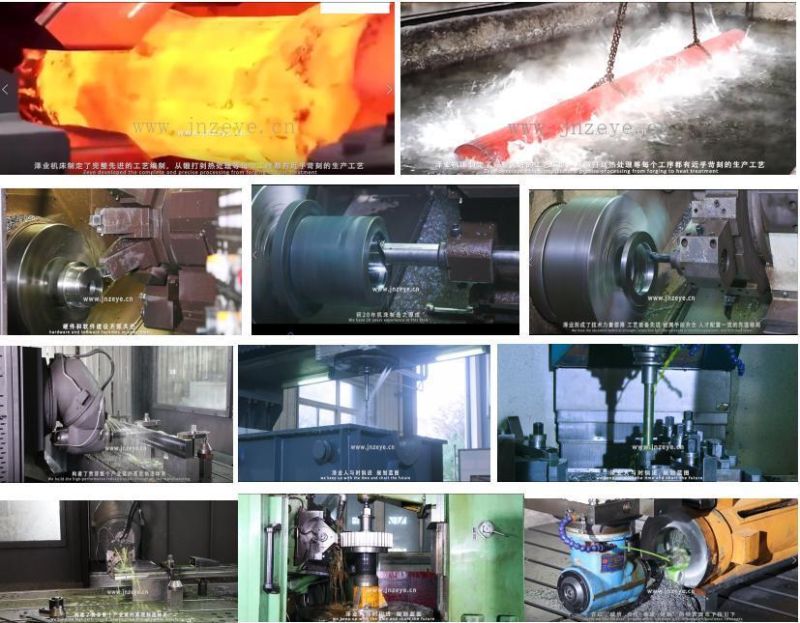

2. Every part has been finished it's own complete technology process, such as forge, rough machined,  heat treatment, cooling, burring, tempering,  finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.
3.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified.

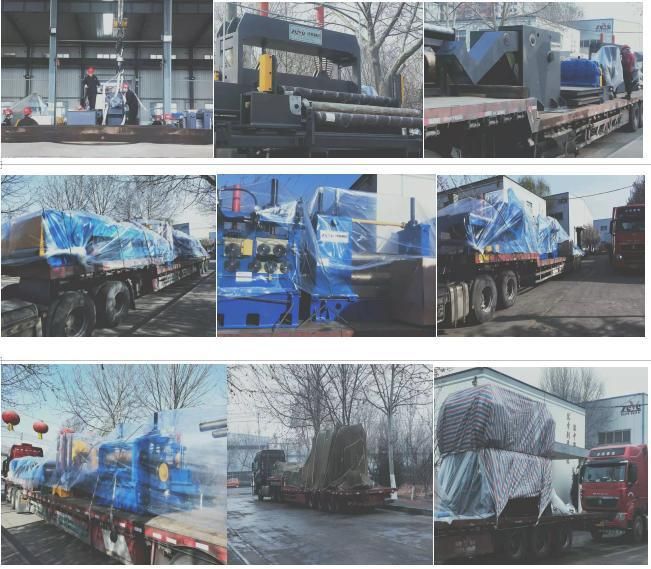

Packing and Delivery

Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.



Company introduction

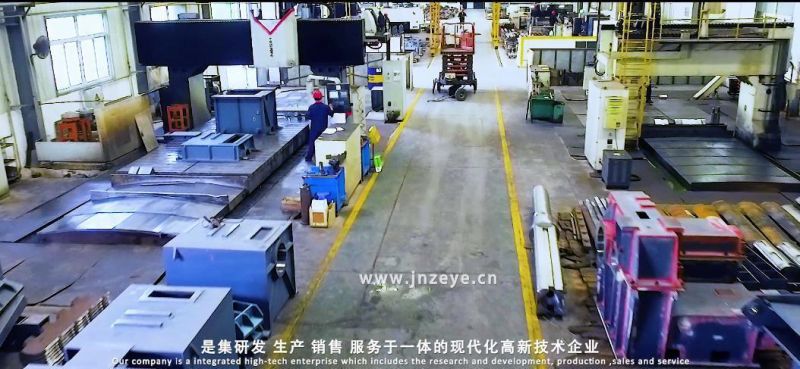

Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian  is for import and export business,  ZeYe  is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.

We have one professional technical team and after sale service team, we are ready to serve you at any time.


Welcome to visit our factory.



FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team,  we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, processing precision etc.

Q: What's the shipping cost from China to our country ?
A: We can ship equipment to your port by sea, shipping cost depends on shipping agend and season.

Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .
