• Model NO.：WD1145
• Pressure：110t
• Bending Length：4500mm
• Application：Machinery & Hardware
• Control System：Delem CNC System
• Main Motor：Yaskawa, Japan
• Electrical Components：Schneider Electrical, French
• Product Name：CNC Hydraulic Press Brake
• Transport Package：Customized
• Specification：10.5T
• Origin：China
• HS Code：846229
• Production Capacity：130

Basic Info.

Model NO. WD1145 Pressure 110t Bending Length 4500mm Application Machinery & Hardware Control System Delem CNC System Main Motor Yaskawa, Japan Electrical Components Schneider Electrical, French Product Name CNC Hydraulic Press Brake Transport Package Customized Specification 10.5T Origin China HS Code 846229 Production Capacity 130

Product Description

MAIN COMPONENTS

CNC System	DELEM-DA53 control system, Switzerland
Electrical components	Schneider, France / Omron, Japan
Grating Ruler	Fagor, Spain
Servo motor/Servo drive	Yaskawa, Japan
Foot switch	KF, China
Hydraulic System/(Assembly)	BOSCH/HOERBIGER, Germany
Ball Screw/ Linear guide	HIWIN/PMI/PYM from Taiwan
Seals	Walka, Japan

TECHNICAL SPECIFICATION

Model:	Unit	WD110-4500
Control Axis		4+1 (Y1, Y2, X, R,V)
Bending force	Ton	110
Bending length	mm	4500
Distance between columns	mm	3600
Stroke	mm	200
Throat Depth	mm	550
Open Height	mm	520
WORKING SPEED:
Fast speed	mm/sec	200
Working speed	mm/sec	9
Return speed	mm/sec	150
CAPACITY:
Hydraulic oil standard	/	#46 Anti-wear hydraulic oil
Overall dimensions	mm	4720×1615×2710
Power supply		380V/7.5KW (As customer requirement)
Weight (Approx)	T	10.5

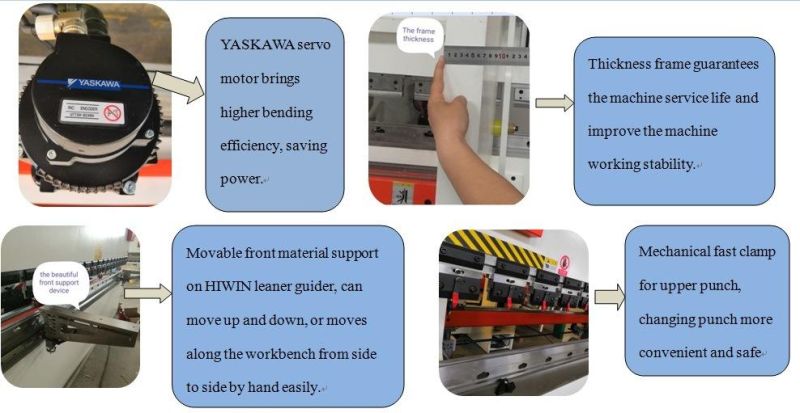

STANDARD CONFIGURATION

• Integrated into the modern aesthetic concepts of new industrial design, high quality production process, simple and generous appearance.
• The latest high frequency response hydraulic control technology, faster speed, high efficiency and more stable precision.
• Electric hydraulic servo system, full loop controlling the synchronization of the upper beam.
• Quip with VILA automatically crowning device on worktable and deformation compensation device on throat to make sure bending depth and precision.
• Optimizing the validation for the treatment frame and rigidity of whole machine .researching and applying the hydraulic compensation structure ensure precision bending processing.

Functions
This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work-pieces. One slider travel makes a sheet bending and the complicated shape work-piece may be achieved through bending many times.

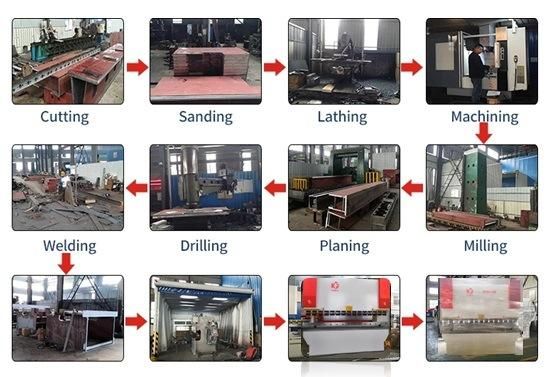

Processing Steps

FAQ:

Q: GUARANTEE PERIOD
A: Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions is caused by customers' incorrect operation, we will provide spare parts at cost price. We can also offer flexible extended warranties according to the actual situation.

Q: AFTER-SALES SERVICES
A: Our engineer can go to your factory for installation and show operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.


We welcome your visit to us any time.

If you have any question,please feel free to contact us!
