• Model NO.：QC12Y 6x4000
• HS Code：84623190
• Production Capacity：50 Set, Month

Basic Info.

Model NO. QC12Y 6x4000 HS Code 84623190 Production Capacity 50 Set/ Month

Product Description

       Price of Shearing QC12Y 6x4000 Electric Hydraulic Shearing Machine





1.Product description
The hydraulic shearing machine is a machine that uses a reasonable blade gap to apply a shearing force to various thicknesses of sheet metal by means of a moving upper blade and a fixed blade gap to break the plate in a desired size.Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.

Model	Plate thickness	Plate width	Material strength	Shear angle	Back gauge stroke	Travel times	Between column	Main motor power	Outline dimension
QC12Y	mm	mm	KN/cm	°	mm	Mm-1	mm	kw	mm
4X2500	4	2500	450	1°30'	20-500	18	2700	5.5	3120X1450X1550
4X3200	4	3200	450	1°30'	20-550	12	3410	5.5	3520X1560X1670
4X4000	4	4000	450	1°30'	20-550	12	3410	5.5	4340X1620X1660
4X6000	4	6000	450	1°30'	20-800	8	6270	7.5	6460X2100X3100
6X2500	6	2500	450	1°30'	20-550	18	2720	7.5	3000X1600X1610
6X3200	6	3200	450	1°30'	20-550	15	3420	7.5	3840X1700X1680
6X4000	6	4000	450	1°30'	20-550	15	4220	7.5	4300X1610X1680
6X6000	6	6000	450	1°30'	20-800	8	6280	11	6500X2200X2200
8X2500	8	2500	450	1°30'	20-550	18	2720	7.5	3120X1700X1650

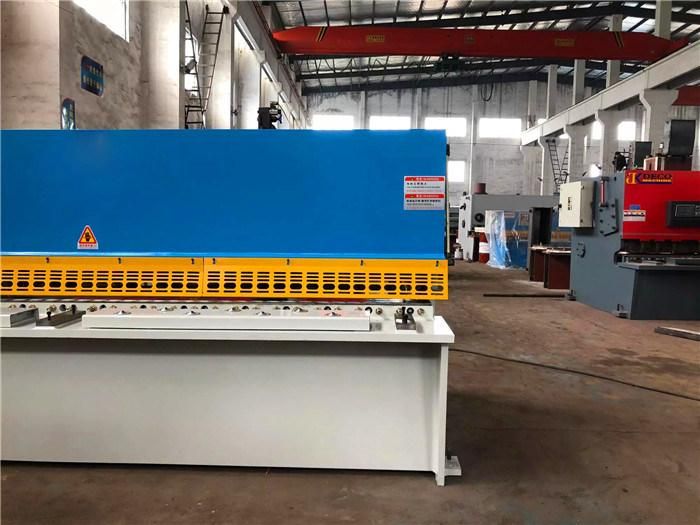

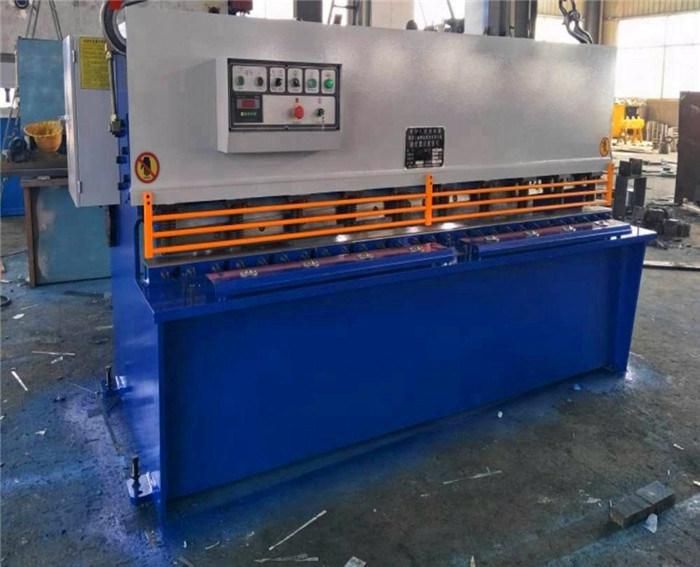

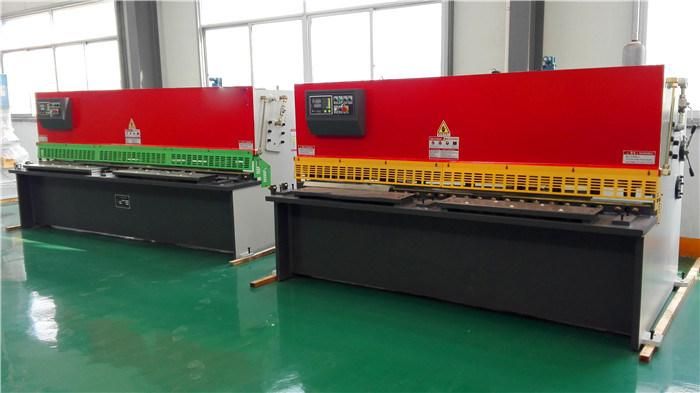

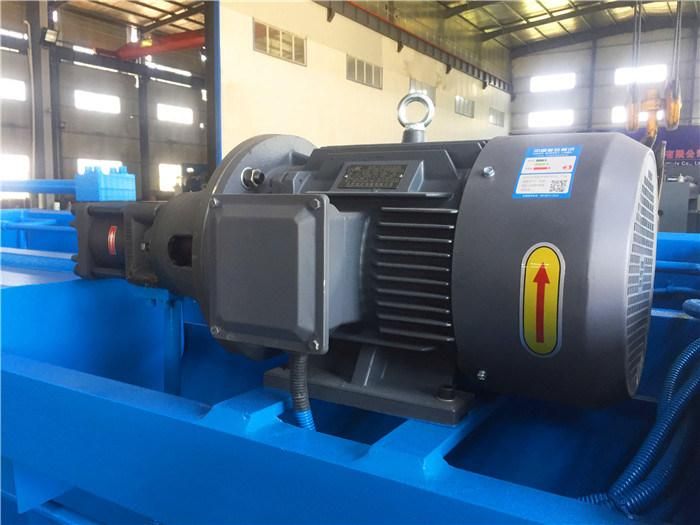

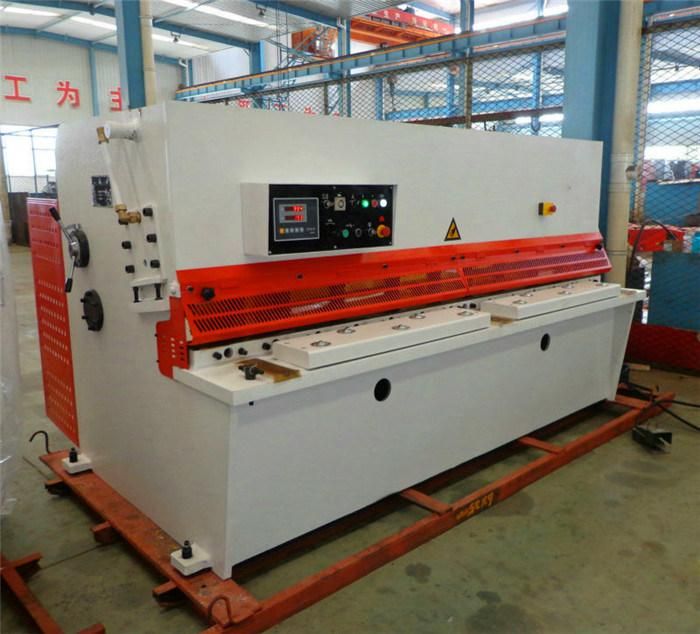

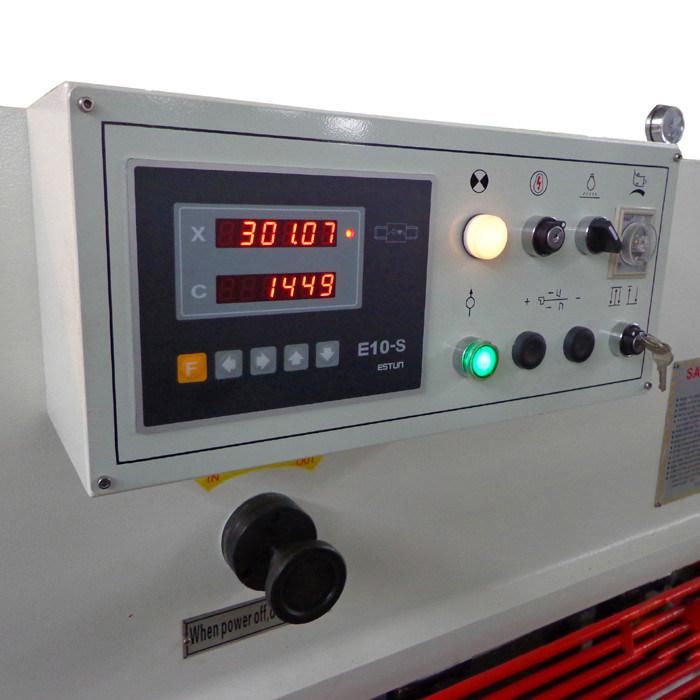

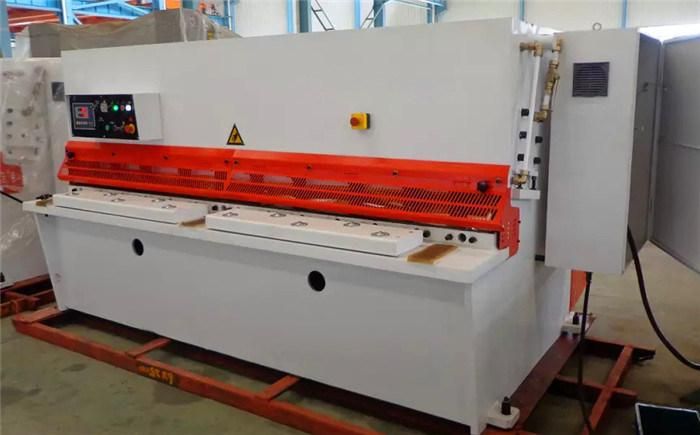

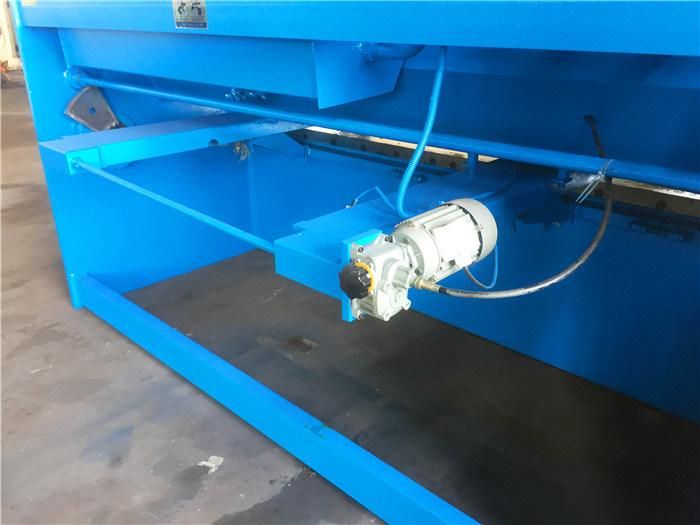

2.Machine details







3.Product feature
a. Totally EU streamlined design, by welding robots & aparatus and stress relief process by Annealing treatment.
b.engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.
c. Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.

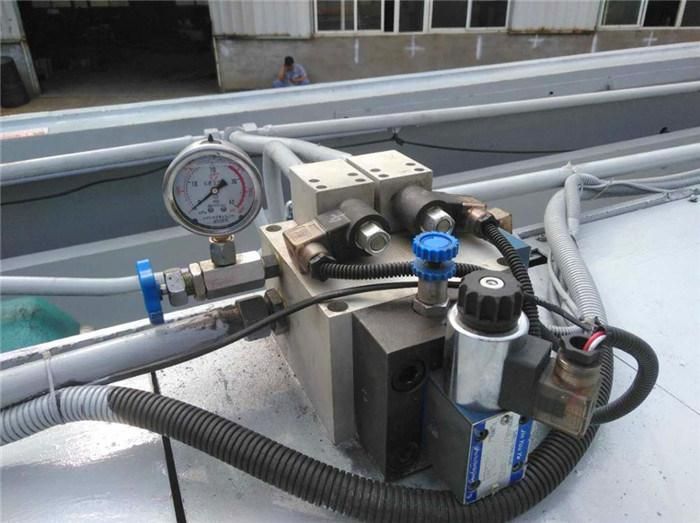

d. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system
e. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
f. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
4.Company information

Henan Wadley Import & Export Trading Co., Ltd. Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
5.Packing & Shipping

6.FAQ
a:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
b: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
c. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
d: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
e: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
