• Model NO.：QC11Y-6x2500
• Cutting width：2500mm
• Brand：HAVEN
• Transport Package：Steel Pallet
• Specification：CE, SGS, ISO
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：30 Units,Month

Basic Info.

Model NO. QC11Y-6x2500 Cutting width 2500mm Brand HAVEN Transport Package Steel Pallet Specification CE, SGS, ISO Trademark HAVEN Origin China HS Code 8462 Production Capacity 30 Units/Month

Product Description

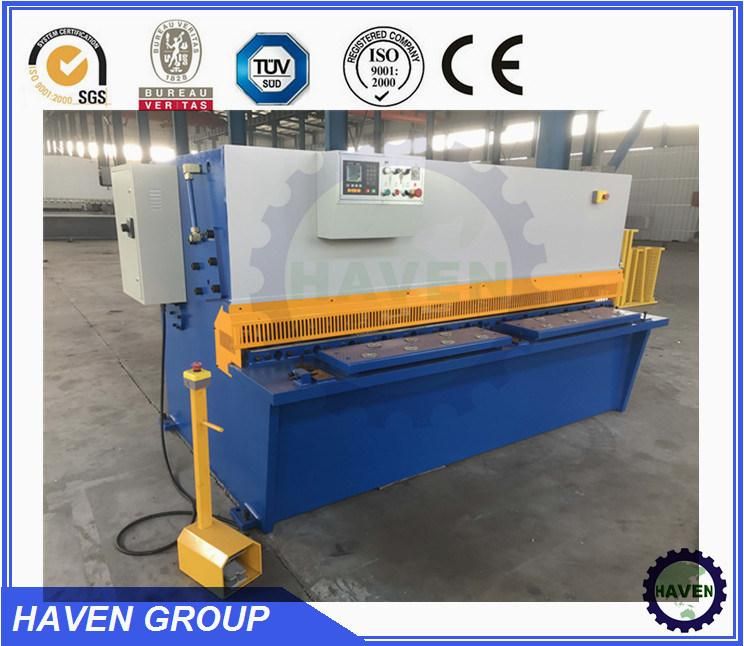

QC11Y HYDRAULIC GUILLTOTINE SHEARING MACHINE





Standard Facilities:
 1. ESTUN E21 NC control + Frequency inverter control back gauge and shearing times
 2. Front support arms with stopper and measure scale

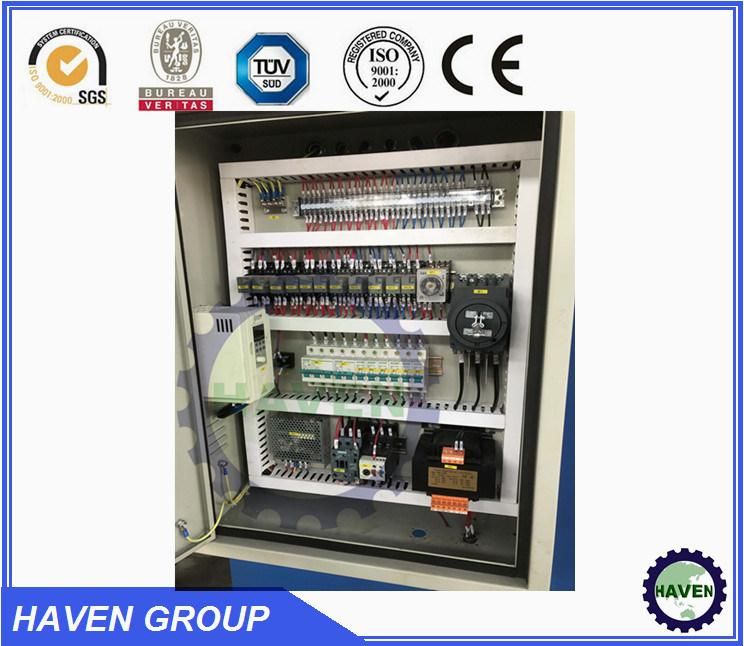

3. Main electric components are from SIEMENS or SCHNEIDER
4. Hydraulic seals are from NOK, Japan
5. Hydraulic valves are from OMEGA
6. Hydraulic pump is from SUNNY brand (USA venture in China )

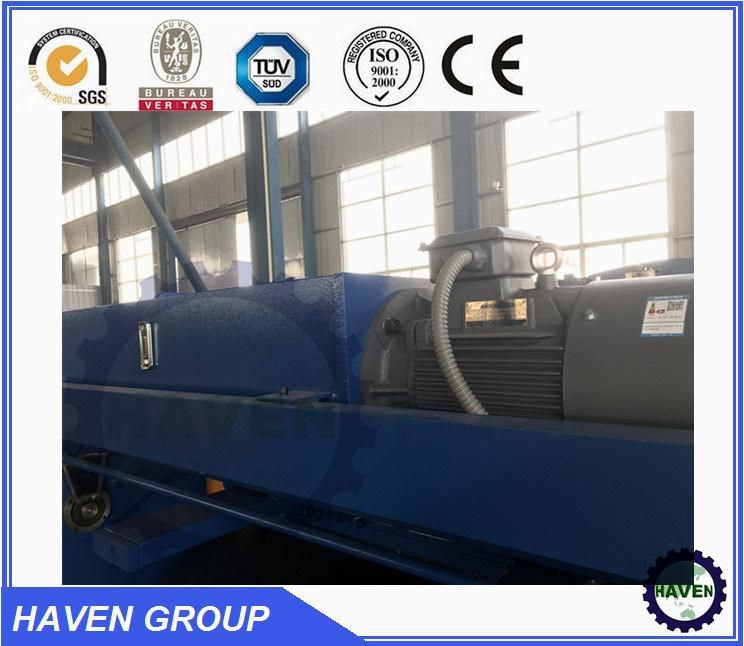

6. Main motor is from SIEMENS brand
7. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity
8. Hydraulic top-drive, steadiness and reliability
9. With adopts quick manual adjust device, cutting stroke can adjust to be suitable shearing short sheet

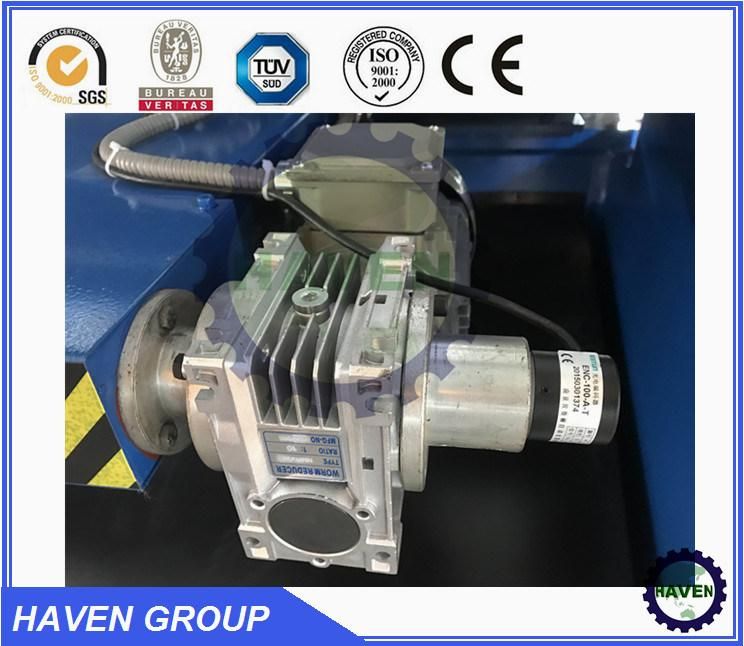

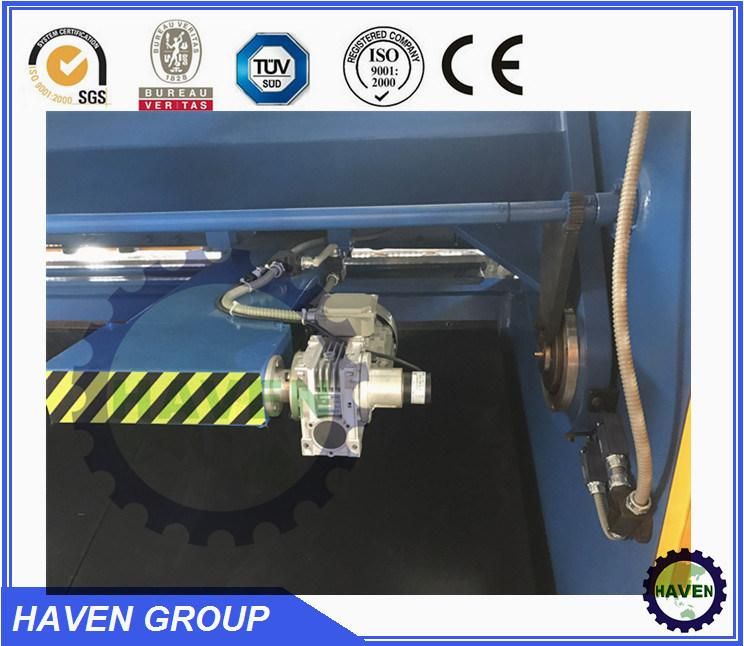

10. With motor-driven back gauge and counter device
11. CE standard back-safety curtain

2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter


3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement


4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.


5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

6. Main functions:
1. The machine frame is welded construction with steel plate, and stress is eliminated by vibration. with high strength, stable performance, easy operation and convenient maintenance.
2. As the cutting beam of machine  has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
3. With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator ( Nitrogen cylinder ).
4. Stepless adjusting is available for the stroke of knife beam for different length plate shearing.
5. The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding.
6. It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
7. Motorized adjusting and manual adjusting for the back gauge.


Model	Mild Steel (450MPA)	Cutting Length(mm)	Depth Of Throat(mm)	Back Gauge Range(mm)	Rake Angle Adjustment	Strokes Per Minute	Main Motor	L× W× H(mm)	Weight(t)
4× 2000	4	2000	80	750	0.5° -2°	14	5.5	2600× 1680× 1750	3.8
4× 2500	4	2000	80	750	0.5° -2°	14	5.5	3125× 1750× 1765	4.5
6× 2500	6	2500	80	750	0.5° -1° 30′	14	7.5	3100× 1725× 1900	5.3
6× 3200	6	3200	80	750	0.5° -1° 30′	12	7.5	3935× 1840× 1995	6.5
6× 4000	6	4000	80	750	0.5° -1° 30′	10	7.5	4650× 1840× 2100	8.5
6× 5000	6	5000	80	750	0.5° -1° 30′	8	7.5	5650× 2050× 2400	10.5
6× 6000	6	6000	80	750	0.5° -1° 30′	8	7.5	6650× 1980× 2380	15.2
8× 2500	8	6000	80	750	0.5° -1° 30′	14	7.5	3135× 1840× 2075	6
8× 3200	8	3200	80	750	0.5° -1° 30′	12	7.5	3850× 1990× 2050	6.8
8× 4000	8	4000	80	750	0.5° -1° 30′	10	7.5	4650× 1890× 2075	9
8× 5000	8	5000	80	750	0.5° -2°	7	15	5650× 2050× 2400	12.5
8× 6000	8	6000	100	750	0.5° -2°	7	15	6805× 2115× 2715	19.8
10× 2500	10	2500	100	750	0.5° -2° 30′	10	15	3195× 1915× 2205	8
10× 3200	10	3200	100	750	0.5° -2° 30′	8	15	3895× 1900× 2235	8.8
10× 4000	10	4000	100	750	0.5° -2° 30′	6	15	4695× 1970× 2270	9.15
10× 5000	10	5000	100	750	0.5° -2° 30′	5	15	5700× 2115× 2715	16
10× 6000	10	6000	100	750	0.5° -2° 30′	5	15	6905× 2115× 2800	22
12× 2500	12	2500	100	750	0.5° -2° 30′	10	15	3195× 2000× 2210	8.3
12× 3200	12	3200	100	750	0.5° -2° 30′	8	15	3895× 1950× 2240	9.2
12× 4000	12	4000	100	750	0.5° -2° 30′	5	15	4710× 1950× 2450	13
12× 5000	12	5000	100	750	0.5° -2° 30′	5	18.5	5750× 2115× 2800	20
12× 6000	12	6000	100	750	0.5° -2° 30′	5	18.5	7150× 2300× 3100	29
16× 2500	16	2500	100	750	0.5° -2° 30′	8	15	3215× 1970× 2340	8.7
16× 3200	16	3200	100	750	0.5° -2° 30′	7	15	3915× 1970× 2455	11
16× 4000	16	4000	100	750	0.5° -2° 30′	6	15	4715× 2010× 2590	15
16× 5000	16	5000	100	750	0.5° -3°	5	22	6000× 2300× 3000	23
16× 6000	16	6000	80	750	0.5° -3°	5	37	7250× 2400× 3100	36
20× 2500	20	2500	100	750	0.5° -3°	6	22	3235× 2020× 2465	10.5
20× 3200	20	3200	120	750	0.5° -3°	5	30	4150× 2065× 2755	18
20× 4000	20	4000	120	750	0.5° -3°	4	30	4955× 2125× 2885	21
20× 5000	20	5000	120	750	0.5° -3°	4	37	6000× 2300× 3050	29
25× 2500	25	2500	120	750	0.5° -3.5°	5	37	3465× 2130× 2710	15
25× 3200	25	3200	120	750	0.5° -3.5°	5	37	4120× 2200× 3000	21
25× 4000	25	4000	120	750	0.5° -3.5°	4	37	4950× 2200× 3150	26
30× 2500	30	2500	120	750	0.5° -3.5°	4	37	3465× 2170× 2770	16
30× 3200	30	3200	120	750	1° -3.5°	3	37	4200× 2300× 3200	23
