• Model NO.：XD-1003
• Type：Press Brake
• Raw Material：Sheet , Plate Rolling
• Material / Metal Processed：Carbon Steel
• Control System：Nc9 Controller System
• Power：CNC
• Machine Type：Press Brake
• Nominal Pressure：1000 Kn
• Worktable Length：3000mm
• Distance Between Housings：2600mm
• Throat Depth：320 mm
• RAM Stroke：140mm
• Max. Open Height：395 mm
• Main Motor：7.5kw
• Weight：6.5t
• Maximum Die Height：310mm
• Number of Cylinders：3 PC
• Transport Package：Fumigation Wooden Box
• Specification：3000MM(L)X1700MM(W)X2450MM(H)
• Trademark：Aoxuan
• Origin：Maanshan
• HS Code：84622990
• Production Capacity：500sets,Year

Basic Info.

Model NO. XD-1003 Type Press Brake Raw Material Sheet / Plate Rolling Material / Metal Processed Carbon Steel Control System Nc9 Controller System Power CNC Machine Type Press Brake Nominal Pressure 1000 Kn Worktable Length 3000mm Distance Between Housings 2600mm Throat Depth 320 mm RAM Stroke 140mm Max. Open Height 395 mm Main Motor 7.5kw Weight 6.5t Maximum Die Height 310mm Number of Cylinders 3 PC Transport Package Fumigation Wooden Box Specification 3000MM(L)X1700MM(W)X2450MM(H) Trademark Aoxuan Origin Maanshan HS Code 84622990 Production Capacity 500sets/Year

Product Description

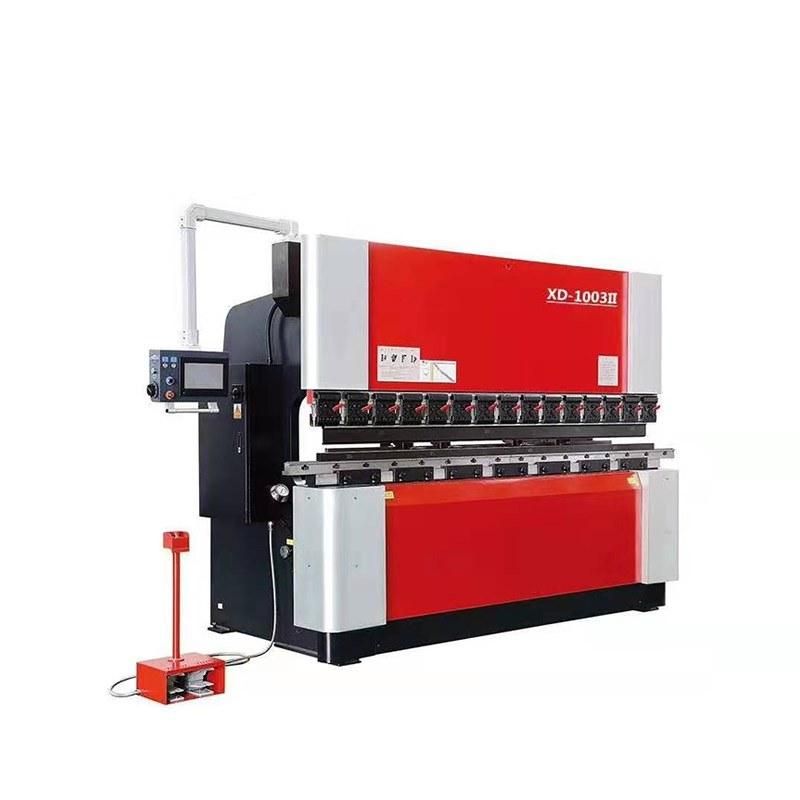

hydraulic cnc press brake Under Drive Bending Machine for sale
 Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance manufac
turing, electricity poles, lamp posts,ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be
designed and changed according to customers' different needs.Main types of press brake produced by our company are: manual
torsion, CNC torsion press brake, electro-hydraulic press brake, large electro-hydraulic synchronization press brake Currently, o
ur biggest press brake equipment is 1000T/10000, production for many years, and stable performance.

Main Function:
1, The use of hydraulic transmission, with safety, operability, reliability.
2, The use of rigid mechanical synchronization, rolling guide, maintain the upper and lower countertop balance.
3, The upper table is equipped with a skewer type deflection compensation device to improve the machining accuracy.
4. The upper and lower molds adopt integral quenching, the upper molds adopt standard upper molds, the lower molds adopt dou
ble groove molds, and the middle plates adopt quick clamping device.
5, Rear stop foot with scale display, easy to adjust, flexible, high precision.
6, Hydraulic device oil simplified, no oil leakage, maintenance, convenient point inspection.
7, Foot switch, can be arbitrary control under the table, or do the middle stop, so that the line bending and other easy and conven
ient.
8. The control system adopts professional numerical control system NC9 or A310, with touch type wire-controlled steering wheel
and electronic handwheel to control fine tuning of upper and lower mould mouth to line and rear material.

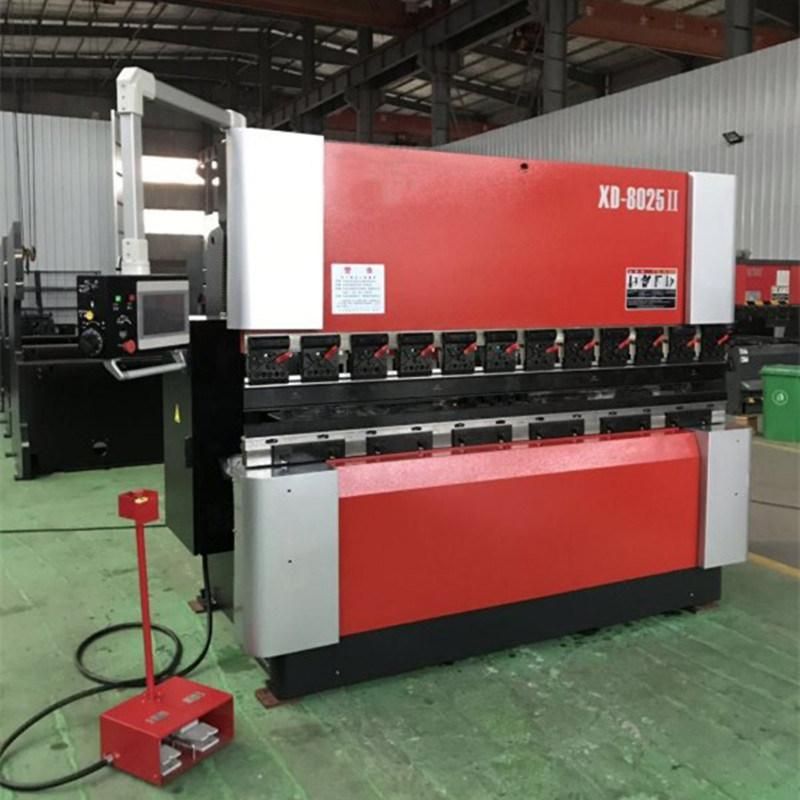

Details:

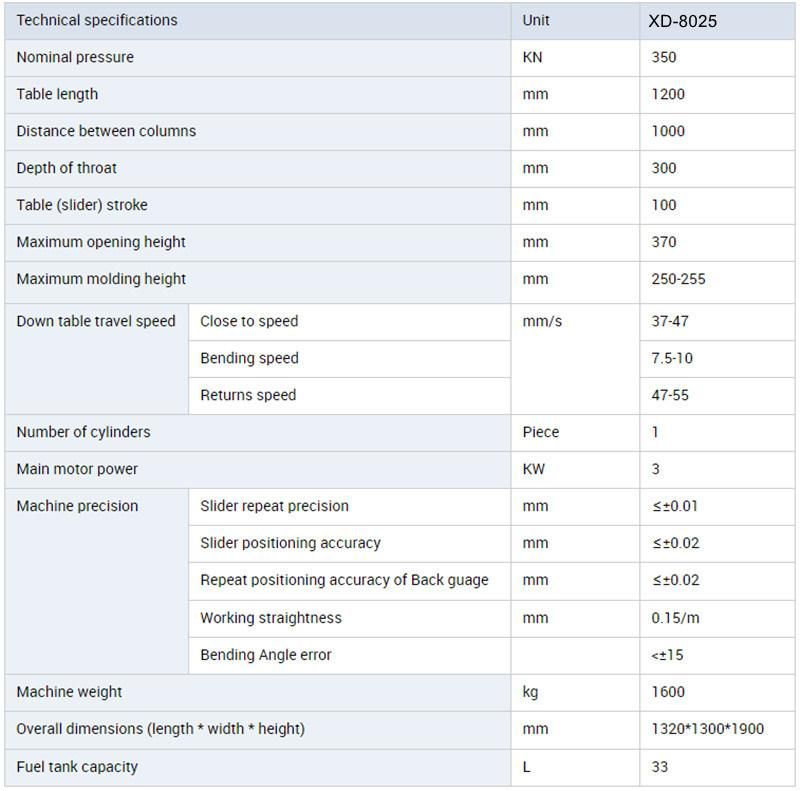

Technical Parameters:



Certifications:

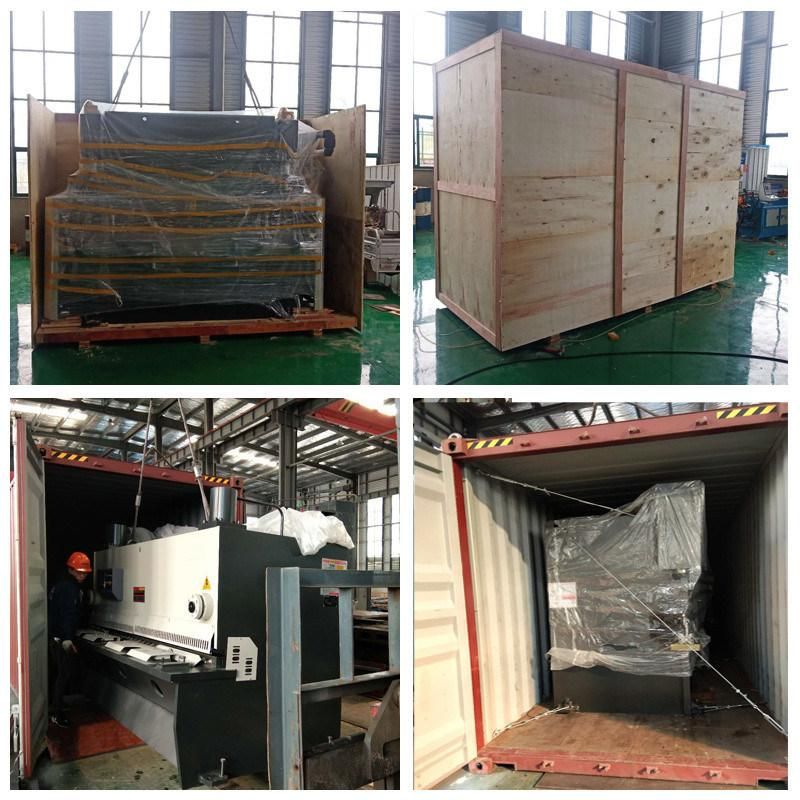

Packing Detail:
Each Hydraulic under drive press brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment



Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
* Sample testing support.
In-sales. * We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how
to use the machine with video and so on * And our technical staff can go abroad to provide technical guidance.

Our Company:

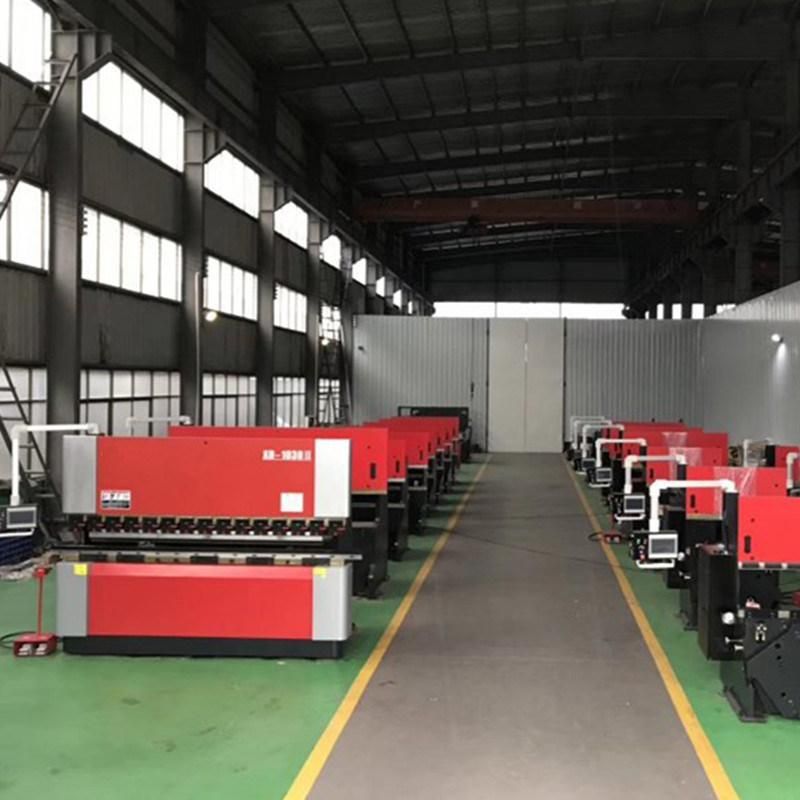

Our workshop:



Customer & EXPO:

FAQ:
1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
be solved on spot at first time.

2.What's your main product and what is your main foreign market? Our main products are press brake,shears machine,press,cut
ting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Afr
ica.

3. What are the advantages of your machines?And how can i believe the quality of your product? The main configuration is to im
port quality products, and Professional product quality inspection teamensure machine in top-quality, precision and life. For exam
ple,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as q
ualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order? After confirming your order ,we
would keep you updated of production details of emails and photos.

5. Can we be your agent? Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service
like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms? T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, res
t 70%paid before shipment.

7.Are you provide product metal parts and provide us technical guidance? Wearing parts,Disassembly tool(free) are what we cou
ld provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty? 13 months free warranty, life-long maintenance. 9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .
