• Model NO.：HPB 100T3200
• Automation：Automatic
• Suitable for：Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Stainless Steel
• Type：Press Brake
• System：Da66t
• Pressure：100ton
• Bending Length：3200mm
• Bending Thickness：4mm with Length of 3m
• Weight：7900kg
• 2D Programming：Yes
• Compensation：Automatic CNC Compensation

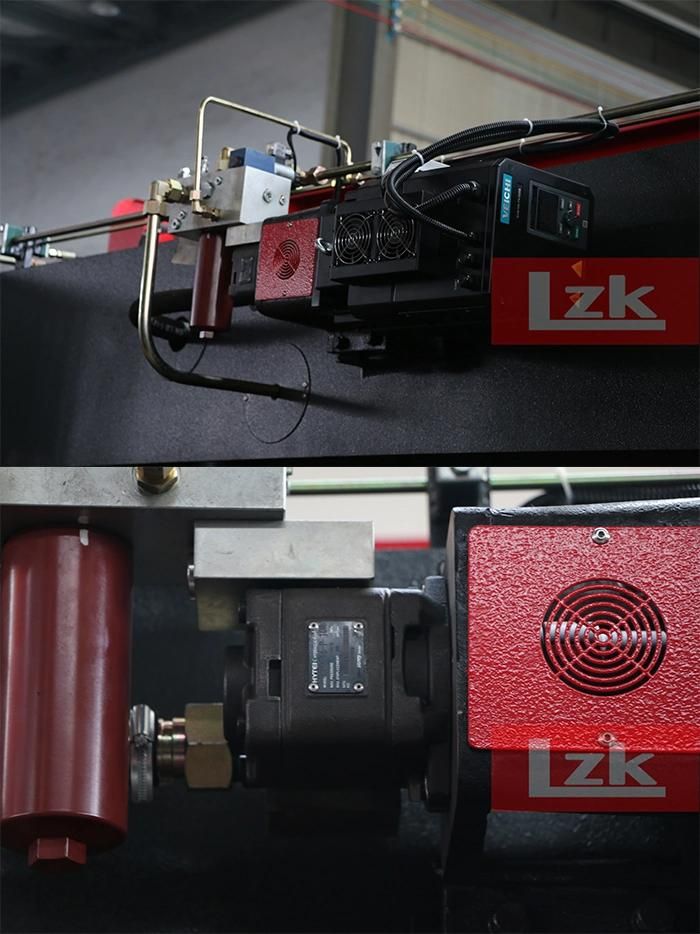

• Hydraulic System：Bosch Rexroth
• Main Motor：Energey Saving Servo Motor
• Main Electrics：Schneider
• Transport Package：40hq
• Specification：3800× 1750× 2580mm
• Trademark：lzk
• Origin：China, Maanshan
• HS Code：8462219000
• Production Capacity：100 Set,Month

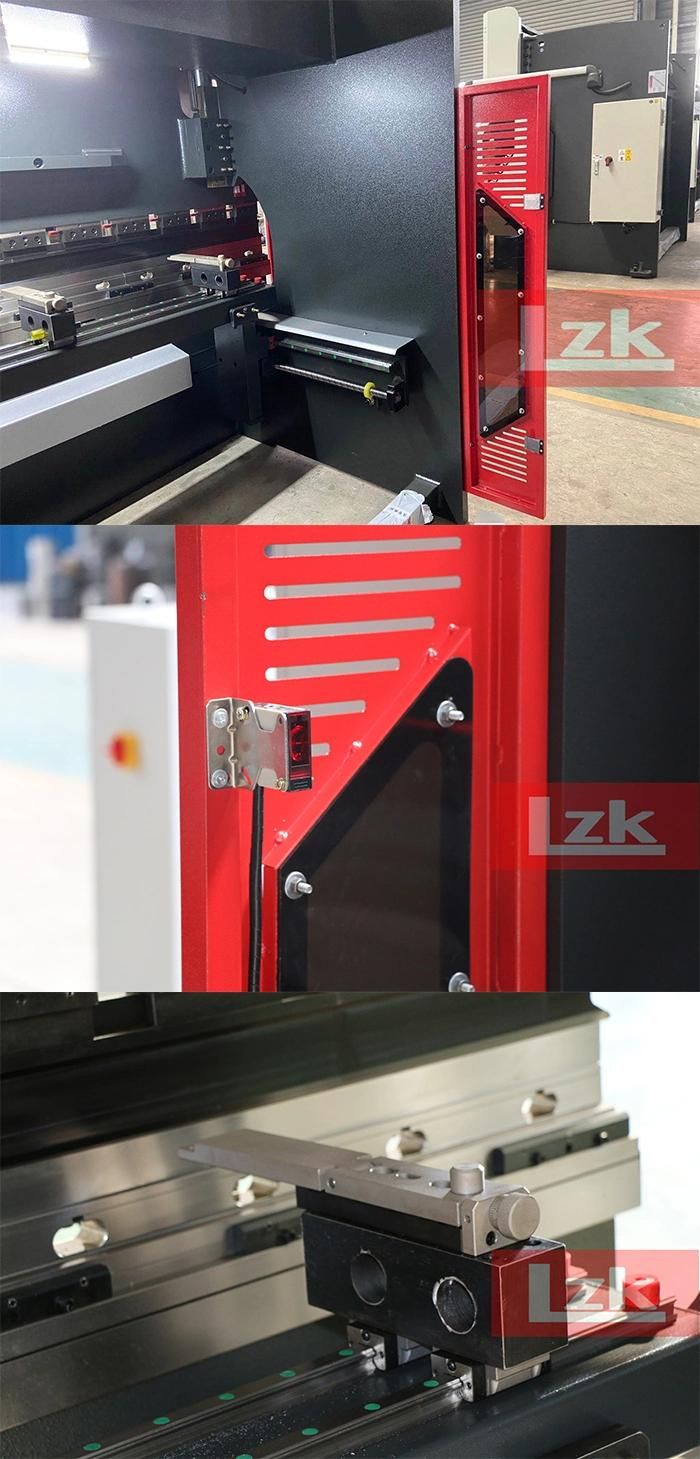

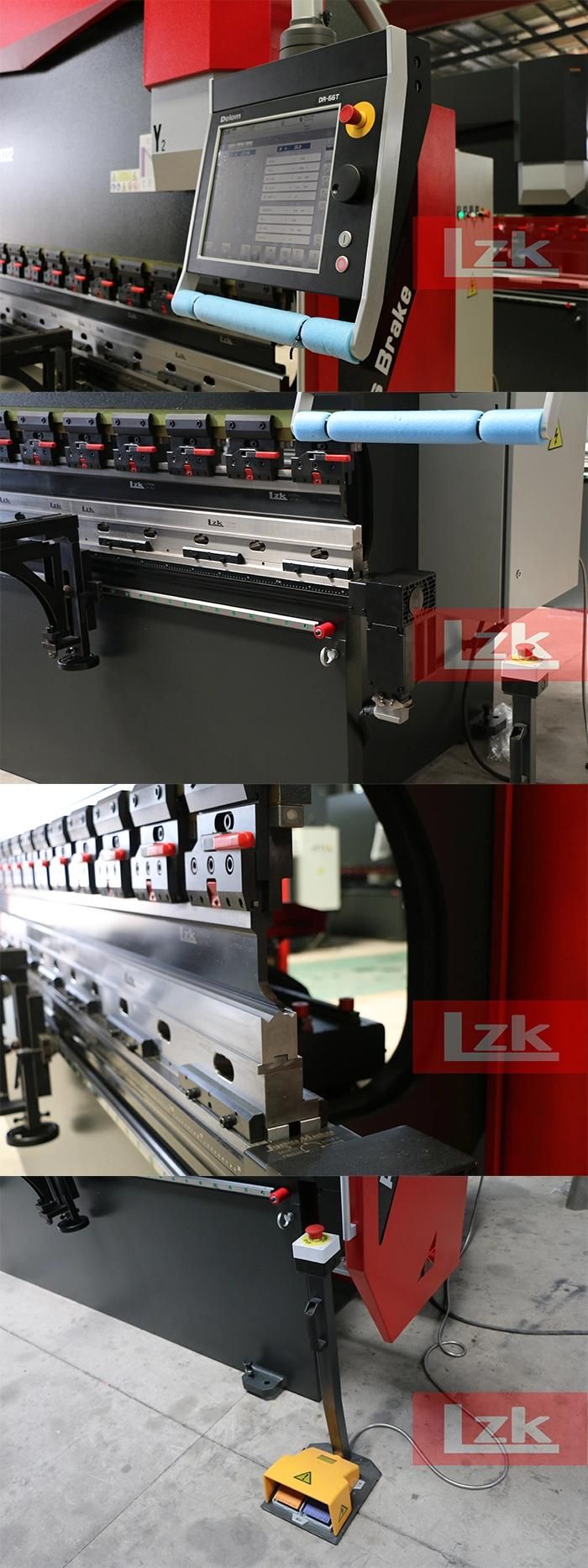

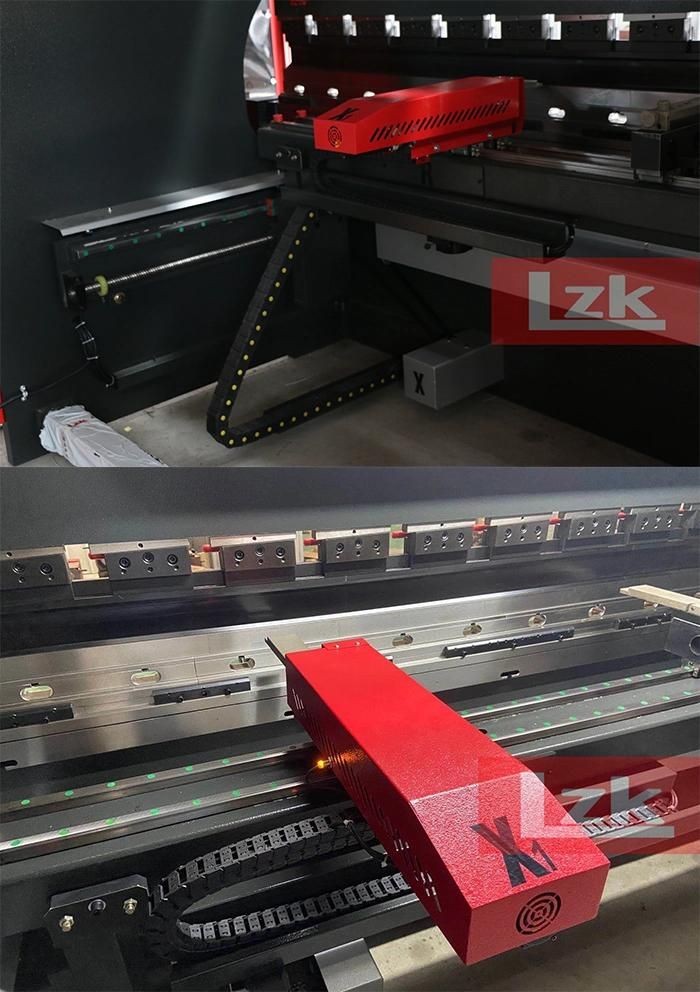

Energy saving type cnc press brake with main motor as servo motor. 1. The electro-hydraulic servo CNC bending machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.2. The electro-hydraulic servo CNC bending machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.DELEM DA66T CNC SYSTEMQuick clampElectrical crowning One set of standard V8+V12 die, it can also be customized by customer's productFoot pedalBack guage is X, R, X1 axes Ball screw and linear guide railServo motor controlled X, R, X1 axesLight curtain for safety protectionWith 2 backgauge fingers as standardMain motor is with SERVO MOTOR, good for energy saving, low noise, longer lifeSunny oil pumpBosch Rexroth valve Schneider main electrical componentsServo drive
German customer bought our tandem press brake for long sheet bending, photos were taken by our engineer
when dis aftersale service.

Our Russis customer bought three sets of cnc press brake from us, they are manufacture of Yacht.

Customer form different countries come for inspection and cooperation.
