• Model NO.：SB-25CNCDRE
• Machine Type：CNC Pipe Bending Machine
• Certificates：Ce, ISO9001
• Color：Blue or Customized
• Eextra Function：1d Bending, Cutting, Roll Bending
• Modle：Sb-25cncdre
• Brand：Sanco
• Technology：Taiwan
• Axis：3
• Controller：PLC or Industrial Computer
• Bending Accuracy：+,- 0.1 Degree
• Transport Package：Wooden Case
• Specification：1500KGS
• Trademark：Sanco
• Origin：China
• HS Code：8462219000
• Production Capacity：50000,Year

Basic Info.

Model NO. SB-25CNCDRE Machine Type CNC Pipe Bending Machine Certificates Ce, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting, Roll Bending Modle Sb-25cncdre Brand Sanco Technology Taiwan Axis 3 Controller PLC or Industrial Computer Bending Accuracy +/- 0.1 Degree Transport Package Wooden Case Specification 1500KGS Trademark Sanco Origin China HS Code 8462219000 Production Capacity 50000/Year

Product Description

Brief Introduction of CNC Pipe Bending Machine

Full-auto CNC type includes multi-axis, standard is  Feeding Y axis by manual, Rotation B axis by manual, Bend C axis by Hydraulic or Servomotor, options can be choosen as per customer's product drawings such as multi-stacks for multi-radius one one tube or very short distance between bends, roll bending function for big radius, hydraulic & servomotor booster for 1D radius bending with good thickness reduction rate,  punching hole, cutter installed on bending machine, right and left direction bending for complicated parts. CNC ypes pipe bending machine mostly used for one tube with more than two bends in three dimensional spaces. It is widely applied for following indystries: automobile parts (exhaust, bumper, muffler, engine pipeline, headrest),  boiler, funiture (bed, chair, desk, table etc), gym fitness equipment, aviation parts, Train parts, motorbike parts (handlebar etc). CNC type pipe bending machine with high accuracy and mass production, which can greatly reduce cost of producers.





Features / Equipment :

SANCO develops their own CNC software which is based on Windows 7 with the ability to import XYZ information from DWG files translating to be YBC data.  (Option)
SANCO software uses 3D simulation software to preview and determine bending interferences. The SANCO software is flexible to meet our client's requests to achieve efficient production.
We offer fully automatic pipe bender CNC-controlled machining of pipes with a diameter from 4mm to 220mm. These models 3,4,5,6,7,8 axial (hybrid models with electrical control in conjunction with the plumbing) and all-electric models in the 10-12 axis...
Standard machine design features on CNC benders include:
Air conditioned electrical enclosure to maintain temperature and prolong system components (Option)
Oil filtering system with condition indicator to protect oil supply
Oil cooler standard on most models, available on others to maintain oil temperature
Vibration control machine mounting pads to reduce machine movement during operation
Spacious well labeled / layout of electrical system for ease of maintenance and efficient operation
Remote control console for placement in operational location based on application to reduce operator interface time to increase production
Foot pedal cycle start operation for quick safe loading increasing production
Safety mat and safety plates with multiple emergency stop placement for operational safety (Option)
Full capacity feed through collect for working with long material that requires additional length beyond the front collect stop system reducing the need for extended models in most applications.
Low decibel level production noise to reduce operator fatigue and general improvement of shop conditions
Low working heights for ease of operation increasing production and improved safety of material handling
Multiple axis operation reducing cycle time and interference for optimum production




Industrial Computer Description:

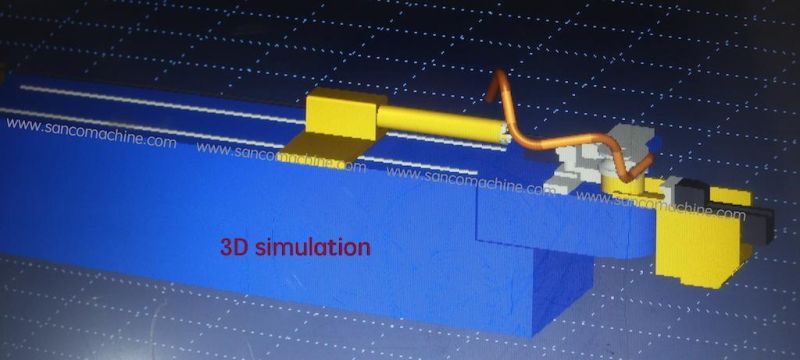

3D graphics simulation of preset bending program
3D view after input XYZ or YBC
DWG direct readout
Remote control for your machine to help you in program
USB interface with 15" touch screen Pad
Windows 7 system
Intel CPU Atom, N270, 1.6GHz
Internal storage 2GB SO-DIMM DDR2 667 SDRAM
32GB super hard disk
3D simulation video link:
https://sancogroup.en.made-in-china.com




Contacts:

SANCO MACHINERY CO., LTD Since 1984
Add: 17#, Economic Development Zone, Nanfeng Town, Zhangjiagang City, China.
Tel / Fax: +86-0512-58900248
Cell phone : +86-158-9547-5880
sancogroup.en.made-in-china.com

 Technical Specification:

Item	Name	Unit	Data	Remark
1	Max draw and push  bending capacity	mm	Round tube Φ25 X 2 mm	For mild carbon steel
2	Max draw bending radius	mm	100	Can according to customer's requirement
4	Max push bending radius	mm	+∞
5	Min bending radius	mm	1.3XOD
6	Standard Mandrel Length	mm	2000	Can according to customer's requirement
7	Bending Accuracy	Degree	±0.1
8	Rotating Accuracy	Degree	±0.1
9	Feeding Accuracy	mm	±0.1
11	Rotating Speed	Degree	200	Can be adjusted
12	Feeding Speed	mm	1000	Can be adjusted
14	Rotating Servo Motor	W	400	Japan Mitsubishi
15	Feeding Servo Motor	W	750	Japan Mitsubishi
16	Horizontal shift stack	W	750
17	Vertical shift stack	W	1000
18	Oil Pressure System Motor	W	3000
20	Method of input data		1. Coordinates (X, Y, Z)   2. Working values (Y, B, C)
21	Max bending degree	Degree	190	195 as option.
22	The bending number for one tube	Pieces	28 for PLC 40 for PC
23	Storage	Groups	200 with PLC control 100000 with PC control
24	Oil motor power	Kw	4
25	Max pressure	MPa	12
26	Machine weight	Kg	1360
27	Machine size	mm	3100 x 810 x 1160

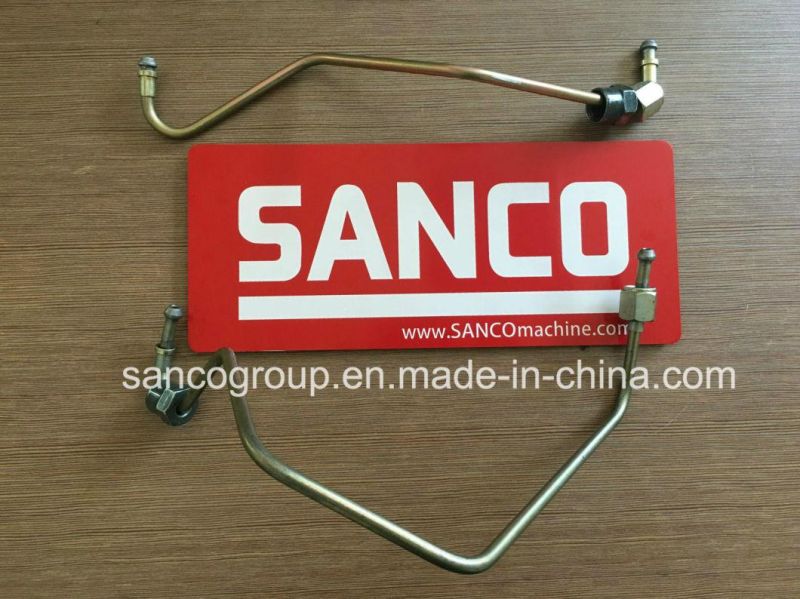

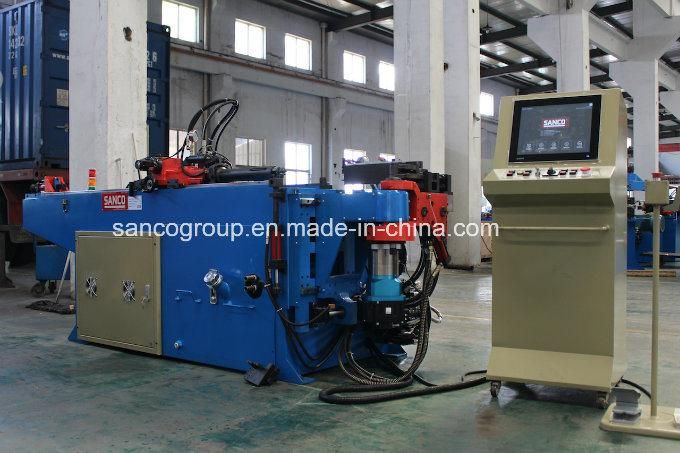

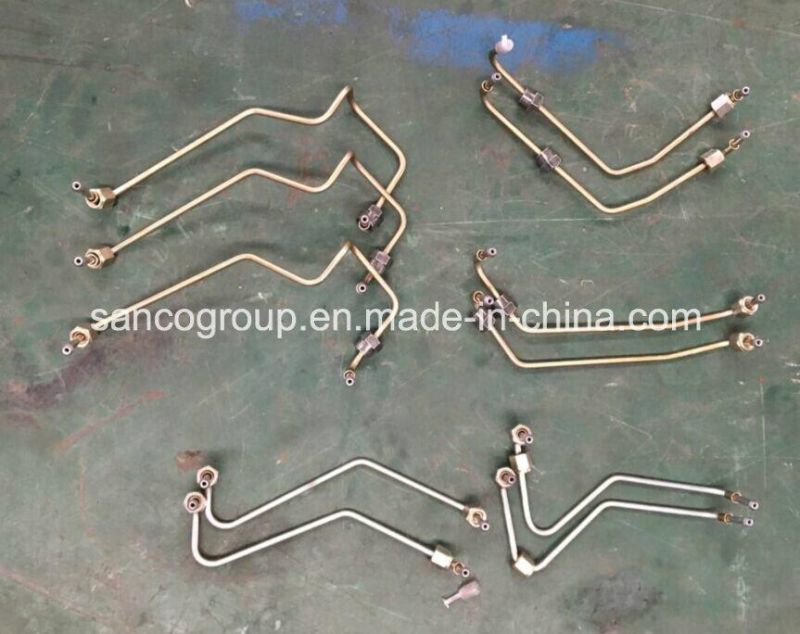

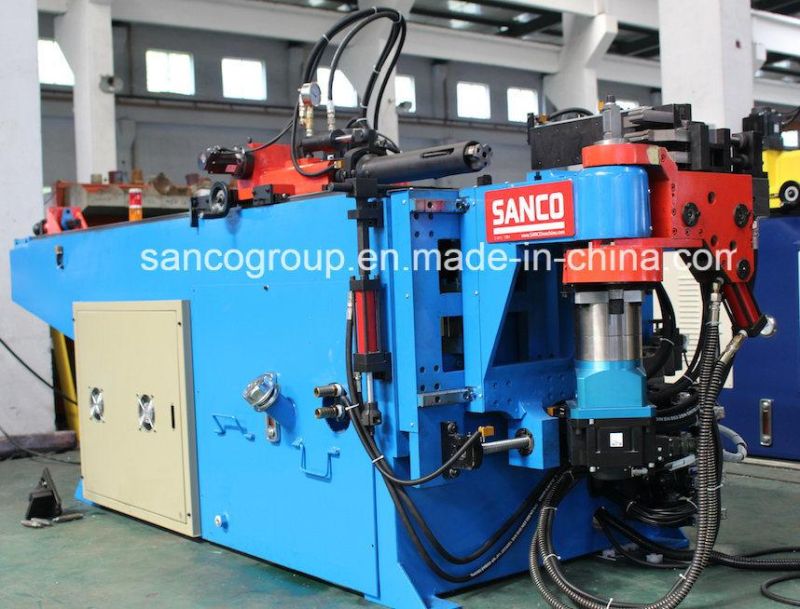

Machine Photos for customer reference

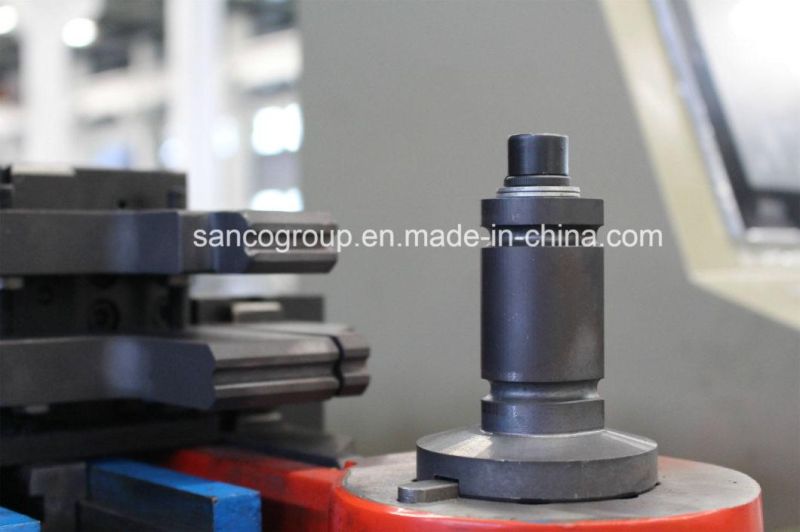

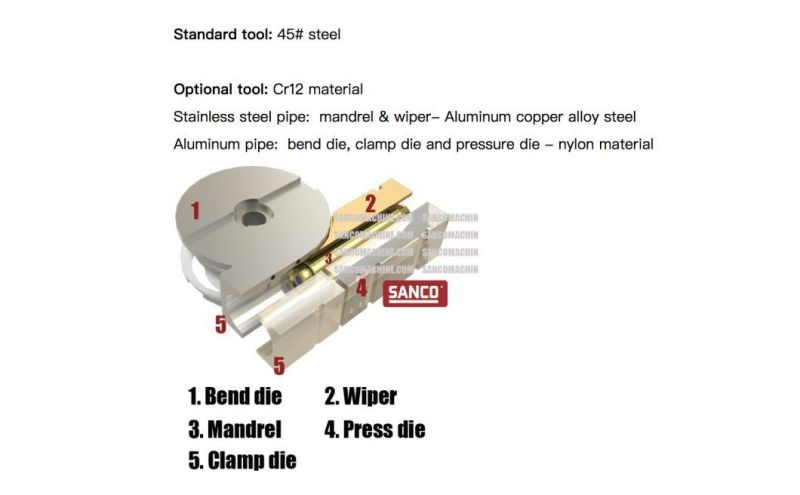

Bending Tooling Description:

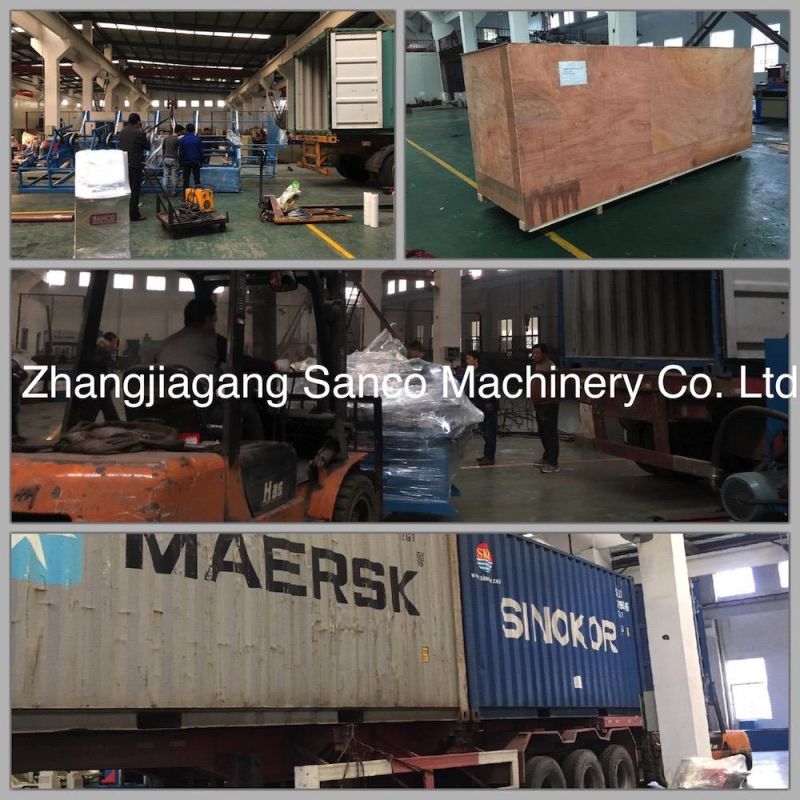

Packaging and Shipment:

FCL and LCL all accpeted, if LCL we suggect customer to use Iron case or wooden case accordingly.




After sales Service

We consider it our responsibility to ensure that the machines supplied by us are running efficiently and productively. While our endeavour is to always build first-class machines, we also realise that it is important to provide 24x7 support to you.

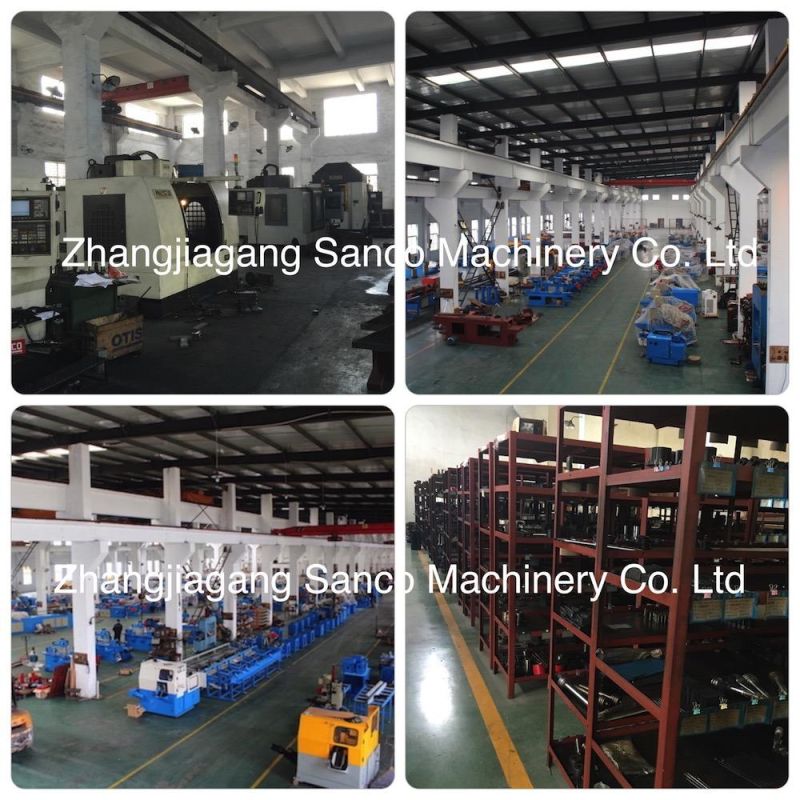

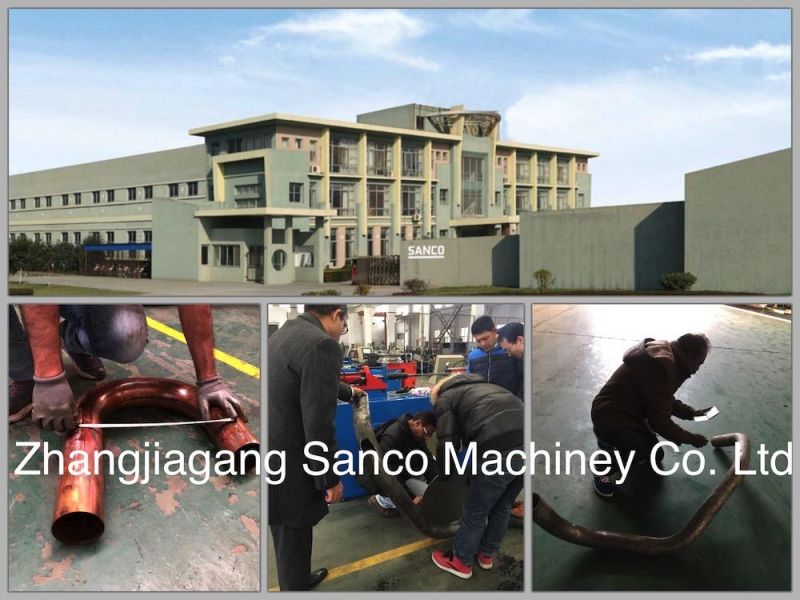

Company Introduction

Our company video link:

https://sancogroup.en.made-in-china.com

SANCO predecesor(Taiwan and China mainland)Machinery Co., Ltd. was established in 1984, and have cooperation with Taiwan bender company since 1989, specialized in manufacturing Pipe Bending Machine, Metal Circular Saw Machine, Pipe End Forming Machine, Polishing Machine, Chamfering Machine and so on. In 1984, SANCO predecesor and "Shanghai Aircraft Design and Research Institute" joint the production of hydraulic pipe bending machine. And in 1984, "Shanghai Aircraft Manufacturing Co., Ltd." assembled 25 airplanes of American model MD82. Chinese government required SANCO predecesor mapping the prototype of Italian bending machine, and SANCO predecesor manufacturing the bending machine to produce airplane related accessories.With 176 workers, 11 professional and technical engineers. SANCO company occupies 20,000 square meters, construction area of 15,000 square meters.The three-dimensional CNC bending machine developed by SANCO predecesor is advanced than other Chinese factories. SANCO predecesor is the leader of drafting the "Chinese Standard of CNC Pipe Bending Machine" (GB / T28763-2012), released in November 2012, and implemented in May 2013. And SANCO predecesor is also the leader of "Chinese Standard of Pipe Bending Machine Safety" (GB28760-2012), released in November 2012, and implemented in October 2013.All machines marked ISO 9001 and CE. SANCO machines exported to the United States, UK, France, Russia, Australia, India, Brazil, Poland, Canada, South Africa, Mexico, UAE, Saudi Arabia, and so on 58 countries.
NOW, AND FOREVER MORE ...    SANCO DO THE BEST OR NOTHING.

ISO & CE certificate



FAQ

1. Q: How to choose the pipe/tube bending machines?

A: You have to inform us following details:

-          Max. outside diameter:

-          Wall thickness range:

-          Bending radius (CLR):

-          The pipe material:

-          The drawings if possible:

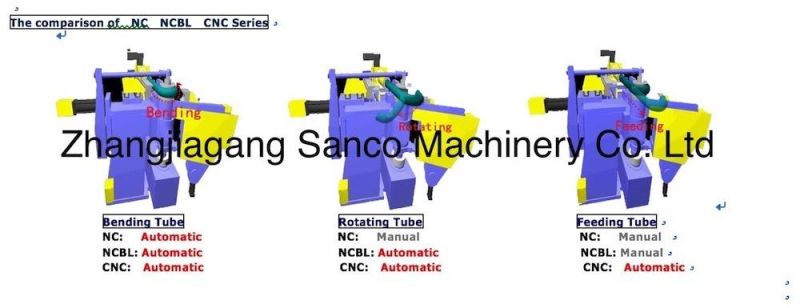

2. Q: What is the difference for NCB, NCBL and CNC machines?

A: NCB is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic.

NCBL is semi-automatic pipe bending machines, mechanical gear feeding, servo motor automatic angle rotation and hydraulic automatic bending.

CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius (CLR).



3. Q: What is the machine's control?

A: Standard control is Mitsubishi PLC, Special is IPC controls. IPC with function of 3D view, 3D simulation, DWG readout, remote assistance etc.



4. Q: What is the biggest bending capacity you could offer?

A: As of now the biggest bending capacity is 325mm outside diameter for cold bending. For hot bending, the capacity would be 1450mm.



5. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.



7. Q: What is the certificates available?

A: CE & ISO9001



6. Q: How is the training and after sales service?

A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our professional engineer to be abraod in customer's plant, and customer will pay for the air tickets, accommodation, meals, and USD100 per day.
