3-in-1 High Efficiency Sign LED Channel Letter Bending Machine
Perfect Laser (Wuhan) Co., Ltd.- After-sales Service：Lifetime After-Sales
- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Automatic
Base Info
- Model NO.：PEL-700
- Suitable for：Aluminum, Stainless Steel
- Type：Letter Bending
- Bending Thickness：0.5-1.5 mm
- Application Materials：Ss, CS, Aluminum, Galvanized Steel
- Type for Cutting Machine：CNC Cutting Machine
- Type for Fold-Bending Machine：CNC Fold-Bend Machine
- Application：Machinery & Hardware
- Bending Type：Single + Double Side Bending
- Bending Materials：Bend Aluminum, Stainless Steel, Iron Three in One
- Voltage：AC 220V, 50Hz
- Size：1970 * 750 * 1650mm
- Weight：480 Kgs
- Transport Package：Export Sea-Worthy Packing
- Specification：ISO,CE Certificate
- Trademark：Perfect Laser
- Origin：China
- Production Capacity：5000 Sets,Year
Description

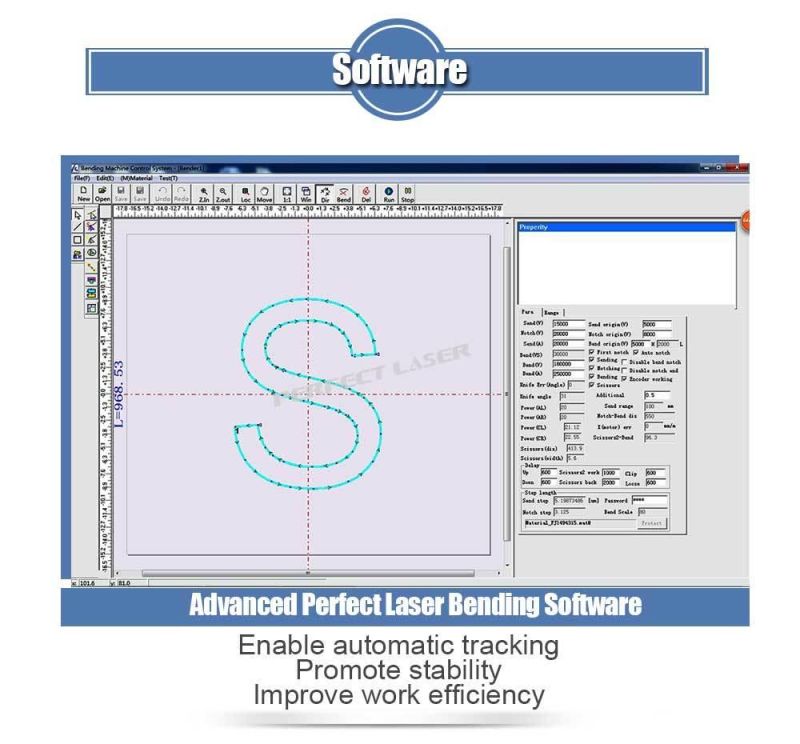

Max. Processed ThicknessAluminum Plate :0.3mm-1.5mm Stainless Steel:0.3mm-1.0mm Iron:0.4-1.2mm Max. Processed Width ≤150mm Voltage 220V50HZ1P Size 1900mm × 700mm × 1450mm Weight 420 kgs File Format DXF,AI,PLT Bending Radius ≥6mm Feed speed 5-20 Meter / Min Precision 0.05mm Air pressure 0.6Mpa Power ≤3000W Software: Lechuang System CBS4
Application:
The channel letter bending machines are suitable for application in the advertising industry. For example, they can be used for the production of advertisement characters, billboards, LED characters, title characters, etc.

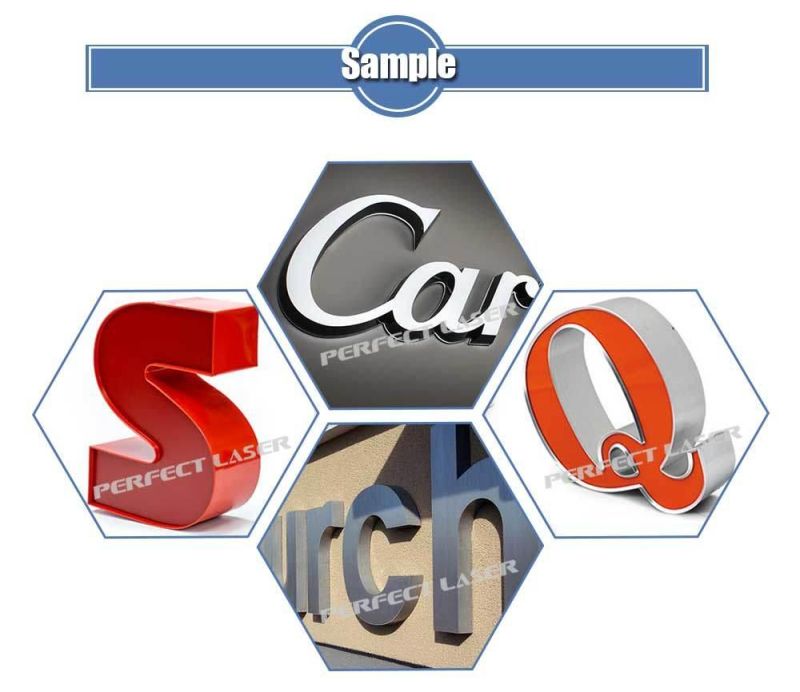

Samples:

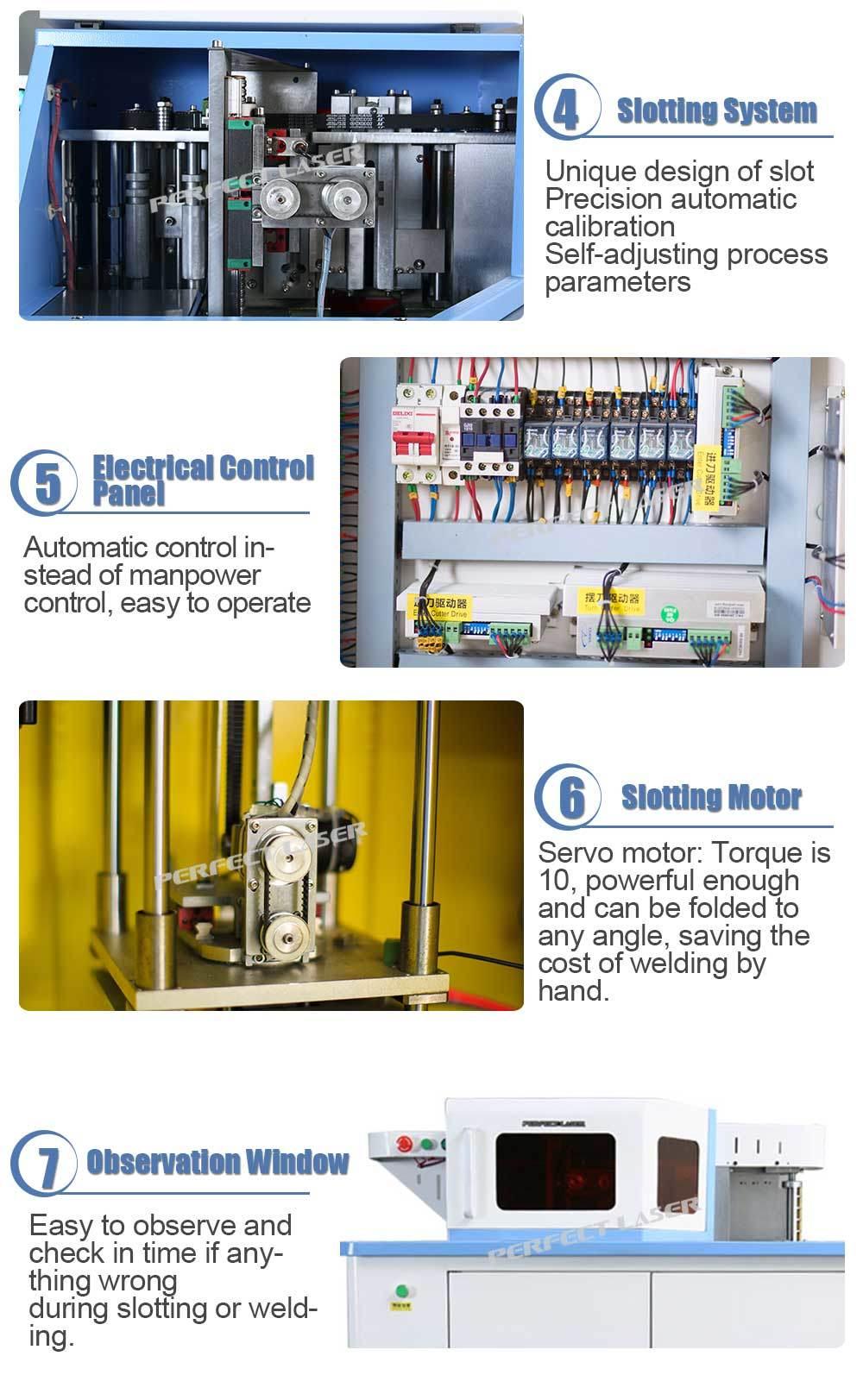

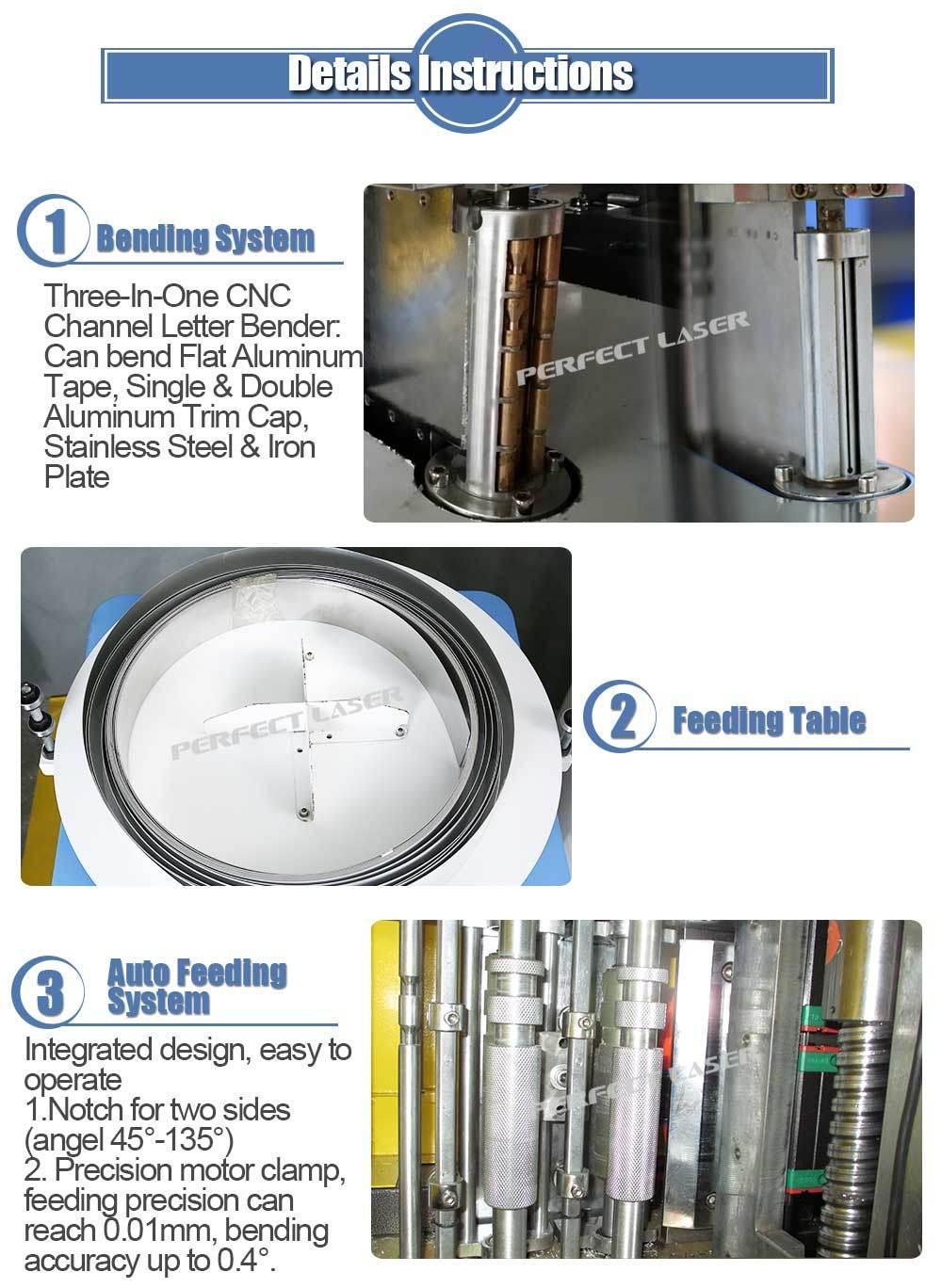

Detail Images:
Contact us:
Perfect Laser Co.,Ltd.(China)
Contact: Lydia / Sales Manager
