Economical and Practical Hot Sell Hydraulic Pipe Bender Machine (GM-SB-159NCB)

Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：2-year
  • Condition：New
  • Certification：ISO 9001:2000, CE, UL
  • Automation：Semi-Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：GM-SB-159NCB
  • Type：Pipe and Tube Bending Machine
  • Machine Type：Hydraulic
  • PLC&Touch Screen：Mitsubishi
  • Bending Capacity：O. D20-159mm
  • Bending Driven：Cylinder
  • Company：Sino-Italian Joint Venture
  • Transport Package：Iron Case
  • Specification：7200*2200*1450mm
  • Trademark：GMACC
  • Origin：Made in China
  • HS Code：8462299000
  • Production Capacity：100 PCS,Month

Description

Basic Info.

Model NO. GM-SB-159NCB Type Pipe and Tube Bending Machine Machine Type Hydraulic PLC&Touch Screen Mitsubishi Bending Capacity O. D20-159mm Bending Driven Cylinder Company Sino-Italian Joint Venture Transport Package Iron Case Specification 7200*2200*1450mm Trademark GMACC Origin Made in China HS Code 8462299000 Production Capacity 100 PCS/Month

Product Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-159NCB

Machine Characteristic
Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
NameUnit  Parameter
Max.   Bending  CapacitymmO. D159*16
Bending  Radius  Rangemm60-700
Max.   Bending  Angle°  190°
Though  Effective  Distancemm5600
Bending  Speed° /sec8
Bending  Precision°± 0.10
System  Motor  PowerKW22
Oil  Pump  Delivery  VolumeL63
Max.   PressureMpa16
L*W*H  (Packaging  Dimension)mm7200*2000*1400
Machine  WeightT12

NameManufacturer
Hydraulic  MotorTaiwan  XianmaTaiwan,   Guangyuan
Hydraulic  PumpYuken,   HYDROMAX
Hydraulic  ValveAmerican  Bestar,   Taiwan  CHIYOUNG
Oil  way  BoardTaiwan  Shanghong
CylinderTaiwan  Hisaoka  Shanghai  Jingsheng
Oil  tubeTaiwan  TATUNG
Touch  screenTaiwan  Delta,   Taiwan  Xingjie
PLCTaiwan  Delta, Taiwan  Xingjie
Angle  controllerJapan  NEMICON
Switch  powerTaiwan  Mean  Well
ContactorTaiwan  SHIHLIN
Other  Electric  PartsGerman  SCHNEIDER

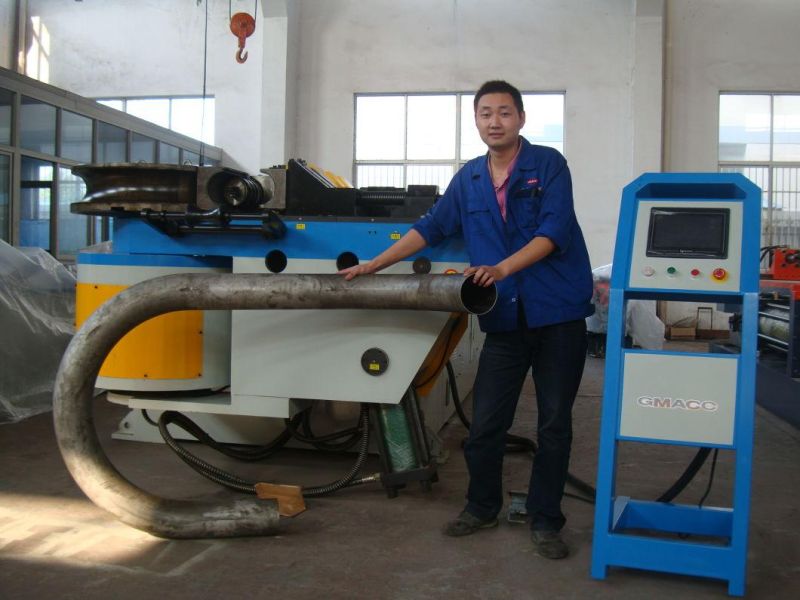

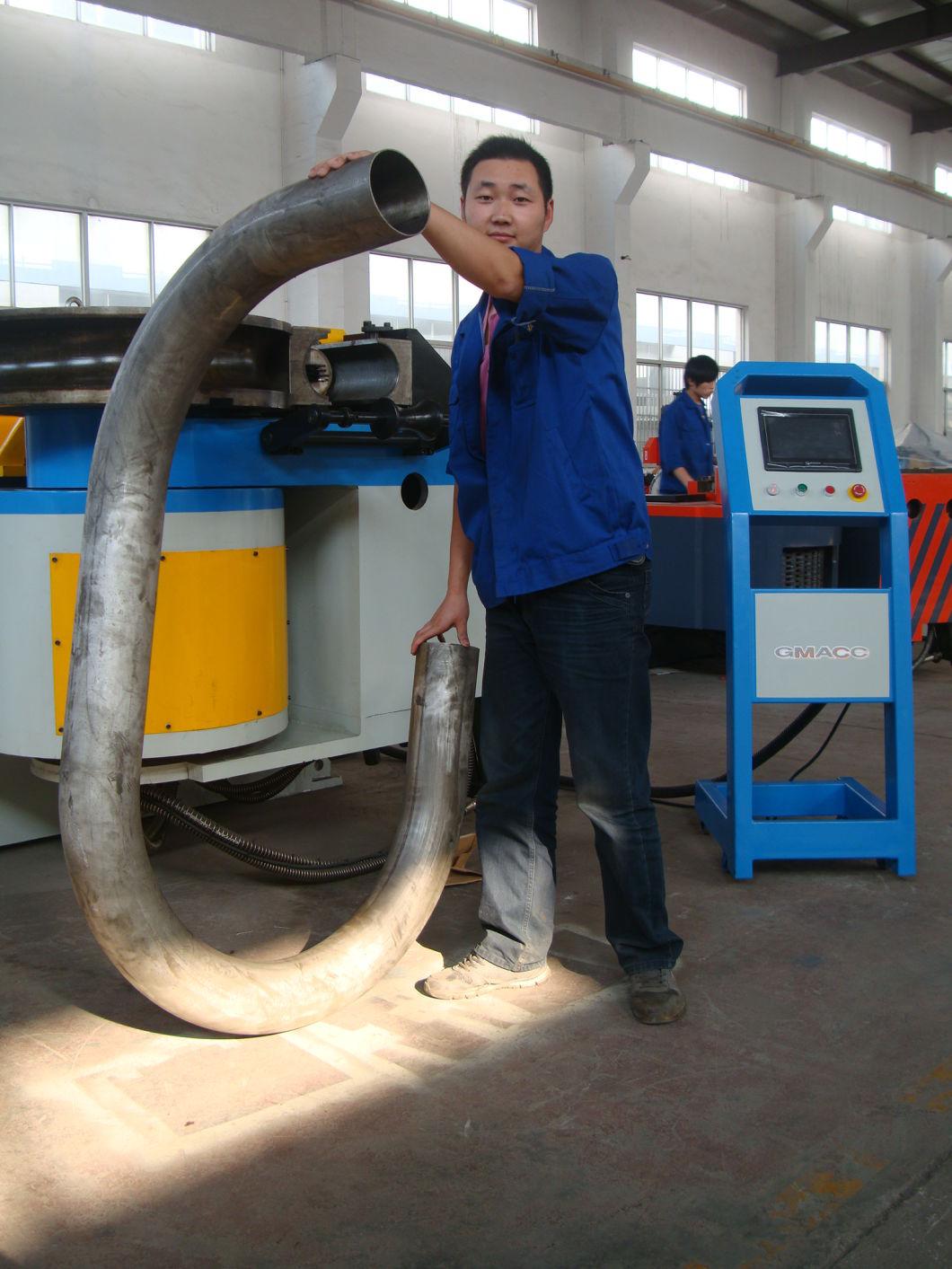

Economical and Practical Hot Sell Hydraulic Pipe Bender Machine (GM-SB-159NCB)

Economical and Practical Hot Sell Hydraulic Pipe Bender Machine (GM-SB-159NCB)
Economical and Practical Hot Sell Hydraulic Pipe Bender Machine (GM-SB-159NCB)
Economical and Practical Hot Sell Hydraulic Pipe Bender Machine (GM-SB-159NCB)
Economical and Practical Hot Sell Hydraulic Pipe Bender Machine (GM-SB-159NCB)
Economical and Practical Hot Sell Hydraulic Pipe Bender Machine (GM-SB-159NCB)
Economical and Practical Hot Sell Hydraulic Pipe Bender Machine (GM-SB-159NCB)
Economical and Practical Hot Sell Hydraulic Pipe Bender Machine (GM-SB-159NCB)
