Hydraulic Steel Profile Cold Bending Machine for H/I Beam
Henan Yugong Machinery Co., Ltd.- After-sales Service:Video Guidence
- Waterproof Rating:Paint
- Warranty:1-year
- Condition:New
- Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation:Automatic
Base Info
- Model NO.:YG-250,CNC-250
- Suitable for:Carbon Steel
- Type:Cnc Bending Machine
- Model:Yg-250
- Material Specifications:14-25 I-Beam
- Max Pressure:25 MPa
- Power:11 Kw
- Min Bending Radius:3m
- Weight:2200kg
- Transport Package:Wooden Box and Then in Container.
- Specification:7m³
- Trademark:YUGONG
- Origin:Henan, China
- HS Code:8462299000
- Production Capacity:30sets,Month
Description
Basic Info.
Model NO. YG-250/CNC-250 Suitable for Carbon Steel Type Cnc Bending Machine Model Yg-250 Material Specifications 14-25 I-Beam Max Pressure 25 MPa Power 11 Kw Min Bending Radius 3m Weight 2200kg Transport Package Wooden Box and Then in Container. Specification 7m³ Trademark YUGONG Origin Henan, China HS Code 8462299000 Production Capacity 30sets/MonthProduct Description

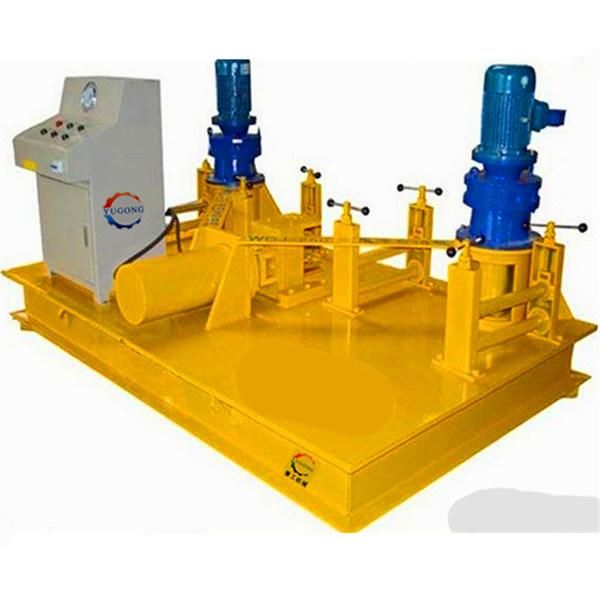

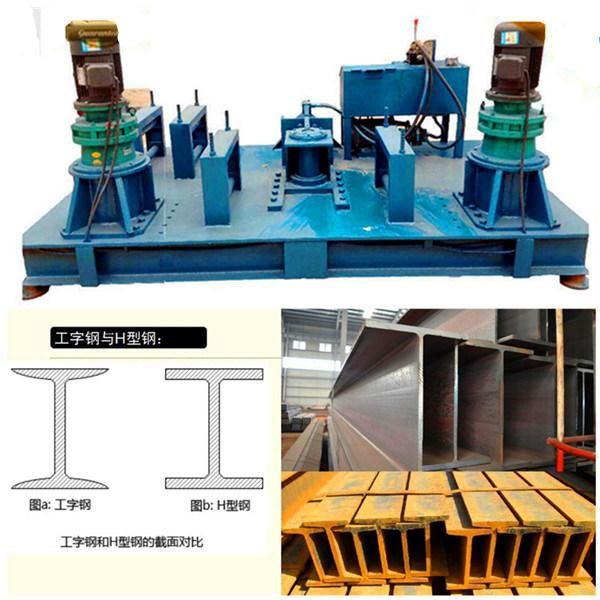

Hydraulic Steel Profile Cold Bending Machine for H/I BeamCold bending machine mainly used in tunnels, subways, hydropower stations, underground caverns. By switching mold can do arched rolling, diameter changes, fixed-angle bending of U-shaped steel,I beam, H beam,Channel steel, Angle steel, Track steel, Square steel and Steel pipe or bar.
The Bending Machine for Steel increasing the bottom to ensure there is no distortion , two main wheels center distance can be adjusted to 2.1m and 1.45m ,when it bend to smaller (machining 10-16) than usual ,main wheel is on the center of 1.45m.it is easy to change parts,does not need re-calibration.the user can make a sliding platform on both ends of the machine parts to save cost.
Main Parameters
Model | YG-250 | CNC-250 |
Material Specification | 14-25 I-beam | 14-25 I-beam |
Cylinder advance speed | 8-15 mm/s | 3-3.5 mm/s |
Roller rotation speed | - | 7 r/min |
Max pressure | 25 Mpa | 25 Mpa |
Power | 11kw | 8.4 kw |
Oil cylinder power | - | 4 kw |
Driving wheel power | - | 2.2kw*2 |
Min bending radius | 3m | 3m |
Dimensions | 1800*1500*1500mm | 2760*1639*1360mm |
Weight | 2200kg | 2200kg |

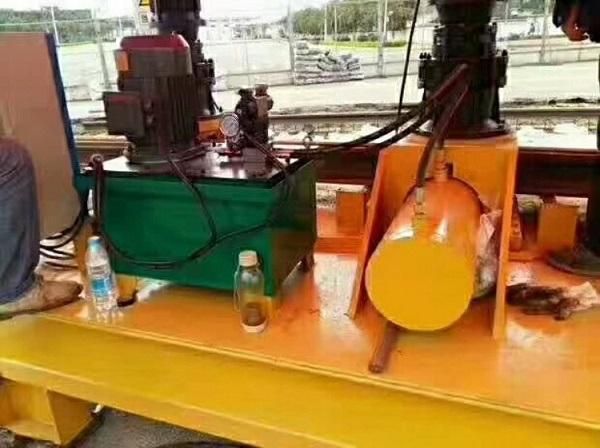

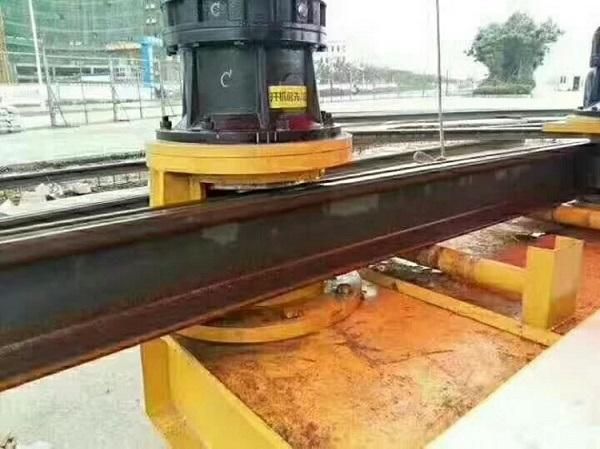

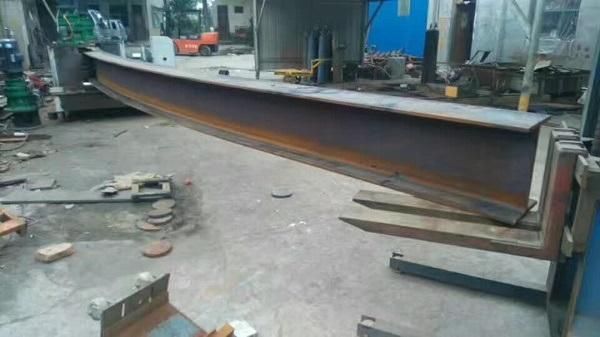

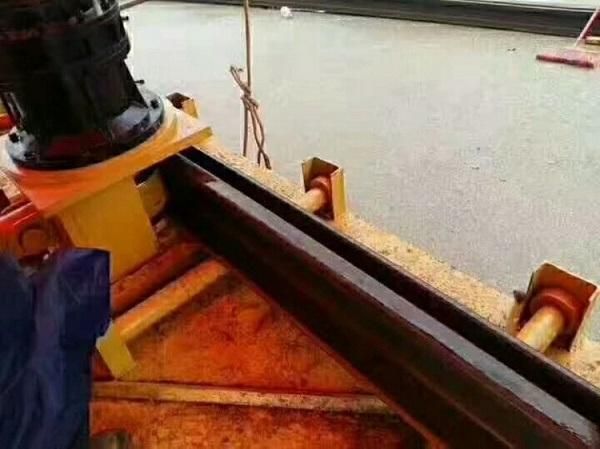

More pictues for your reference
