• Model NO.：RT-75NC
• Place of Origin：Zhangjiagang, China (Mainland)
• Model Number：Rt-75nc
• Machine Type：Pipe and Tube Bending Machine
• Power：Hydraulic
• Function：Bending Metals
• Radius：R≥1.5D
• Angle：0-190
• Precision：+,-0.15
• Business Type：Manufacturer
• Speed：25°,Sec
• Transport Package：Wooden Box
• Specification：CE ISO
• Trademark：RUNTAI
• Origin：Zhangjiagang Jiangsu China(Mainland)
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. RT-75NC Place of Origin Zhangjiagang, China (Mainland) Model Number Rt-75nc Machine Type Pipe and Tube Bending Machine Power Hydraulic Function Bending Metals Radius R≥1.5D Angle 0-190 Precision +/-0.15 Business Type Manufacturer Speed 25°/Sec Transport Package Wooden Box Specification CE ISO Trademark RUNTAI Origin Zhangjiagang Jiangsu China(Mainland) HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

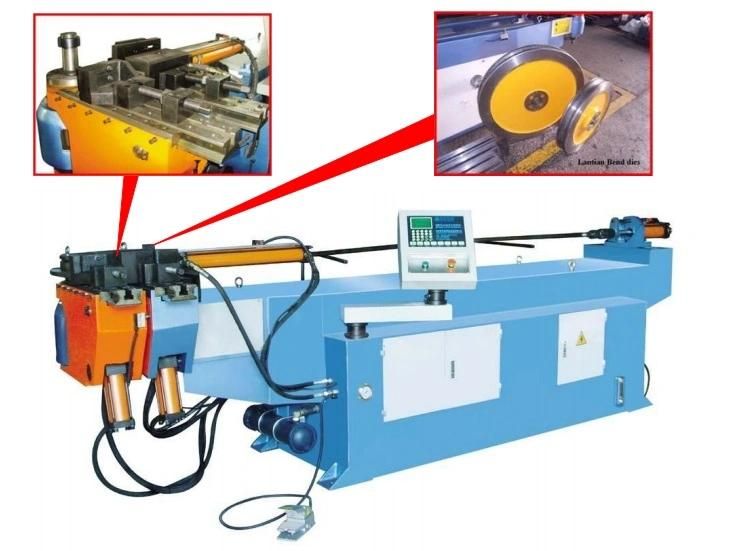

semi-automatic bender RT-75NC

Machine function: pipe/tube bending machine, pipe/tube bender

Bendable material: pipe, tube, tubing, flat bar, profile

Bendable metals: steel, stainless steel, carbon steel, middle steel, aluminum, copper, brass

Shape: round pipe/tube, square tube/pipe, rectangular pipe/tube, elliptical/oval pipe/tube etc

Pipe/tube diameter: 1/4"-6"mm (RT-38A, 50A, 63A, 75A, 93A, 100A, 114A, 130A, 168A)

Controlling: PLC

Clamping: hydraulic

Feeding: manual

Bending: semi-automatic

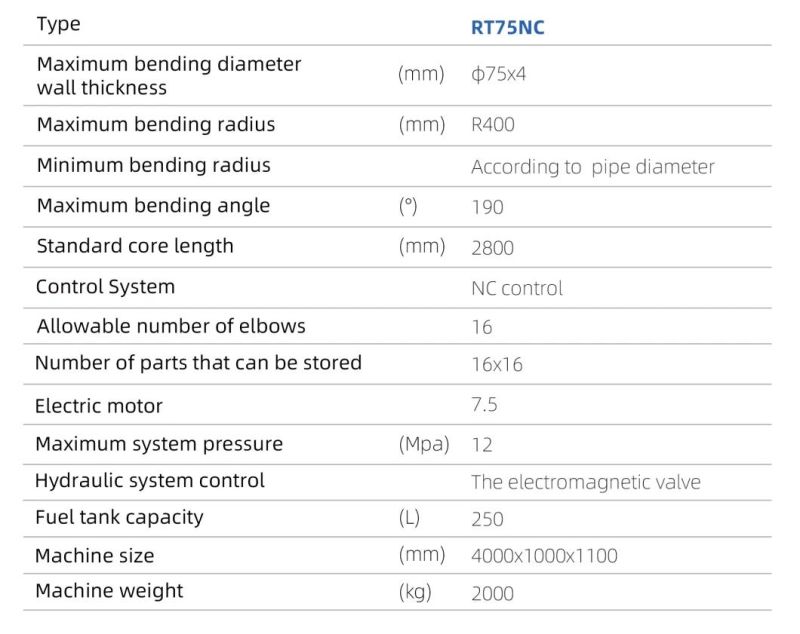

Technical parameters


Parameters	RT-75NC
Max bending capability	φ75×3.5mm
Bending radius	50~300mm
Min bending radius	R≥1.5D
Bending angle	0~190°
Valid mandrel bar	0~3300mm
Bending speed	25°/sec
Bending accuracy	±0.15°
Main motor power	7.5Kw
System hydraulic pressure	14MPa
Size	4300×1350×1300mm
Weight	About 2230kg

Main Features

The NC series tube benders (Pipe Bending) equipped with NC control unit. It combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions.

1. Reasonable design and simple style, provides the best space for bending

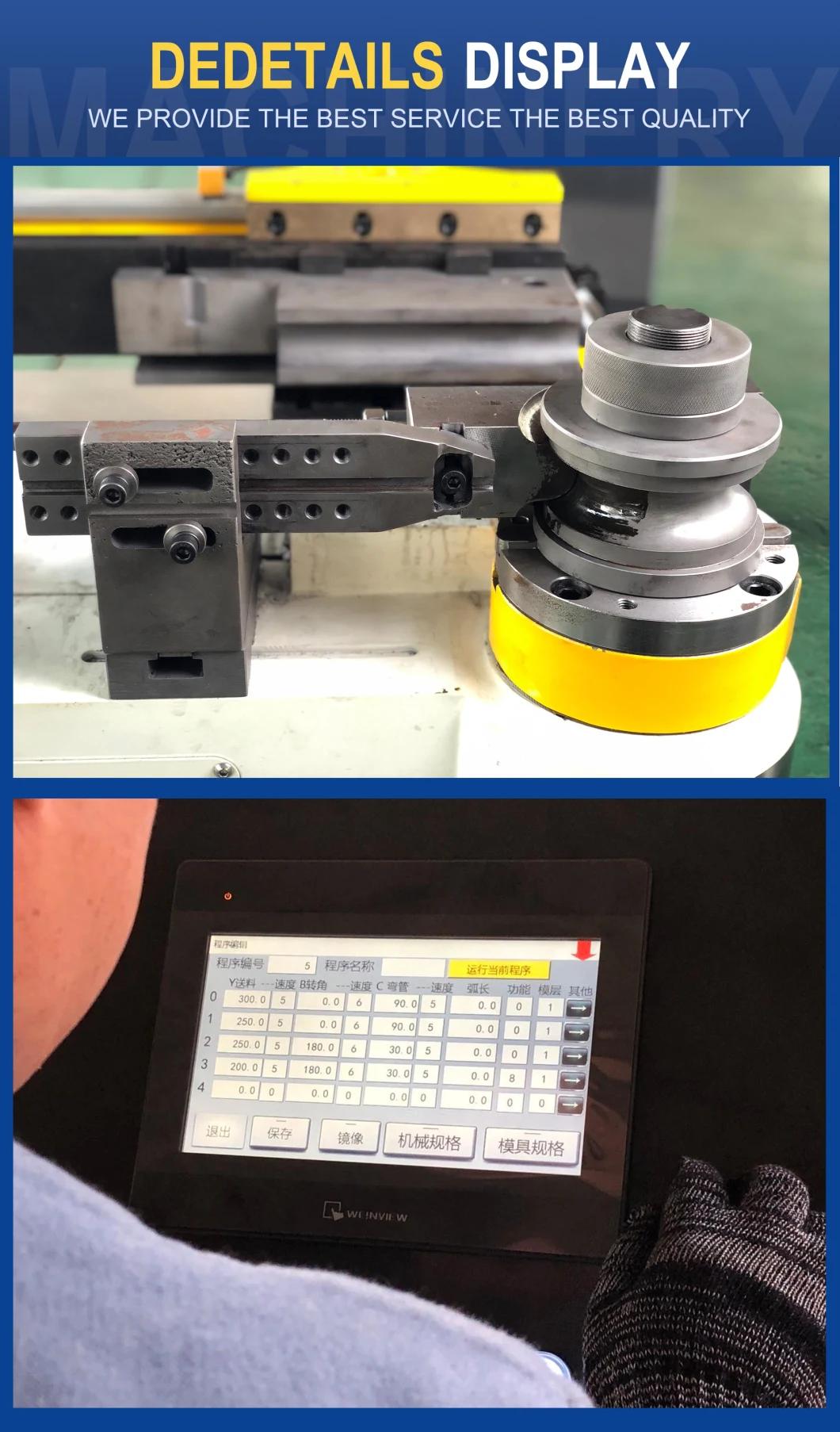

2. Numerical control, convenient operation make the settings flexible

3. Using the encoder ensures the bending angle accurate and stable

4. Multiple processing models stored for different processing programs switched flexibly.

5. Automatically counting and power failure memory function.

6. Hydraulic cooling system ensures the equipment long-time work stably under the high temperature

7. The main shaft is specially heat treated.

8. All parts are tested and assembled with strict quality control to meet the specification of ISO 9001 standard.

9. The machine adopting solenoid valve and integrated circuit to control individual bending motion separately, which can be extend the life of the hydraulic parts.

10. Suitable for various materials su ch as steel, stainless, aluminum and copper



RT-75NC

Features:

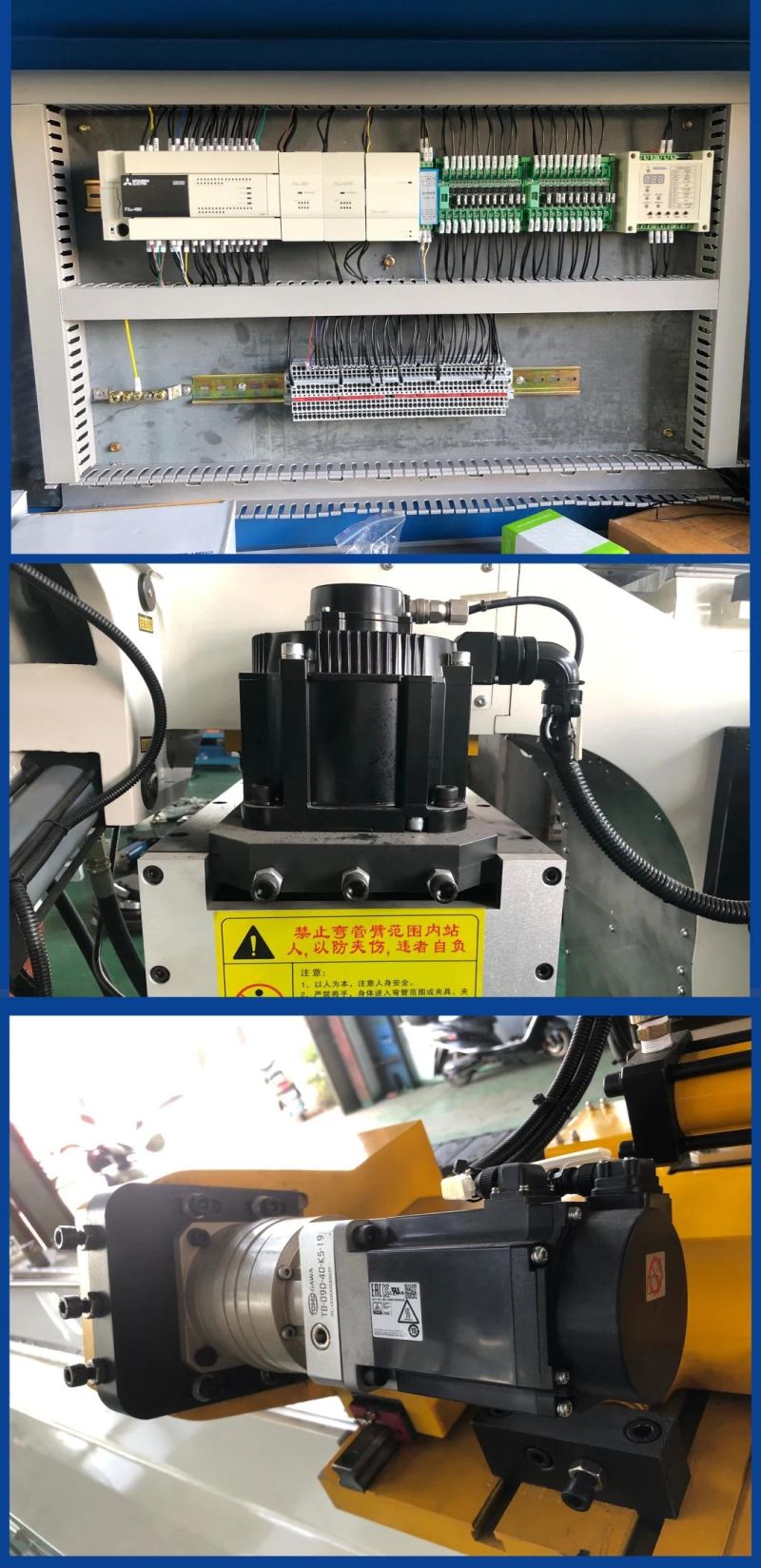

1. Imported PLC control system with program setting and exchange function.
2. With manual, semi-automatic, and automatic operate function
3. With data storage, data counting function.
4. Movable pedal switch with the function of automatic start, emergency stop, high safety operation.
5. With air cooling system, water cooling system for users to choose.

Applications:

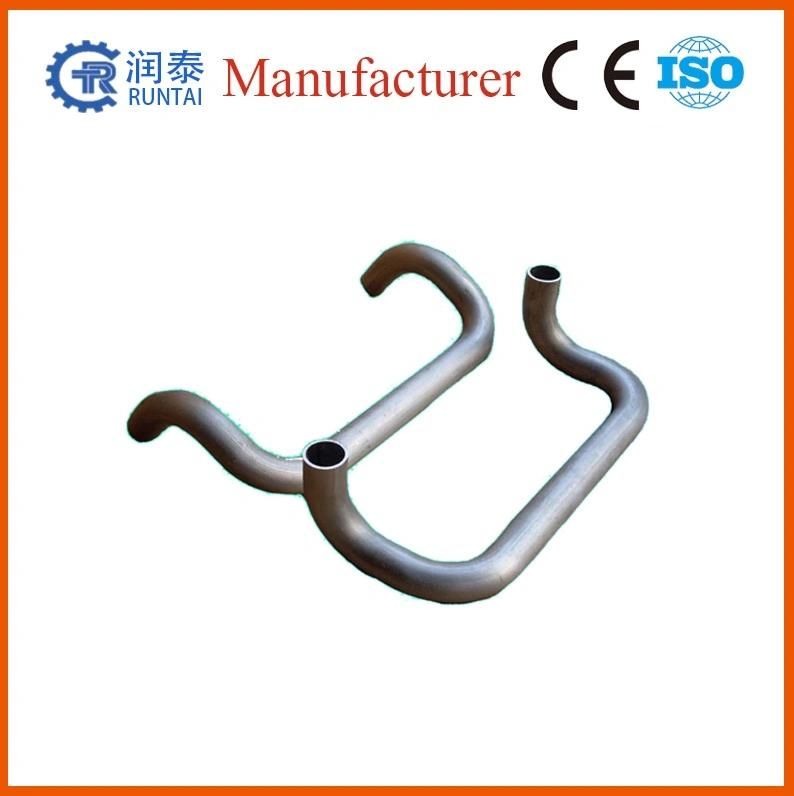

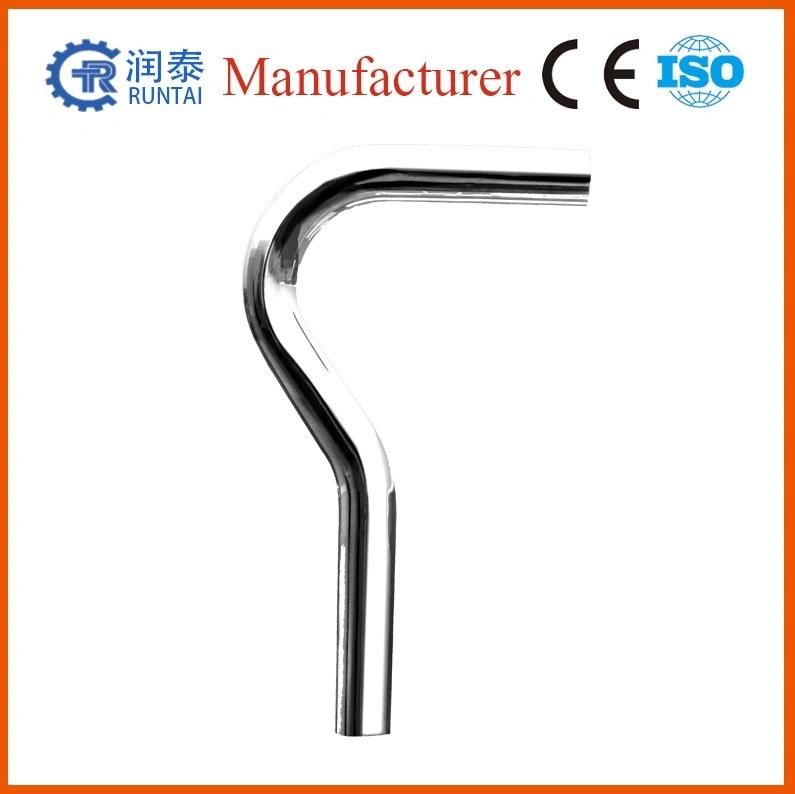

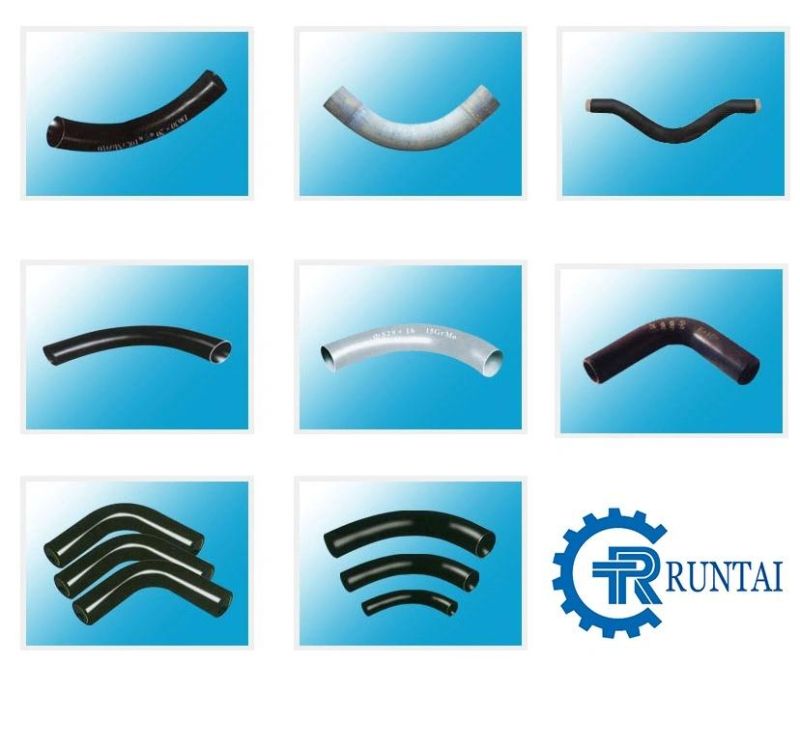

1. Exhaust pipe of car, motorcycle, airplane and other machinery.
2. Tubes of air conditioning, furnitures, bikes, outside street light, sports facilities
3. Pipes of  kitchen and bathing facilities, pipes of medical equipments.
4. Metal sheets of interior finishing, constructing facilities, outside protective equipments.
......
Company Details
Professional: 10 years into machinery.
Brand: RUNTAI, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc

Trade information:
FOB Ningbo, FOB Shanghai, CIF your port
Payment Terms: T/T, L/C, Western Union, MoneyGram
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
Free Sample: No
