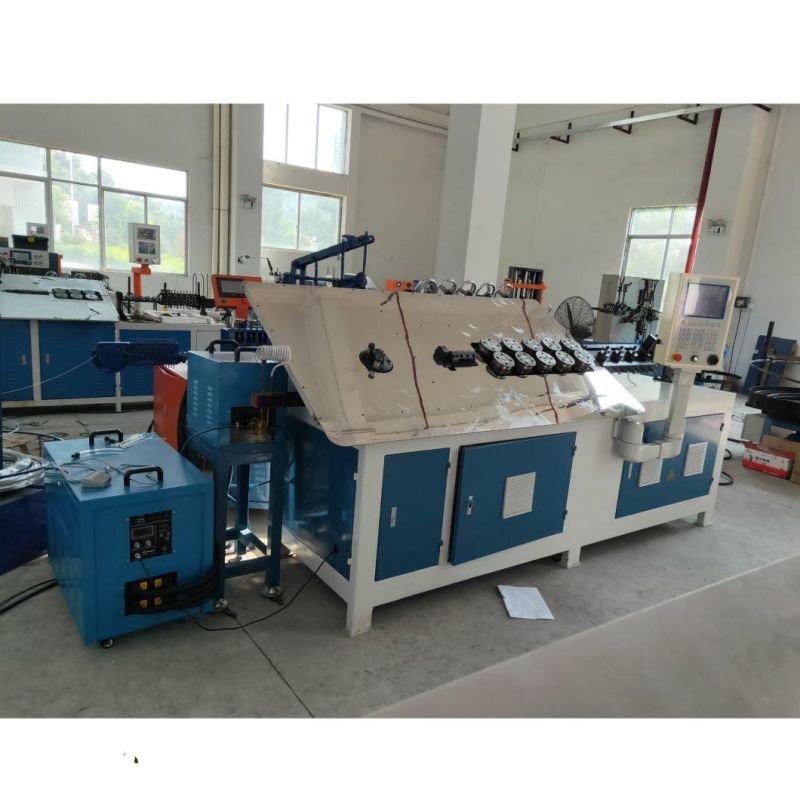

Easy Operation 2D CNC 4axis Wire Bending Machine
Dongguan Xinsheng Hardware Machinery Co., Ltd.- After-sales Service：Machine Full Life Available by Free
- Waterproof Rating：IPX-6
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2008, CE
- Automation：Automatic
Base Info
- Model NO.：GT-WB-60-4A
- Suitable for：Copper, Aluminum, Carbon Steel, Stainless Steel
- Type：Coiling Bending Machine
- Product Name：2D Wire Bending Bender Machine
- Voltage：220,380,440V
- Feeding Roller Number：3 Pairs
- Wire Turning Angle：Unlimited
- Axis：3
- Transport Package：Standard Export Fumugated Wooden Case
- Specification：2500X850X1600mm
- Trademark：WG
- Origin：China
- HS Code：846221900
- Production Capacity：100 Sets Per Year
Description
Basic Info.
Model NO. GT-WB-60-4A Suitable for Copper, Aluminum, Carbon Steel, Stainless Steel Type Coiling Bending Machine Product Name 2D Wire Bending Bender Machine Voltage 220/380/440V Feeding Roller Number 3 Pairs Wire Turning Angle Unlimited Axis 3 Transport Package Standard Export Fumugated Wooden Case Specification 2500X850X1600mm Trademark WG Origin China HS Code 846221900 Production Capacity 100 Sets Per YearProduct Description

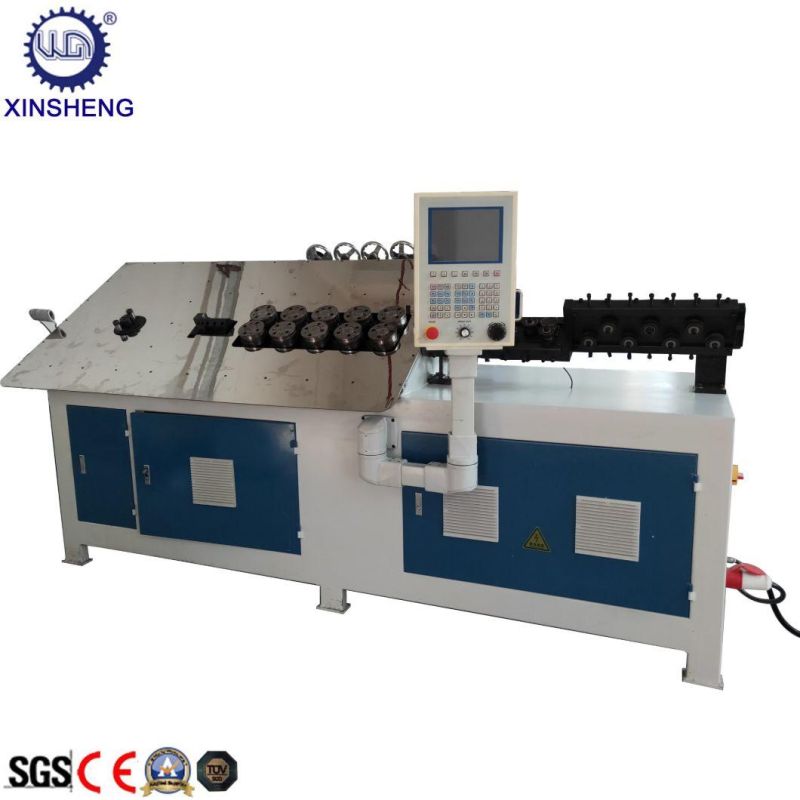

4 Axis Automatic CNC 2D Wire Bending Manufacturer Bender MachineProduct Description
2D CNC wire bending machine is to expertly produce kinds of wire forms in 2D fully automatically with servo motor.
It is suitable for wire size from 2.0mm up to 6.0mm.
Technical parameter of CNC Wire Bending Machine:
| Model | GT-WB-60-4A | GT-WB-80-4A | GT-WB-100-4A | GT-WB-120-4A |
| Wire size(mm) | 2.0-6.0 | 3.0-8.0 | 4.0-10.0 | 5.0-12.0 |
| Axis | 4 | 4 | 4 | 4 |
| feeding roller number | 3 pairs | 3 pairs | 3 pairs | 3 pairs |
| wire turning angle | 180° | unlimited | unlimited | unlimited |
| Feeding servo motor | 2.3kw | 2.3kw | 4.0kw | 5.5kw |
| Twisting servo motor | 1.0kw | 1.5kw | 3.0kw | 4.0kw |
| Turn head up and down servo motor | 0.75kw | 0.75kw | 1.0kw | 1.0kw |
| Hydraulic cylinder number | 5 | 5 | 5 | 5 |
| Hydraulic motor | 2.2kw | 2.2kw | 3.7kw | 3.7kw |
| Bending accuracy | +/-0.5mm | +/-0.5mm | +/-0.5mm | +/-0.5mm |
| Feeding accuracy | +/-0.2mm | +/-0.2mm | +/-0.2mm | +/-0.2mm |
| Feeding speed | 100 mtrs/min | 50 mtrs/min | 22 mtrs/min | 45 mtrs/min |
| machine size(cm) | 250*85*150 | 280x85x158 | 320x85x158 | 350x85x158 |
| machine weight(kg) | 1200.0 | 1300.0 | 1500.0 | 1800.0 |
Pls contact me for further information and you are cordially invitited to visit our factory at any your free time .
Skp:Jesusbaby2082
I will stay here waiting for you~

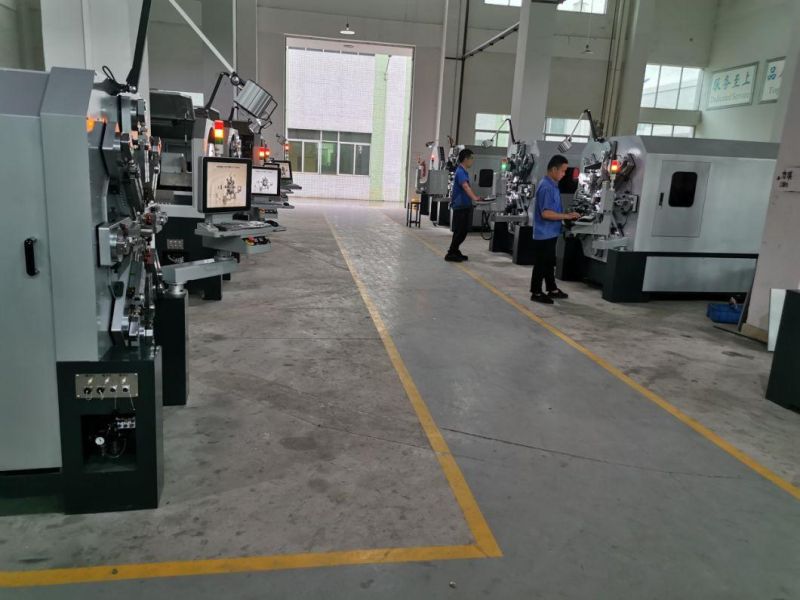

Workshop:
