• Model NO.：Q11-8X2500 Q11-8X2000
• Back gauge：500 mm
• Shearing angle：1°30
• No.of stroke(per minute)：20
• motor power：11 kW
• MOQ：1set
• delivery：20 days
• control：electric
• Product name：High Speed Mechanical Shearing Q11-8X2500 Q11-8X20
• Transport Package：Plywood Case
• Specification：Max. shearing thickness(mm): 8
• Trademark：Luzhong Brand
• Origin：China
• HS Code：8462399000
• Production Capacity：200 Pieces,Month

Basic Info.

Model NO. Q11-8X2500 Q11-8X2000 Back gauge 500 mm Shearing angle 1°30 No.of stroke(per minute) 20 motor power 11 kW MOQ 1set delivery 20 days control electric Product name High Speed Mechanical Shearing Q11-8X2500 Q11-8X20 Transport Package Plywood Case Specification Max. shearing thickness(mm): 8 Trademark Luzhong Brand Origin China HS Code 8462399000 Production Capacity 200 Pieces/Month

Product Description

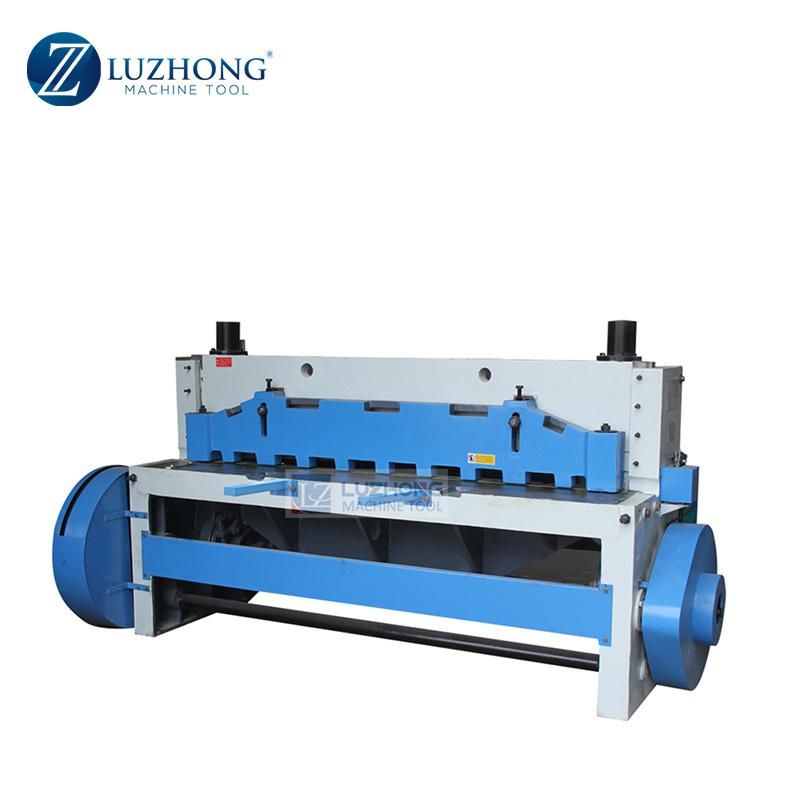

High Speed Mechanical Q11-8X2500 Q11-8X2000 Steel Plate Cutting Shearing Machine




 Specifications
Long-life of high quality blade
Back gauge is available to give fine adjustment
Simple construction with good appearance

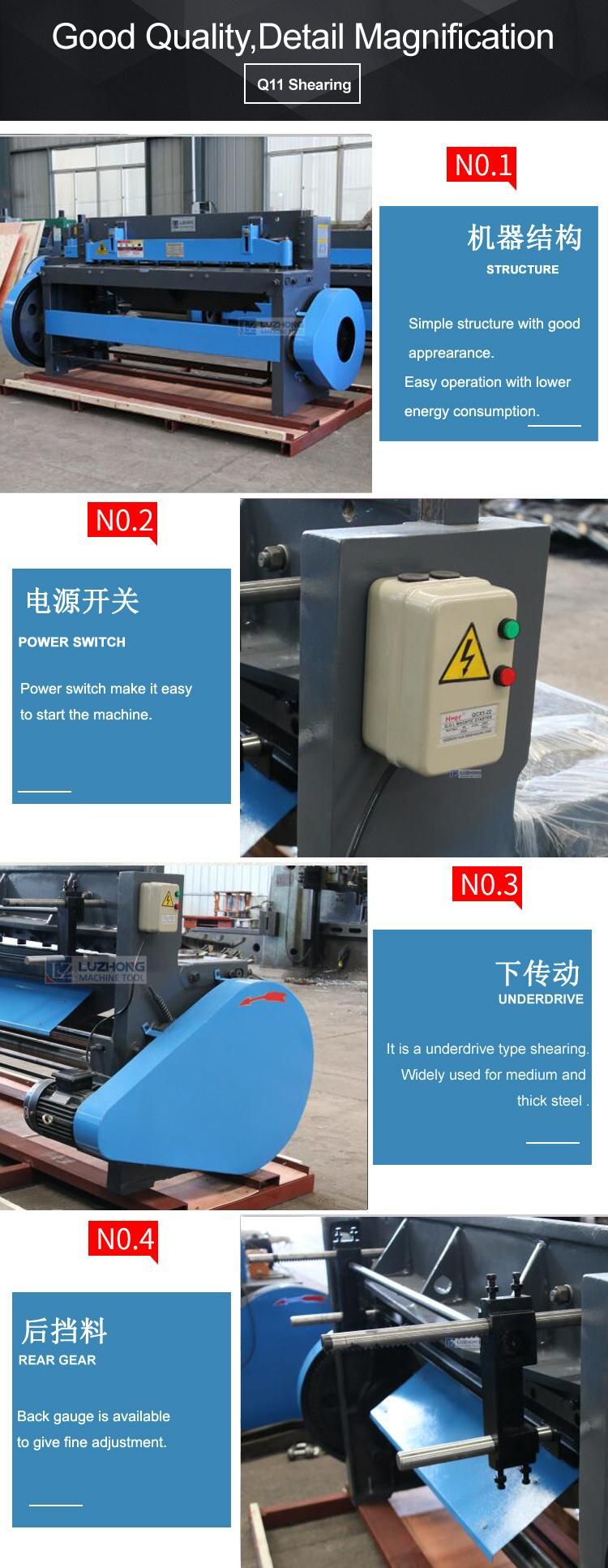

Features:
1. Structured finished products,
2. Low center of gravity,
3. Sound vibration-proof performance
4. Stable property.
5. Long-life of high quality blade
6. Back gauge is available to give fine adjustment
7. Simple construction with good appearance
8. Easy to operate with lower energy consumption
9. Widely used for medium and thick steel
10.Our electric shearing machine is used to cast components and has the advantages of producing firmly structured finished products, low center of gravity, sound vibration-proof performance, uniform transmission and stable property.
11.Its capacity range is from 1300 to 2500 mm length and the maximum thickness can reach 10 mm. Our electric shearing machine is used for shearing large and medium thickness plates.
Technical Specifications:

Model	Q11-6X2000	Q11-6X2500	Q11-8X2500	Q11-8X2000	Q11-10X1000	Q11-10X1500
Shearing thickness(mm)	6	6	8	8	10	10
Shearing width(mm)	2000	2500	2500	2000	1000	1500
Shearing angle	2°	1°30	1°42	2°	3°	3°
Num of stroke	20	20	14	20	26	20
Motor power	7.5	7.5	11	11	11	15
Back gauge(mm)	500	500	500	500	500	500
Dimension(cm)	310x165x161	380X177X155	388X250X178	335X175X182	240x175x182	290x175x182
N.W./G.W.(kg)	4100/4300	5200/5300	6800/7150	4500/4800	3500/3750	4000/4300
