• Model NO.：QC12Y
• Cutting Width：4000mm
• Cutting Thickness：6mm
• Color：as Your Require
• Voltage：380V or Customized Available
• Cutting Material：Steel, Stainless Steel, Alloy...
• Motor：Simenes
• Electric：Schneider
• Valve：Rexroth
• CNC System：E21s
• Factory：Yes!
• Transport Package：as Your Require
• Specification：QC12Y
• Trademark：JSD
• Origin：China
• HS Code：8462391000
• Production Capacity：100 Sets One Month

Basic Info.

Model NO. QC12Y Cutting Width 4000mm Cutting Thickness 6mm Color as Your Require Voltage 380V or Customized Available Cutting Material Steel, Stainless Steel, Alloy... Motor Simenes Electric Schneider Valve Rexroth CNC System E21s Factory Yes! Transport Package as Your Require Specification QC12Y Trademark JSD Origin China HS Code 8462391000 Production Capacity 100 Sets One Month

Product Description

Jiashida 2018 hydraulic sheet metal cutting shearing machine

Features

Hydraulic swing beam shearing machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.

Streamlined design originated from EU, the machine frame is a whole through overall welding and annealing treatment.

Made by high-quality alloy tool steel, the machine can meet the requirement of impacting load and high wear resistance when working.

Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting stepless

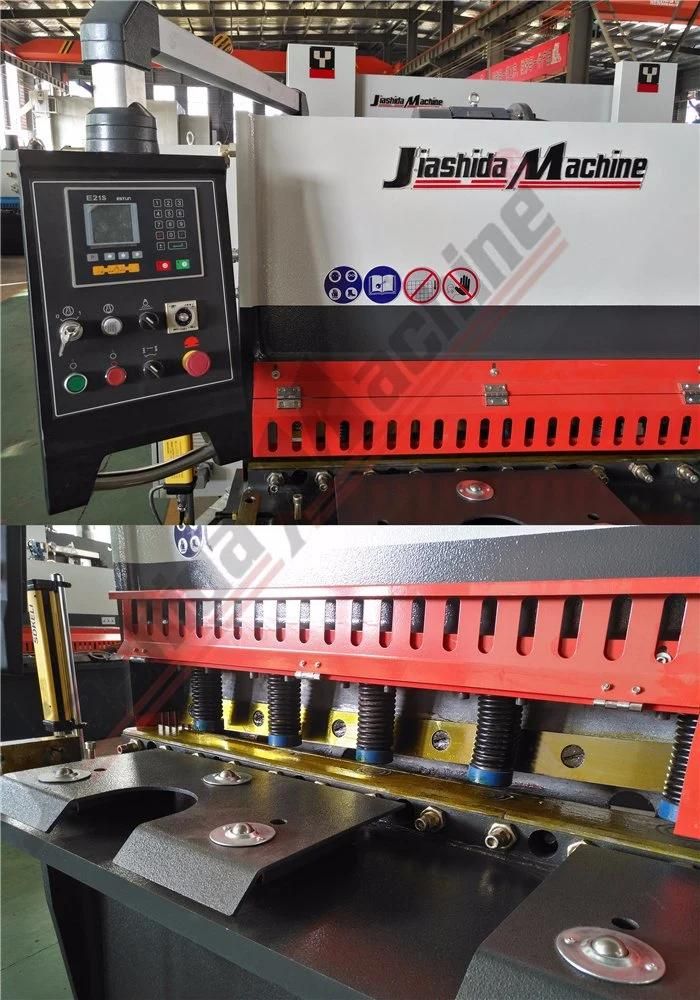

Estun E21S NC Control System Main Function: Backgauge control, Control for general AC motors,frequency inverter, Intelligent positioning, Double programmable digital output, Stock counter, Retract function, One side positioning, Chinese/English, mm/inch, One key backup/restore of parameters, Program memory of up to 40 programs Up to 25 steps per program

Worktable  Adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface, novel protective devices complying with safety specifications, protecting the operator's personal safety, ingenious design, petty material can be cut easily.

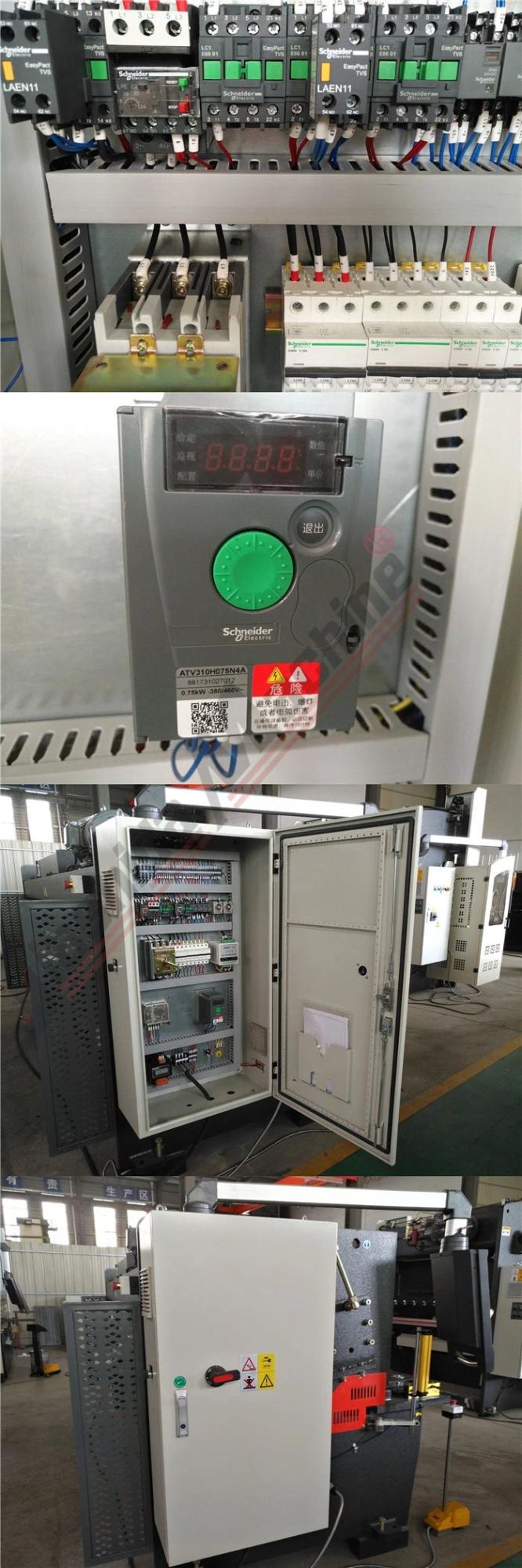

Brand Electric Schneider, stable and reliable

DELTA Frequency Converter prevents the positioning device from swinging horizontally and improves the positioning accuracy.

The electrical cabinet door open, power will be off, this is to protect the operation safety.

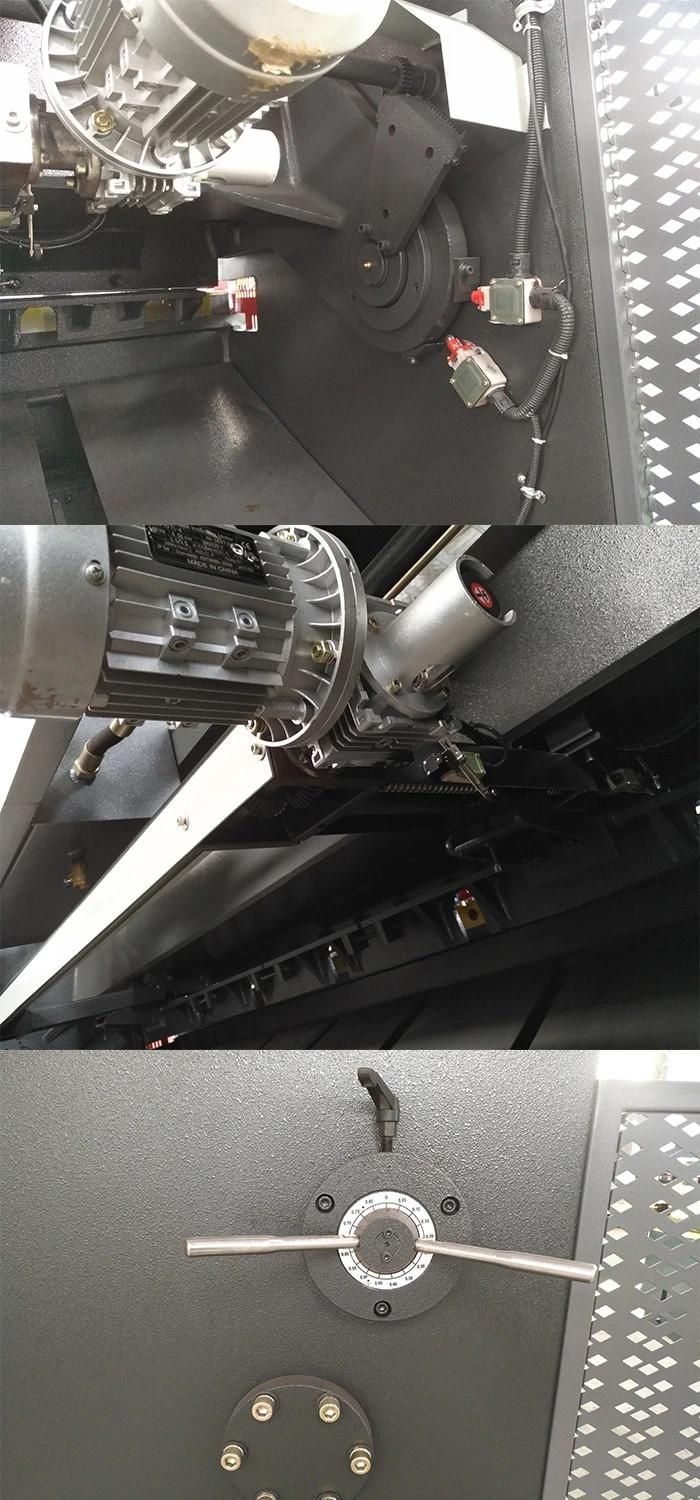

Back gauge is adjusted by high precision ball screw driven by E21S controller, during the process frequency converter prevent positioning device horizontal swinging, significantly improving positioning accuracy.

Manual Blade Gap adjustment handle, easy and convenient

Japan NOK Tube Connector

Siemens Motor

America Sunny Oil Pump

MORE MACHINE DETAILS, PLEASE SEND US YOUR INQUIRY.
