Automatic Stirrup Metal Wrought Iron Steel Bender Machine PLC
Xuchang Hongshuo Machinery Co., Ltd.- After-sales Service：Life-Long After-Sale Service
- Waterproof Rating：Waterproof
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Automatic
Base Info
- Model NO.：HS5-12A,C,D,S
- Suitable for：Carbon Steel
- Type：Cnc Bending Machine
- Transport Package：Wooden Case or Suitable for Sea Shipping
- Specification：To bend steel stirrups
- Trademark：Hongshuo
- Origin：China
- HS Code：8462219000
- Production Capacity：300 Sets Per Month
Description
Double
Working LineSmooth steel:
4-6mm Smooth steel:
4-8mm Smooth steel:
4-8mm Smooth steel:
4-10mm Ribbed steel:4mm Ribbed steel:4-6mm Ribbed steel:4-8mm Ribbed steel:4-8mm Capacity 1400pcs/hour 1400pcs/hour 1800pcs/hour 1800pcs/hour Max. bending angle 180° 180° 180° 180° Max. feeding speed 3000m/h 3000m/h 3000m/h 3000m/h Max. bending speed 1000°/s 1000°/s 1000°/s 1000°/s Length Error ±1mm ±1mm ±1.5mm ±1.5mm Angle Error ±1° ±1° ±1° ±1.5° The height between axis
of center of bending and ground 1120mm 1120mm 1180mm 1380mm Motor power 14.5kw 16.5kw 18.5kw 27.5kw L*W*H 3160x1100x1650mm 3660x1100x1750mm 3700x1100x1750mm 4100x1100x2100mm Weight 1200kg 1400kg 1600kg 2000kg

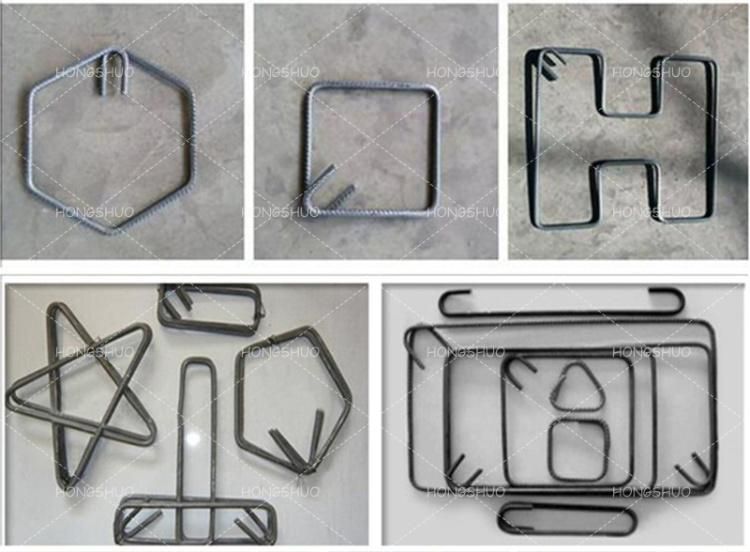

End Products

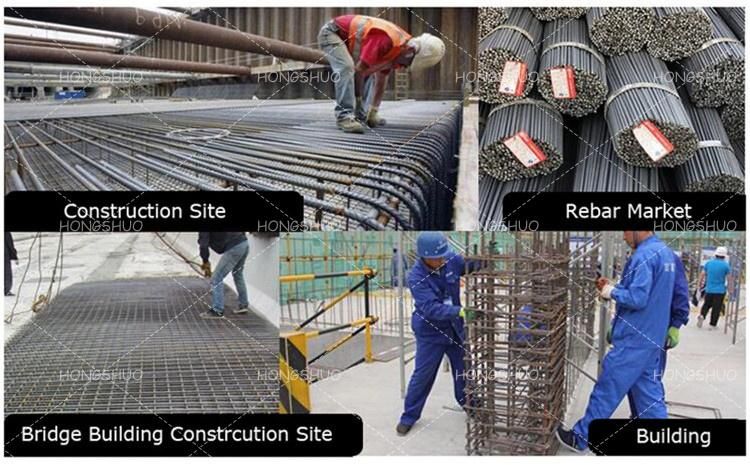

Application
Packing & Loading

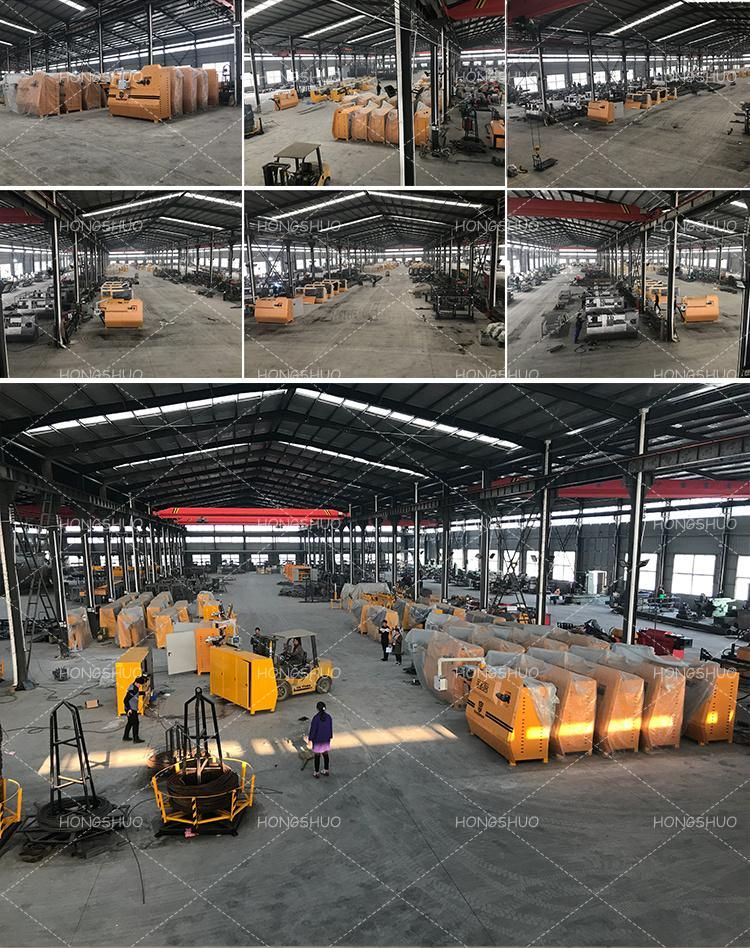

Warehouse Photos
FAQ
--Q1--How to find a suitable bending machine?
--A1--Please tell us the steel diameter and shape you want to bend, thus we can recommend suitable machine for you.
--Q2--What is the warranty?
--A2--Two years warranty for machine, free machine parts supplied during the warranty if somewhere wrong on machines under the normal use.
--Q3--What is the delivery time?
--A3--7-10 days after receiving the deposit.
--Q4--Can you do customization or OEM service for me ?
--A4--YES. Can be customized according to your actual requirement.
--Q5--What's the payment terms ?
--A5--30% deposit by TT, and the balance should be paid before shipment.
--Q6--Are you manufaturer or distributor ?
--A6--Manufaturer.
