• Suitable for：Copper, Aluminum, Carbon Steel, Stainless Steel
• Type：Hydraulic Bending Machine
• Thickness：0.3-4mm
• Frame Design：Wall-Plate-Frame-Design
• Hydraulic Power：4kw
• Weight：2000kg
• Voltage：380V, 50Hz, 3pH or as Your Requirement
• Control System：Hydraulic with Three Oil Tanks
• Moulds：with Different Angles Mould
• Packing：Nude and Waterproof Cloth
• Transport Package：in Nude, with Waterproof Cloth and Stow-Wood
• Specification：5000mmx600mmx1900mm
• Origin：China
• HS Code：84552210
• Production Capacity：30sets,Month

3m to 6m Metal Plate Hydraulic Bending Machine Metal Sheet Bending Machine Side wall Flashing Making Machine

Hydraulic bending machine is generally used in the industry for the bending of plates, and the strength is controlled according
to the system parameters to achieve different bending effects. The structure includes a support, a workbench, and a clamping plate. The workbench is placed on the support.
The workbench is composed of a base and a pressing plate. The base is connected to the clamping plate through a hinge. The
base is composed of a housing, a coil, and a cover plate. The coil is placed In the recess of the seat shell, the top of the recess
is covered with a cover plate.


NO

Name

Specification

1

Hydraulic power

4kw

2

Weight

1500kg

3

Voltage

380v,50HZ,3PH or as your requirement

4

Dimension

5000mmx600mmx1900mm

5

Function

to be used in producing the structural products,such as roof tile,angle of contact,launder,roof gutter.etc

6

Width

4000mm

7

thickness

within 4mm

8

Control system

hydraulic with three or four or five oil tanks

9

Moulds

with different angles mould

   10                packingnude and waterproof cloth   11                MIQ1 Set   12             produce time10days   13             shipment20 gp container

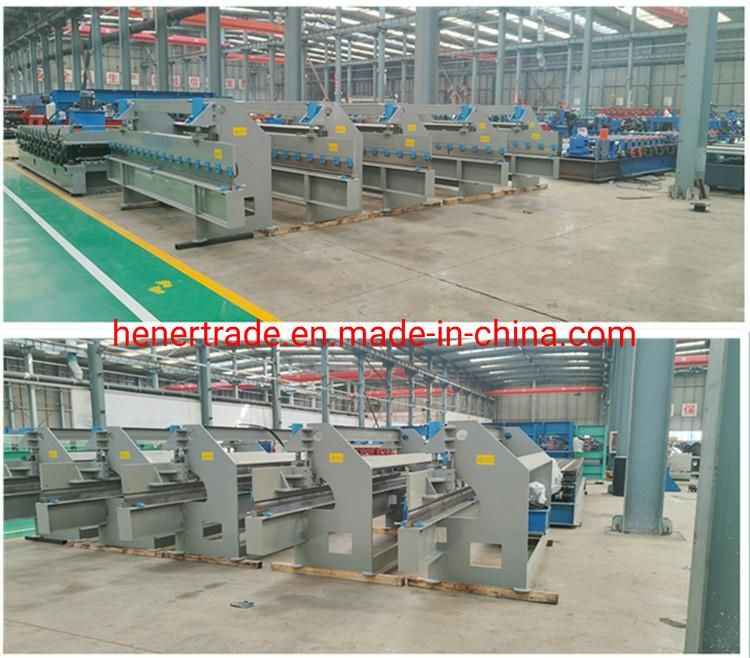

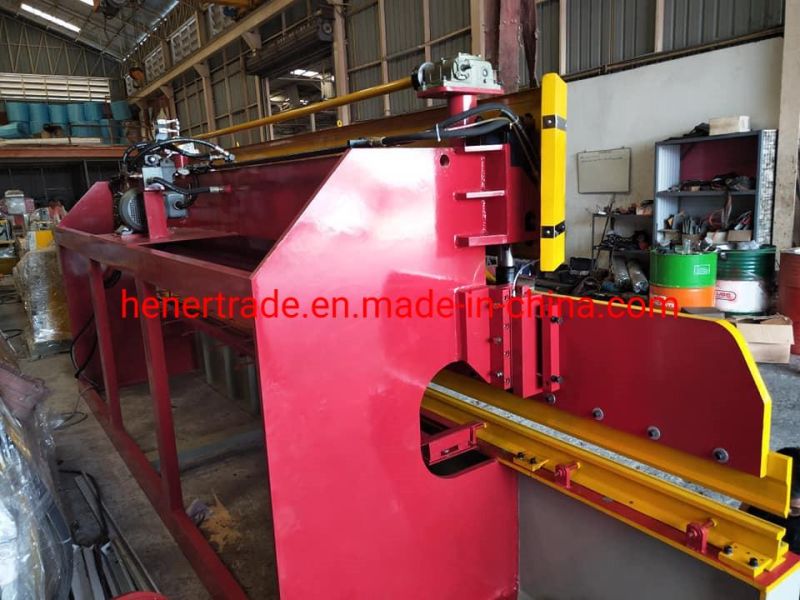

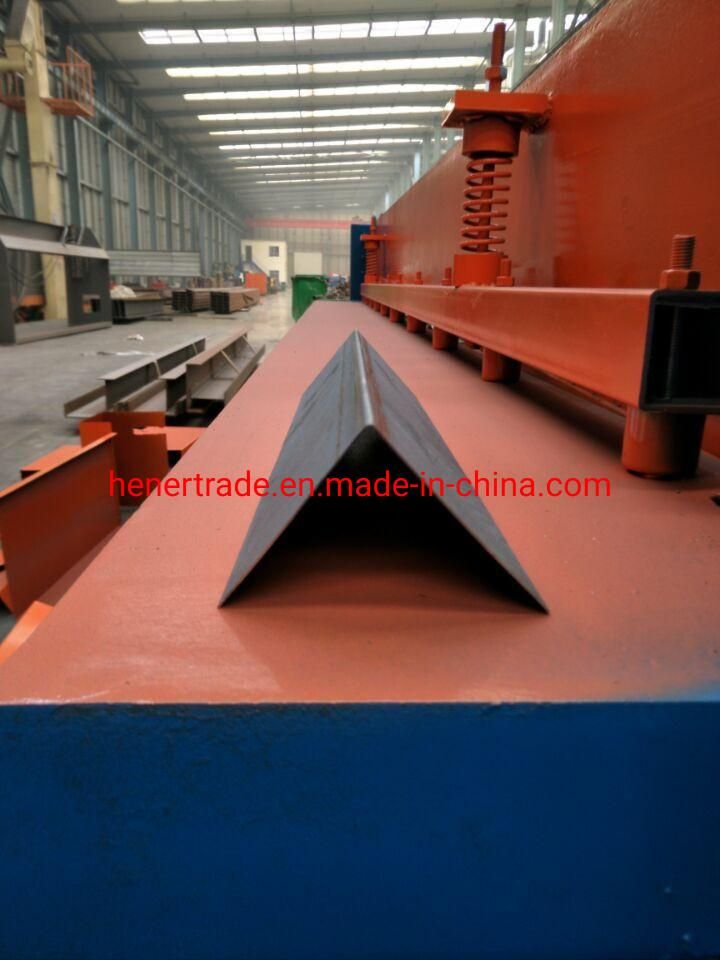

Detailed Photos

Operation precautions of hydraulic bending machine:

1. During operation, the pressed workpiece should be placed in the middle and parallel to the upper and lower molds, and the cushion should be stable. During the working process of the bending machine, it is strictly prohibited to overhaul or adjust the mold.


2. When pressing long and large workpieces, two persons (or more) are required to operate. Avoid toppling when the workpiece is deformed due
to the force and deformation. It is not allowed to hold the pressed workpiece at close range.



3. When calibrating or pressing the workpiece, the workpiece should be placed in the middle of the mold, and no bias is allowed. The upper die should approach the workpiece slowly to prevent the workpiece from being forced out.



4. Always check whether the strokes of the two cylinders are the same during work, otherwise adjust or report for repairs in time. When the piston
of the oil cylinder is shaken or the oil pump screams, the air in the oil circuit must be discharged.



 5. Always pay attention to the oil tank and observe whether the oil level is suitable. If the oil level is too high, check the oil return line and adjust
the oil return valve. It is strictly forbidden to overflow the oil tank. Keep working oil temperature ≤45ºC.



6. When the control valve and safety valve fails or the safety protection device is not perfect, it is not allowed to continue working.



7. Regulating valves and pressure gauges are strictly prohibited to be adjusted by others, and the operator must tighten them after adjustment.



8. When the working pressure is too high, the oil return valve must be checked and adjusted, and work can only be carried out after the fault is eliminated.



 9. It is strictly forbidden for the upper die of the hydraulic sheet metal bending machine to exceed the maximum stroke.



10. During work, it is strictly forbidden to reach into the middle of the upper and lower molds.



11. Frequently check the travel switch and safety protection device of the hydraulic sheet metal



Product Features
1. More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.




Exhibition


Certification

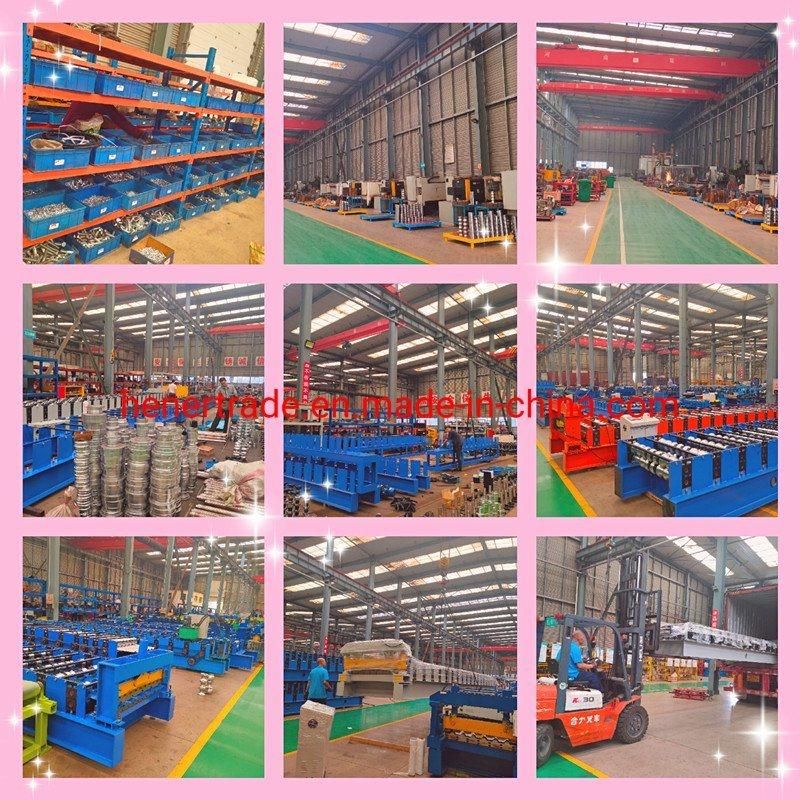

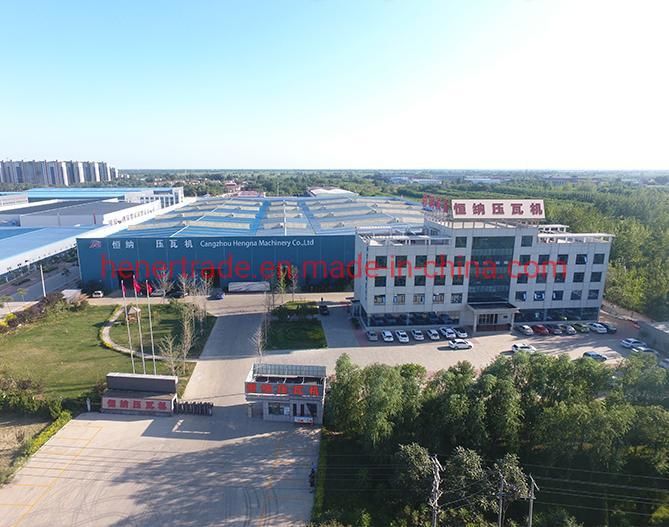

Company Profile

Why choose Us?



1.We have sold more than 3000 sets roll forming machines to many countries around the world.



2.We have hundreds of models about all kinds of roll forming machine for your reference, you could't worry if you don't have a profile drawing.We can recommond you some classical models that is common in your country.



3.When designing the machine, our considerate service will estimate and avoid the problem that may happen.



4.One set machine can provide many solutions with different price level.But they are all the cost-effective.



5.We attach importance to many details. Every machine part quality is higher than our competitors in same price level.
