Electric Magnetic Bending Machine EB2000E Sheet Metal Folding Machine
Tengzhou Wellon Machinery Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：5-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Semi-Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：EB2000E
- Type：Manual Bending Machine
- Max.Capacity (Length Thickness)：2000X1.6mm
- Transport Package：Wood Case
- Specification：CE ISO9001 Rohs
- Trademark：WELLON
- Origin：China
- HS Code：8462399000
- Production Capacity：50 PCS,Month
Description
Basic Info.
Model NO. EB2000E Type Manual Bending Machine Max.Capacity (Length Thickness) 2000X1.6mm Transport Package Wood Case Specification CE ISO9001 Rohs Trademark WELLON Origin China HS Code 8462399000 Production Capacity 50 PCS/MonthProduct Description
Performence Features:

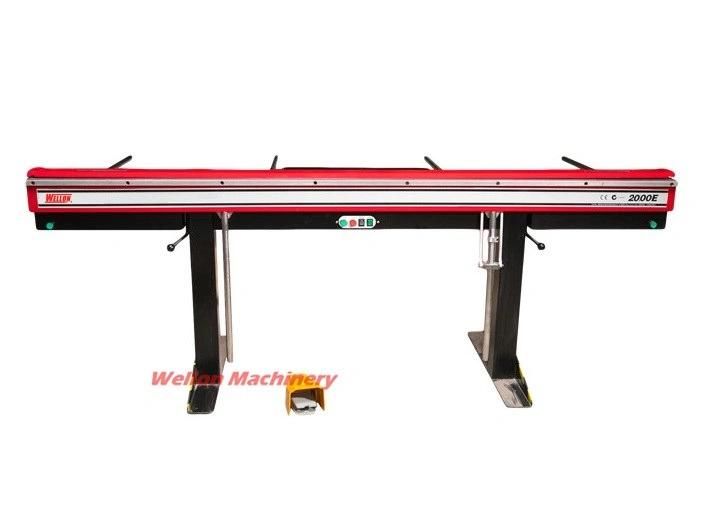

Magnetic sheet metal brake is a unique box and pan brake that has endless bending possibilities when compared to
conventional sheet metal brakes.
Requiring a common 220 volt, single phase power supply, this folding machine can bend boxes or pans to almost any
depth since it isn't reliant on conventional finger depths. A powerful magnet in the bending bed can be engaged by foot

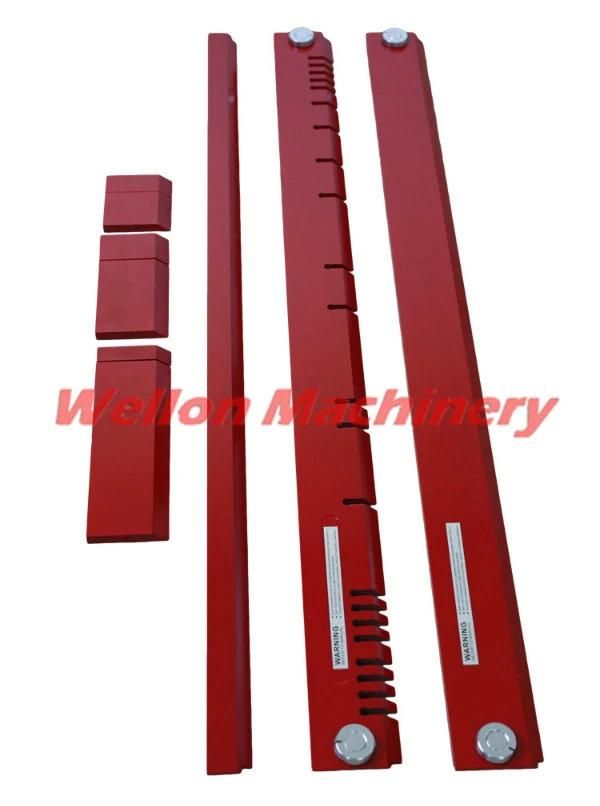

pedal or push button control to hold down a mild steel clamping bar of almost any configuration across the bed width or
bed length. The sheet metal is pinned between the magnetic mild steel clamping bar, at this point the bottom bending
leaf can be lifted to complete the bend.
Technical Parameter:
| Model | EB2000E |
| Max. Capacity (length x thickness) | 2000x1.6mm |
| 6'x16ga | |
| Clamping force | 9Ton |
| Duty cycle | 30% |
| Back gauge | 640mm |
| Nominal current | 12Amp |
| Bending-edge length | 2090 |
| Distance between lifters | 2028 |
| Packing size(cm) | 220x112x38 |
| N.W./G.W.(kg) | 290/360 |

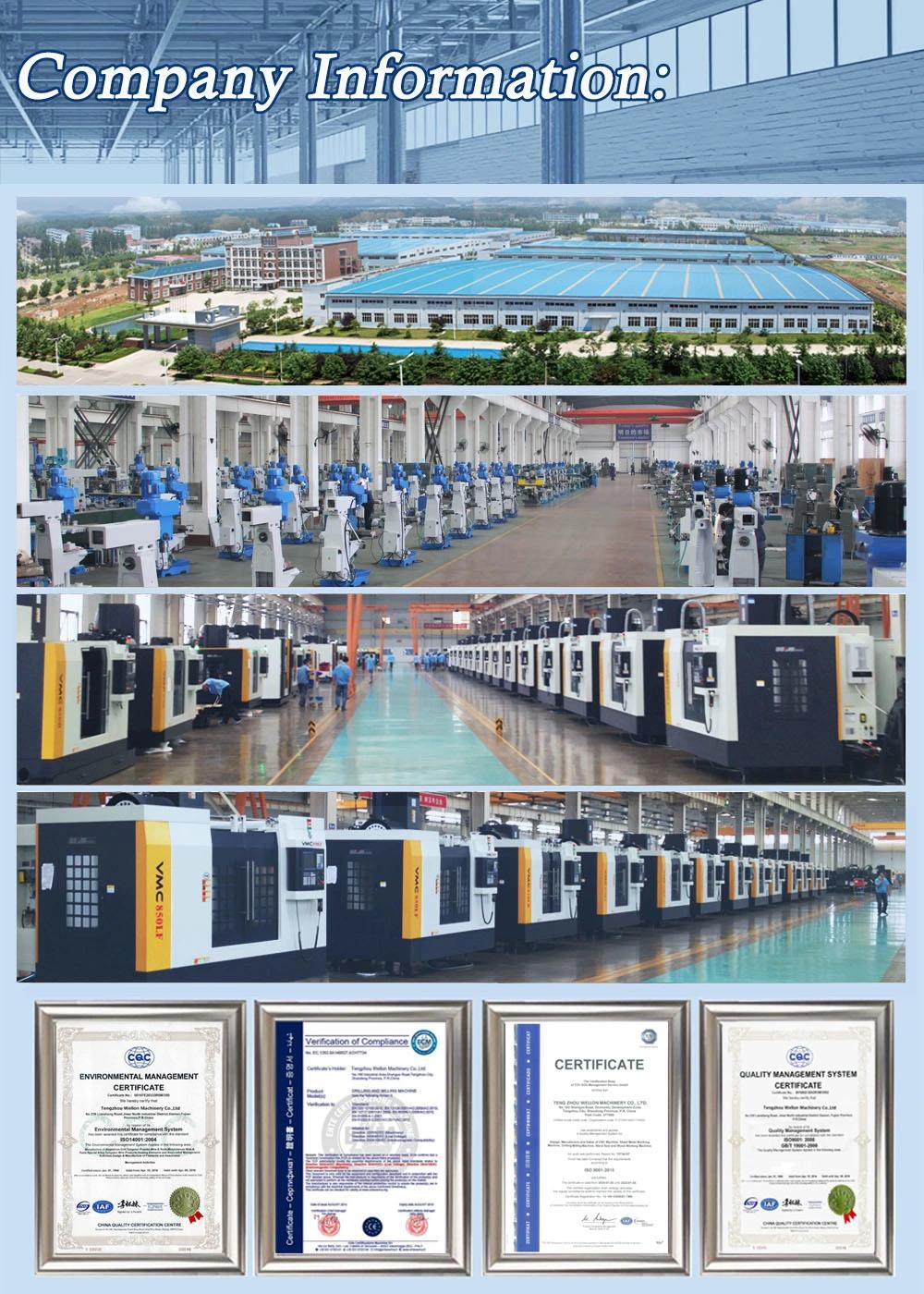

Company Information:
