Cutting & Fold-bend Machine

All Electrical Servo CNC Press Brake Epb-6325

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Waterproof Rating:IPX-8
  • Warranty:2-year

Base Info

  • Model NO.:EPB-6525
  • Condition:New
  • Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
  • Automation:Automatic
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet
  • Type:Press Brake
  • System:Lz80t
  • Backgauge:500mm Distance, Ball Screw, Linear Guide Rail
  • Bending Angle Programmed:Yes
  • Max Bending Thickness:3mm
  • Max Bending Legnth:2500mm
  • Clamping System:Quick Clamp
  • Main Motor:Siemens
  • Hydraulic Valve:Rexroth
  • Weight:3100kg
  • Transport Package:20gp
  • Specification:2520*1700*2550 mm
  • Trademark:LZK
  • Origin:China
  • HS Code:8462230000
  • Production Capacity:100 Sets,Month
  • Package size per unit product:2520.00cm * 1700.00cm * 2550.00cm
  • Gross weight per unit product:3100.000kg

Description

Rack machining:The bending machine frame is integrally processed by a large floor boring and milling machine.

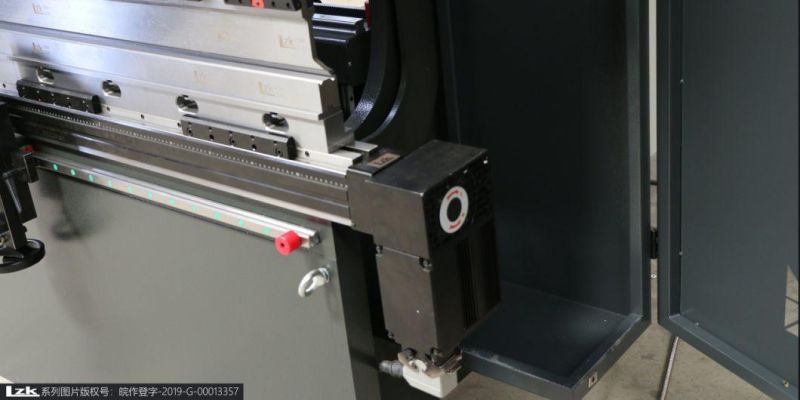

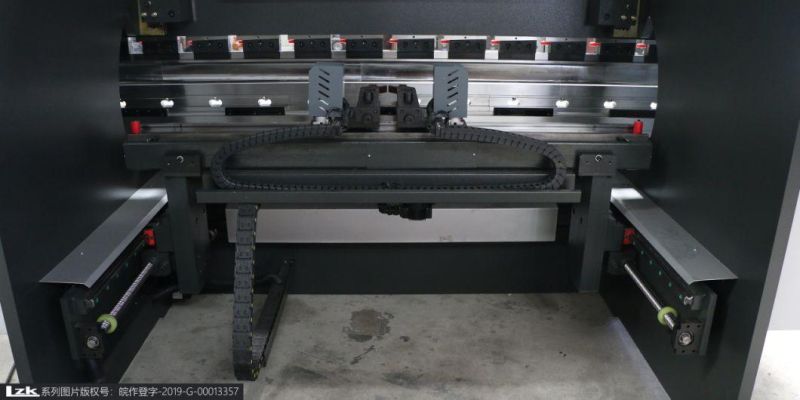

LZK |4 axis precision fast back gauge

Adopt high-precision 4-axis back gauge. Driven by servo motor, ball screw and linear guide to ensure high-precision operation. The beam height is adjusted by CNC.All Electrical Servo CNC Press Brake Epb-6325

LZK |Electromechanical deflection compensation

It is made of high-strength steel and has a nonlinear wave-slant block structure. It is driven by a motor and can accurately adjust the compensation amount.All Electrical Servo CNC Press Brake Epb-6325

EPB series Specs

NameModel/Manufacture
CNC SystemSYNTEC(10T-40T)
LZ80T(65T-100T)
Y axes servo motorSYNTEC
SNAYO
Backgauge servo motorSYNTEC
Fuji,Japan
CompensationMechanical compensation(Standard equipment for models of 2,500 m m and above)
ElectricsFrance  Electrics
Pedal SwitchSouth Korea KACON
moldStandard 202 Frame knife,
Double V same core / single V lower mode
All Electrical Servo CNC Press Brake Epb-6325
