• Model NO.：WC67K80T3200
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
• Type：Cnc Bending Machine
• Sychronization Type：Electric-Hydraulic Sychronized
• Work Table Length：3200mm
• Nominal Pressure：800kn
• Control Axes：3+1 (4+1, 6+1, 8+1 by Custom)
• Controller：E21 Esa630s, Delem Da53t Da58 Da66 CT12 by Custom
• Specification：80T3200
• Trademark：XINMECHAN
• Origin：China
• HS Code：8462219000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. WC67K80T3200 Suitable for Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel Type Cnc Bending Machine Sychronization Type Electric-Hydraulic Sychronized Work Table Length 3200mm Nominal Pressure 800kn Control Axes 3+1 (4+1, 6+1, 8+1 by Custom) Controller E21 Esa630s, Delem Da53t Da58 Da66 CT12 by Custom Specification 80T3200 Trademark XINMECHAN Origin China HS Code 8462219000 Production Capacity 100 PCS/Month

Product Description

 Specification chart

Model	Pressure (kN)	Length of Worktable (mm)	Distance of column (mm)	Throat Depth (mm)	Stroke / times	Max. Height (mm)	Main Power (Kw)	Dimension L*W*H (mm)
40T/2200	400	2200	1775	250	100/10	320	5.5	2300*1500*2000
40T/2500	400	2500	1975	250	100/10	320	5.5	2600*1500*2000
63T/2500	630	2500	2095	250	120/10	360	5.5	2600*1600*2300
63T/3200	630	3200	2570	250	120/10	360	5.5	3300*1600*2300
80T/3200	800	3200	2565	320	120/10	360	7.5	3300*1700*2300
80T/4000	800	4000	3165	320	120/10	360	7.5	4100*1700*2300
100T/3200	1000	3200	2560	320	120/8	360	7.5	3300*1800*2400
100T/4000	1000	4000	3160	320	120/8	360	7.5	4100*1800*2400
125T/3200	1250	3200	2550	320	120/7	360	7.5	3250*1920*2450
125T/4000	1250	4000	3450	320	120/7	360	7.5	4000*1920*2500
160T/3200	1600	3200	2540	320	180/6	440	11	3300*1600*2600
160T/4000	1600	4000	3140	320	180/6	440	11	4100*2000*2600
160T/6000	1600	6000	4740	320	180/6	440	11	6100*2000*2600
200T/3200	2000	3200	2540	320	250/3	530	11	3300*2100*2800
200T/4000	2000	4000	3140	320	250/3	530	11	4100*2100*2900
200T/5000	2000	5000	3940	320	250/3	530	11	5100*2100*3000
250T/4000	2500	4000	3120	400	250/3	560	18.5	4100*2200*3500
250T/5000	2500	5000	3920	400	250/3	560	18.5	5100*2200*3500
250T/6000	2500	6000	4720	400	250/3	560	18.5	6100*2200*3500
300T/5000	3000	5000	3910	400	250/3	560	22	5100*2600*4000
300T/6000	3000	6000	4710	400	250/3	560	22	6100*2600*4000
300T/7000	3000	7000	5620	400	250/3	560	22	7100*2600*4400
320T/7000	3200	7000	5620	400	250/2.5	560	22	7100*2600*4400
350T/6000	3500	6000	5100	400	250/2.5	560	30	6100*2600*4200
350T/7000	3500	7000	5620	400	250/2.5	560	30	7100*2600*4500
400T/4000	4000	4000	3100	400	300/2.5	620	30	4100*2700*3800
400T/6000	4000	6000	4280	400	320/2.5	620	30	6100*2800*4200
500T/5000	5000	5000	4100	400	320/2.5	630	37	5100*3000*4400
500T/6000	5000	6000	4820	400	320/2.5	630	37	6100*3000*4700
500T/7000	5000	7000	5620	400	320/2.5	630	37	7100*3000*4900
600T/6000	6000	6000	4820	400	320/2.5	630	46	6100*2965*4700
600T/7000	6000	7000	5620	400	320/2.5	630	45	7100*2965*4900



 PACKAGE & SHIPMENT
ABOUT USJIANGSU XINMECHAN TECHNOLOGY CO., LTD is a modern enterprise, running hydraulic press brake, CNC laser cutting machines, hydraulic shears, grooving machines, hydraulic angle notching machines and mechanical tools, blades and so on.

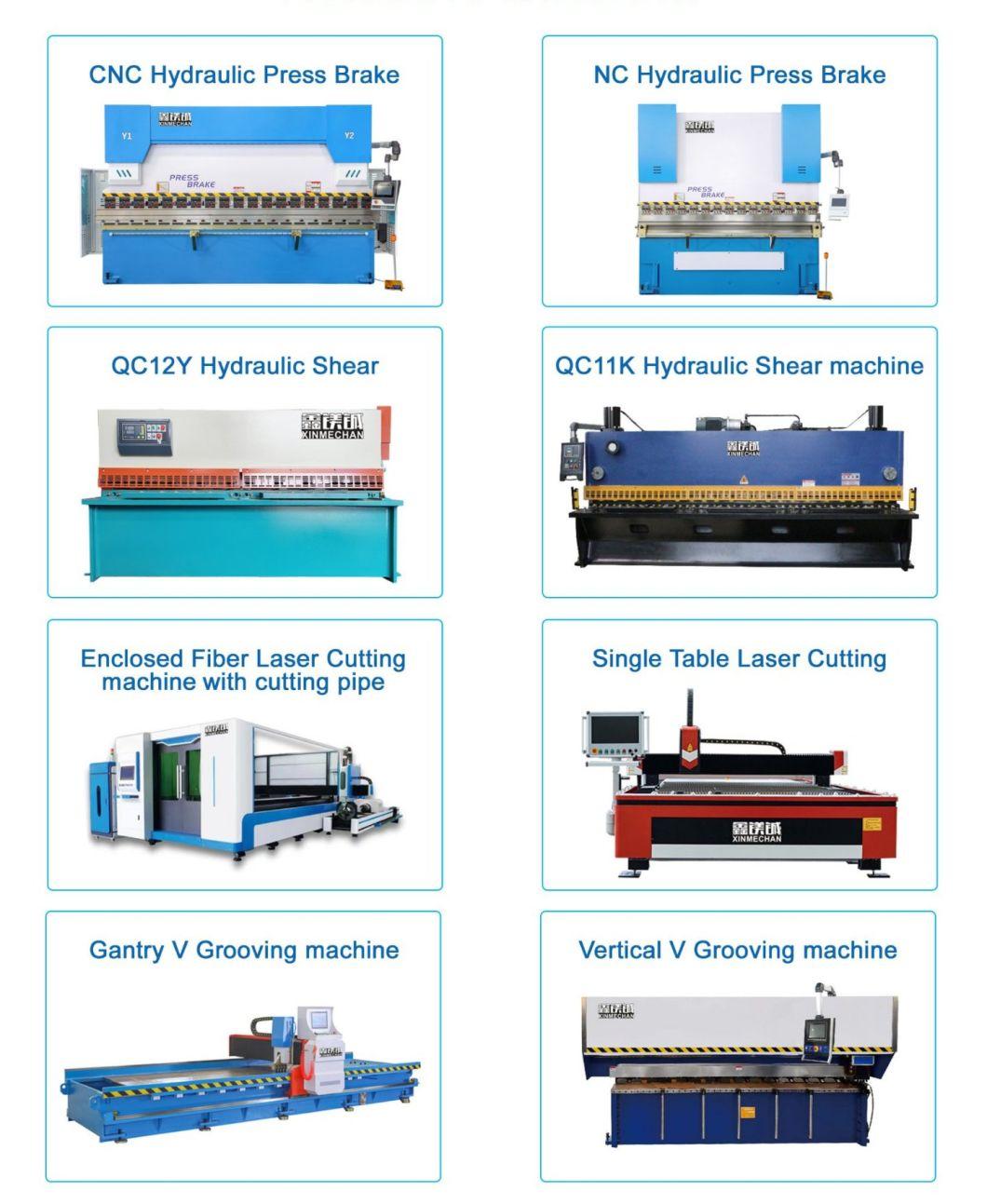

PRODUCT CATEGORY

Monument Strength
We are constantly involving in technique innovation and technical improvement to supply more advanced products for you. We had implemented the international quality system standards fully. Each process of production and delivery is in accordance with the requirements of national and industry standards as well as users need strictly. We can guarantee the products our customers received are of superior quality.

We have a group of knowledgeable and professional young team workers who are specialized in different subjects of mechanical industry, committed to serving for our customers. We can supply standard products as well as meet special order requirements of customers and provide an optimum plan for every user.

Service

Pre-sales services, supply customization
We provide customers with the best possible process solutions, technical advice, samples to test, model selection and other consulting service.
In-sale services, provide all aspects of technical support
We design tailor-made training programs for you, including equipment operation, product maintenance and maintenance, troubleshooting, safety operation and other aspects of training.
After-sales service perfectly and timely
We guarantee 10 hours to respond to customer demand, free maintenance during the warranty period, life-long maintenance, timely provision of spare parts, remote diagnosis, regular visits and other services.
 FAQ

Q1: I know nothing about this machine, what kind of machine I should choose?
A1: Very easy. Just tell us what you want to do by using the press brake machine. Then let us give you perfect solutions and suggestions.

Q2: When I get this machine, but I don't know how to use it. What should I do?
A2: We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or Whatsapp and e-mail or other online in-time APP.

Q3.How about your after-sales service?
If some problems happen to this machine during warranty period, what should I do?
A3: We offer you 24 hours service. We will supply free parts during machine warranty period if machine have some problems. While we also supply life long after-sales service. So any doubts, just let us know, we will give you the optimum solutions.

Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. Thecomplete machine will be tested to make sure they can work very well before being out of factory.
Our machines passed ISO, CE Certificate, meet European and American standard, were exported to more than 100 Countries.

Q5. How we pay you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price, shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment and 100% quality check before shipping.
F. Send your goods by sea.
