Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine

Guangdong Ruizhou Technology Co., Ltd.
  • Waterproof Rating：IPX-4
  • Warranty：1-year
  • Certification：CE, RoHS, ISO 9001:2000
  • Condition：New
  • Control：Automatic
  • Application：Paper, Plastic, Leather, Fabric, Carton

Base Info

  • Model NO.：RZGIC-12016-2H
  • Power Source：Electric
  • Layout：CNC
  • Working Area：12000mm X 1600mm
  • Machine Dimesion：12800mmx 2200mm X 1350mm
  • Weight：4079kg
  • Cutting Speed：100mm - 1200mm,S
  • Cutting Thickness：0.1mm - 25mm
  • Original Place：Guangdong, China
  • Name Brand：Ruizhou
  • Voltage：220V±10%; 380V ± 10%
  • Knives：Oscillating Blade Head, Rotary Tool
  • Method of Fixing Material：Divisional Vacuum Absorption
  • Transport Package：Standard Maritime Plywood Case Package
  • Specification：ISO, CE
  • Trademark：RUIZHOU
  • Origin：Guangdong, China
  • HS Code：84411000
  • Production Capacity：About 5000 Sets Per Year

Description

Model of patterncutting machineRZGIC-12016-2HEffective working area12000mm×1600mmCutting speed100-1200mm/sCutting thickness0-25mm Method of fixing materialDivisional vacuum absorptionCutting toolsOscillating cutting tool,Electrical Rotary ToolTypes of penGel pen, Mark pen, ball pen, silver penHuman Machine Interface (HMI)Touch screen LCDMotorServo Motor, Stepper MoterCutting accuracy±0.1mmMachine resolution0.01mmSoftware resolution0.025mmInterface of transmissionNetwork portGearingLinear guide and gear rackMachine voltageAC 220V ± 22V, 50±1HZ/60±1HZAir Pump working VoltageAC380V ± 38VAir pump power2*9KW Energy saving deviceFrequency converterSoftware programIndependent research and development CNC softwareControl systemCutting table and computer display
Characteristics

1. Knife cutting, not by laser. So it causes no burning to the materials. No smell.

2. Accurate. oscillating knife, CNC computer control and servo motor, especially Ruizhou independent developed system enssure good cutting quality.

3. Saving. With Ruizhou automatic Nesting system, the material utilization can be improved by 5%.

4. Convenient. Both flatbed table and  auto conveyor table are optional. With auto feeding system, the convenience and efficiency improves a lot.

5. Compatible. Files in DXF and PLT formats are supported. And software which can export DXF or PLT files are compatible with this machine.

6. User friendly. Operation is easy. A free training can be offered.

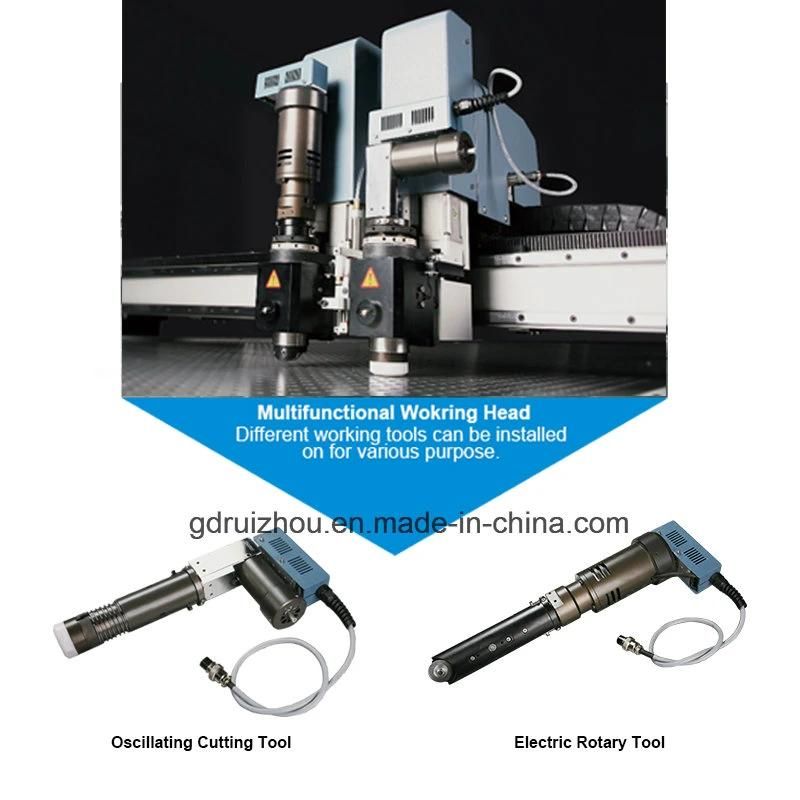

Tools and Functions of Garment Cutting Machine

Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine

1. Oscillatin Cutting Tool

 It is fast, accurate and no burning nor smell.

2. Electric Rotary Tool

 It is more fast an low noise.

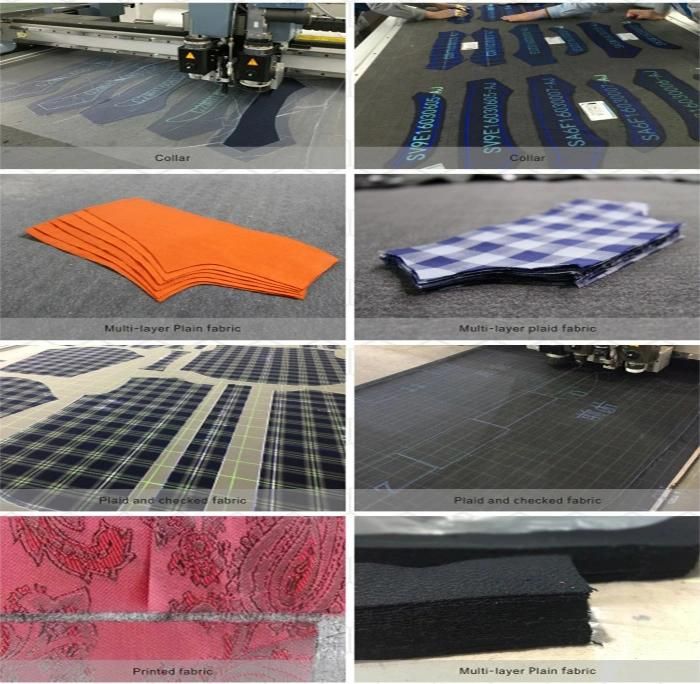

Cutting Samples of Garment Cutting Machine

Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine

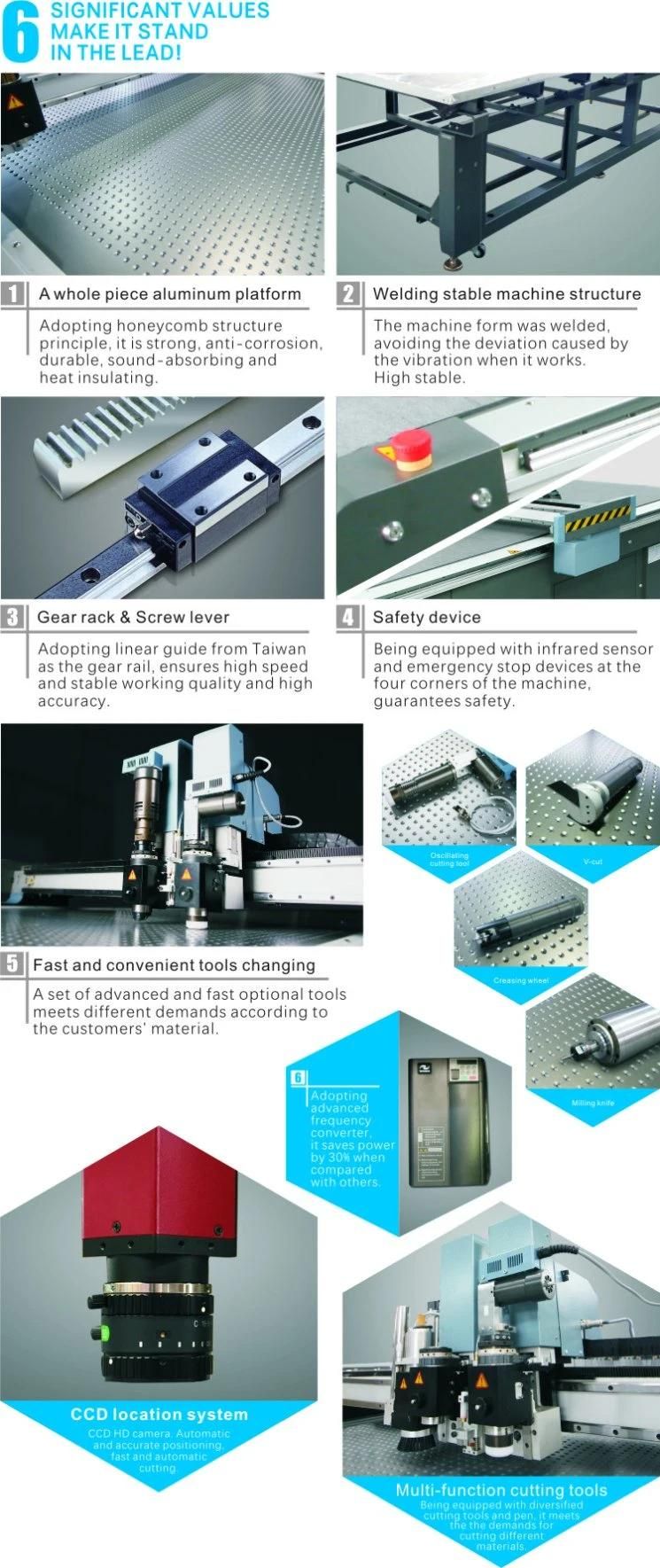

Our Advantages of Garment Cutting Machine

Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine

 Cutting Effect:
   1. Suitable for shirt cutting and symmetric materials cutting.
  2. Achieved zero manual cutting, automatic and intelligent cutting in garment industry.
  3. Achieved integrates functions of checks and strips fabric cutting, printed fabric matching, collar cutting.
  4. The machine automatic received layers'data from software. Two kinds of oscillating cutting tools for single or multi layer fabric cutting respectively.
  5. The ERP and MES system are able to plan for production automatically and intelligently, or read the files directly.
  6. Intelligent maintenance and management of fabric's data, intelligent recognition of sample file data.
  7. The software are able to save the documents automatically.
  8. Intelligent nesting and the materials utilization improves by 3%-5%.

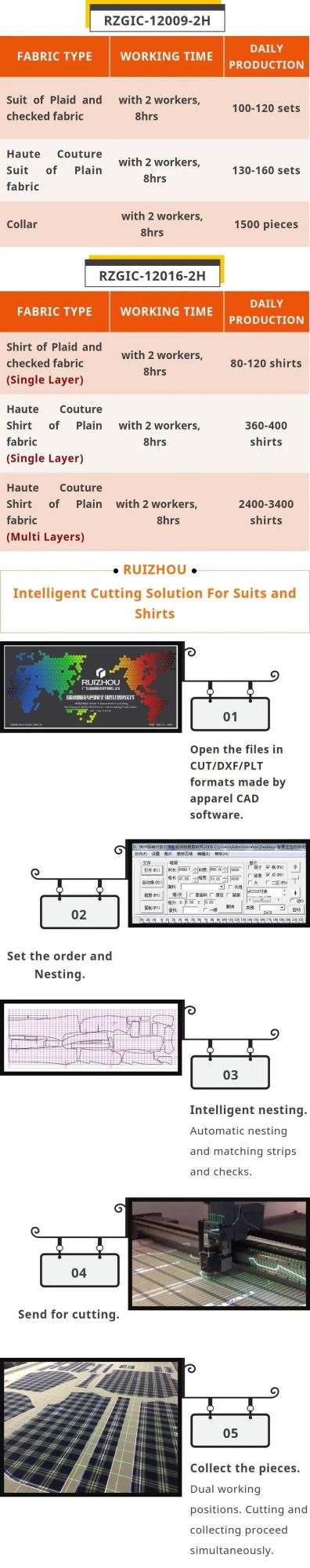

The Cutting Solution of Garment Cutting Machine


Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine

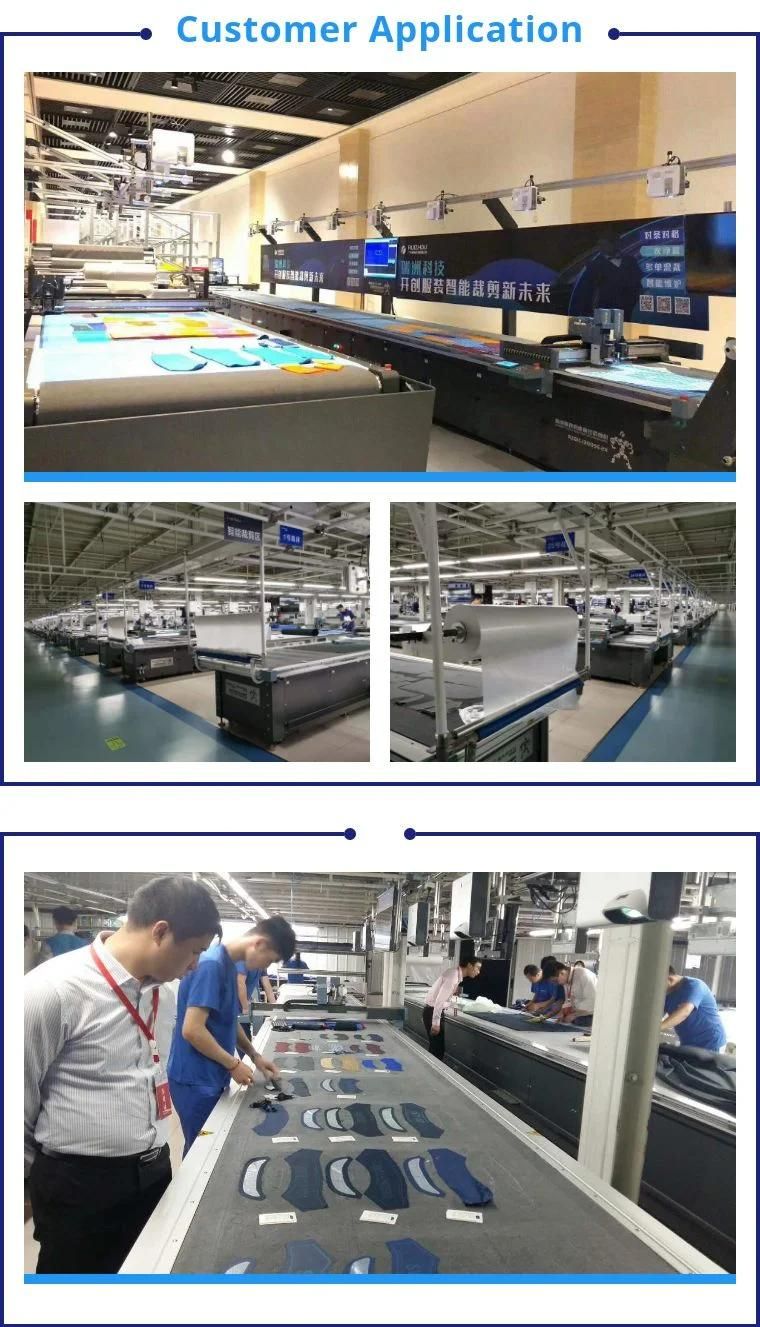

Our Customer Application Showed
Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine


Packaging of Our CNC Cutting Machines

Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine

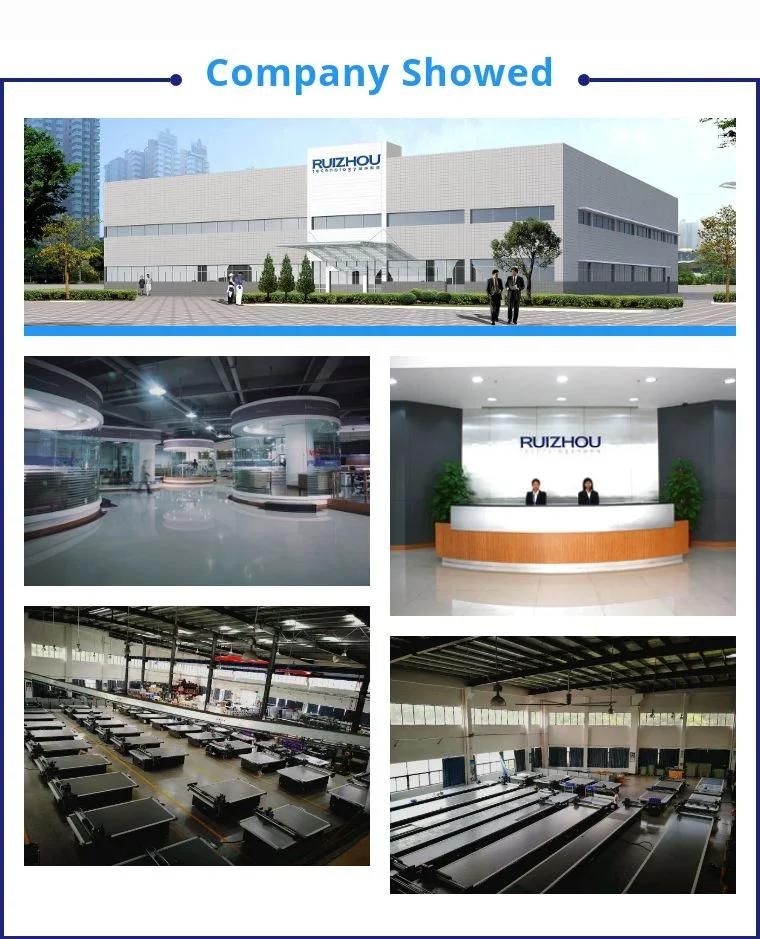

Factory Showed

Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.

RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves  the realization of the confluence of informatization and industrialization.
Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine


The Fairs
Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine

The Certificate

Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine

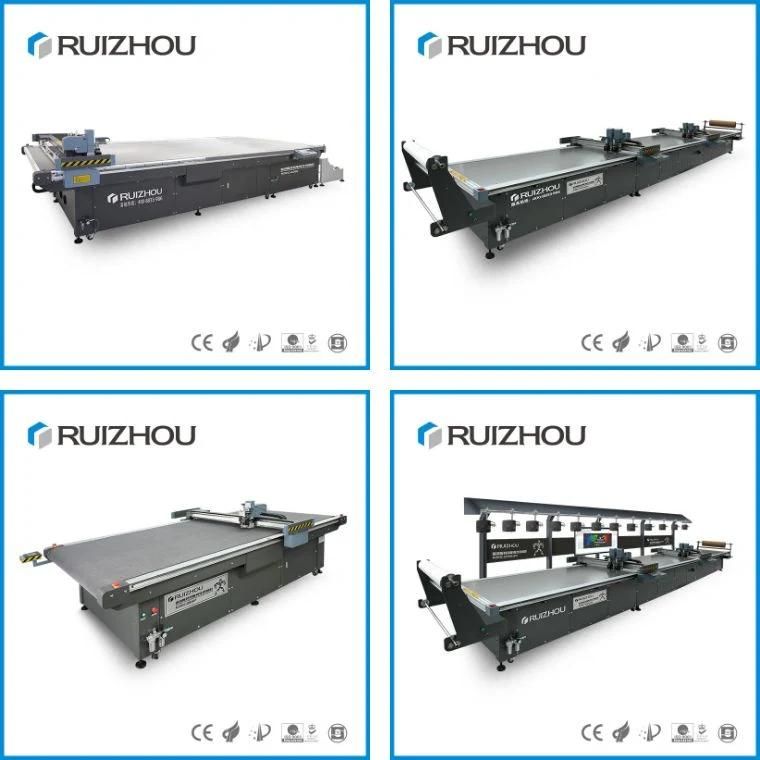

Related Products of Our CNC Cutting Machine

Automatic Feeding Plaid and Checks Fabric Suit Cutting Machine

Note Warranty & afert sale service
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company
3. 24 hours technical support
4. Calling or door-to-door service
5. User friendly English software, usual manual and videos.
