Cutting & Fold-bend Machine

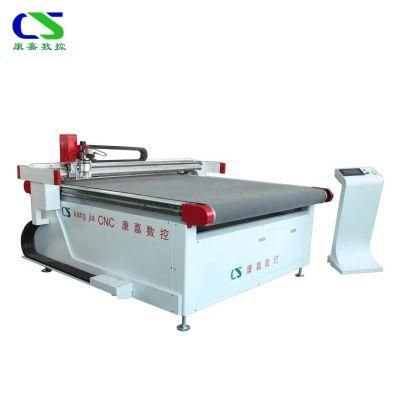

CNC Automatic Cardboard Cutting Machine for Hardcover Book

Jinan Kang Jia CNC Equipment Co., Ltd.
  • Waterproof Rating:IPX-0
  • Warranty:1-year
  • Certification:CE, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  • Control:Semi-Automatic
  • Application:Paper, Plastic, Leather, Fabric

Base Info

  • Model NO.:KJZD-1625
  • Power Source:Electric
  • Layout:Horizontal
  • Effective Cutting Area:2500mm*1600mm
  • Cutting Thickness:0.1-50mm
  • Cutting Accuracy:±0.1mm
  • Cutting Speed:Max. 140m,Min
  • Material Fixed Mode:VAC-Sorb
  • Location Mode:Infrared Laser
  • Fan Power:9kw
  • Voltage:110V,220V,380V, 50Hz , 60Hz
  • Drive Servo Motor:Panasonic , FUJI , Yaskawa Optional
  • Transport Package:Wooden Box
  • Specification:1600m*2500*1315
  • Trademark:kangjia
  • Origin:Jinan China
  • HS Code:8461500090
  • Production Capacity:100 Sets , Month

Description

Technical Parameters:Cutting Tools RecommendedVarious tools(According to the material equipped with appropriate tools)Rated Power11kwMax. Cutting Speed1200mm/sNo-load Speed1500mm/sCutting Thickness0.1-110mm (depending on the materials)Cutting Accuracy±0.1mmTransmission InterfaceEthernetDrive SystemServo motor, linear guide rail, rack and  pinionMaterial Fixed ModeVacuum adsorptionFormat SupportedDXF, PLTOperation PropertyOnline/offline operation, continuous cutting with high efficiency, 7*24 hours with zero downtimeSafety DeviceInfrared sensing device, 4 emergency stop buttons, intelligent anti-collision devicePower SupplyAC 110V/220V/380V, 50/60Hz, single/two/three phaseMain Parts:S/NItemsBrandDetails
1
Servo Motor
Panasonic (Japan)X: 400w (width) Y: 750w (length) Z: 100w (up and down) W: 100w (rotary)
2
Linear Guide Rail
PMI (Taiwan, China)Large loading capacity, high transmission accuracy & high transmission speed
3
Ball Screw
TBI (Japan)High precision and minimal reverberation gap

4

LCD Control Panel

Kangjia (China)Size: 7 inch Resolution: 800x480 Voltage: 10.5-28VDC
KWH: 1A@12VDC, 450mA@24VDC

5

Vacuum Adsorption Platform

Kangjia (China)The platform is made of 6-series aluminum alloy, and the built-in honeycomb support structure is made of 7-series aviation aluminum, which ensures that the platform will not be deformed for a long time


6


Underlay


Ammeral Beltech (Netherlands)The underlay is made of high density polyester fiber. Its life time is longer. It provides great cutting resistance. This cover not only protest blades well, but also provides wonderful breathable channel to guarantee good hold-down.
2.5mm or 4mm can be chosen
Exhibition
CNC Automatic Cardboard Cutting Machine for Hardcover Book


Packing and delivery

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

CNC Automatic Cardboard Cutting Machine for Hardcover Book
Our service
Before sales:
  1. Reply you within 24 hrs for your inquiry or question.
  2. Learn your detail requirements and what material you will cut. Then recommend the good solution that suit for you.
  3. Sign sales contract and receive the deposit.
In sales:
  1. Arrange production.
  2. Track the production schedule.
  3. Debug machine.
  4. Pack with wooden box and shipping.
After-sales service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp / Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. If necessary, the fields service can be provided.


FAQ
Q:I want to buy this machine,what suggestion can you give?
A:Please tell me what material do you process and what's the size of your material?

Q:What's the delivery cost & time?
A: Please tell me your sea port name,I check shipping cost,after production we will deliver ASAP.

Q:Have you exported to our country?
A:We have been in this field for 5 years,we have CE,ISO,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

Q:This is the first time I use this this kind of machine,is it easy to operate?
A:There are English manual or guide video that show how to use the machine,if there is still have any question,please contact us by e-mail/skype /phone/trademanager online service at any time.

Q:If machine have any problem after I receive it ,how can I do ?
A:Free parts send to you in machine warranty period if machine have any problem ,if the parts less than 0.5kg,we pay the postage.
