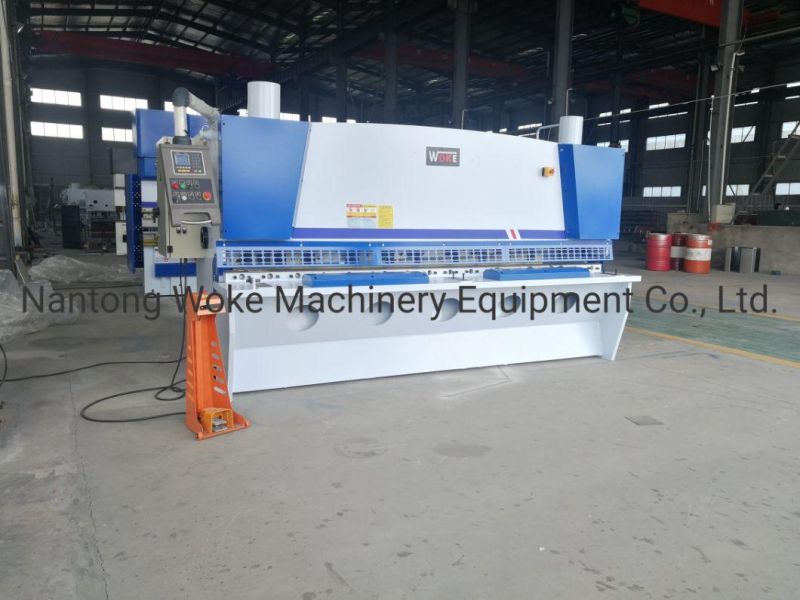

Sell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine Shear

Nantong Woke Machinery Equipment Co., Ltd.
  • After-sales Service：Provided
  • Automation：Automatic
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Warranty：2 Years
  • Main Motor：11kw

Base Info

  • Model NO.：QC11Y-8x3200
  • Control System：Estun E21 Nc
  • Cutting Thickness：8mm, 4mm Ss
  • Cutting Length：3200mm
  • Precision：High Precision

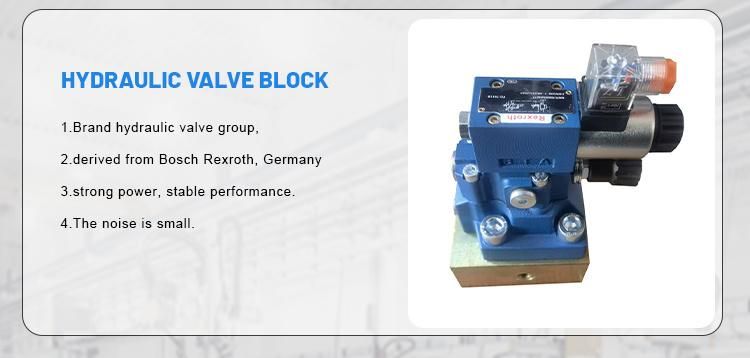

  • Hydraulic Valve：Germany Rexroth
  • Back Gauge：0-600mm
  • Transport Package：Nude Packing, Steel Pallet
  • Specification：3800x1850x1750mm
  • Trademark：WOKE
  • Origin：Nantong, Jiangsu, China
  • HS Code：8462399000
  • Production Capacity：80PCS,Month

Description

1.Come with world famous Estun E21s NC control system, stable performance and easy to operate.
2.Steel welded structure, vibration aging treatment to eliminate internal forces, have high strength and good durability.
3.Advanced integrated hydraulic system, easy for maintenance.
4.The shear stroke and cut times can be controlled.
5.Feeding balls on worktable to reduce the hurt of the plates and reduce conflict force.
6.Manual adjusting of blade clearance and adjustment of gap can be showed on an indicating dial.
7.The blade is of 4 cutting edges, that mean you can change the cutting edge if long time use.

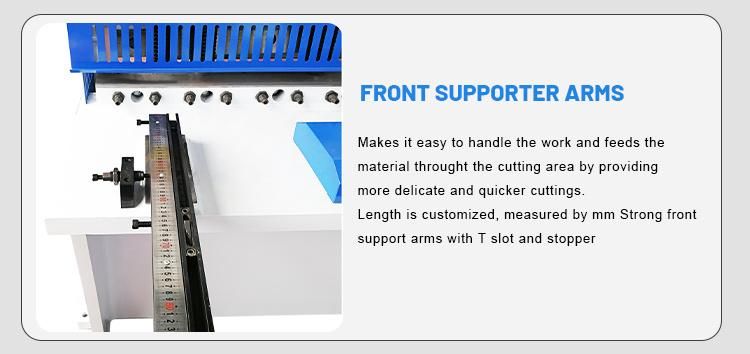

8. Front supprt arms with scale and standard protective guard, meet with internationl safety standard.
TECHNICAL PARAMETERS
ModelCutting Thickness Cutting LengthCutting AngleStrengthStrokesMain Power
 (mm) (mm)(°)(KN/CM)(spm)(kw)
QC11Y-4X15004 20000.5°~1.5°≤450205.5
QC11Y-4X25004 25000.5°~1.5°≤450185.5
QC11Y-4X32004 32000.5°~1.5°≤450147.5
QC11Y-4X40004 40000.5°~1.5°≤450107.5
QC11Y-6X60006 60000.5°~2.0°≤4502011
QC11Y-6X25006 25000.5°~1.5°≤450177.5
QC11Y-6X32006 32000.5°~1.5°≤450147.5
QC11Y-6X40006 40000.5°~2.0°≤450107.5
QC11Y-8X25008 25000.5°~2°≤4501411
QC11Y-8X32008 32000.5°~2°≤4501011
QC11Y-8X40008 40000.5°~2°≤450811
QC11Y-10X250010 25000.5°~2°≤4501211
QC11Y-10X320010 32000.5°~2°≤4501011
QC11Y-10X400010 40000.5°~2°≤450811
QC11Y-12X150012 15000.5°~2°≤4501415
QC11Y-12X250012 25000.5°~2°≤4501015
QC11Y-12X320012 32000.5°~2°≤4501022
QC11Y-12X400012 40000.5°~2°≤450722
QC11Y-12X600012 60000.5°~2°≤4501022
QC11Y-16X250016 25000.5°~2°≤450822
QC11Y-16X320016 32000.5°~2°≤450722
QC11Y-16X400016 40000.5°~2°≤450622
QC11Y-16x600016 60000.5°~2°≤450637
QC11Y-20X250020 25000.5°~2°≤450630
QC11Y-20X320020 32000.5°~2°≤450530
QC11Y-20X400020 40000.5°~2°≤450530
QC11Y-25X250025 25000.5°~2°≤450537
QC11Y-25X320025 32000.5°~2°≤450537
QC11Y-30X250030 25000.5°~2°≤450445
QC11Y-30X320030 32000.5°~2°≤450445


MAIN PARTS ARE HIGH QUALITY
Sell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine ShearSell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine ShearSell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine ShearSell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine ShearSell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine Shear
Sell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine Shear
Sell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine ShearSell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine ShearSell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine Shear

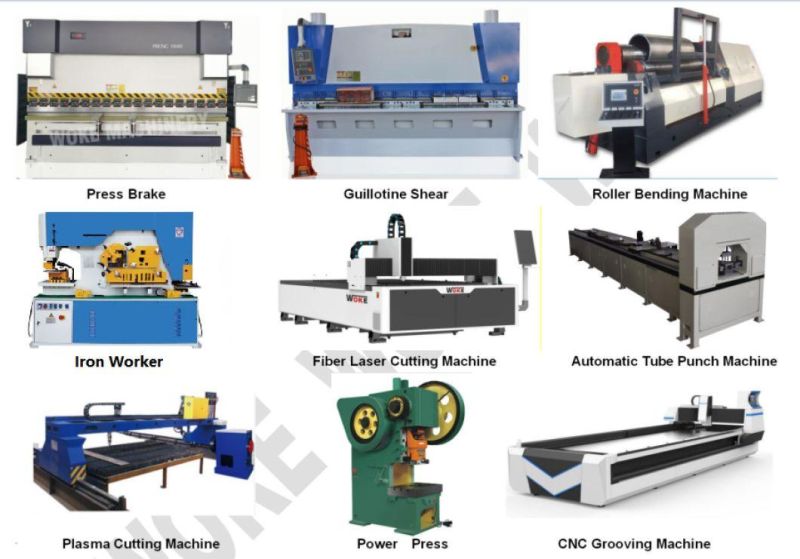

OTHER RELATED MACHINES FOR METAL SHEET WORKING                  Sell to Mexico Hydraulic Shearing Machine 8mm 3000mm, Hydraulic Guillotine Shear
