• Style：Cantilever
• Type：Three-Axis
• Code：Yh3020
• Weight：3700 Kg
• Certificate：CE
• Cutting Thickness：6-200mm
• Rated Power：37 Kw
• Max. Pressure：60000psi
• Voltage：220V,380V
• Cutting Material：Rubber, Foam, Plastic, Composite, Stone, Metal
• Transport Package：Wooden Packing Outside
• Specification：2000mm*1500mm
• Trademark：YH
• Origin：Shanghai
• HS Code：8456902000
• Production Capacity：50 Sets Per Year

Cutting tablemodel13132015302040206020customized
sizeStructuregantry water cutting platform/cantiler series cutting platformTravelX axis1300mm2000mm3000mm4000mm6000mm Y axis1300mm1500mm2000mm2000mm2000mm SpeedMax.move speed (x axis and y axis)6000mm/minMax.move speed (z axis)1000mm/minAccuracyPositing Accuracy0.127mmRepeat Accuracy±0.076mmWater tank maximum Loading Capacity300Kg/m2Cutting head3 axis / 5 axis
Movement : Linear motion/Rotary motionCNC
Controller15 inch LCD montior
Support DXF and NC code file
Software: Windows XP
Resistance of the shoch and electro-magnticThe key functionForward & Backward processing function
Even pace control function
Small arcs speed auto processing function
Circle processing functionPartial and smooth processing modesAbrasive
FeederMax. inlet air pressure      0.2-0.4 Mpa
Min. inlet air flow           0.028m3/min
Abrasive capacity           170 LFeaturesAir valve to prevent jams and breakages      Self sealing
Auto control with CNC auxiliary function        Slightly adjust the FLOW Intensifier pump/
direct drive pumpintensifier pump direct drive pumpReted power : 50HP (37 KW)Max.pressure : 60000psi (4137 bar)Control voltage and cuttent : 24DC,10AMPSReted power 30HP (22KW)Output pressure : 55000psiMax.pressure : 60000psi (4137 bar)Ambient temperature : 5-40 ºCFuel tank capacity :114LCooling flow : 11.4L/MINAir: 80-120psiOperating voltage and power:210-240/360-420V 50HZAmbient temperature : 5-40 ºCAttenuation : 1LLong : 1473 MMWidth : 1205 MMMin.inlet water : 60psi 1 gallon/min.Pump speed: 720 rmpFuel tank capacity : 2.6 Lwater jet maintenance kithigh pressure repair kit
low pressure repair kit
switch rapair kit
check valve repair kitpcv repair kit
dynamic seal repair kit
minor maintenance kit
major maintenance kit

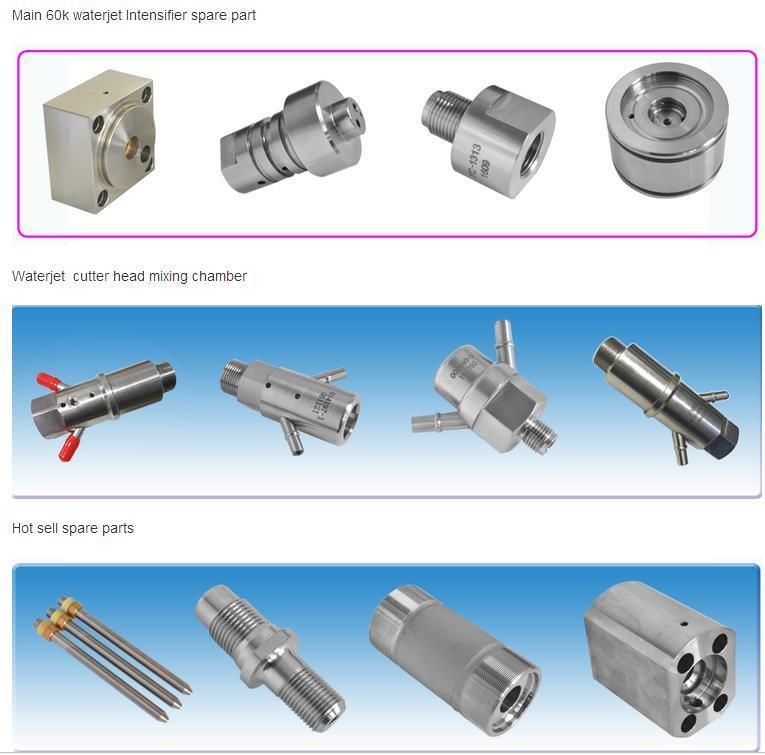

Superior product94 ksi high pressure waterjet partswaterjet direct drive partswaterjet direct drive pumpCustomize cutting table


Packing and Shipping

Water jet cutting machine spare part package :  soft packing inside ,carton packing outside.

water jet cutting machine package : wooden package

The package ways is also can according to the requirement of customer
