• Model NO.：QC12Y-12X2500
• Transport Package：Plastic Covering
• Specification：QC12Y-12X2500
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：50 Units,Month

Basic Info.

Model NO. QC12Y-12X2500 Transport Package Plastic Covering Specification QC12Y-12X2500 Trademark HAVEN Origin China HS Code 8462 Production Capacity 50 Units/Month

Product Description

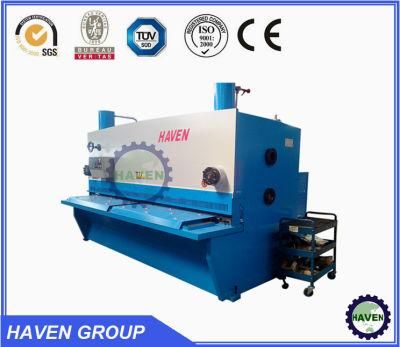

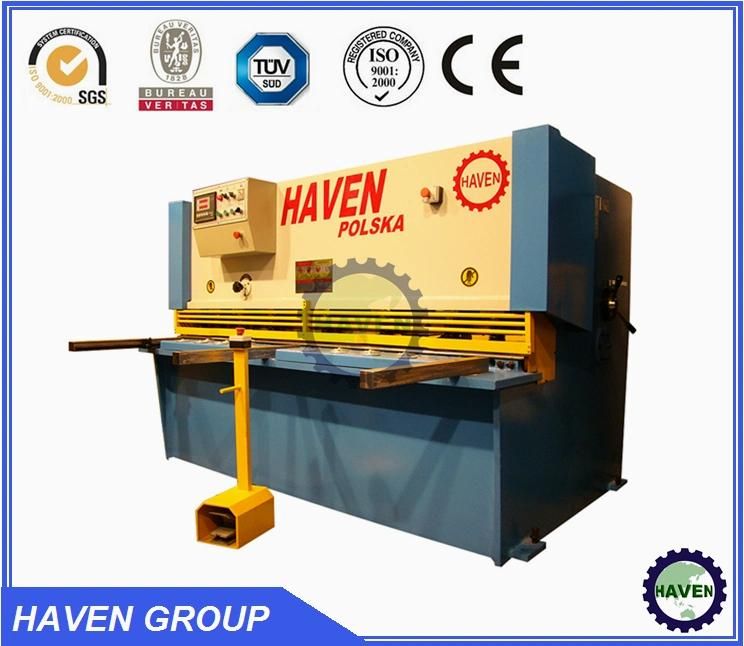

                                           QC12Y Series Swing Beam Hydraulic Shearing Machine





Main functions:
1. The machine frame is welded construction with steel plate, and stress is eliminated by vibration. with high strength, stable performance, easy operation and convenient maintenance.
2. As the cutting beam of machine  has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

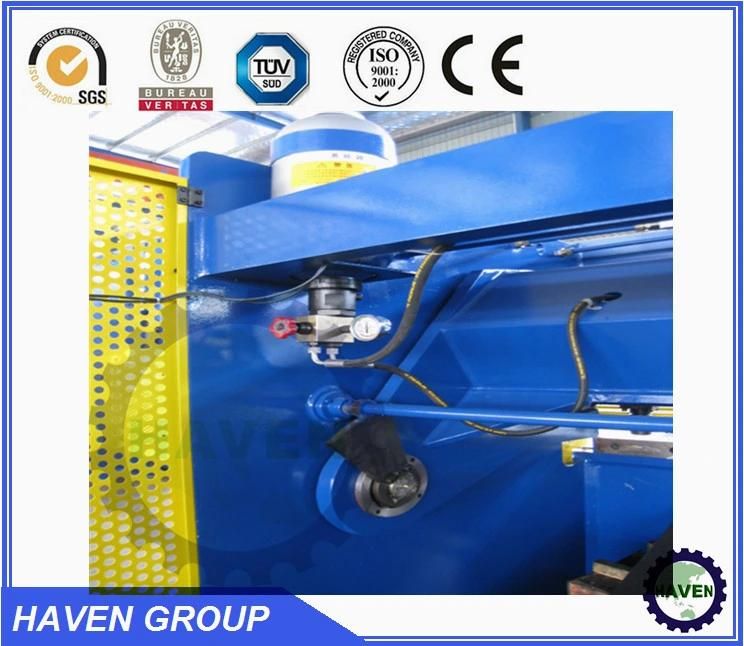

3. With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator ( Nitrogen cylinder ).
4. Stepless adjusting is available for the stroke of knife beam for different length plate shearing.
5. The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding.
6. It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
7. Motorized adjusting and manual adjusting for the back gauge.

Standard Facilities:
 1. ESTUN E21 NC control + Frequency inverter control back gauge and shearing times
 2. Front support arms with stopper and measure scale
3. Main electric components are from SIEMENS or SCHNEIDER
4. Hydraulic seals are from NOK, Japan
5. Hydraulic valves are from OMEGA
6. Hydraulic pump is from SUNNY brand (USA venture in China )

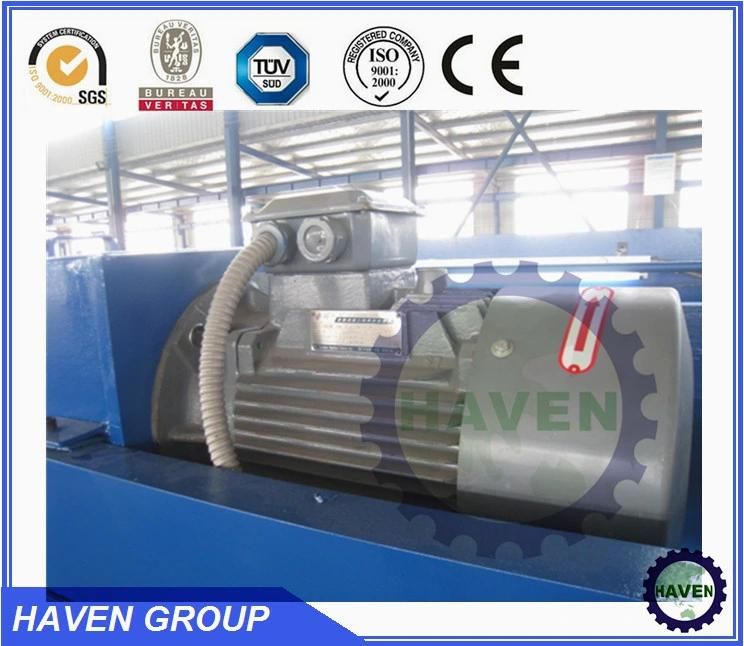

6. Main motor is from SIEMENS brand
7. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity
8. Hydraulic top-drive, steadiness and reliability
9. With adopts quick manual adjust device, cutting stroke can adjust to be suitable shearing short sheet

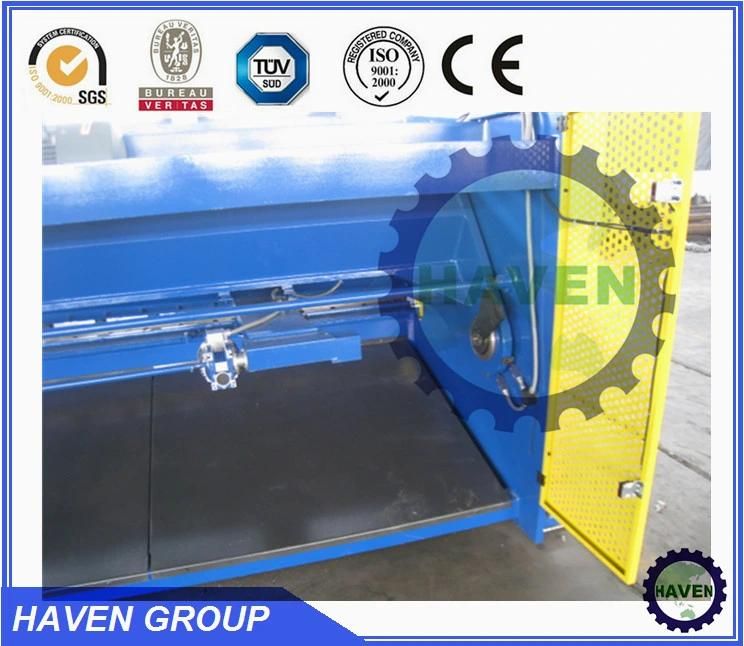

10. With motor-driven back gauge and counter device
11. CE standard back-safety curtain

Main specification:

Parameter	Shearing Thickness(mm)	Shearing Width(mm)	Shearing Angle	Number of stroke	Backgauge (mm)	Motor (kw)	Net W. (kg)	Overall Dimensions(mm)
4*2000	4	2000	1° 30'		600	4	3500	2550*1430*1560
4*2500	4	2500	1° 30'		600	4	4000	3100*1430*1560
4*3200	4	3200	1° 30'		600	5.5	5300	3840*1680*1670
6*2500	6	2500	1° 30'	18	20-600	7.5	6000	3040*1616*1620
6*3200	6	3200	1° 30'	14	20-600	7.5	7200	3840*1610*1620
6*4000	6	4000	1° 30'	10	20-600	7.5	10000	4640*1705*1700
6*6000	6	6000	1° 14'	10	600	18.5	17000	6600*1950*1980
8*2500	8	2500	1° 30'	14	20-600	11	6.500	3240*1610*1620
8*3200	8	3200	1° 30'	10	20-600	11	7.800	4010*1610*1620
8*4000	8	4000	1° 30'	8	20-600	11	11000	4680*1705*1700
8*6000	8	6000	1° 30'	8	20-800	18.5	19000	6880*2210*2890
10*2500	10	2500	1° 48'	12	20-600	15	8000	3350*2050*1950
10*3200	10	3200	1° 48'	10	20-600	15	10000	4050*2050*1950
10*4000	10	4000	1° 30'	8	10-800	18.5	12500	4850*2300*2200
10*6000	10	6000	1° 30'	8	20-1000	30	20000	7020*2580*3280
12*2500	12	2500	1° 30'	12	10-800	18.5	11000	3320*2050*2230
12*3200	12	3200	1° 30'	10	10-800	18.5	12500	4020*2050*2230
12*4000	12	4000	2°	8	10-800	22	15000	4850*2400*2200
12*6000	12	6000	1° 30'	6	20-1000	37	23000	7020*2680*3380
12*8000	12	8000	1° 30'	4	20-1000	45	33000	9020*2680*3380
16*2500	16	2500	2° 30'	8	10-800	18.5	15000	4850*2400*2200
16*3200	16	3200	2 ° 30'	7	10- 800	22	18000	4100*2060*2010
16*4000	16	4000	2°	6	10-800	30	23000	4900*2400*2250
20*2500	20	2500	2°	6	10-800	37	16000	3440*2088*2570
20*3200	20	3200	2°	5	10-800	37	23000	4100*2350*2710
20*4000	20	4000	2° 30'	4	10-800	37	30000	4920*2400*2790
25*2500	25	2500	3°	5	40-1000	45	19000	3480*2410*2690
25*3200	25	3200	3°	5	40-1000	45	26000	4180*2410*2690
25*4000	25	4000	3°	5	40-1000	45	33000	4985*2410*2690
