Backgauge：500mm Distance, Ball Screw, Linear Guide Rail
Bending Angle Programmed：Yes
Max Bending Thickness：3mm
Max Bending Legnth：2500mm
Clamping System：Quick Clamp
Main Motor：Siemens
Hydraulic Valve：Rexroth
Weight：2600kg
Transport Package：20gp
Specification：1520*1700*2550 mm
Trademark：LZK
Origin：China
HS Code：8462230000
Production Capacity：100 Sets,Month
Package size per unit product：2520.00cm * 1700.00cm * 2350.00cm
Gross weight per unit product：3100.000kg
Description
Rack machining:The bending machine frame is integrally processed by a large floor boring and milling machine.

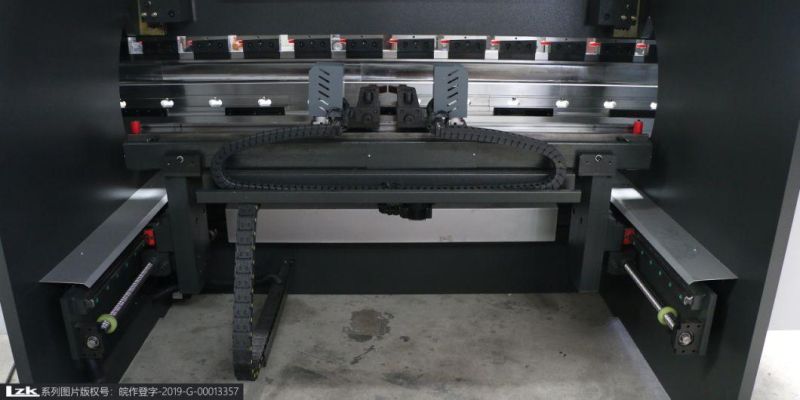

LZK |4 axis precision fast back gauge
Adopt high-precision 4-axis back gauge. Driven by servo motor, ball screw and linear guide to ensure high-precision operation. The beam height is adjusted by CNC.

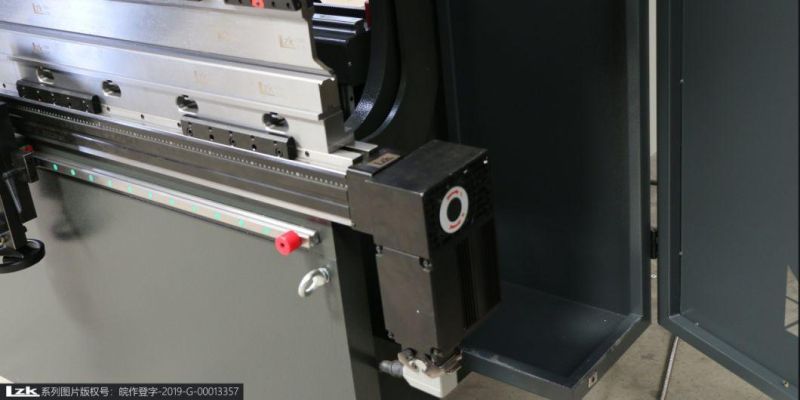

LZK |Electromechanical deflection compensation
It is made of high-strength steel and has a nonlinear wave-slant block structure. It is driven by a motor and can accurately adjust the compensation amount.
EPB series Specs
Name
Model/Manufacture
CNC System
SYNTEC(10T-40T) LZ80T(65T-100T)
Y axes servo motor
SYNTEC SNAYO
Backgauge servo motor
SYNTEC Fuji,Japan
Compensation
Mechanical compensation(Standard equipment for models of 2,500 m m and above)
Electrics
France Electrics
Pedal Switch
South Korea KACON
mold
Standard 202 Frame knife, Double V same core / single V lower mode
