• Model NO.：BWZ-C1
• Suitable for：Copper, Aluminum, Alloy
• Type：Coiling Bending Machine
• Name：3D Channel Letter Bender , Letter Bending Machine
• Key Words：Channel Letter Bender
• Function：Automatic Feeding, Slotting and Bending
• Applicable Material Alu=Aluminum：Stainless Steel Flat Alu Folding Alu Channelume
• Max Material Width：160mm
• Max Material Thickness：1.5mm
• Slotting System：Motor Control
• Air Pressure：0.6MPa
• File Format：Dxf, Ai, Plt
• Transport Package：Plywood Case Package
• Specification：CE, SGS, TUV
• Trademark：BaoYuanTong
• Origin：Weifang, China
• HS Code：8479819000
• Production Capacity：200sets,Month

Basic Info.

Model NO. BWZ-C1 Suitable for Copper, Aluminum, Alloy Type Coiling Bending Machine Name 3D Channel Letter Bender / Letter Bending Machine Key Words Channel Letter Bender Function Automatic Feeding, Slotting and Bending Applicable Material Alu=Aluminum Stainless Steel Flat Alu Folding Alu Channelume Max Material Width 160mm Max Material Thickness 1.5mm Slotting System Motor Control Air Pressure 0.6MPa File Format Dxf, Ai, Plt Transport Package Plywood Case Package Specification CE, SGS, TUV Trademark BaoYuanTong Origin Weifang, China HS Code 8479819000 Production Capacity 200sets/Month

Product Description

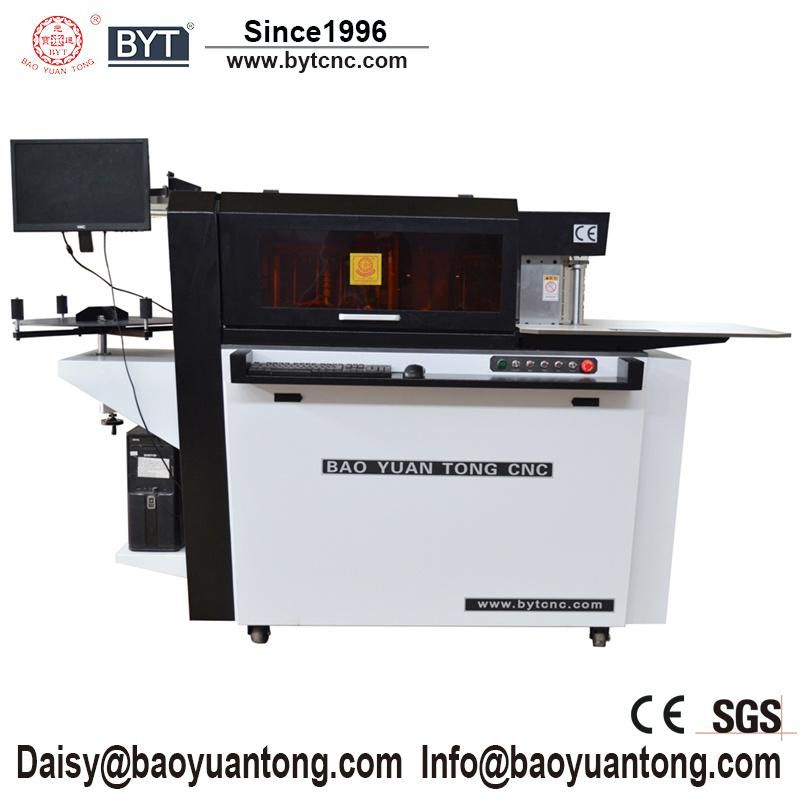

Advertising widely used automatic CNC 3d channel letter bender / letter bending machine
Product Description


Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process many materials (stainless steel, iron sheet, aluminum profiles, aluminum strip ) and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient and faster.

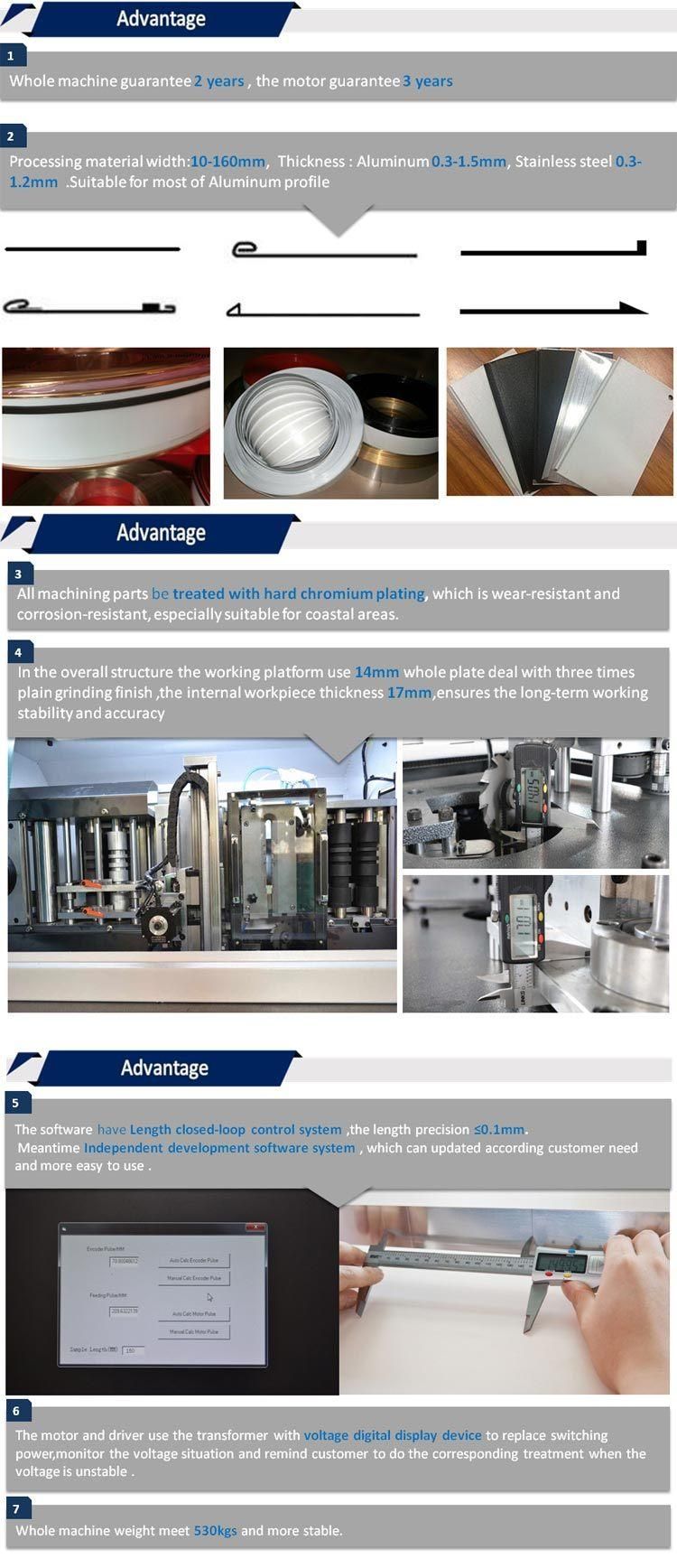

Whole machine feature:
1.Whole machine guarantee 2 years , the motor guarantee 3 years
2. Processing material width:10-160mm,  Thickness : Aluminum 0.3-1.5mm, Stainless steel 0.3-1.2mm
Suitable for most of Aluminum profile
3.All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4.In the overall structure the working platform use 14mm whole plate deal with three times plain grinding finish ,the internal workpiece thickness 17mm,ensures the long-term working stability and accuracy
5.The motor and driver use the transformer with voltage digital display device to replace switching power,monitor the voltage situation and remind customer to do the corresponding treatment when the voltage is unstable .
6.The software have Length closed-loop control system ,the length precision ≤0.1mm.
Meantime Independent development software system , which can updated according customer need and more easy to use .
7.Whole machine weight meet 530kgs and more stable.
8.Install cutting protection device to prevent cutting debris from splashing.




Advertising widely used automatic CNC 3d channel letter bender / letter bending machine

Technical data:

Model	BWZ-C1
Function	Automatic feeding,slotting and bending
Applicable Material	Stainless Steel,Aluminum ,Galvanized,Iron,Channelume
Material Width(mm) SS=Stainless steel Alu=Aluminum	SS:≤160  Flat Alu:≤160 Fold Alu≤130 Channelume:70,90,110
Material Thickness	SS :0.3~1.2mm  Alu:0.3~1.5mm
Bending Radius	7mm

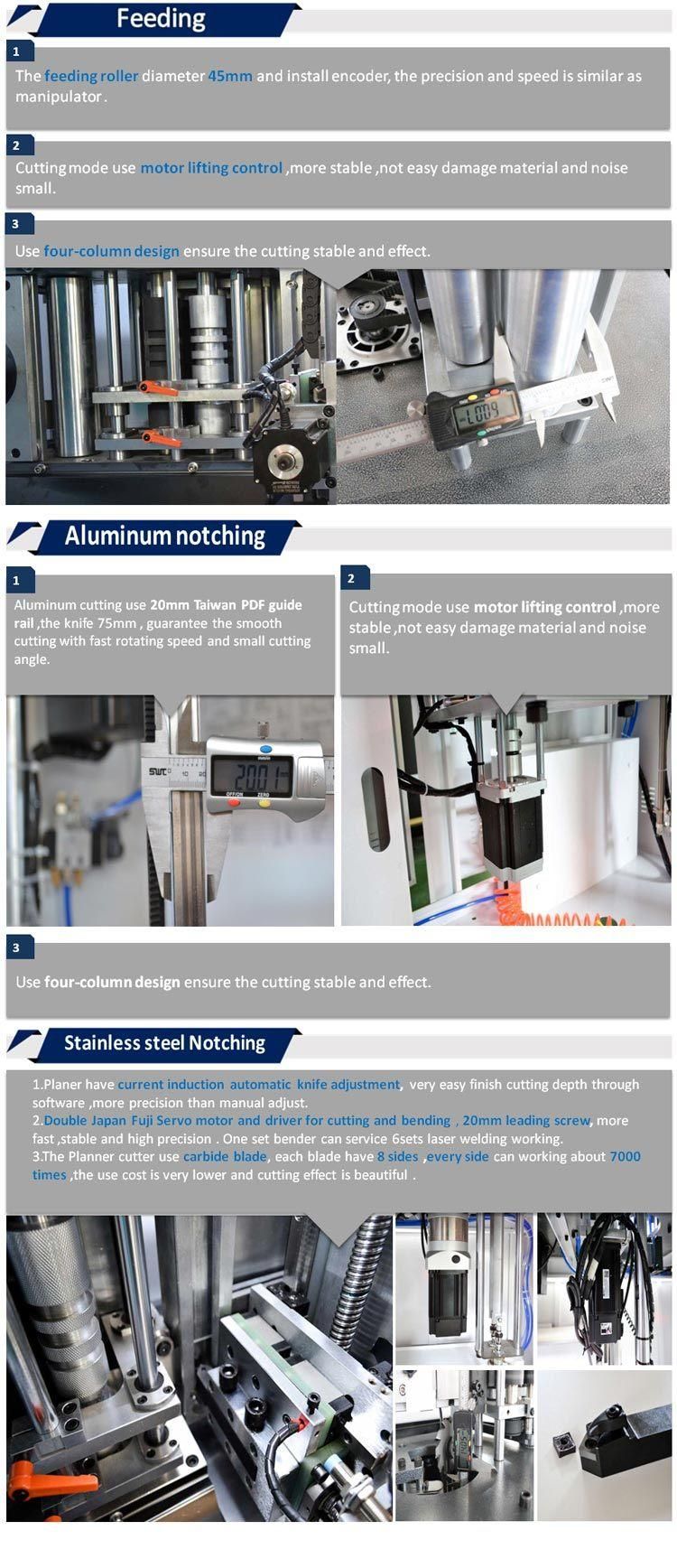

Feeding	φ45mm Feeding wheel +Guide Material +Encoder+Exit control device
SS slot Motor	Japan Fuji servo motor
Slotting	Motor control

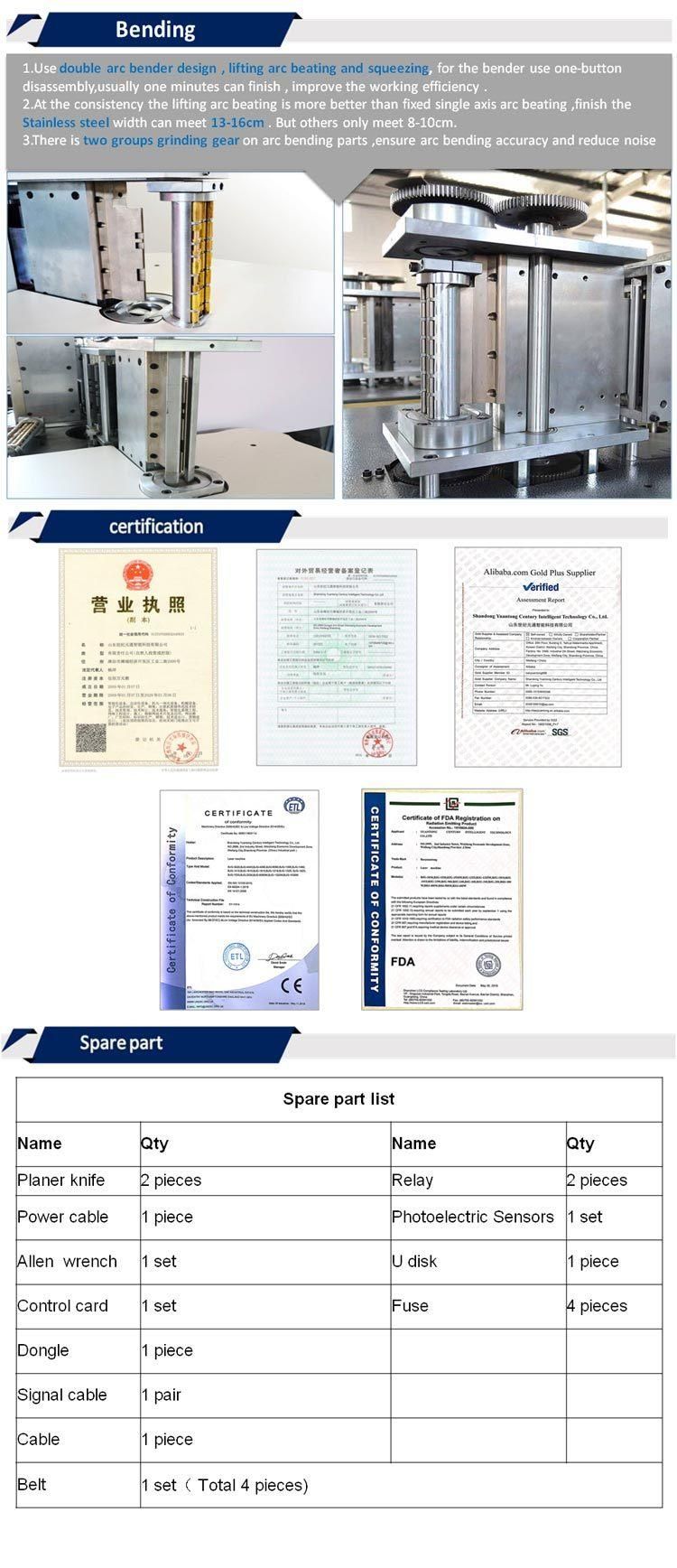

Bending	Coupled-Double copper shaft flat arc bender+Stainless steel arc bender
Control System	DC bender
Power	<2000W
Air Pressure	0.6MPa
File Format	Dxf, Ai,Plt
Working Voltage	220V/ 50-60HZ/1P
Net Weight(kgs)	500
Overall Size(mm)(L*W*H)	2680*880*1590

Why Choose Us
Full Automatic Signs Making CNC Channel Letter Bending machine
 Company Experience
1.Founded in 1996, with registered trademarks "BAOYUANTONG" and "BYT".
2.Own more than 30 patents for invention, utility model and design.
3.Passed the "SGS certification" for 9 consecutive years, and all products have obtained the " Europe CE certification"
4.Exported to over 150 countries including the North America, Europe, South America, the Middle East,and have more than 2000 clients.
5.Provide one-stop procurement ,let customer's purchase more efficient and safety.
6.According the customer different requirements ,provide equipment customized solved plan and sample making .
Sales Service
1.Technical people have professional english ability and directly with customer communication.
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.

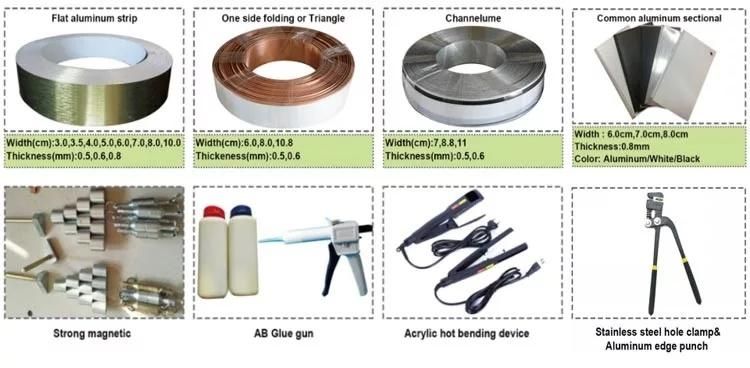

Optional parts
1) Aluminum profiles : We have different type and color aluminum profiles for choose ,when you need I give you quotation sheet.
2) Computer : When this machine working ,there is control card need install in a computer . For control system no limited .
3) Compressor : Need 0.3-0.6Mpa Air compressor working .


Feedback
Our responsibility -- provide stable and reliable performance of the equipment and provide high-quality service, let every user satisfaction. (Click the picture ,listen user's voice)


Package and delivery
1.After the completion of machinery production, the factory inspectors shall check and put the equipment into storage.Before the delivery of the equipment, the after-sales engineer shall conduct secondary inspection and ensure the quality of the machine meets the customer's requirements
2.Clean the whole machinery , protect the parts that need oil, and check the related parts again .
3. Anti-collision package edge: All parts of the machine are covered with some soft materials.
Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time and money.

FAQ
1. What is Channel letter bending machine?

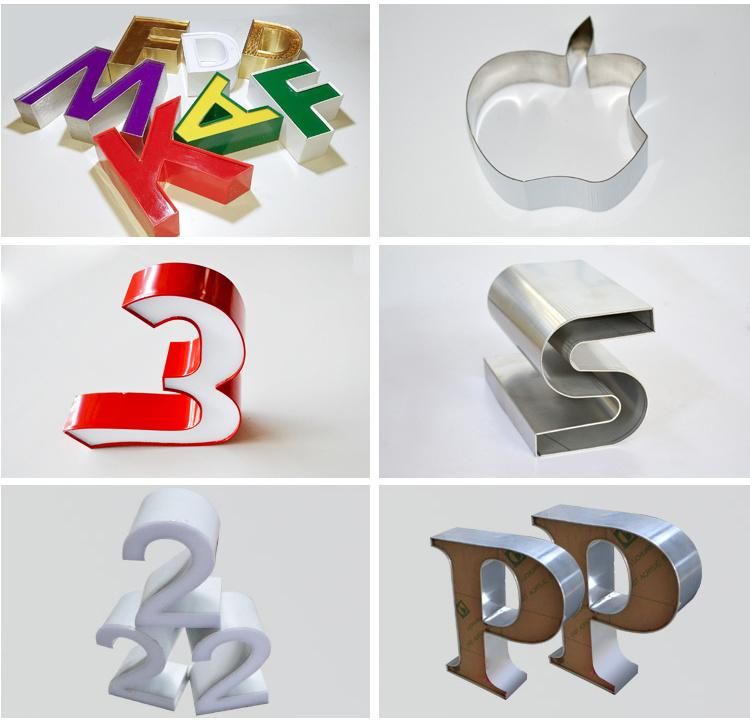

Introduction of the machine: mainly produces metal 3D letters and light boxes
2. How to choose a suitable Letter bending machine?
1) According to local needs,which letters are more popular, aluminum alloy or stainless steel letters.
2) If the budget is less than 5000$, then you can choose aluminum letter bending machine
More than 5000$, consider multifunctional one
3. What are the functions of the Letter bending machine?
It with automatic feeding, slotting, and bending functions, high precision and save labor cost
4. What are the functions of the Letter bending machine?
Together with the machine ,there is detail english install and operate manual &&video, meantime before you get this machine ,our service engineer will contact with you in advance, all questions you can contact with them in anytime.
5.What is the type of shipping and producing time ?
We offer EXW,FOB ,CIF ,DDU and DDP which you can choose as you like .
When you pay for the deposit , We will arrange producing which about 7-15days delivery .
