100t2500 Simple Nc Hydraulic Steel Plate Bending Machine

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Warranty：2-year
  • Condition：New

Base Info

  • Model NO.：WC67D 100T2500
  • Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
  • Automation：Semi-Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Steel
  • Type：Press Brake
  • System：Snc53
  • Axis：Y1, Y2, X
  • Max Bending Length：2500mm
  • Max Bending Thickness：4mm for 2500mm Sheet
  • Backgauge Fingers：3 Pieces
  • Sliding Front Support Arms：2 Pieces
  • Quick Clamps：12 Pieces
  • Main Electrica Components：Schneider
  • Ball Screw and Linear Guide Rail：Taiwan Hiwin&Tbi

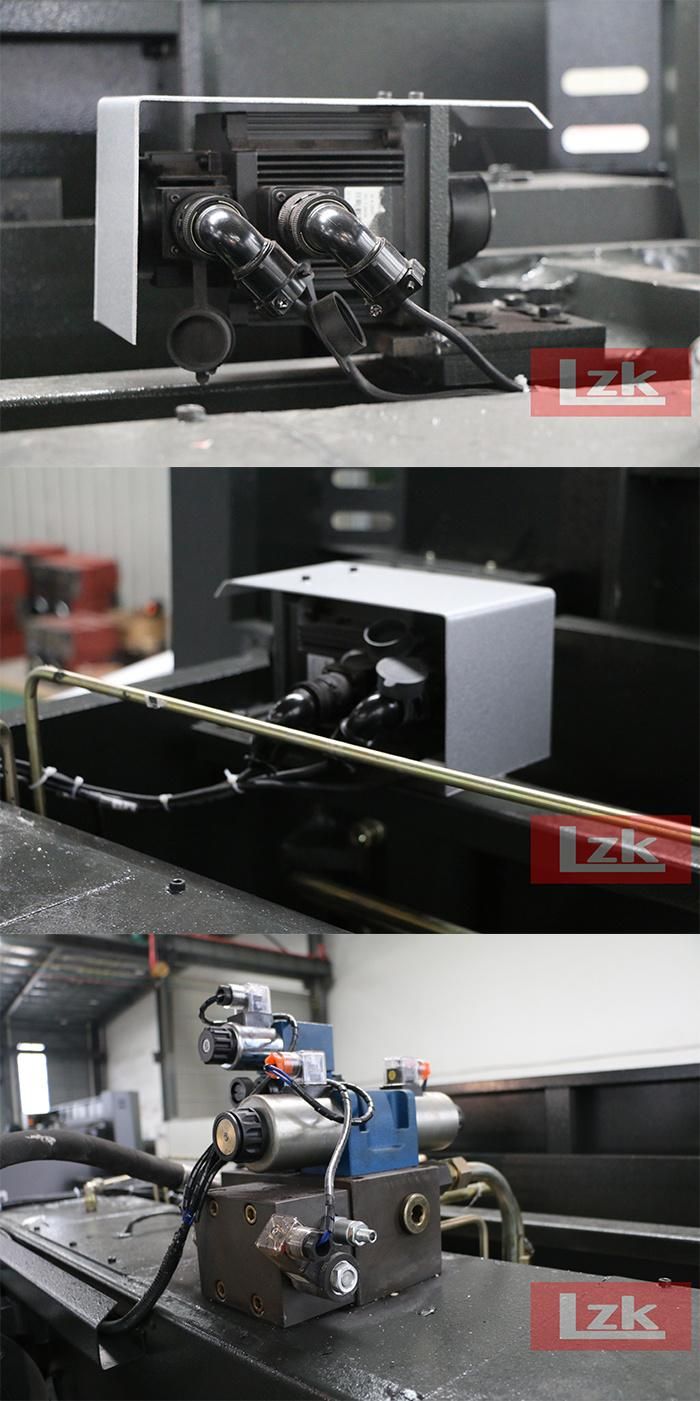

  • Hydraulic System：Rexroth
  • Transport Package：20gp
  • Specification：2800× 1750× 2420mm
  • Trademark：LZK
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：100 Sets,Month

Description

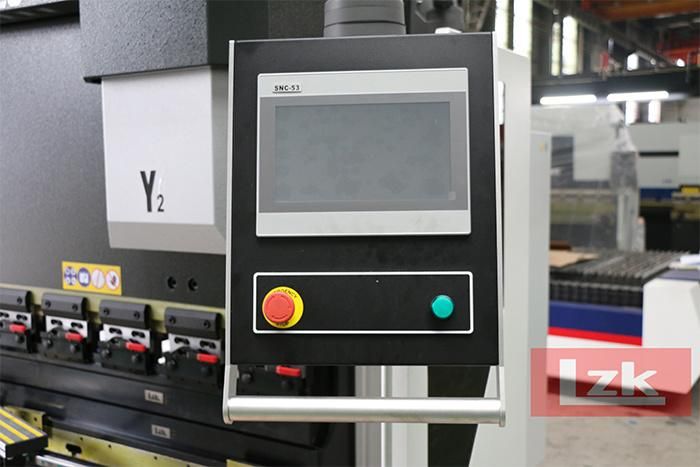

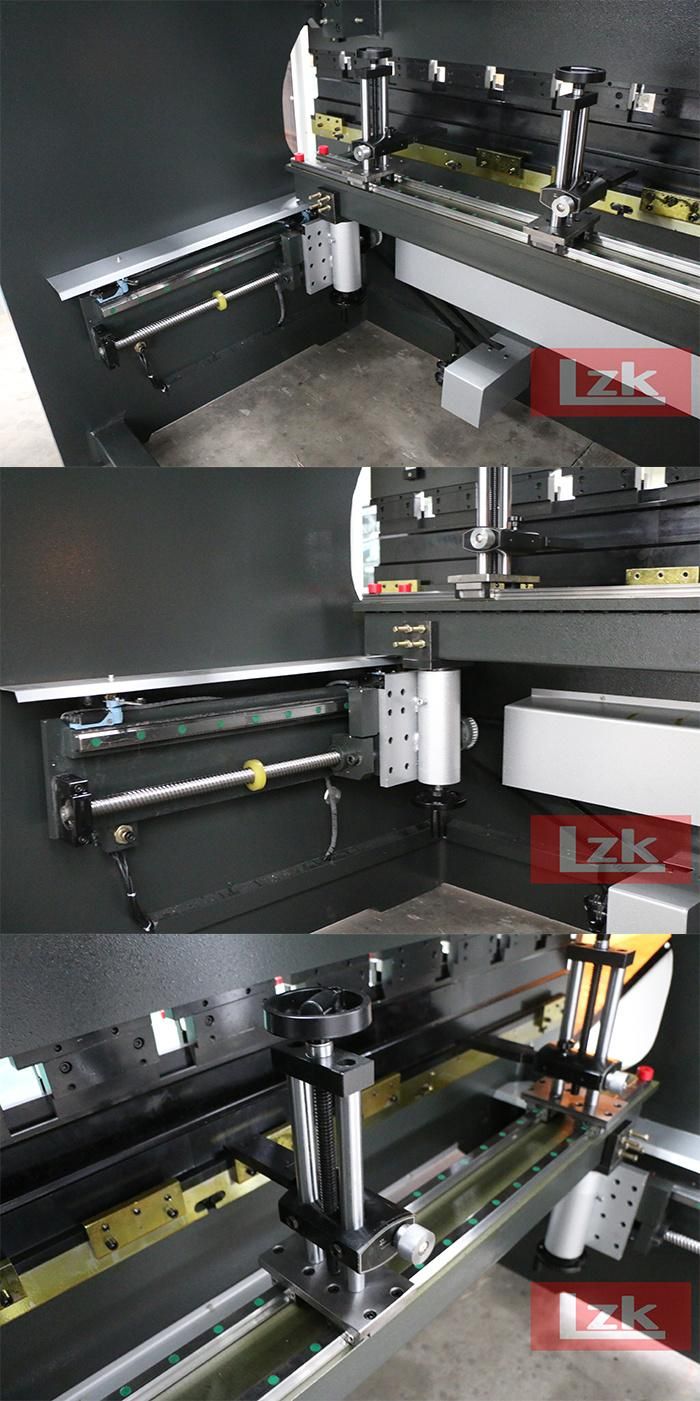

The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.100t2500 Simple Nc Hydraulic Steel Plate Bending MachineSNC53 Features and Functions1. For the backing material (X) of the bending machine, the position of the block in the left and right cylinders (Y1, Y2), the lifting position of the rear block (R), the left and right gears (Z1, Z2), the pressure (P) and the deflection compensation (Hydraulic, mechanical) (V) for automatic positioning control.2. The parameters can be set to single side and bilateral positioning mode, and the single side positioning mode can effectively eliminate the screw drive gap.3. The system has a soft limit function.4. Power-off position memory function.5. The display scale factor can be set according to the screw pitch and the transmission ratio. The display scale factor can be automatically calculated by the numerical control system through the teaching operation function, and the operation is very simple.6. Single step insert mode, very practical and convenient.7. Multi-step programming function, can achieve multi-step automatic operation.8. Retreat the escape function to avoid interference between the back gauge device and the workpiece to reduce wear.9. Integrated pump start and switch adjustment, single, continuous function in the system.10. With password protection.11. Large arc programming function.12. IO port flexible configuration and valve group configuration function.13. The raster real-time feedback slider position.100t2500 Simple Nc Hydraulic Steel Plate Bending MachineBackgauge Taiwan famous brand ball screw and linear guide railHeight adjustable fingers stops100t2500 Simple Nc Hydraulic Steel Plate Bending MachineMain Schneider electrical componentsSouth Korea KACON footpedal100t2500 Simple Nc Hydraulic Steel Plate Bending MachineSliding front support armsQuick clampsOne set of tool with machine, it can be designed according to customer's product100t2500 Simple Nc Hydraulic Steel Plate Bending MachineSiemens main motorGrating ruler100t2500 Simple Nc Hydraulic Steel Plate Bending MachineY1Y2 oil cylinder mechanical stop and servo control can be adjusted separately, which solves the problem of inconsistent left and right angles of traditional torsion axis machine tools and manual climbing up and down. Twisted shaft synchronization, high precision.100t2500 Simple Nc Hydraulic Steel Plate Bending Machine

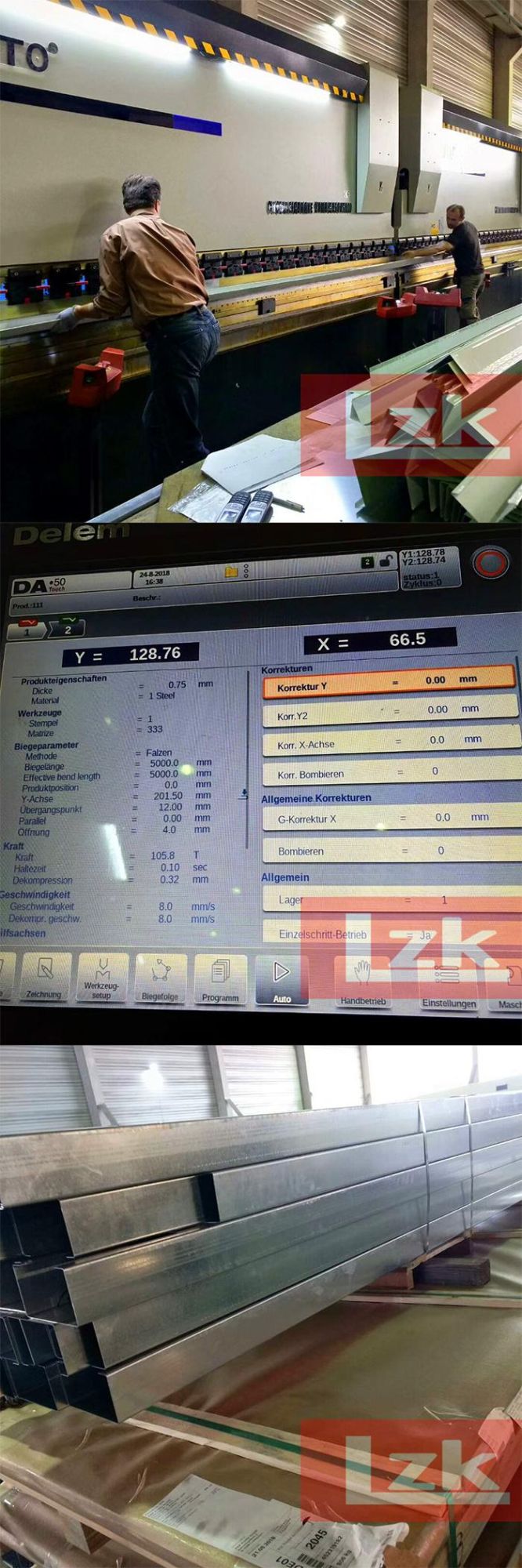

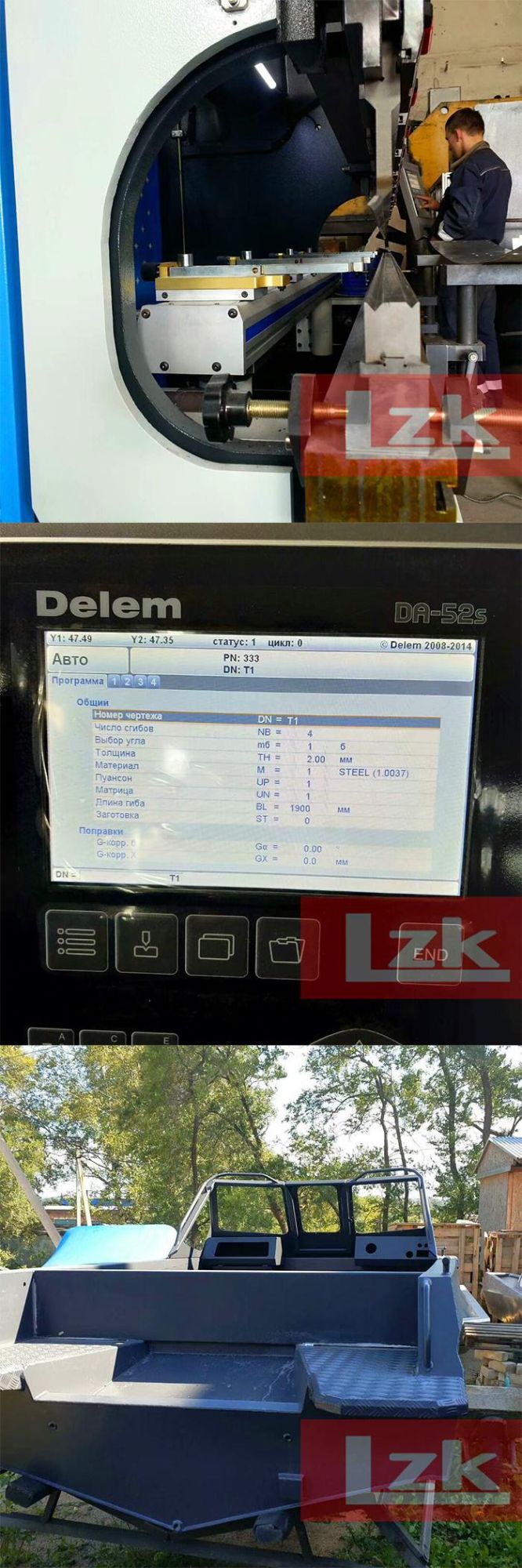

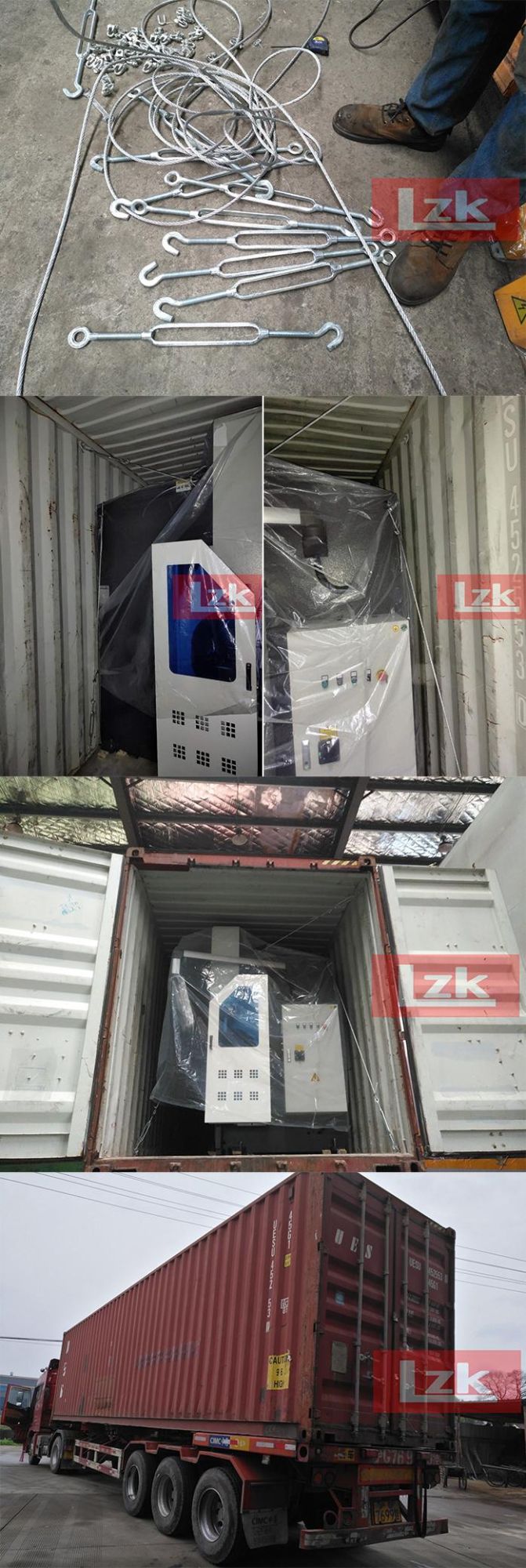

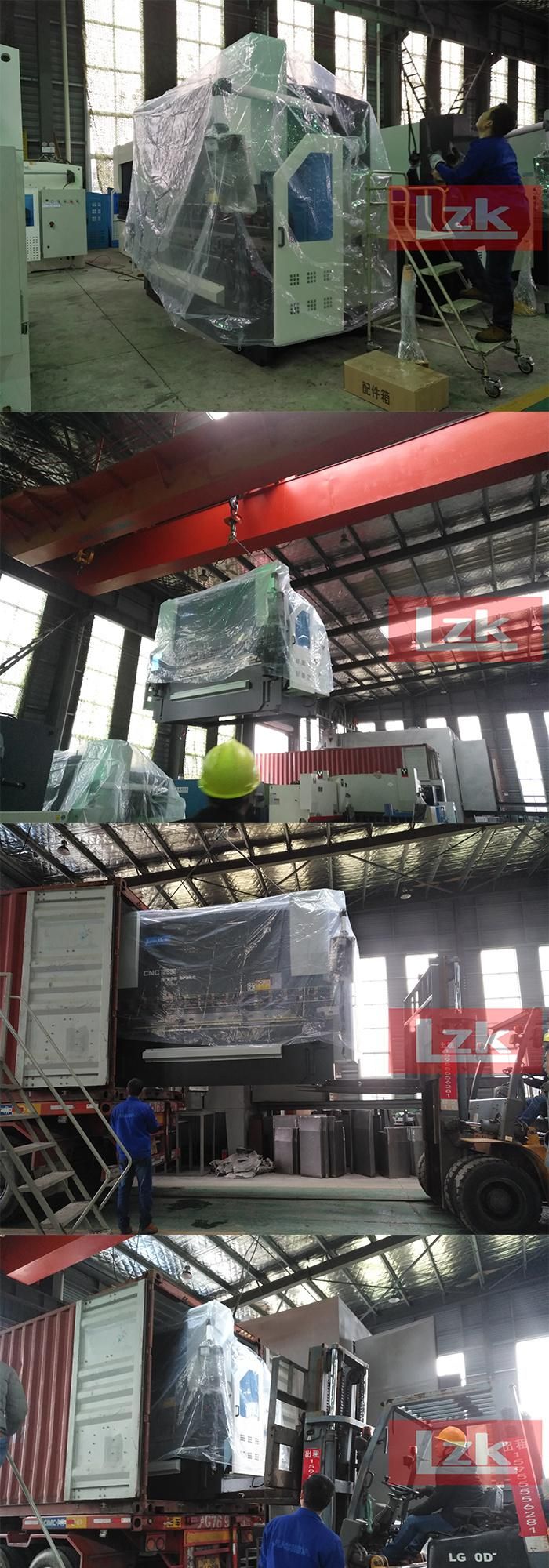

100t2500 Simple Nc Hydraulic Steel Plate Bending MachineMachine Loading100t2500 Simple Nc Hydraulic Steel Plate Bending MachineGerman Customer with Tandem Press Brake for long sheet bending100t2500 Simple Nc Hydraulic Steel Plate Bending MachineRussia Customer, manufacturer of Yacht100t2500 Simple Nc Hydraulic Steel Plate Bending MachineCustomer from diffrenet countries come for inspection and cooperation
