Cutting & Fold-bend Machine

Model Bpq-Wd2150 Foaming Horizontal Cutting Machine (mesh belt)

Nanjing BCD Bedding Machinery Co., Ltd.
  • Waterproof Rating:IPX-5
  • Warranty:1-year
  • Certification:CE
  • Condition:New
  • Control:Automatic
  • Application:Plastic, Leather

Base Info

  • Model NO.:BPQ
  • Power Source:Electric
  • Layout:Horizontal
  • Motor Power:8.14kw
  • Available Foam Block:W1650*L2000mm , or W2150*L3000mm
  • Max. Cutting Height:H1200mm
  • Cutting Speed:0~25m,Min
  • Blade Length:8500mm, or 9480mm
  • Foam Slice Thickness:2.5~200mm
  • Transport Package:Well Protected Package
  • Specification:CE SGS
  • Trademark:BCD bedding machinery
  • Origin:Nanjing, China
  • HS Code:84774090
  • Production Capacity:30 Sets,Month

Description

Basic Info.

Model NO. BPQ Power Source Electric Layout Horizontal Motor Power 8.14kw Available Foam Block W1650*L2000mm , or W2150*L3000mm Max. Cutting Height H1200mm Cutting Speed 0~25m/Min Blade Length 8500mm, or 9480mm Foam Slice Thickness 2.5~200mm Transport Package Well Protected Package Specification CESGS Trademark BCD bedding machinery Origin Nanjing, China HS Code 84774090 Production Capacity 30 Sets/Month

Product Description

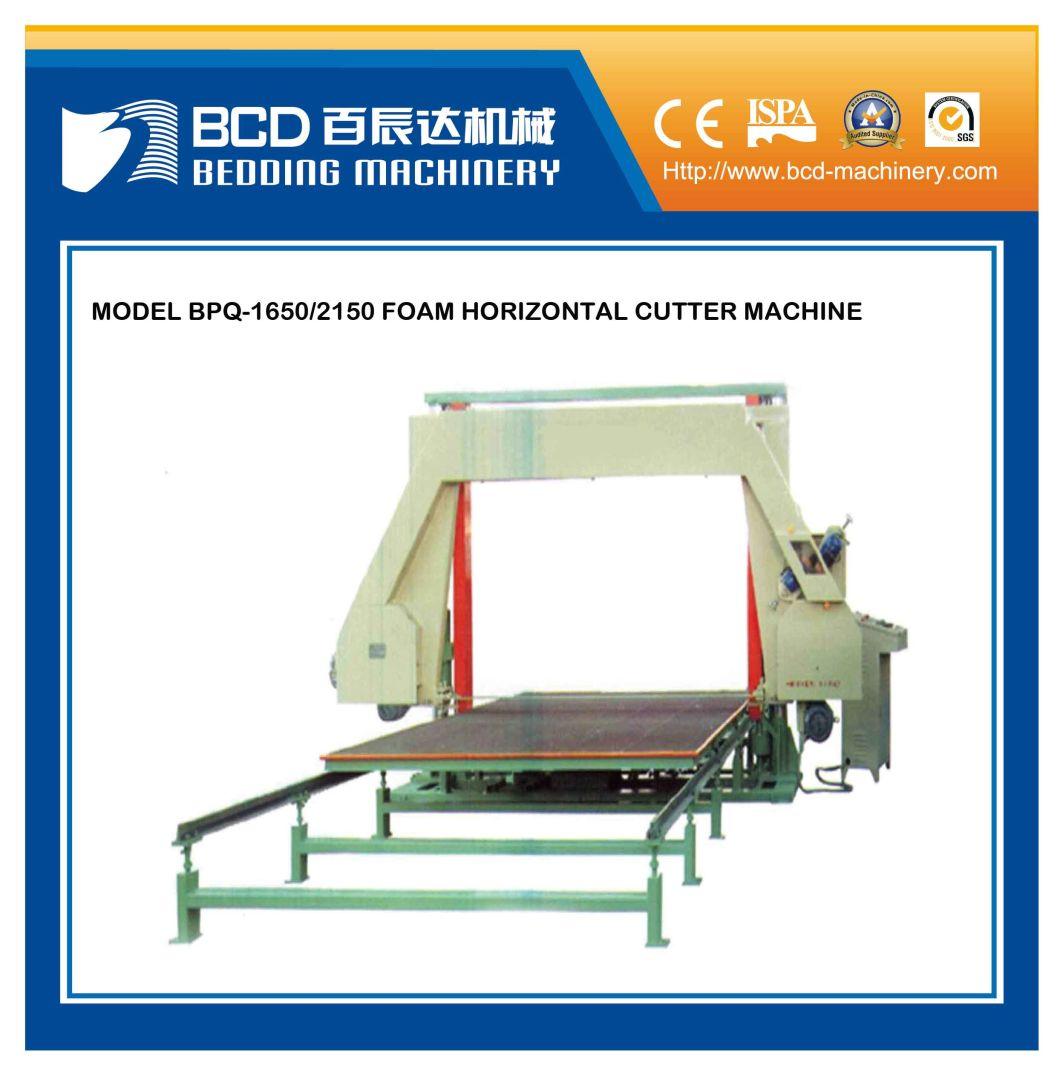

Foam Horizontal Cutting Machine (BPQ-1650/2150)Main application and performance
This machine is mainly used for horizontal cutting of foam blocks. Its feature as: Advanced international speed controller technology, fully automatic numerical controller, convenient operation and accurate cutting.
Model Bpq-Wd2150 Foaming Horizontal Cutting Machine (mesh belt)
Available foam blockW1650×L2000mm , or W2150×L3000mm
Max. cutting heightH1200mm
Cutting speed0~25M/min
Blade length8500mm, or 9480mm
Foam slice thickness2.5~200mm
Motor power8.14KW
Machine weight2000Kg;or 2200Kg
Machine external sizeL5800×W3500×H2400mm;  L7800×W4200×H2400mm
