Automatic Digital Feeding Die Cutter Plotter with High Precise and Fast Cutting and Creasing
Hefei Saga Computer Numerical Control Co., Ltd.- After-sales Service：Lifetime Service
- Warranty：1 Year
- Certification：CE, RoHS
- Condition：New
- Control：Automatic
- Application：Paper, Cardboard
Base Info
- Model NO.：SG-ASC 1907
- Power Source：Electric
- Layout：Vertical
- Max Cutting Speed：960mm,S
- Max Cutting Force：750g
- Maximum Cutting Size：A3+,483*330mm
- Media Hold Method：Vacuum Suction
- Cutting Control System：Digital Servo System
- Positioning Sensor Type：Digital Camera (CCD)
- Cutting Media Types：Self-Adhesive Sticker, Cardboard, PVC, etc.
- Software and Compatibility：Corel Draw,Adobe Illustrator PC Only, Compatible F
- Actual Dimensions：787mm*740mm*1320mm
- L 787mm× W 740mm× H 1320mm：970mm*970mm*880mm
- Gw/Nw：146,114kg
- Working Voltage110-240V 50/60Hz：110-240V 50,60Hz
- Power：1.1-1.3kw
- Transport Package：Wooden Package
- Specification：787mm*740mm*1320mm
- Trademark：saga
- Origin：Hefei China
- HS Code：84411000
- Production Capacity：10000PCS
Description

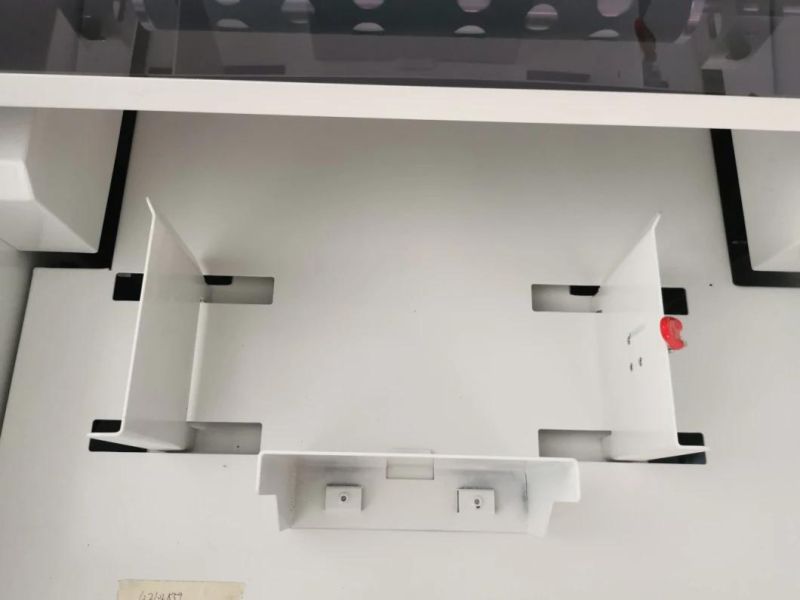

Detailed Photos
Model name
Cutting control system
X- High-power brushless servo motor
Y- High-power brushless servo motor
Digital Camera (CCD)

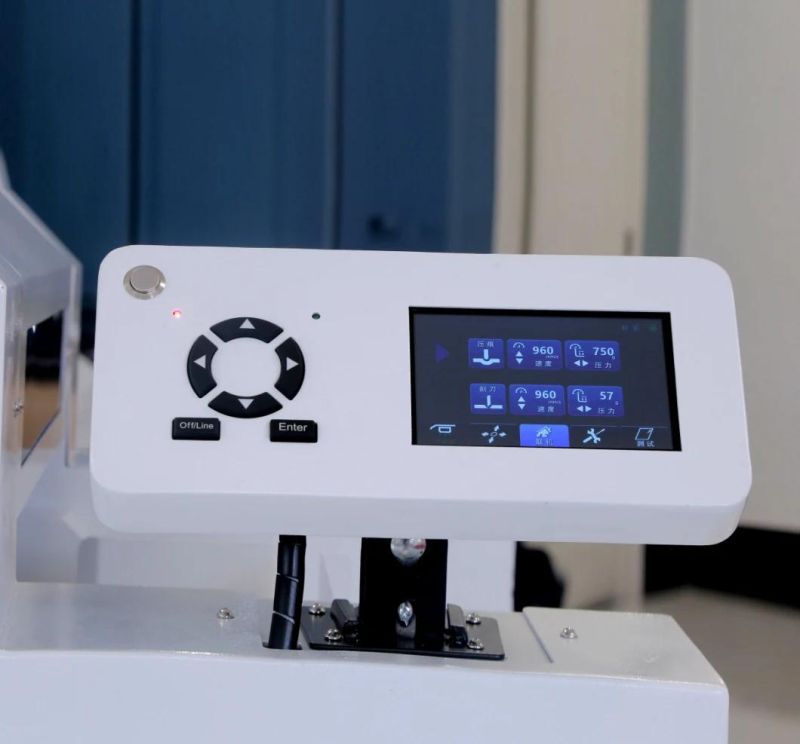

5 inch capacitive touch screen

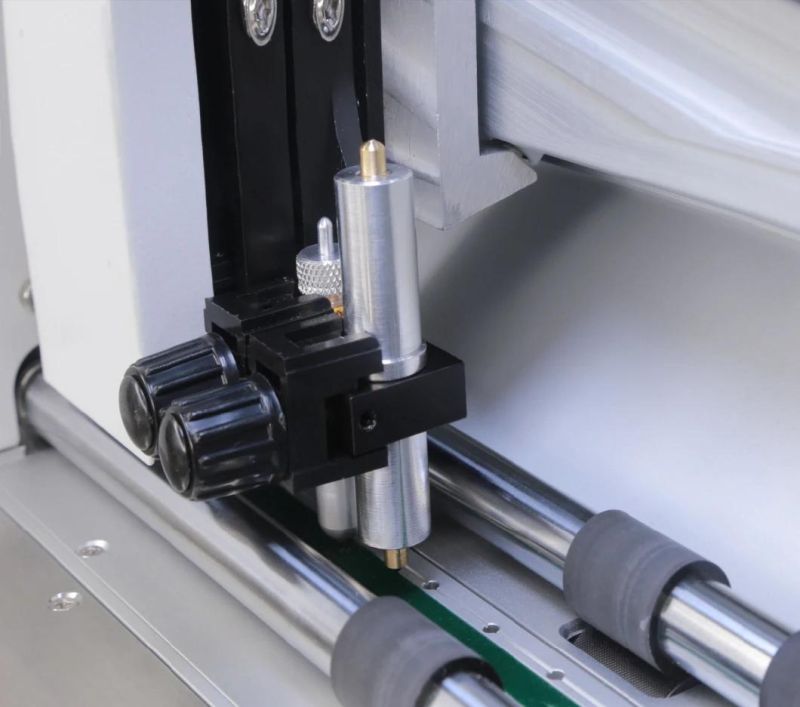

Double tool holders
Blade, creasing tool and pen

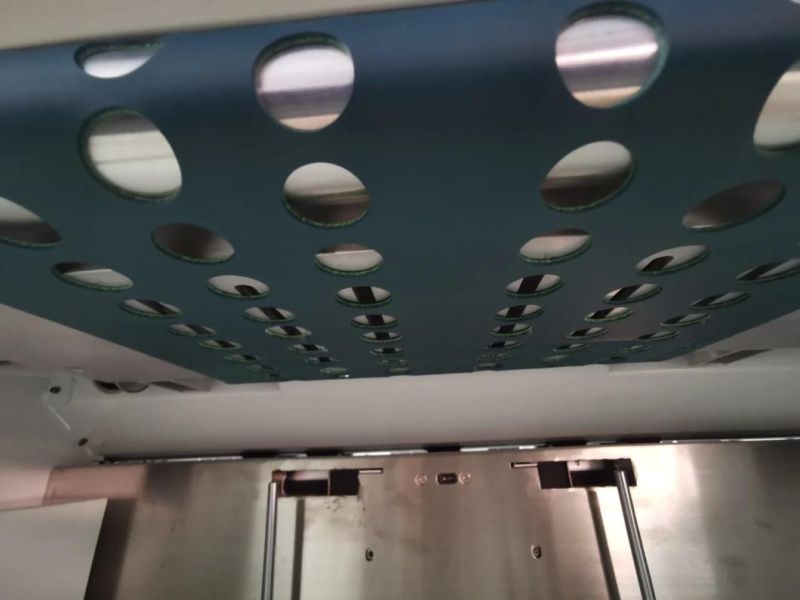

Vacuum suction
Mark/QR code
A3+ (483mmX330mm)
5-10s
Maximum actual cutting speed
12mm/s-960mm/s
12mm/s Step
Maximum Cutting Force
Creasing 0-750gf (3gf Step)
Blade 0-750gf (3gf Step)
Mechanical resolution
0.02mm
Programmable resolution
HPGL0.025mm
≤0.05
Self-adhesive sticker, cardboard, PVC, etc.
Software and compatibility
Connectivity
USB
Software and compatibility
Corel Draw,Adobe Illustrator PC only, compatible for windows7, 8,10 (USB interfaces )
Power and working environment requirements
Voltage and current
100VAC-120VAC,50/60Hz,Maximum current 6.8A
200VAC-240VAC,50/60Hz,Maximum current3.4A
Power
350W
Voltage and current (Vacuum Pump)
110VAC,50Hz,Rated current 12.4A,60Hz,Rated current 17.2A
220VAC,50Hz,Rated current 6.2A,60Hz,Rated current 8.6A
Power(Vacuum Pump)
50Hz,1.1KW; 60Hz,1.3KW
Stand
Included
Operation environment
Dimensions and weights
Actual dimensions
L787mm* W740mm*H1320mm
Package dimensions
NW/GW
114kg/146kg
This parameter is subject to change without prior notice. The company reserves the right of final interpretation
