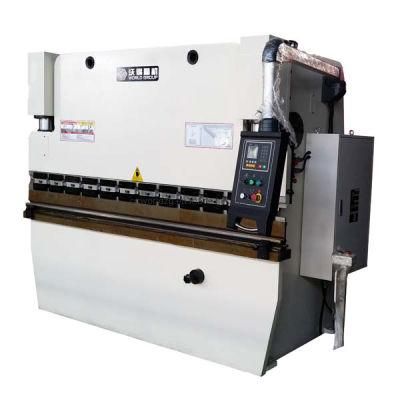

Hydraulic Bending Machine with 2500mm Table for 5mm Plate
Shanghai YingXin World Machinery Co., Ltd.- After-sales Service：Available
- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
Base Info
- Model NO.：WC67Y-100,2500
- Suitable for：Aluminum, Carbon Steel, Stainless Steel
- Type：Press Brake
- Bending Machine：Hydraulic Press Brake
- Motor Brand：Siemens
- Pump：Sunny
- Valve：Rexroth
- Control System：Estun E21 Nc System
- Color：Customized
- Transport Package：in Container
- Specification：bending width to 6000mm
- Trademark：WORLD
- Origin：China
- HS Code：84622190
- Production Capacity：2000PCS,Year
Description
| Items | unit | WC67Y-100/2500 | WC67Y-100/3200 | WC67Y-100/4000 |
| Nominal pressure | kN | 1000 | 1000 | 1000 |
| Length of table | mm | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 1900 | 2400 | 3000 |
| Throat depth | mm | 300 | 320 | 320 |
| Ram stroke | mm | 160 | 150 | 120 |
| Daylight | mm | 380 | 380 | 380 |
| Approach speed | mm/s | 120 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 9 |
| Return speed | mm/s | 100 | 100 | 90 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 2600 | 3300 | 4000 |
| Width | mm | 1600 | 1800 | 1800 |
| Height | mm | 2500 | 2500 | 2300 |
