• Model NO.：SB-50NCB
• Machine Type：Hydraulic Tube Bending Machine
• Certificates：Ce, ISO9001
• Color：Blue or Customized
• Eextra Function：1d Bending, Cutting
• Modle：Sb-50ncb
• Brand：Sanco
• Technology：Taiwan
• Transport Package：Wooden Case
• Specification：1000kgs
• Trademark：Sanco
• Origin：China
• HS Code：846221
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. SB-50NCB Machine Type Hydraulic Tube Bending Machine Certificates Ce, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting Modle Sb-50ncb Brand Sanco Technology Taiwan Transport Package Wooden Case Specification 1000kgs Trademark Sanco Origin China HS Code 846221 Production Capacity 1000PCS/Year

Product Description

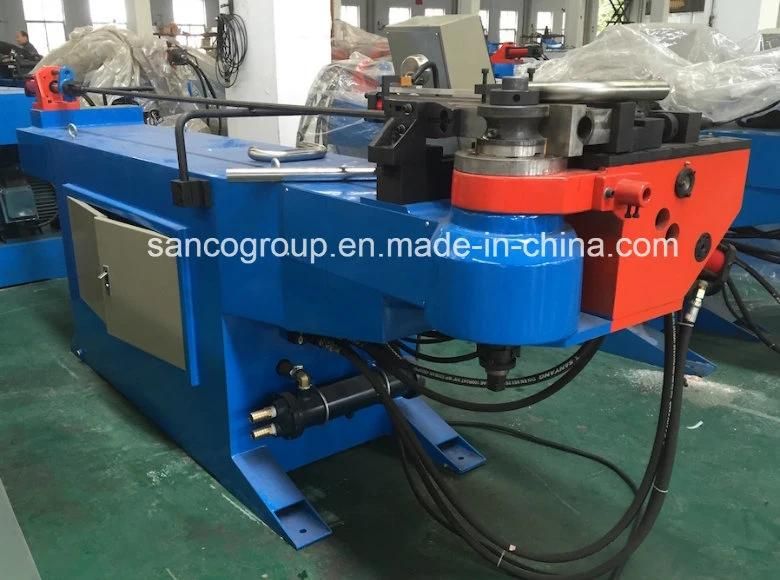

Hot Sell Tube/Pipe Bending Machine Made in China

 Bend-arm (C-axis) by hydraulic, clamp die by hydraulic, pressure die by hydraulic.
Anticipated mandrel retraction unit.
Automatic bending tube, manual feeding tube and manual angle rotating.
Water-cool system.
Foot pedal for safe start.
NC automatic bending machine controlled by PLC, an efficient, economical automatic pipe Bender.
Operation panel and PLC control system adopted, simple mode menu, accurate, fast, complete functions of hand-Operated, inching, quote setting, changing-program.





Applications:
Exhaust pipe of car, motorcycle, airplane and other machinery.
Tubes of air conditioning, furnitures, bikes, light pole, sports facilities
Kitchen and bathing facilities, medical equipments.
Applied material: carbon steel, stainless steel, aluminum, copper, alloy
Applied products: round tube & bar, square tube & bar, rectangle tube & bar, virous profile

Technical Data:

No.	Item	Data
1	Max Round Tube Mild Steel	50.8x2 mm
2	Non Ferrous	50.8x4 mm
3	Square Tube Mild Steel	40x40x2 mm
4	Solid Bar	25 mm
5	Min/Max Bend Radius	35 - 250 mm
6	Clamp Stroke	65 mm
7	Pressure Slide Stroke	65 mm
8	Max Bend Angle	190 Deg
9	Max Length Over Mandrel	2230 mm
10	Bending Speed	44 Deg/Sec
11	Bending Precision	+/-0.3 Deg
12	Hydraulic Motor	5.5 Kw
13	Total Power	5.5 Kw
14	Hydraulic Pressure	120 Bar
15	Hydraulic Tank Capacity	160 L
16	Machine Size	2940x720x1210 mm
19	Machine Weight	1200 Kg

Company Introduction:




  Zhangjiagang SANCO Machinery Co., Ltd


Our company video link:

https://sancogroup.en.made-in-china.com
SANCO(Taiwan and China mainland)Machinery Co., Ltd. was established in 1984, and have cooperation with Taiwan bender company since 1989, specialized in manufacturing Pipe Bending Machine, Metal Circular Saw Machine, Pipe End Forming Machine, Polishing Machine, Chamfering Machine and so on. In 1984, SANCO and "Shanghai Aircraft Design and Research Institute" joint the production of hydraulic pipe bending machine. And in 1984, "Shanghai Aircraft Manufacturing Co., Ltd." assembled 25 airplanes of American model MD82. Chinese government required SANCO mapping the prototype of Italian bending machine, and SANCO manufacturing the bending machine to produce airplane related accessories.
With 176 workers, 11 professional and technical engineers. SANCO company occupies 20,000 square meters, construction area of 15,000 square meters.
The three-dimensional CNC bending machine developed by SANCO is advanced than other Chinese factories. SANCO is the leader of drafting the "Chinese Standard of CNC Pipe Bending Machine" (GB / T28763-2012), released in November 2012, and implemented in May 2013. And SANCO is also the leader of "Chinese Standard of Pipe Bending Machine Safety" (GB28760-2012), released in November 2012, and implemented in October 2013.
All machines marked ISO 9001 and CE. SANCO machines exported to the United States, UK, France, Russia, Australia, India, Brazil, Poland, Canada, South Africa, Mexico, UAE, Saudi Arabia, and so on 58 countries.
NOW, AND FOREVER MORE ...    SANCO DO THE BEST OR NOTHING.

Company Photos:

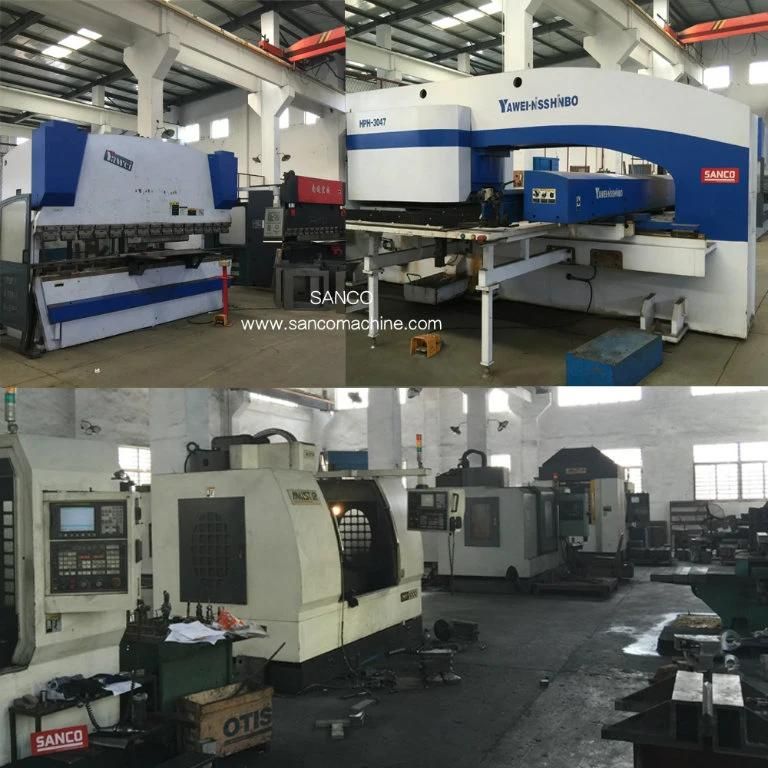

Aseembling workshops:

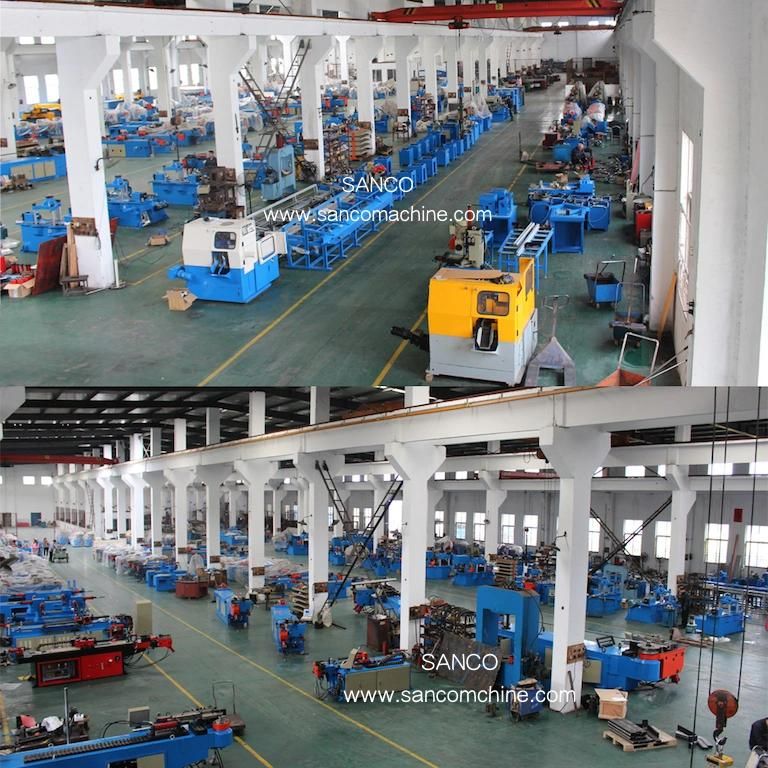

Finishing workshops:
