CNC Bending Machine for Aluminum Profile Aluminum Luggage Frame Bending Machine
Zhangjiagang Beyong Machinery Manufacturing Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：SB-V-38CNC
- Type：Pipe and Tube Bending Machine
- Applicable Material：Aluminum
- Applicable Shape：Profile
- Bending Way：Draw Bending
- Bending Technology：Cold Bending
- Cooling：Water or Fan Cooling
- Color：Standard,Customized
- Lubrication：Automatic Mechanical Lubircate
- Controlling：PLC Controlling
- Advantage：Special Designed for Luggage Frame Bending
- Designing：Patent Design
- Transport Package：Wooden Case
- Specification：3000*700*1650
- Trademark：Beyong
- Origin：China
- HS Code：8462219000
- Production Capacity：300
Description
NameUnit Technical 01 Max. Bending Capacity:Mild Steel mm ¢38x2 02 Stainless Steel mm ¢32x2 03 Min Bending Radius(Draw Bending) mm >=1.5D 04 Max. Bending Radius(For Machine) mm 200 05 Mandrel Length mm 3200 06 Max. One Time Feeding Length mm 2300
(Can be Customized) 07 Max Bending Angle ° 190 08 Bending Axis Speed Deg/sec 180 Accuracy mm ±0.1 Power KW 4 Controlled by Hydraulic 09 Feeding Axis Speed mm/sec 1000 Accuracy mm ±0.1 Power KW 0.75 Controlled by Servomotor 10 Machine Size mm 3000x700x1650

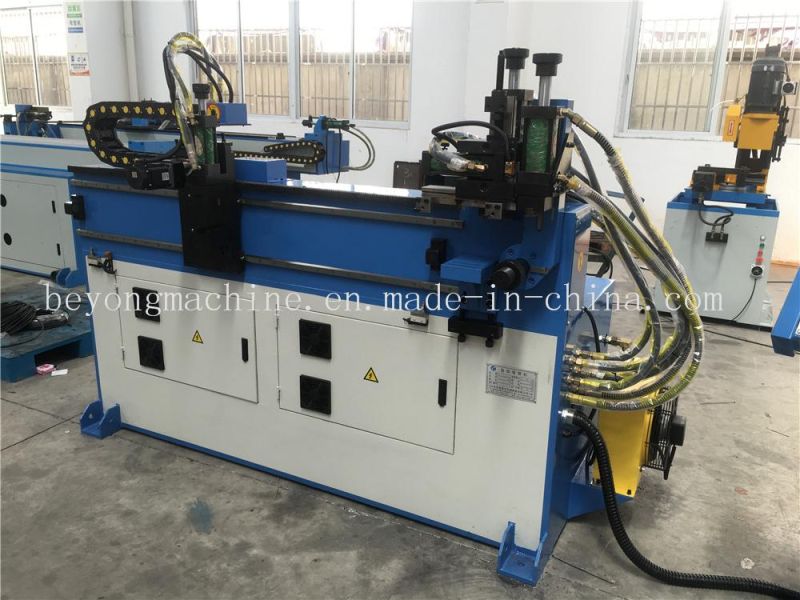

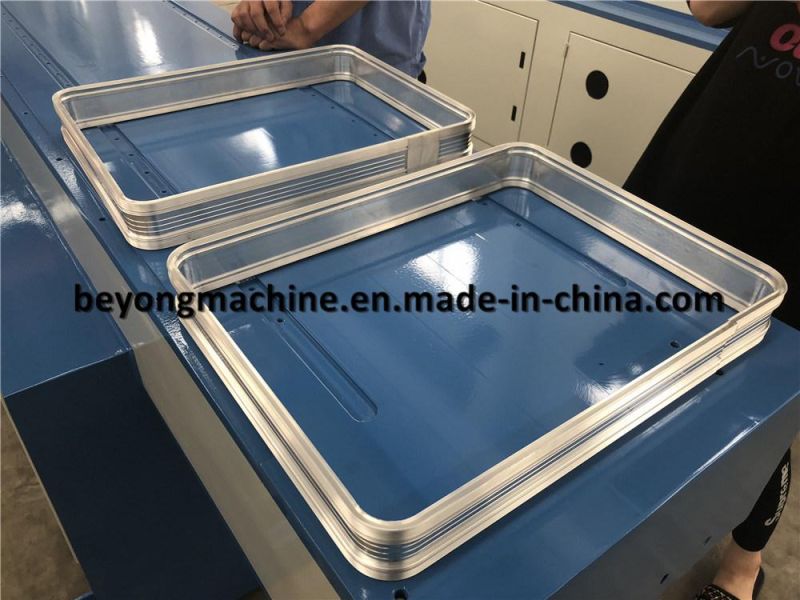

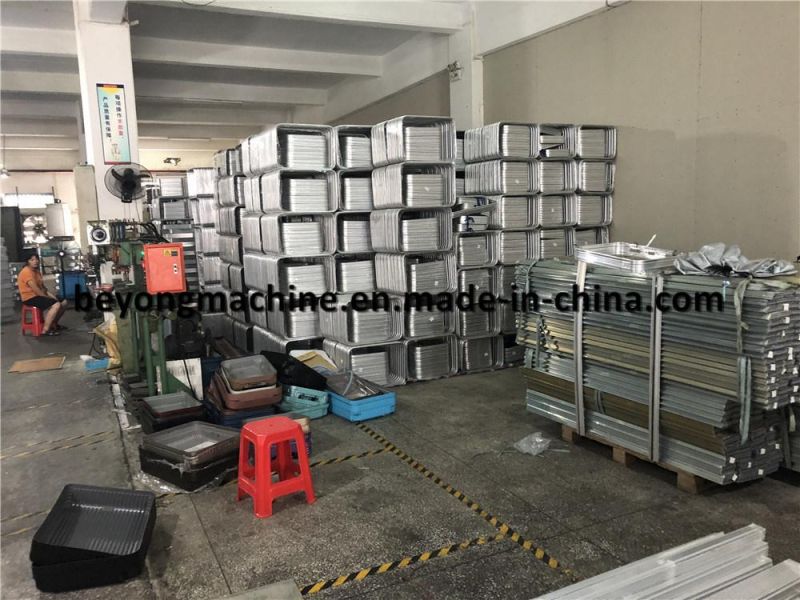

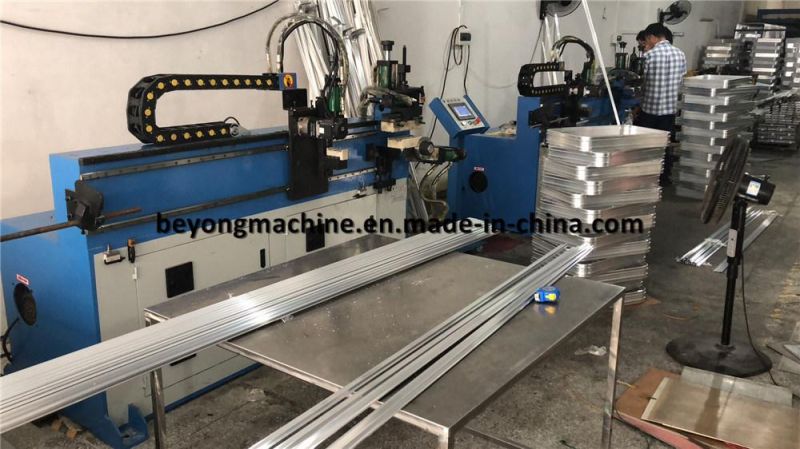

Machine Photos Reference
FAQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: Wuxi Airport or Shanghai Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
After Sales Service:
1. We provide manual book,detailed machine installation,commissioning video for help you correctly
operate machine.
2. We provide free installation,commissioning and training at our factory.If you need engineer go to
your factory for machine installation, air tickets,food,hotel,local transportation shoule be at your
account.
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
Packing&Delivery
Company Introduction:
Zhangjiagang BEYONG Machinery Manufacturing Co.,Ltd has been serving on tube processing machinery industries for over 15 years. We are committed to providing our customers with quality products, solutions and services provided on schedule, at competitive prices. Standard of mechanical parts including structure,characters etc... are similar with European's.For out-sourcing parts including Electric,Hydraulic,Mechanical etc...are from well-known companies.
Our Machines with full line of metal pipe processing machines including tube bending machine, circular saw machine, end forming machine, chamfering machine, saw blade sharpener,riveting machine...etc. Further more,we can customized machines with advanced technology,such as multi-function machine with draw bending+push bending+punching,straightening+bending+cutting and so on.
Our machines export to Italy,Germany,Australia,Russia,New Zealand,Canada, Poland,Mexico, Brazil,Chile,Argentina,Saudi Arabia,South Africa, Egypt,England etc.
