Backgauge:500mm Distance, Ball Screw, Linear Guide Rail
Bending Angle Programmed:Yes
Max Bending Thickness:3mm
Max Bending Legnth:2500mm
Clamping System:Quick Clamp
Main Motor:Siemens
Hydraulic Valve:Rexroth
Weight:2600kg
Transport Package:20gp
Specification:1520*1700*2550 mm
Trademark:LZK
Origin:China
HS Code:8462230000
Production Capacity:100 Sets,Month
Package size per unit product:1000.00cm * 940.00cm * 2350.00cm
Gross weight per unit product:980.000kg
Description
Rack machining:The bending machine frame is integrally processed by a large floor boring and milling machine.

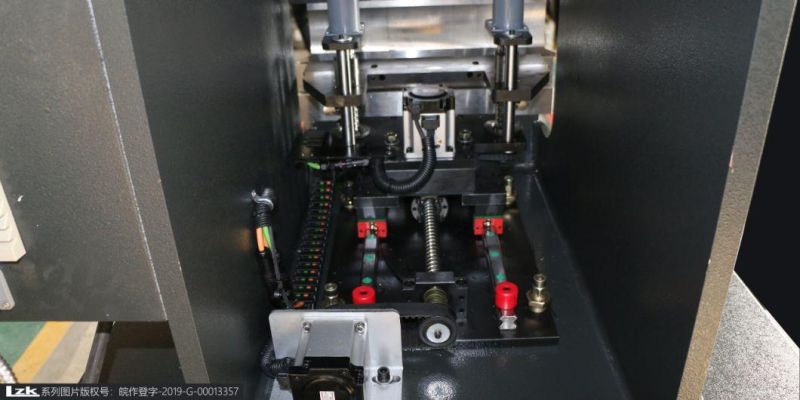

LZK |precision fast back gauge
Adopt high-precision 2-axis back gauge. Driven by servo motor, ball screw and linear guide to ensure high-precision operation. The beam height is adjusted by CNC.
EPB series Specs
Name
Model/Manufacture
CNC System
SYNTEC(10T-40T) LZ80T(65T-100T)
Y axes servo motor
SYNTEC SNAYO
Backgauge servo motor
SYNTEC Fuji,Japan
Compensation
Mechanical compensation(Standard equipment for models of 2,500 m m and above)
Electrics
France Electrics
Pedal Switch
South Korea KACON
mold
Standard 202 Frame knife, Double V same core / single V lower mode
