Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry

Shandong Zetian CNC Machine Tool Co., Ltd.
  • After-sales Service:Lifelong
  • Automation:Automatic
  • Certification:CE, ISO 9001:2000
  • Condition:New
  • Warranty:1 Year
  • Colour:Customized

Base Info

  • Model NO.:ZSL-0.3-2X1650
  • Thickness:2.0mm
  • Width:1650mm
  • Coil Weight:5, 10, 15, 20, 25tons
  • Material:Cold Rolled Platestainless Steel Aluminum Coil etc
  • Width Acuracy:0.1 mm
  • Cutting Burr:3%
  • Slitting Quantity:25 Strip
  • Line Speed:0-150m,Min
  • Winding Split Level Error:1 mm
  • Brand:Zeye
  • Transport Package:Seaworthy Packing
  • Specification:35 m L X 10 m W
  • Trademark:ZeYe
  • Origin:China
  • HS Code:8460902000
  • Production Capacity:70

Description

Basic Info.

Model NO. ZSL-0.3-2X1650 Thickness 2.0mm Width 1650mm Coil Weight 5, 10, 15, 20, 25tons Material Cold Rolled Platestainless Steel Aluminum Coil etc Width Acuracy 0.1 mm Cutting Burr 3% Slitting Quantity 25 Strip Line Speed 0-150m/Min Winding Split Level Error 1 mm Brand Zeye Transport Package Seaworthy Packing Specification 35 m L X 10 m W Trademark ZeYe Origin China HS Code 8460902000 Production Capacity 70

Product Description

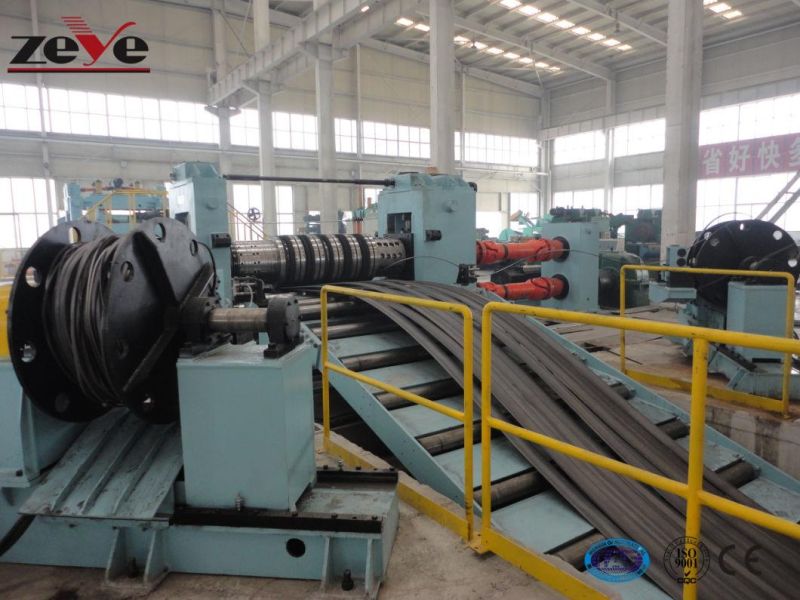

Slitting line ZSL series
Slitting line is mainly used for metail coil shear from decoiling,feeding, head shear, loop, slitting to recoiling.

Its function is to shear wide metal coil longitudinlly into narrow coils, many kinds of material are availble to shear, such as,
cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.
 Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry

Main Units
1.Entry coil car,
2.Uncoiler,
3.Feeding device,
4. Hydraulic head shear,
5.Looper,
6.Slitter machine,
7.Scrap winder,
8.Looper,
9.Tension device,
10.Hydraulic shear,
11.Recoiler
12.Exit coil car.


Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry

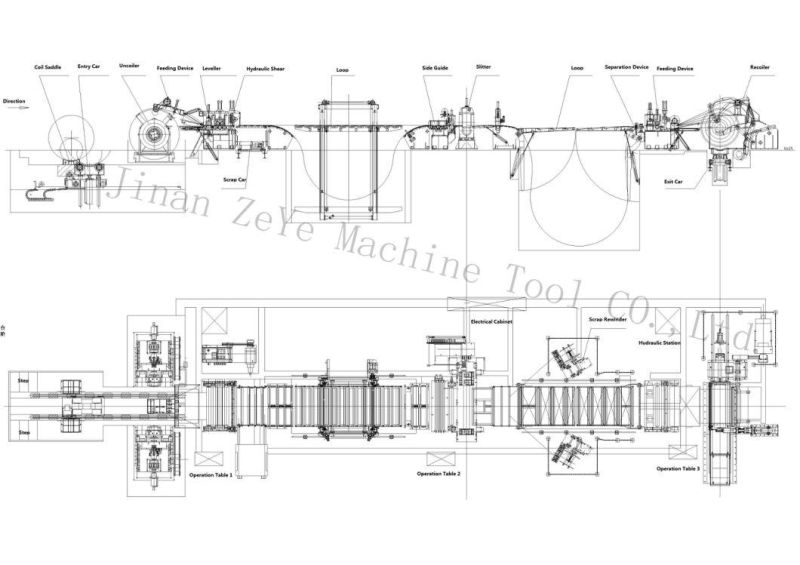

Slitting Line Layout
Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry
 Main Technical Parameters

ModelZSL-6ZSL-8ZSL-12ZSL-16ZSL-20/25
Material thickness1.5-6.0mm2.0-8.0 mm3.0-12 mm4.0-16.0 mm6.0-20/25 mm
Material width300-1600 mm300-1800 mm300-2000 mm300-2000 mm300-2200 mm
Slitting quantity3025252020
Width accuracy±0.10 mm±0.10 mm±0.20 mm±0.20 mm±0.20 mm
Cutting burr<3%<3%<3%<3%<3%
Winding split level floor<1 mm<1 mm<1 mm<1 mm<1 mm
Line speed120 m/min100 m/min80 m/min60 m/min60 m/min
Coil weight20,30 t20,30 t20,35 t20,35 t20,35 t

Our advantages

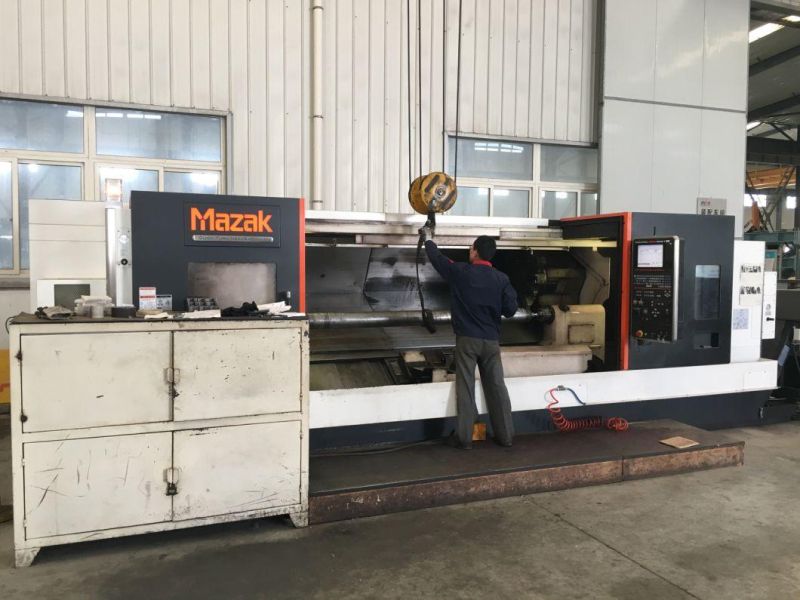

1.Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced processing equipments. Which can ensure to produce out high precision parts.
Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture IndustryThickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture IndustryThickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry

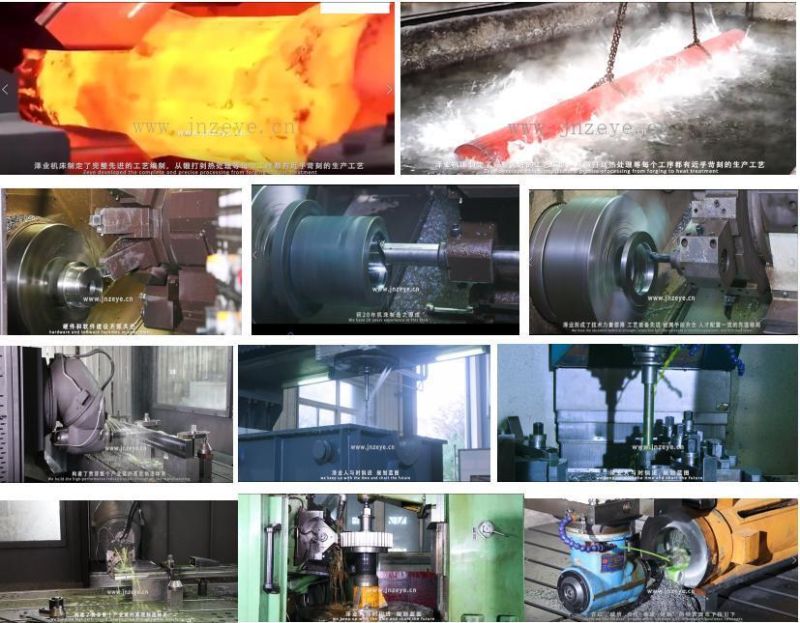

2. Every part has been finished it's own complete technology process, such as forge, rough machined,  heat treatment, cooling, burring, tempering,  finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.
Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry

3.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified and guarantee produce out the high accuracy shear production line.
Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry
Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.

Our Shear Production Lines have been exported to Australia, Mexico, Ukraine, Vietnam, Philipines, Uzbekistam, Algeria, Ethiopia, Thainland, Dubai, Sudan, Brazil, Myanmar, Congo etc. 30 countries and areas.
Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry

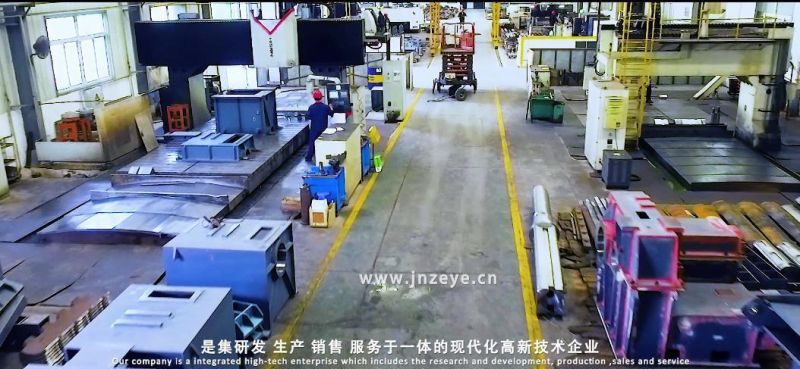

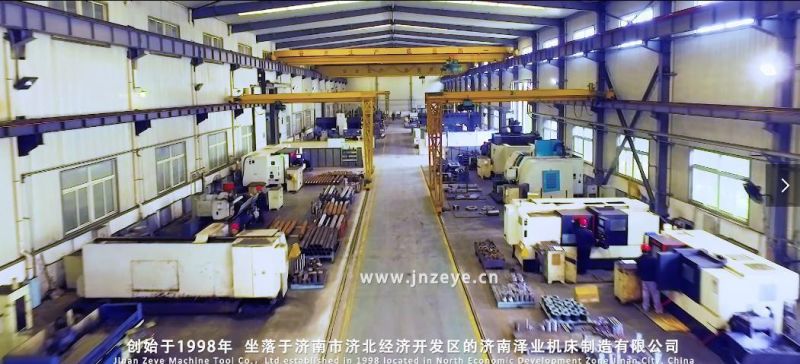

Company introduction
Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry

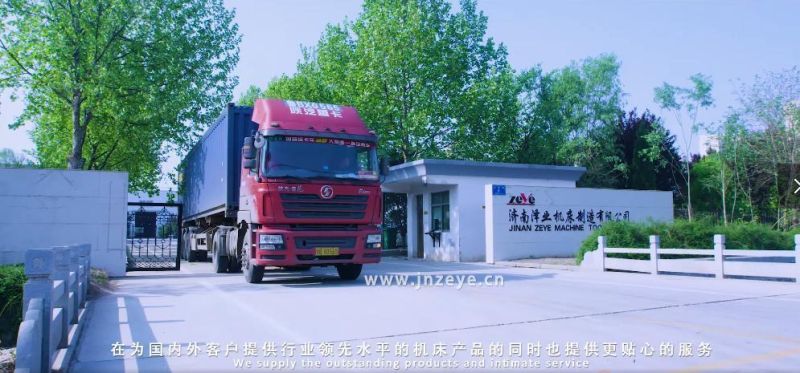

We have two companies, Shandong Zetian CNC Machine Tool Co., Ltd (short for "ZeTian" ) and Jinan ZeYe Machine Tool Co., Ltd ( short for "ZeYe") , ZeTian and ZeYe were founded by Mr.Hu. ZeTian is in charge of handle import and export business, ZeYe is in charge for production, which is located in Jinan city, Shandong Province, China, was founded in 1998.

ZeYe is mainly engaged in developing, manufacturing of Cut to Length Line, Slitting Line, Rotary Shear Line, Moving Shear Line, Slitting and Cut to Length Production Line, Slitting Recoiling or Cut to Length Compound Line and Leveling Machine.

Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. Industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.

We have one professional technical team and after sales service teams, we are ready to serve you at any time.
Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry

Thickness 2.0mm Width 1650mm Mini Plate Shear Slitting machine for Decoration and Horticulture Industry
Welcome to visit our factory.




FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line

for 23 years, we have a strong design & technical team,  we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, processing precision etc.

Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.

Warranty: 12 months when the equipment run normally .
